Высокоточный вертикальный фрезерный станок средней мощности для
- Категории: Machine Tool Equipment >>>
- Поставщик: SJR,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Milling, drilling, tapping, boring, reaming Head swivels or tilts Micro feed precision Heavy-duty tapered roller bearing spindle.Positive spindle lock Adjustable gibs on table Geared drive lower noise Accurate position, strong rigidity, strong cutting power
Characteristic

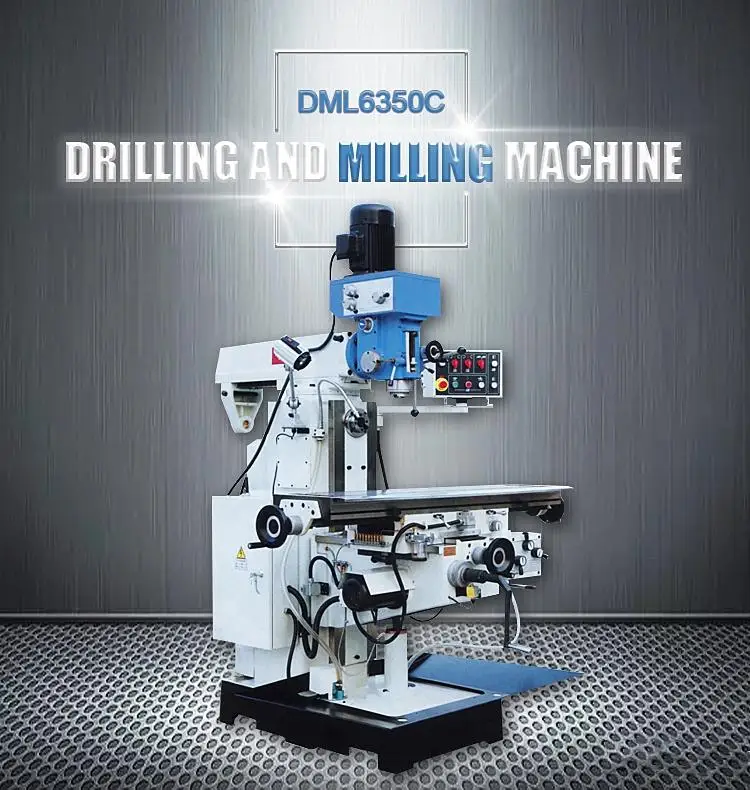

Drilling and milling machine is a multifunctional drilling and milling machine with a square box, also known as a universal
drilling and milling machine. End milling and horizontal milling are both gear transmission, with good torque transmission and
high machining efficiency. Equipped with a mechanical feeder
drilling and milling machine. End milling and horizontal milling are both gear transmission, with good torque transmission and
high machining efficiency. Equipped with a mechanical feeder
Product parameter
Main Specifications:
15303 | 15303-1 | 15303-2 | 15303-3 | 15303-4 | ||||
MODEL | DML6350A | DML6350C | DML6350Z | DML6350ZA | XZ6350ZB | |||
Max. drilling dia (mm) | 50; 30 | 50; 30 | 50; 30 | 50; 30 | ||||
Spindle taper | M.T.4; R8; ISO30 | M.T.4; R8; ISO30 | ISO30; ISO40 | ISO30; ISO40 | ||||
Max. vertical milling dia (mm) | 25 | 25 | 25 | 25 | ||||
Max. boring dia (mm) | 120 | 120 | 120 | 120 | ||||
Max. tapping dia (mm) | M16 | M16 | M16 | M14 | ||||
Distance. spindle to talbe surface (mm) | 100-480 | 100-490 | 90-370 | 100-430 | ||||
Spindle speeds rage (r.p.m.) (steps) | Vertical | 115-1750 (8) | 115-1500 (8) | 60-1500 (8) | 38-1300 (8) | |||
Horizontal | 40-1300 (12) | 40-1300 (12) | 40-1300 (12) | 90-2000 (12) | ||||
Spindle travel (mm) | 120 | 120 | 120 | 120 | ||||
Automatic spindle feeds (mm/r) | 0.08 0.15 0.25 | 0.08 0.15 0.25 | 0.08 0.15 0.25 | |||||
Table size (mm) | 1120 x 280;1000 x 280 | 1120 x 280;1000 x 280 | 1250 x 320 | 1120 x 260 | ||||
Table travel (mm) | 600 x 260 | 600 x 260 | 600 x 300 x 280 | 600 x 300 x 280 | ||||
Overall dimensions (mm) | 1400 x 1630 x 2350 | 1400 x 1630 x 2650 | 1700 x 1480 x 2150 | 1520 x 1285 x 2150 | ||||
Motor (kw) | Vertical | 0.85 | 1.5 | 1.5 | 1.5 | |||
Horizontal | 1.5/2.2 | 2.2 | 2.2 | 2.2 | ||||
N.W./G/W. (kg) | 1200/1350 | 1200/1350 | 1450/1550 | 1300/1400 | ||||
Old model | ZX6350A | ZX6350C | ZX6350Z | ZX6350ZA | WEIDA | |||
Recommend Products
Company Profile
Transport
FAQ
Q1Can I put my own label and logo on the products?
A: Yes,there are two options.
1), Send your label design to us and we make them for you.
2), Send your finished labels to us and we put them on the product.
Q2Payment ways available?
A: Paypal , Western Union, T/T, L/C, Ali-express, anyways you prefer.
Q3Why choose us?
A: (1)Own strong design team with various styles.
(2)More than 20 years experience manufactures with Reasonable price.
(3)High quality & quick response within 24 hours.
Q4Can we visit your factory?
A: We warmly welcome you to visit our factory anytime.
A: Yes,there are two options.
1), Send your label design to us and we make them for you.
2), Send your finished labels to us and we put them on the product.
Q2Payment ways available?
A: Paypal , Western Union, T/T, L/C, Ali-express, anyways you prefer.
Q3Why choose us?
A: (1)Own strong design team with various styles.
(2)More than 20 years experience manufactures with Reasonable price.
(3)High quality & quick response within 24 hours.
Q4Can we visit your factory?
A: We warmly welcome you to visit our factory anytime.
Good Accurancy Medium Duty Vertical Milling Machine For Metal
