Product Parameters
Electric System | |
Controller | ENPOWER |
Battery | 72V 100Ah gel maintenance-free battery |
Motor | 72V 4KW AC |
Charger | intelligent charger |
Technical Parameter | |
Passenger capacity | 4 seats |
Overall dimension | 3500×1450×1700mm |
Net Weight | 780kg |
Wheel base | 2500mm |
Min. clearance | 150mm |
Braking distance | ≤4m |
Input charging voltage | 220v |
Max. speed | ≤38km/h |
Driving Range | 100KM |
Max.climbing ability | ≤25% |
Min.turning radius | ≤4.8m |
Charging time | 8-10h |
Body & Frame | |
Seats | foam sponge+leather |
Body | welded steel framework + ABS injection cover |
Dashboard | forward/reverse switch, current meter, voltage meter, speed meter, battery capacity indicator |
Audio | MP3, USB, 2 loudspeaker |
Frame | welded steel framework with paint treatment |
Rear mirrow | 2pcs |
Light system | head light, turning light, rear light, horn, reverse buzzer |
Steering & Suspension | |
Transmission system | automatic drive system (stepless speed change) |
Steering system | rack and pinion steering system, automatic rocker compensating function |
Front axle | Mcpherson independent suspension, spiral spring + cylinder hydraulic vibration absorber |
Rear axle | motor directly connected integral rear axle, rear leaf spring + damper |
Braking system | rear brake+ composite pedal brake |
Tyre | 145/70R12 |
Products Description
Product Categories
About us

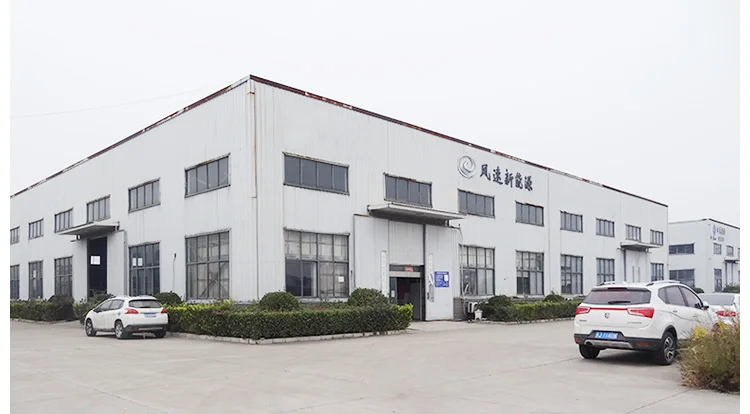

Jiangsu Fengsu Electric Vehicle Co., Ltd. is a manufacturing enterprise specializing in electric vehicles and accessories.We adhere to the business philosophy of "quality, integrity, pragmatism, and innovation", and strives to open up domestic and foreign markets.
