Direct cnc lathe factories cnc lathe y axis TCK66A maquina torno cnc
Products Description

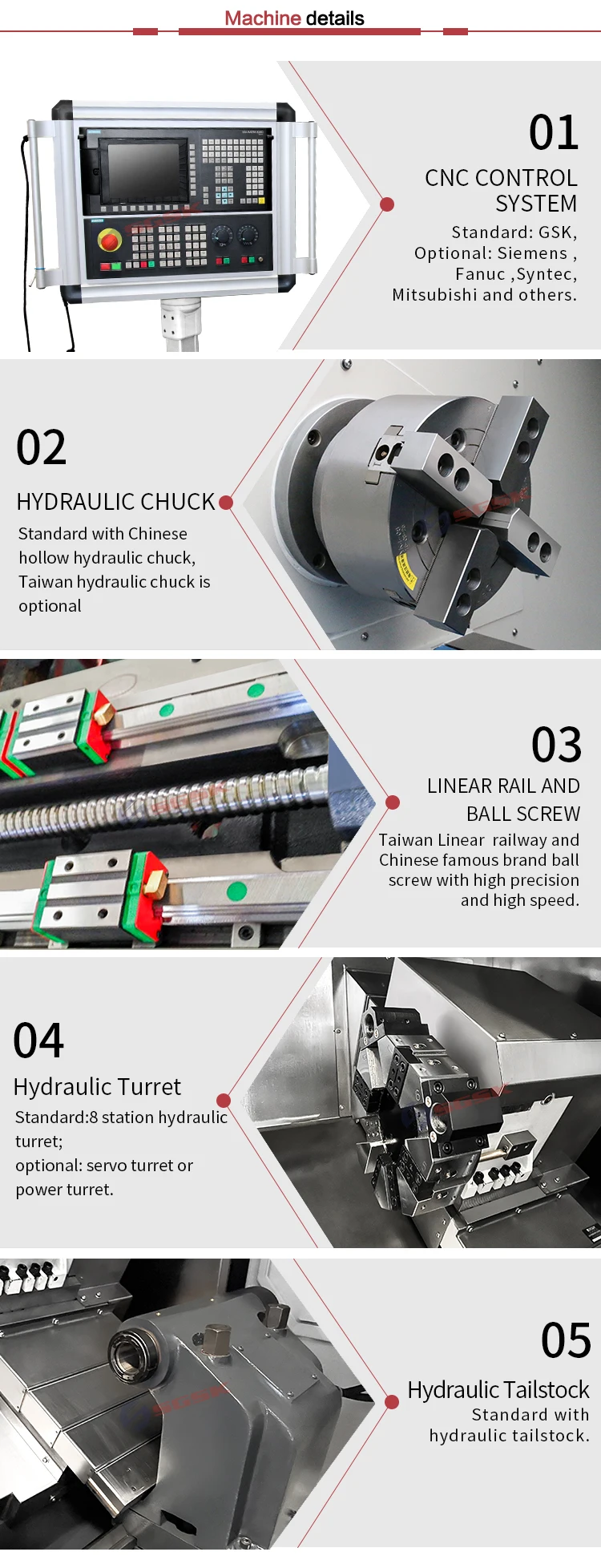

Details Display
Product main features:
Higher accuracy Taiwan linear guideways
Higher speed spindle unit,optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Higher accuracy Taiwan linear guideways
Higher speed spindle unit,optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Specification | Unit | TCK66A |
Max. swing over bed | mm | 660 |
Max. swing over cross slide | mm | 400 |
Max. workpiece length | mm | 600 |
Spindle unit | mm | 260 |
The spindle nose(optional chuck) | A2-8 | |
The spindle motor power | kw | 11 |
Max. spindle speeds | rpm | 2800 |
Spindle bore | mm | Φ85 |
Bar capacity | mm | 75 |
The x/z axis screw specifications | 4010/4010 | |
The x axis limit stroke | mm | 280 |
The z axis limit stroke | mm | 600 |
The x axis motor torque | N.m | 10 |
The z axis motor torque | N.m | 10 |
X/z axis repeat position accuracy | mm | +/-0.003 |
Tool turret (optional) | 125-8T | |
Turret center height dimensions | mm | 125mm |
Hydraulic quill dia. | mm | 100 |
Hydraulic quill taper | MT5 | |
Hydraulic tailstock travel | mm | 500 |

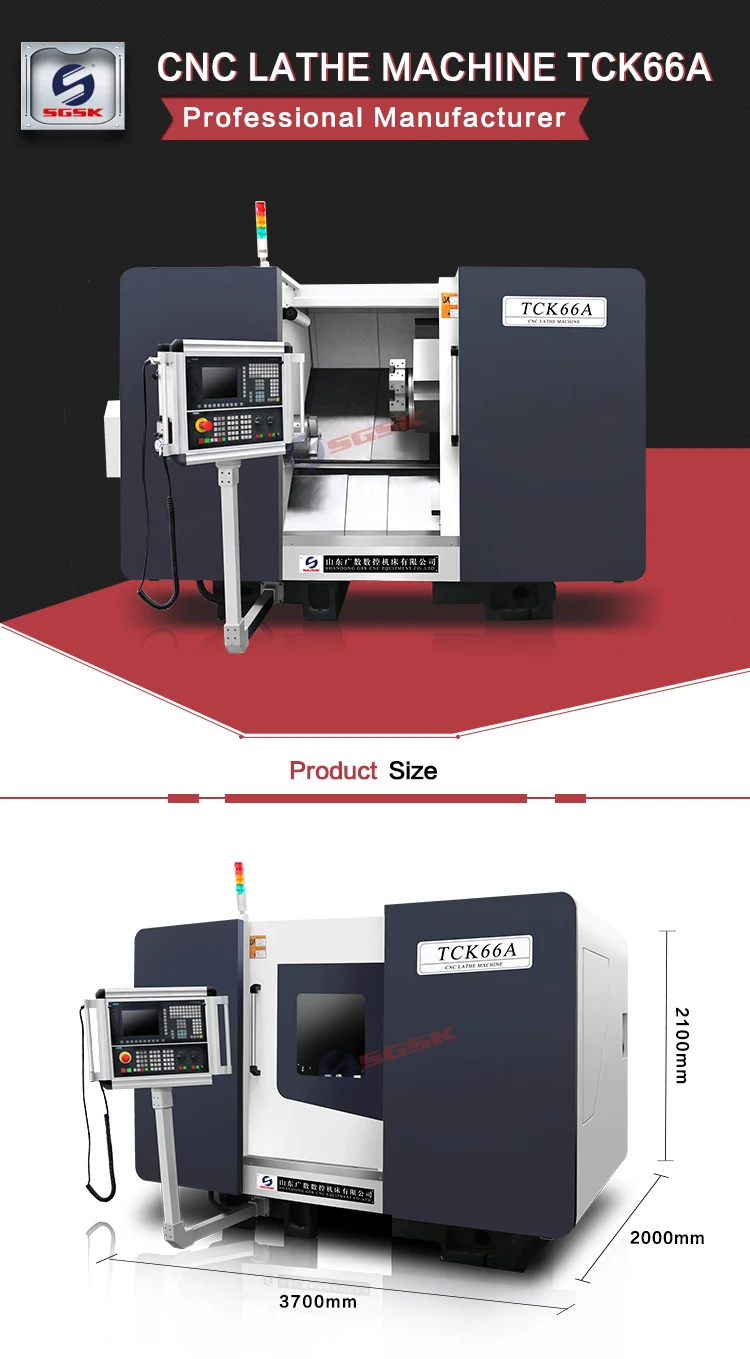

Machine dimensions(L*W*H) | mm | 3500*2000*2100 |
N.W. | kg | 4500 |
Recommend Products
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
