Токарный станок с ЧПУ VMC
US $9600-$10000

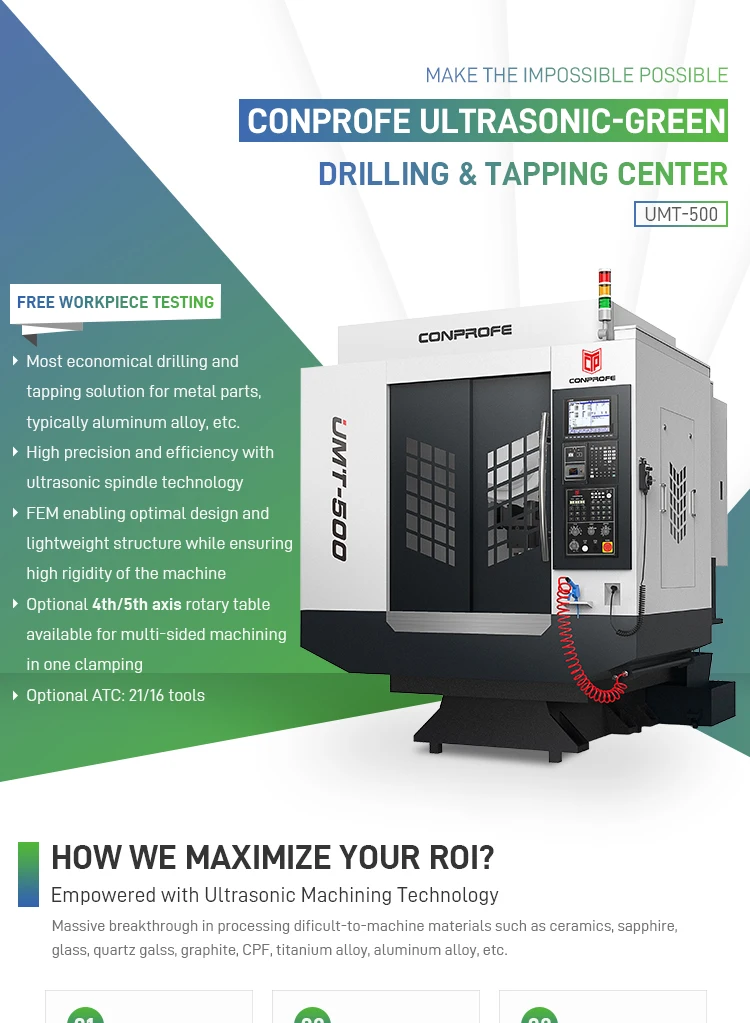

Conprofe ультразвуковой сверлильный и нарезающий центр сверление нарезание металлических деталей алюминиевый
- Категории: Machine Centre & Parts >>>
- Поставщик: Conprofe,Technology,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
China Wholesale High Speed XYZ CNC Vertical Milling Machine Centre
Product Description

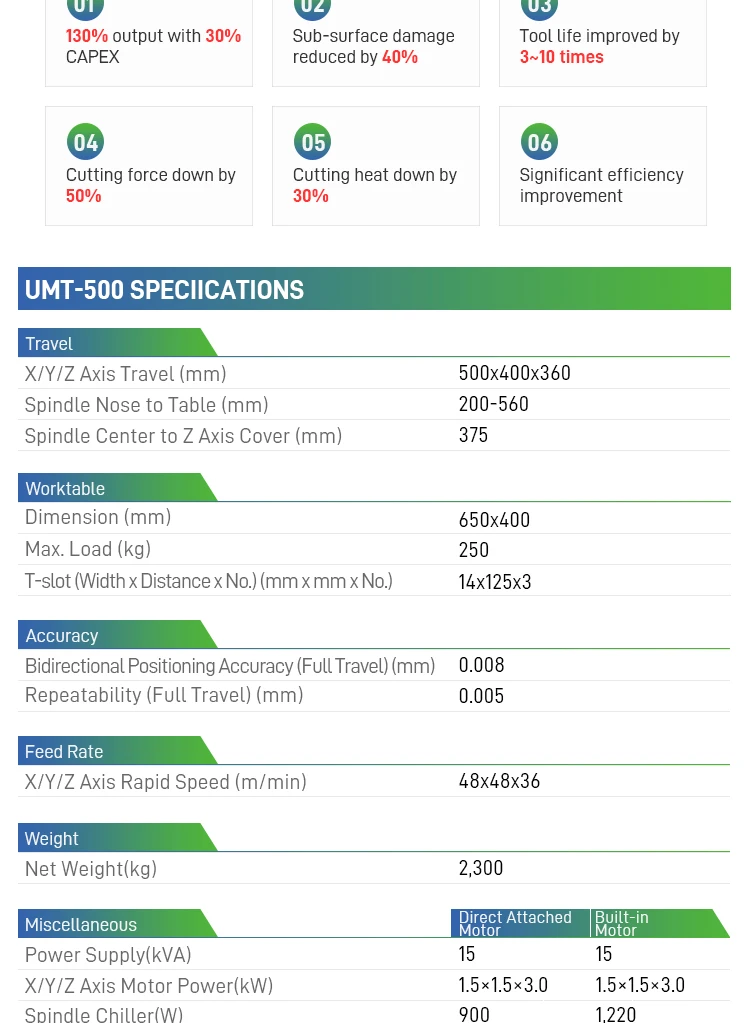

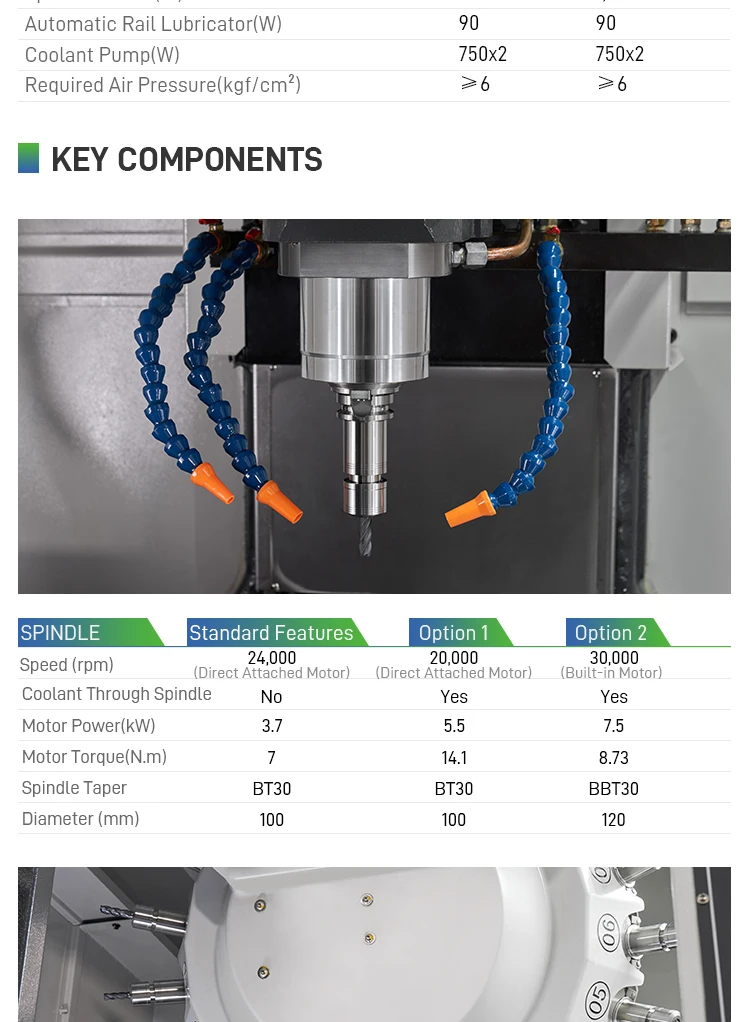

| Spindle | Standard | Option 1 | Option 2 |
| Spindle speed(rpm) | 24,000 (direct connection) | 20,000 (direct connection) | 30,000 (built-in motor) |
| Center outlet | Without | With | With |
| Motor Power(kw) | 3.7 | 5.5 | 7.5 |
| Motor torque(N-m) | 7 | 14.1 | 8.73 |
| Taper hole specifications | BT30 | BT30 | BBT30 |
| Spindle diameter(mm) | 100 | 100 | 120 |

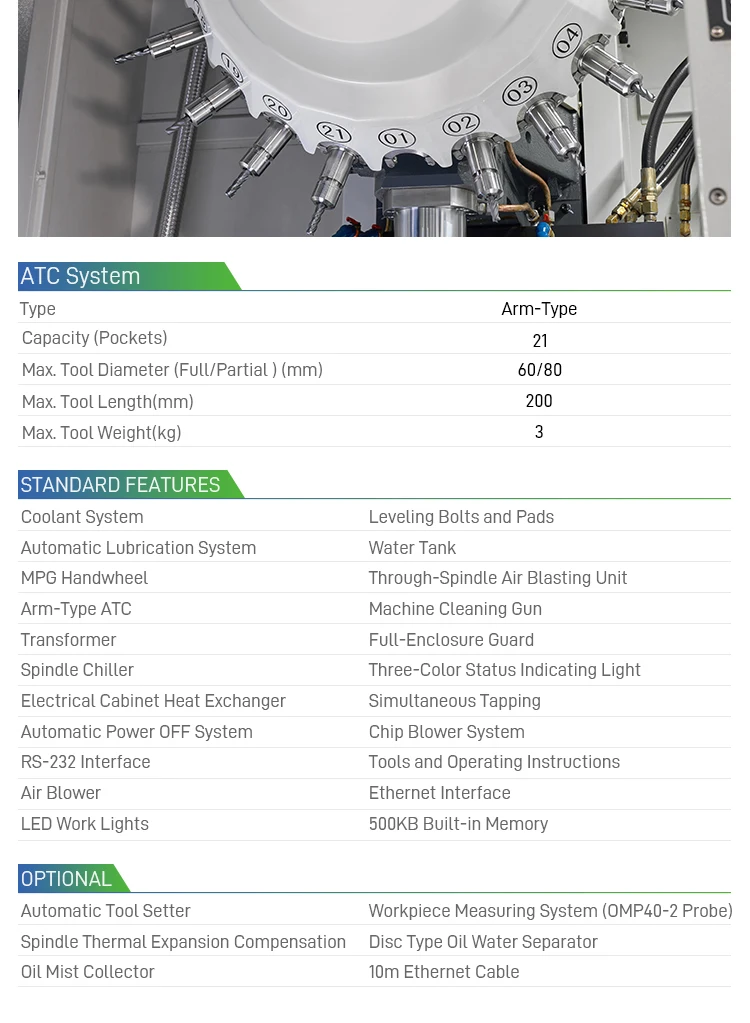

| Automatic tool changer | |||
| Tool magazine type | Clamp arm type | ||
| Tool magazine capacity(Piece) | 21 | ||
| Maximum tool diameter (full tool / adjacent empty)(mm) | 60/80 | ||
| Maximum knife length(mm) | 200 | ||
| Maximum tool quality(kg) | 3 | ||
| Power source | Direct connection | Built-in motor | |
| Electricity demand(kVA) | 15 | 15 | |
| X/Y/Z axis motor power(W) | 1.5x1.5x3.0 | 1.5x1.5x3.0 | |
| Spindle constant temperature cooler(W) | 900 | 1220 | |
| Track lubrication automatic lubricator(W) | 90 | 90 | |
| Cutting fluid pump(W) | 750x2 | 750x2 | |
| Compressed air pressure(kgf/cm²) | ≥6 | ≥6 | |
| Journey | |||
| X/Y/Z axis travel(mm) | 500×400×360 | ||
| Spindle nose to work surface(mm) | 200-560 | ||
| Distance from spindle center to Z-axis shield surface(mm) | 375 | ||
| Workbench | |||
| Worktable size/maximum load(mm/kg) | 650x400/250 | ||
| T-slot size (width x pitch x number of slots)(mm x mm x piece) | 14x125x3 | ||
| Precision | |||
| Positioning accuracy (full stroke)(mm) | 0.008 | ||
| Repeat positioning accuracy (full stroke)(mm) | 0.005 | ||
| Feedrate | |||
| X/Y/Z axis fastest feed rate(m/min) | 48x48x36 | ||
| Machine weight | |||
| Machine weight(kg) | 2300 | ||
Make the Impossible Possible:
1.Most economical drilling and tapping solution for metal parts, typically aluminum alloy, etc.
2.High precision and efficiency with ultrasonic spindle technology
3.FEM enabling optimal design and lightweight structure while ensuring high rigidity of the machine
4.Optional 4th/5th axis rotary table available for multi-sided machining in one clamping
5.Lightweight and ultra-compact enough to go and down stairs
6.Optional ATC: 21/16 tools
7.Significant tool life improvement
8.Free Workpiece Testing
Company Information
Certifications
Exhibitions
