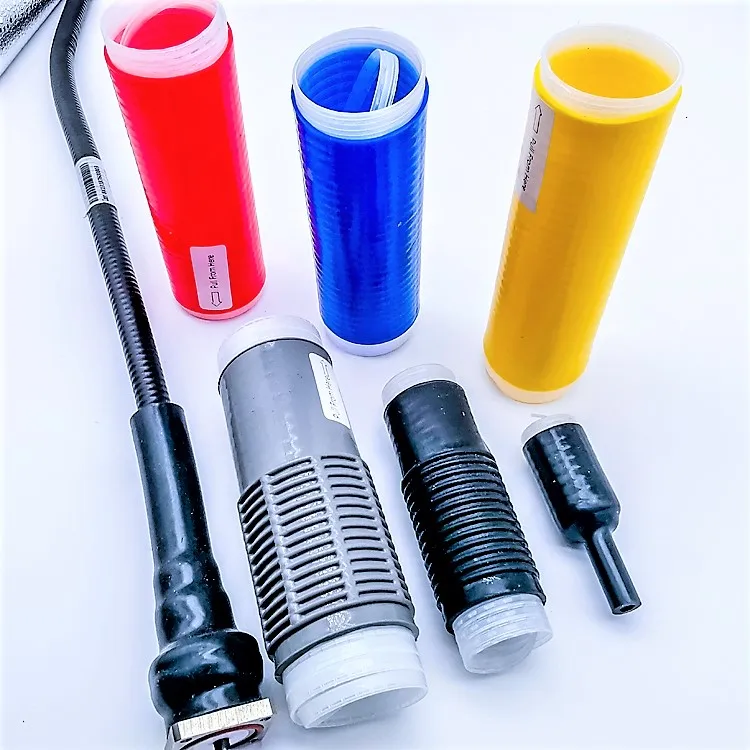

Wellco W-CST фабричная поставка силиконовой резины холодная термоусадочная трубка
Wellco W-CST фабричная поставка силиконовой резины холодная термоусадочная трубка
Wellco W-CST фабричная поставка силиконовой резины холодная термоусадочная трубка
Wellco W-CST фабричная поставка силиконовой резины холодная термоусадочная трубка
Wellco W-CST фабричная поставка силиконовой резины холодная термоусадочная трубка
Wellco W-CST фабричная поставка силиконовой резины холодная термоусадочная трубка
Wellco W-CST фабричная поставка силиконовой резины холодная термоусадочная трубка

Wellco W-CST фабричная поставка силиконовой резины холодная термоусадочная трубка


Поделиться:

Цена:0,75 $ - 0,80 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description


Materials:Silicon rubber
˙Operating temperature range:-60℃～200℃
˙Features:
Simple installation, no heat requires
Seals tight, retains its resiliency and pressure even after long time
ageing and exposure
Waterproof For Outdoor use
˙Applications: insulation And Sealing For cable splices


Technical data
Typical
Standard
Temperature Range

-40℃ To +200℃
Tensile Strength / MPa
9.8
ASTM D 421
Elongation at break /%
980%
ASTM D 412
Shore A harness
35-45
GB/T 531.1-2008
Tear Strength N/MM
44.5
ASTM D 624
Volume Resistivity /Ω.m
1.3X1017
ASTM D 4325
Sealing
IP67
IEC60529
Dielectric strength
23kv/mm
ASTM D 4325
Ozone Resistant
Passed
ASTM D1149-07
UV-resistance
Passed
ASTM G154-06
Low temperature Resistant
-40℃
ISO 812
Flame retardant
V-0
UL94


Size
Cable Size (mm)
Length(mm)
Min.(mm)
Max.(mm)
Φ20-L
6
15
60-500
Φ25-L
8
20
60-500
Φ28-L
9
23
60-500
Φ40-L
11
35
60-500
Φ45-L
13
40
60-500
Φ50-L
16
45
60-500
Φ55-L
18
50
60-500
Φ60-L
20
55
60-500
Φ70-L
23
65
60-500
Φ80-L
28
70
60-800
Φ90-L
33
82
60-800
Φ100-L
40
90
60-800




Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile


Material Mixing
Extrude
.
Cross linking


Expand
Whole Production line
Factory




Shanghai Wellco International Limited is a professional Team with 18years experience for R & D, production, sales of special heat shrink Tube and other radiation crosslinking materials manufacturers. We concentrate on to providing all kinds of products and solution for Insulation,Connection ,Waterproof, high temperature ,Chemical resistant ,EMI and mechanical protection for the wire and cable .
The company has strong technical force with 20 years experience and advanced production equipment. We can supply (such as modified PE, PVDF ,FEP ,EPDM,Silicone,FKM.FEP.PTFE Etc materials)heat shrink tube and insulation tube. The products are widely used in the fields of electronic communication, automobile, high-speed rail, electric motor, aviation, medical and other fields, such as insulation, water-proof, electrostatic shielding, oil-resistant, chemical and high-temperature resistant Protection, etc. Our products have passed UL certification ,RoHS ,REACH.
We also can produce customized products or develop products with special requirements according to customer requirements, and we carry out our production according to ISO9001 and IATF16949 quality management system standards to ensure the stability and reliability of product quality.


FAQ


1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),South Asia(20.00%),Southeast Asia(15.00%),Western Europe(15.00%),South America(5.00%),Eastern Europe(5.00%),Mid East(5.00%),Northern Europe(5.00%),Eastern Asia(3.00%),Domestic Market(3.00%),Southern Europe(2.00%),Africa(00.00%),Central America(00.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Heat Shrink Tube/Heat Shrink Mould Part/Marking Sleeve/Cold Shrink Tube

4. why should you buy from us not from other suppliers?
Shanghai Wellco International Limited is a professional R & D, production, sales of special heat shrink Tube and other radiation crosslinking insulation materials manufacturers And the founder have the experience for the insulation more than 20years

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union;
Language Spoken:English,Chinese
