Product Description
SAE100R2
it can convey the oils without producing excessive heat and leak. It is mainly used in some mobile equipment, such as farm tractor, dump truck and in-plant hydraulic equipment. It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, so it is mainly used to transfer oils.
hydraulic hose pipe assembly
Structure: it is composed of three parts: tube, reinforcement and cover.
Tube: high quality synthetic rubber, making the hose resistant to abrasion, corrosion and oils.
Reinforcement: two layers of high tensile braided steel wires, making the hose have excellent performance in high pressure working conditions.
Cover: high quality synthetic rubber, making the hose resistant to abrasion, corrosion, cut, aging, weather and ozone.
Tube: high quality synthetic rubber, making the hose resistant to abrasion, corrosion and oils.
Reinforcement: two layers of high tensile braided steel wires, making the hose have excellent performance in high pressure working conditions.
Cover: high quality synthetic rubber, making the hose resistant to abrasion, corrosion, cut, aging, weather and ozone.
size (inch) | working pressure(Mpa) | burst pressure(Mpa) | B.R | Weight(kg/m) |
3/8 | 44.5 | 178 | 180 | 0.78 |
1/2 | 41.5 | 166 | 230 | 0.89 |
5/8 | 35 | 140 | 250 | 1.11 |
3/4 | 35 | 140 | 300 | 1.59 |
1 | 28 | 112 | 340 | 2.02 |
1 1/4 | 21 | 84 | 460 | 3.32 |
1 1/2 | 18.5 | 74 | 560 | 3.7 |
2 | 16.5 | 66 | 660 | 5.47 |
Specification
item | value |
Place of Origin | hebei |
Brand Name | MINGJIN |
Model Number | 1/4-2" |
Processing Service | Moulding, Cutting |
Product name | Sae/din High Pressure 4sh Hydraulic Hose |
Color | Black |
Place of Origin | Hebei |
Application | Petroleum Base Hydraulic Fluids |
Size | 1/4"~2" |
Material | Synthetic Rubber |
Length | 20m 40m 50m 100m |
Cover | Weather Resistant Synthetic Rubber |
Standard | SAE100/DIN EN853 |
OEM | OEM Services Provided |
Company Profile
Hengshui mingjin rubber plastic products co.,ltd is a specialized manufacturer for rubber hose\\hydraulic fittings\\assembly hose and Polyurethane products.with a group of high level designers and employees and have rich experience in export.
We adhere to the core values of the company, with "integrity" as the foundation and unity, progress, and innovation as the business philosophy. The company operates in Asia, Europe, Africa, and North America, and is moving towards its corporate vision of becoming an international group with global influence.
We adhere to the core values of the company, with "integrity" as the foundation and unity, progress, and innovation as the business philosophy. The company operates in Asia, Europe, Africa, and North America, and is moving towards its corporate vision of becoming an international group with global influence.
Packing & Delivery

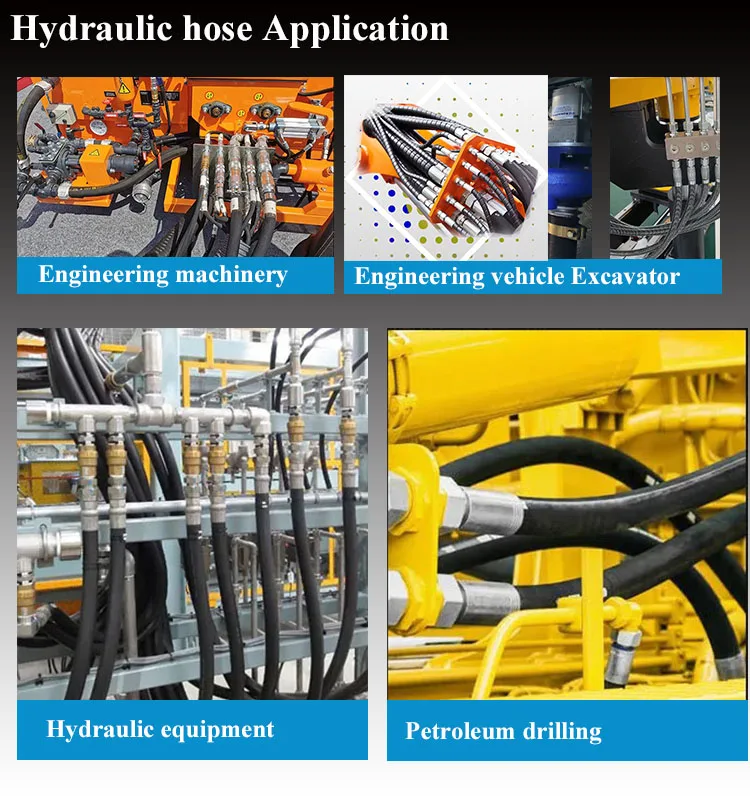

Application
Exhibition
FAQ
1. who are we?
We are based in Hebei, China, start from 2019,sell to Southeast Asia(20.00%),Mid East(10.00%),North America(10.00%),Africa(10.00%),South Asia(10.00%),Northern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),Central America(5.00%),Eastern Asia(5.00%),Southern Europe(2.00%),Oceania(1.00%),Western Europe(1.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
rubber hose,hose fitting,hydrocylones,plastics,polyurethane
4. why should you buy from us not from other suppliers?
Over the years, we have been committed to the development and innovation of rubber and plastic products. Our R & D team has more
than 20 years of experience. All our products come directly from the factory. We accept OEM and ODM
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Hebei, China, start from 2019,sell to Southeast Asia(20.00%),Mid East(10.00%),North America(10.00%),Africa(10.00%),South Asia(10.00%),Northern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),Central America(5.00%),Eastern Asia(5.00%),Southern Europe(2.00%),Oceania(1.00%),Western Europe(1.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
rubber hose,hose fitting,hydrocylones,plastics,polyurethane
4. why should you buy from us not from other suppliers?
Over the years, we have been committed to the development and innovation of rubber and plastic products. Our R & D team has more
than 20 years of experience. All our products come directly from the factory. We accept OEM and ODM
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
