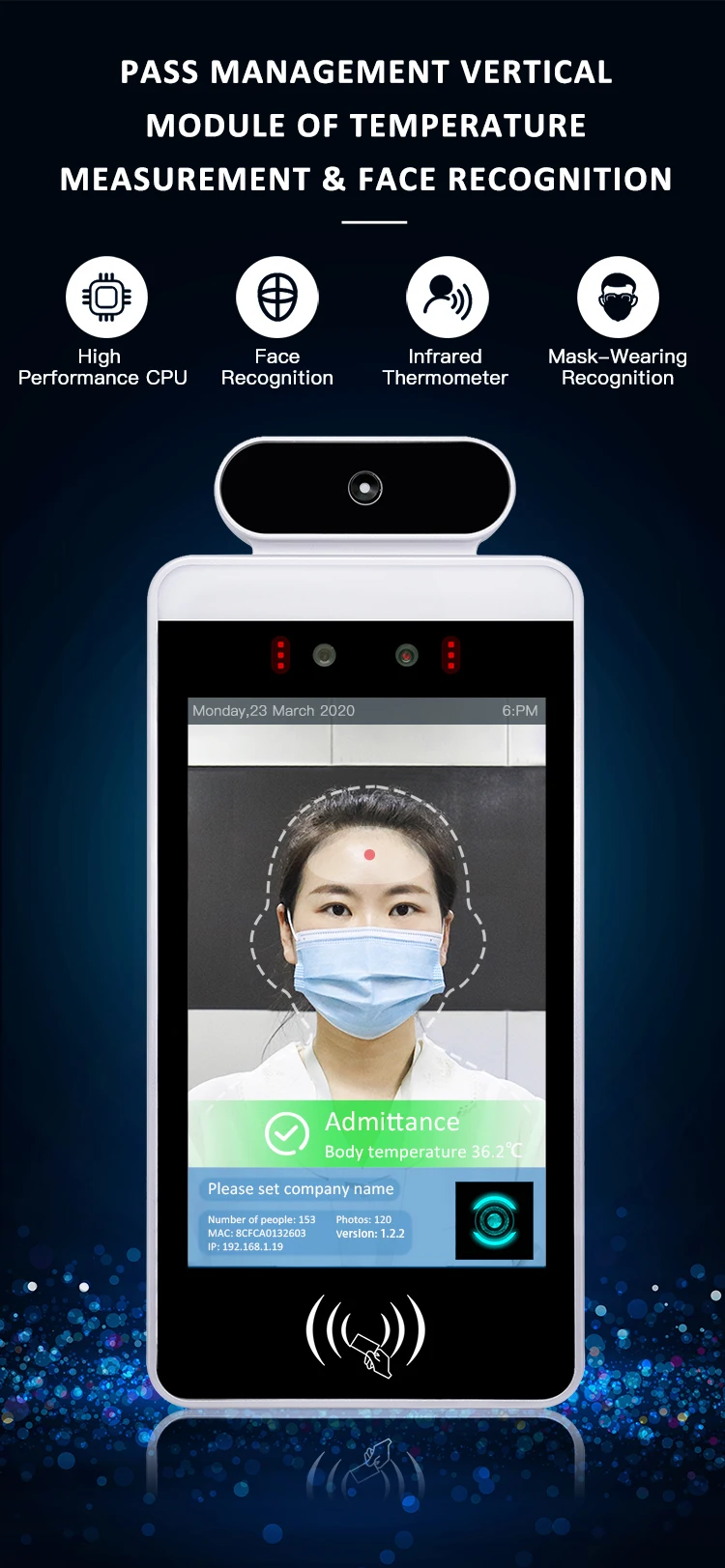

Scan Camera Security Detection System Keensense Face Recognition Temperature Measurement Terminal
1. Fast facial recognition. Less than 1 second. 2. Support WEB server LAN mode. Also support offline mode. 3. Abnormal temperature alert and automatic report by email. 4. Control baffle gate by facial recognition, IC/ID card or QR code. 5. Over 30 languages supported. More language can be customized.
Products Description
Product Feature
1. 8-inch IPS full-view LCD display.
2. Industrial-class appearance, waterproof and dustproof design which is stable and reliable.
3. Supports 30,000 face database. The 1: 1 comparison recognition rate is more than 99.7%, the 1:
N comparison recognition rate is more than 96.7%~0.1% misrecognition rate, and the live detection
accuracy rate is 98.3%~1% misrejection rate. Face recognition pass speed is less than 1 second.
4. Supports accurate face recognition and comparison while wearing a mask.
5. Using industrial-grade binocular wide dynamic camera, night and LED dual photo flood lamp.
6. Support processors with strong performance: Rockchip RK3288 quad-core processor, Rockchip RK3399 six-core processor and
Qualcomm MSM8953 octa-core processor.
7. Supports human body temperature detection and temperature display. The best temperature detection distance is 0.5 meters. The
longest distance at which body temperature can be measured is 1 meter. The measurement error is plus or minus 0.5 °C.
8. It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.
9. Attendance temperature measurement data is exported in real time.
10. Supports various peripheral expansions such as ID card reader, fingerprint reader, IC card reader, two-dimensional code
reader, etc.
11. The documentation is complete and supports secondary development.
2. Industrial-class appearance, waterproof and dustproof design which is stable and reliable.
3. Supports 30,000 face database. The 1: 1 comparison recognition rate is more than 99.7%, the 1:
N comparison recognition rate is more than 96.7%~0.1% misrecognition rate, and the live detection
accuracy rate is 98.3%~1% misrejection rate. Face recognition pass speed is less than 1 second.
4. Supports accurate face recognition and comparison while wearing a mask.
5. Using industrial-grade binocular wide dynamic camera, night and LED dual photo flood lamp.
6. Support processors with strong performance: Rockchip RK3288 quad-core processor, Rockchip RK3399 six-core processor and
Qualcomm MSM8953 octa-core processor.
7. Supports human body temperature detection and temperature display. The best temperature detection distance is 0.5 meters. The
longest distance at which body temperature can be measured is 1 meter. The measurement error is plus or minus 0.5 °C.
8. It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.
9. Attendance temperature measurement data is exported in real time.
10. Supports various peripheral expansions such as ID card reader, fingerprint reader, IC card reader, two-dimensional code
reader, etc.
11. The documentation is complete and supports secondary development.
Product Paramenters
8 inch temperature scanner face recognition | ||||
Camera | Resolution | 2 million pixels | ||
Camera Type | binocular wide dynamic camera | |||
Aperture | F2.4 | |||
Focusing distance | 50-150cm | |||
White Balance | Auto | |||
Photo flood light | LED and double flood light | |||
Screen | Screen size | 8.0 "IPS LCD Screen | ||
Resolution | 800 × 1280 | |||
Touch | optional support | |||
Processor | CPU | RK3288 quad core (optional rk3399 six core, msm8953 eight core) | ||
Storage | EMMC 8G | |||
Interface | Serial communication | 1 RS232 serial port | ||
Relay output | 1 door opening signal output | |||
Wigan interface | 1 Wigan 26 / 34 output,1 Wigan 26 / 34 input | |||
Wired Network | 1 RJ45 Ethernet socket | |||
Upgrade button | supports the uboot upgrade | |||
Function | ||||
1 | Card reader | optional IC card reader/ID card | ||
2 | Face recognition | support detection and tracking of multiple people at the same time | ||
3 | Face Library | UP to 30,000 | ||
4 | 1:N face recognition | Support | ||
5 | 1:1 face comparison | Support | ||
6 | Stranger detection | Support | ||
7 | Identify distance configuration | Support | ||
8 | UI interface configuration | Support | ||
9 | Upgrade remotely | Support | ||
10 | Interface | Interfaces include device management, personnel / photo management, record query, etc. | ||
Deployment method | Support public cloud deployment, privatizeddeployment, LAN use, stand-alone use | |||
Infrared thermal imaging module | ||||
1 | Temperature measurement accuracy | ≤± 0.5 oC | ||
2 | Temperature detection distance | 1m (the best distance is 0.5m) | ||
3 | Body temperature detection | support | ||
4 | Temperature measurement range | 10 oC ~ 42 oC | ||
5 | Visitors model | support for normal temperature of visitors | ||
6 | Temperature alarm | support | ||
Application

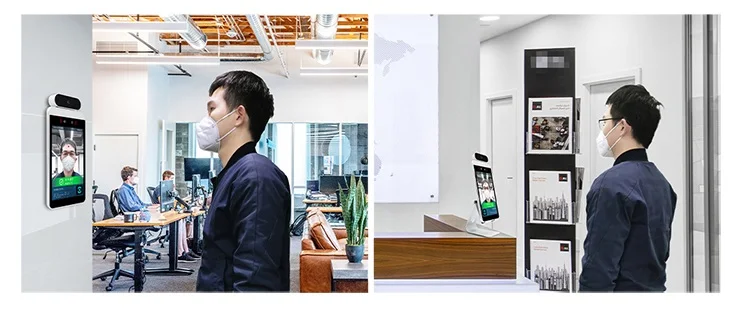

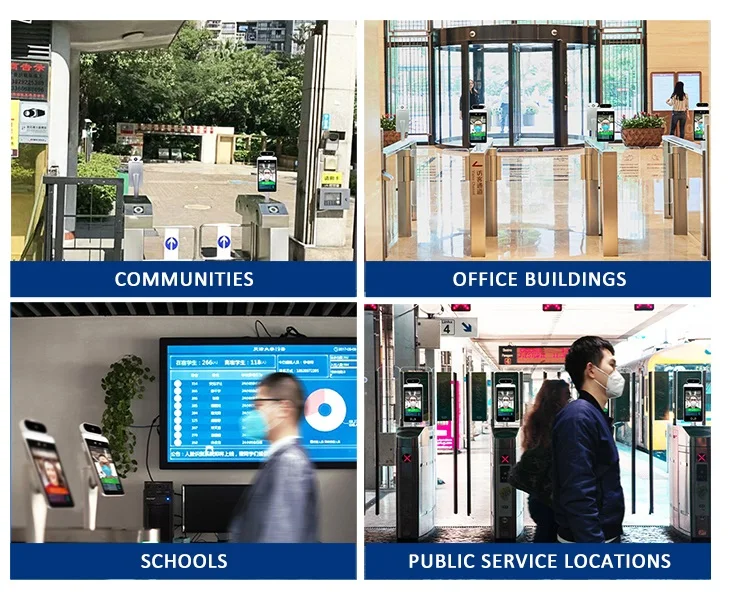

Temperature Detection Face Recognition can be used with access control gates and access control in communities,office buildings,shools,hotel,scenic spots,transportation hubs and other public service locations.
8 inch temperture instrument facial recognition can be independently used as time and attendance equipment,visitor management of business centers factories,office buildings and so on.
Recommend Products
Product Features
1. During the installation and use of the product, all electrical safety regulations must be strictly observed.
2. Please use the power adapter provided by the regular manufacturer.For specific requirements of the power adapter, see the product parameter table.
3. When installing on the gate, please make sure that the product is installed firmly.
4. If the product does not work properly, please contact the after-sales service personnel. Do not disassemble or modify the product in any way. (The company does not assume any responsibility for problems caused by unauthorized modification or repair.
5. Do not immerse the product in water. When the product is installed outdoors, try to use it with the rain cover provided by our company.
6. Please understand that you are responsible for properly configuring all passwords and other related product security settings,and keeping your user name and password properly.
7. If the equipment does not work properly, please do not disassemble it for repair, otherwise it will affect the equipment
warranty.
8. Avoid extreme or extreme environments such as extreme high temperature (or low temperature), high humidity, vibration,radiation, and chemical corrosion during installation and use.
2. Please use the power adapter provided by the regular manufacturer.For specific requirements of the power adapter, see the product parameter table.
3. When installing on the gate, please make sure that the product is installed firmly.
4. If the product does not work properly, please contact the after-sales service personnel. Do not disassemble or modify the product in any way. (The company does not assume any responsibility for problems caused by unauthorized modification or repair.
5. Do not immerse the product in water. When the product is installed outdoors, try to use it with the rain cover provided by our company.
6. Please understand that you are responsible for properly configuring all passwords and other related product security settings,and keeping your user name and password properly.
7. If the equipment does not work properly, please do not disassemble it for repair, otherwise it will affect the equipment
warranty.
8. Avoid extreme or extreme environments such as extreme high temperature (or low temperature), high humidity, vibration,radiation, and chemical corrosion during installation and use.
Company Profile
About Us

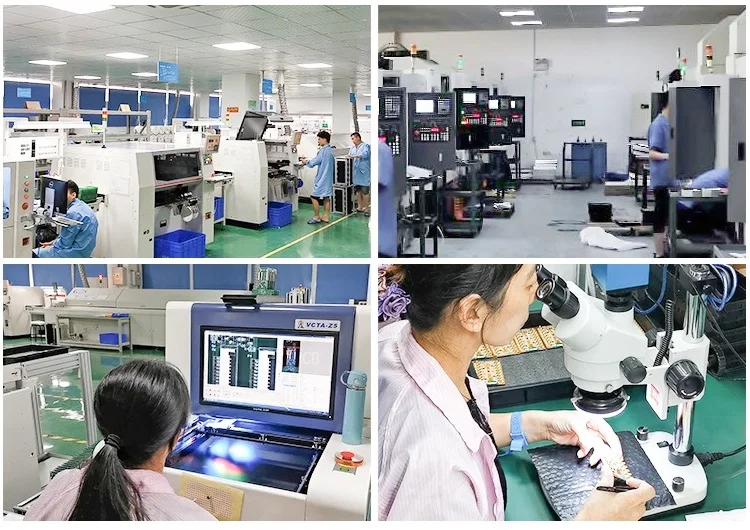

RS Security Co.,Ltd is one of leading manufacturer &provider of commercial Access Control System. Factory covers 3000sqmpassed ISO 9001/SGS certificates, RS Security Co.,Ltd has more than 11 years experience R&D team and own metal factory to support OEM/ODM service,specialized in Face recognition,temperature instrument,temperature scanner,card reader,k9 soap dispenser and temperature detection and so on.
Product packaging
FAQ
Q: Are you a factory or trading company?
A :RS Security Co., Ltd.is an OEM/ODM factory.
Q: Can I get some samples?
A: Sample order is welcome.Price would be negotiated bassed on bigger quantity.
Q: How does your factory do regarding quality control?
A: Quality is the priority.Shenzhen people always show great importance to quality controlling from the very beginning to the end.Our factory has gained ISO9001,ISO14001,Our brand RS Security is famous in China,and is chosen by government as a priority supplier!
Q: What is your after-sale service?
A: We offer 100% guarantee on our product.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size of your order. If you want to know more about our products and company,
A :RS Security Co., Ltd.is an OEM/ODM factory.
Q: Can I get some samples?
A: Sample order is welcome.Price would be negotiated bassed on bigger quantity.
Q: How does your factory do regarding quality control?
A: Quality is the priority.Shenzhen people always show great importance to quality controlling from the very beginning to the end.Our factory has gained ISO9001,ISO14001,Our brand RS Security is famous in China,and is chosen by government as a priority supplier!
Q: What is your after-sale service?
A: We offer 100% guarantee on our product.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size of your order. If you want to know more about our products and company,
