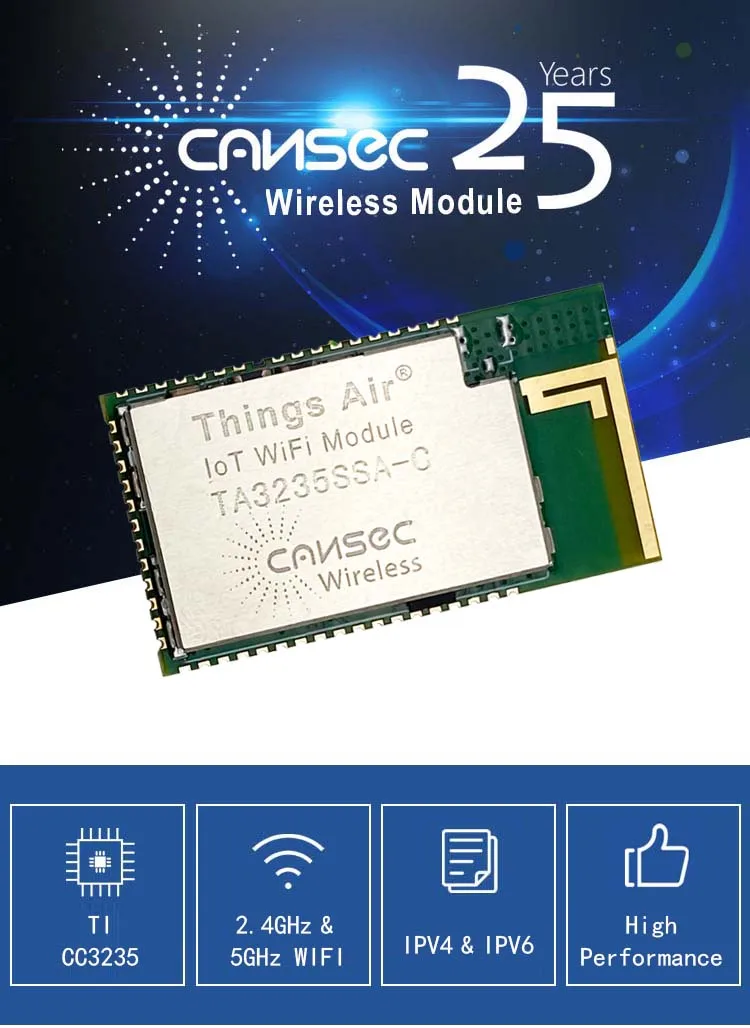

Беспроводной Wi-Fi Интернет вещей и видеоминитрансмиттер Ipv4 & Ipv6 Cansec TA3235SSA-C Ti CC3235 переключатель модуль для
- Категории: WiFi Modules >>>
- Поставщик: Beijing,Jiaan,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Parameter | Min | Typ | Max | Unit | ||||
Operating Voltage | 2.5 | 3.3 | 3.6 | V | ||||
Operating Temperature | -20 | - | +70 | ℃ | ||||
Current Consumption | Sleep Mode | 2.4G | - | - | 5.2 | uA | ||
5G | - | - | 5.2 | uA | ||||
Receive mode (MCU active) | 2.4G | - | - | 77 | mA | |||
5G | - | - | 87 | mA | ||||
Transmit Mode(CW) ( at +18 dBm ,+3.3V) | 2.4G | - | - | 380 | mA | |||
5G | - | 470 | mA | |||||
TX Power(CW) | 2.4G | - | 16.5 | 18 | dBm | |||
5G | - | 14.5 | 18 | dBm | ||||
RX Sensitivity | 2.4G (at 1 DSSS) | - | - | -94.5 | dBm | |||
5G (at 6 OFDM) | - | - | -89 | dBm | ||||

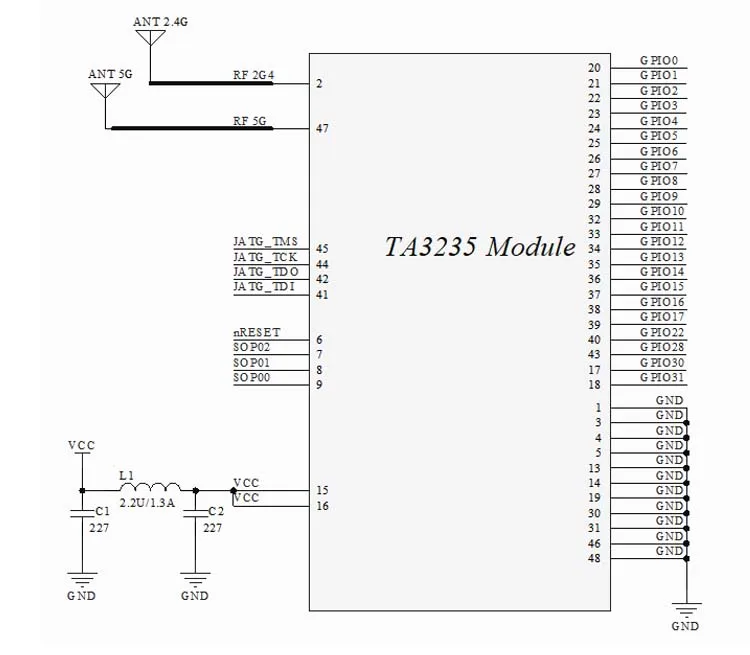

The TA3235 is a WIFI module. The integrated hardware solution comprises the CC3235S/CC3235SF Wi-Fi wireless MCU.Customers may reuse the reference design to design their own Board. The software and hardware design resources reduce engineering efforts, shorten time to market, and help developers and customers release their products with cloud connectivity features faster.
FAQ
Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
