Products Description

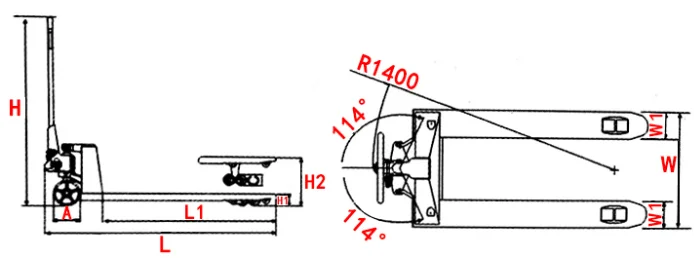

HAND PALLET TRUCK | ||||||||
Model | CBY-5.0 T | CBY-AC-2.5 | CBY-AC-3.0 | CW SERIES Hand Pallet Truck with scale is anexcellnt economic solution for all weighing requirements inabusywarehouseenvironments,whichallows you toweigh cargo where youwantand when you want . | ||||
capacity (kg) | 5000 | 2500 | 3000 | |||||
Mini fork height (mm) | 85 | 85/75 | 85/75 | |||||
Max.fork height (mm) | 195 | 195/185 | 195/185 | |||||
lifting height (mm) | 110 | 110 | 110 | |||||
Fork length (mm) | 1150/1220 | 1150/1220 | 1150/1220 | |||||
Single fork width (mm) | 160 | 160 | 160 | |||||
Width overall forks(mm) | 550/685 | 550/685 | 550/685 | |||||
Fork wheel-single (mm) | 80*93/ 74*93 | 80*93/ 74*93 | 80*93/ 74*93 | |||||
Fork wheel-tandem(mm) | 80*70 | 80*70 | 80*70 | |||||
Steering wheel (mm) | 180*50 | 180*50 | 180*50 | |||||
Self weight (kg) | 5TON=120-130KG; 2.5-3T=73-92KG | |||||||
QTY/20feet container (pcs) | 180/144 | 180/144 | 180/144 | |||||
CBY-AC common size | CBY-CW-2.5T-550*1150; CBY-CW-2.5T-685*1220 | |||||||
CBY-CW--3T-550*1150; CBY-CW--3T-685*1220. | ||||||||

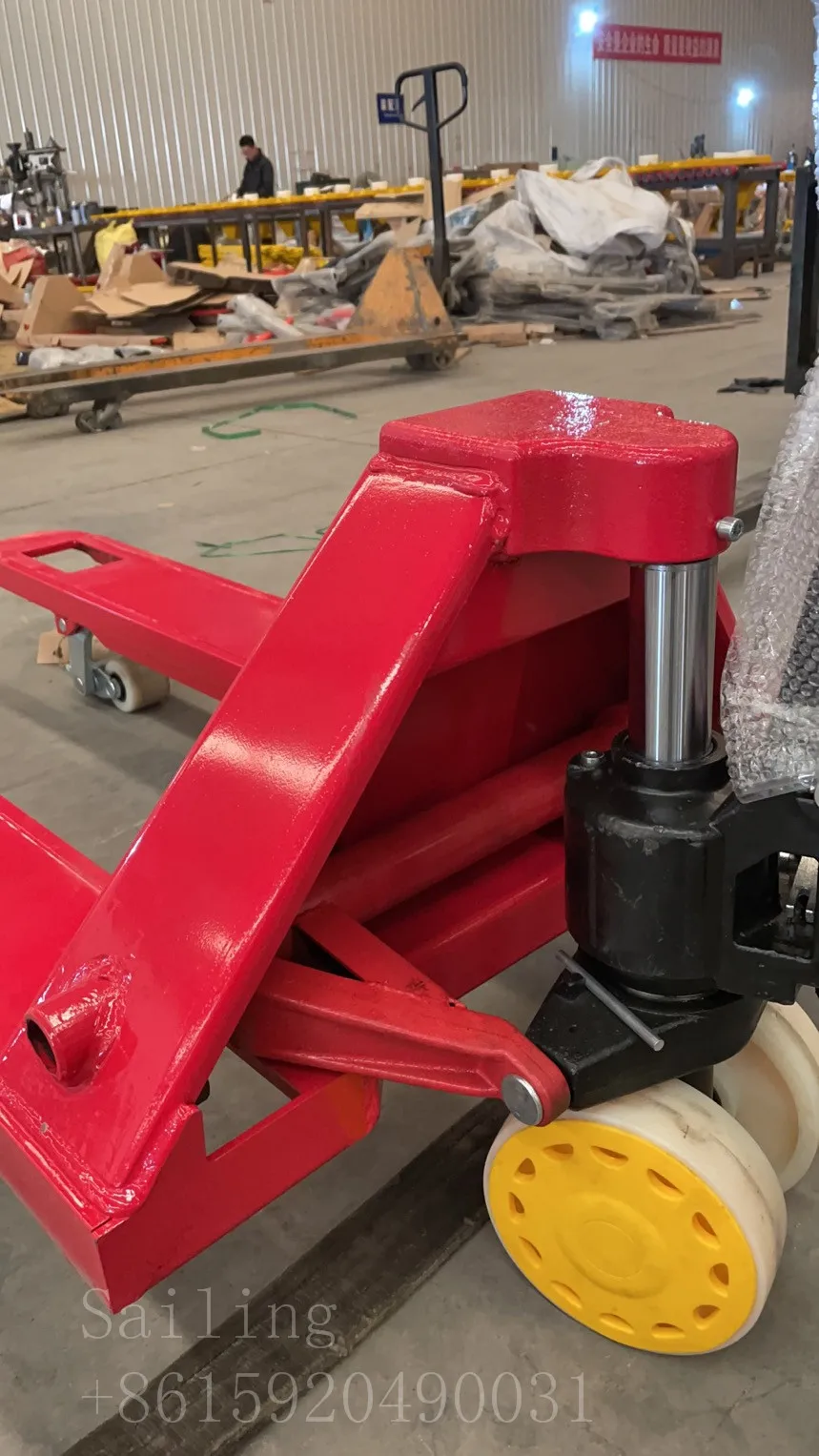

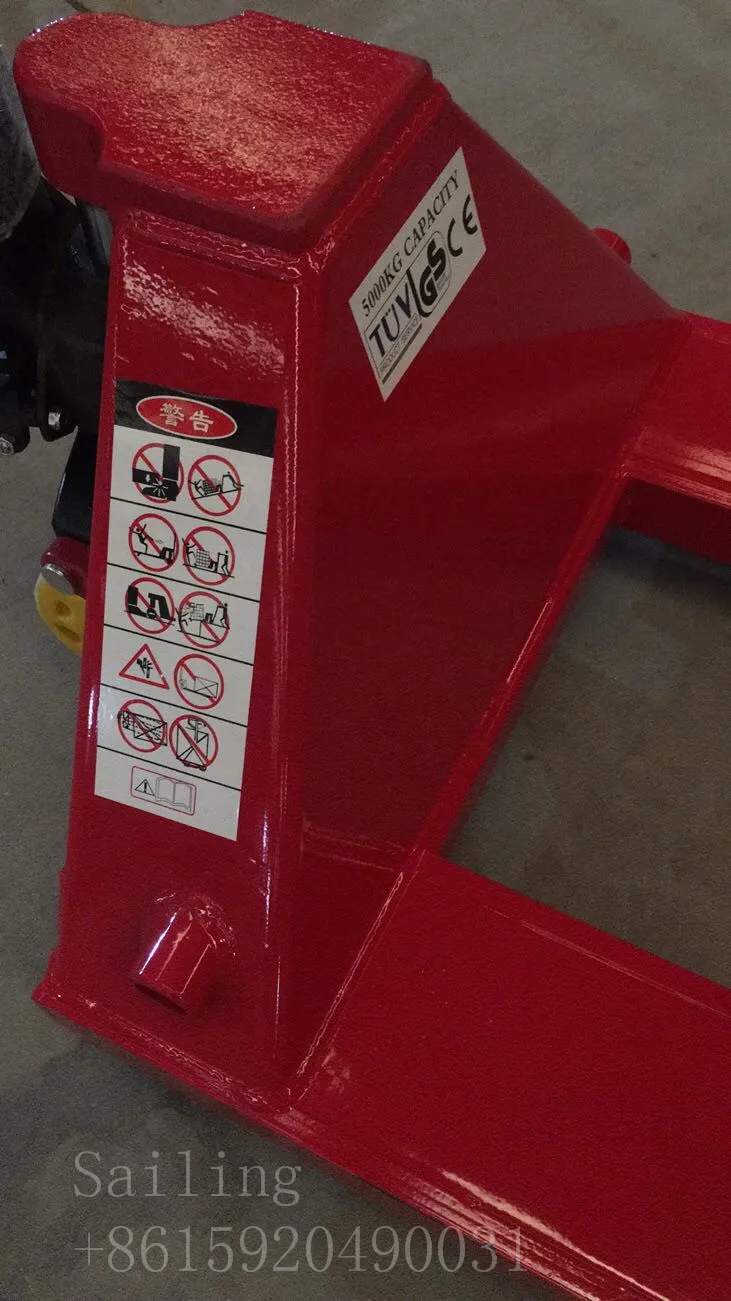

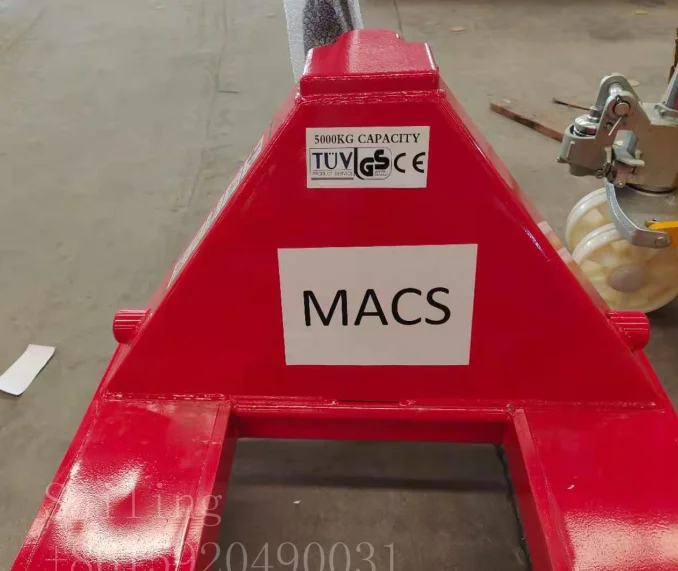

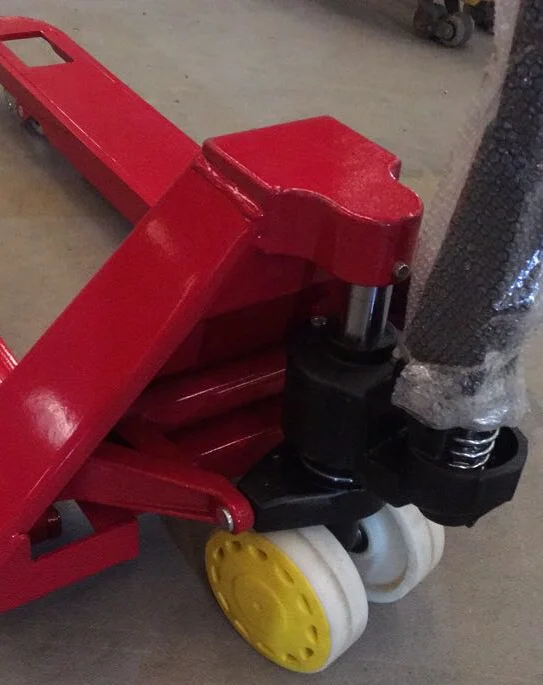

5.0Ton HAND PALLET TRUCK
5.0Ton Hand Pallet Truck is an economic & effortless solution for loading and unloading
super-heavy goods. The heavy duty steel construction and effortless pump unit with super-large piston to reduce operating efforts
.
The special lowering valve facilitates loads being particularly sensitively and proportioned .
The flexible steering wheel reduces the actu al pully effort required.
Adjustable solid steel push rods .
super-heavy goods. The heavy duty steel construction and effortless pump unit with super-large piston to reduce operating efforts
.
The special lowering valve facilitates loads being particularly sensitively and proportioned .
The flexible steering wheel reduces the actu al pully effort required.
Adjustable solid steel push rods .
Options
Bracket available with channel steel fork or 6mm thick steel palte. Steering and fork wheels available superstrength nylon or steel.
CBY-AC series
Capacity(kg): 2000/2500/3000
Feature: one piece cast pump with reliable oil-proof hydraulic system. Obtain able with rubber , nylon or polyurethane steering wheels.
.
Reel/Paper pallet truck
Capacity(kg): 2000/2500/3000
Feature: Used for hold roller for handling cylindrical loads where the lifting operation is achived without pallets.

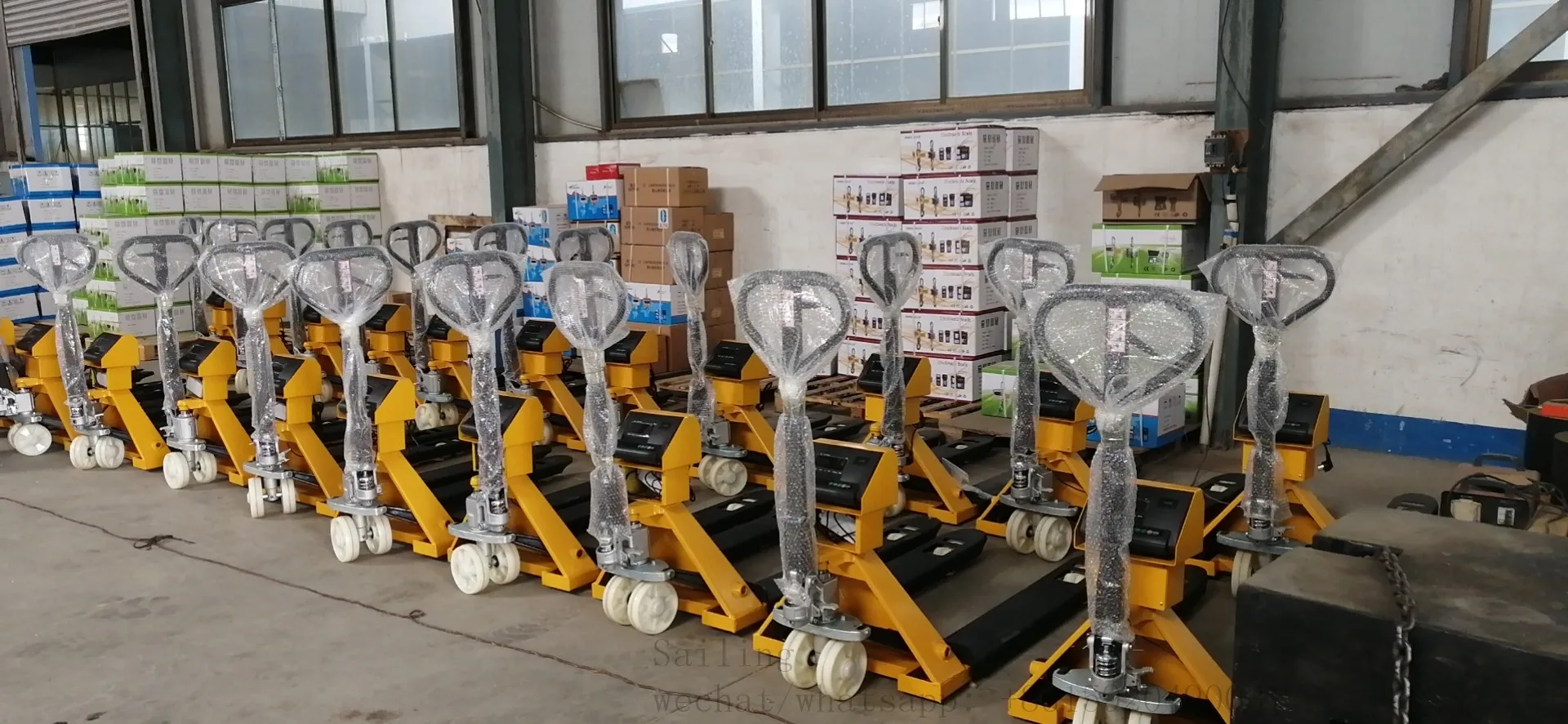

CW series
Capcity(kg): 1500/2000/2500/3000
Feature: high accuracy, saving time and high efficiency, high definition display, big function keys that "click"
CTY-A series
Capacity(kg): 1000/2000/3000
Feature: economic price, adjustable forks according with different requirements. effortless and quick lifting for using foot pedaul.
Scissor Lift Pallet Truck
Capacity(kg): 1000/1500
Feature: Used to load and unload conveyor, feed presses, or any applications requiring moving and positioning pallets.
Lifting Barrel Fork Lift
Capacity(kg): 350
Feauture: Ergonomic lifts, transport and places ploy, steel or fiber drum on or off pallets.easily glider over pallet to quickly load or unload.

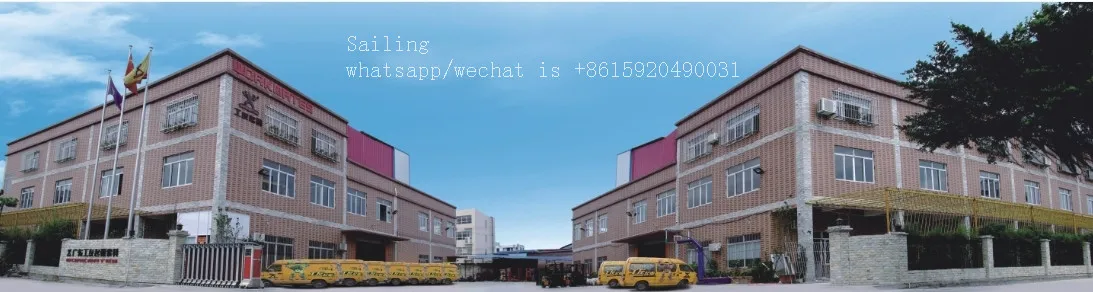

Factory & Exhibition
Certification
FAQ
Q1: Where is your factory located? | Our factory is in Hebei, we havelogistics and warehousing center in Foshan Guangdong. | ||||||
Q2: How many hydraulic machinery products can you produce every day? | We can produce 200 pieces everyday. | ||||||
Q3: Can you provide sample? | Yes, we can provide you sample, but you need to pay for the sample and freight firstly.We will return the fee after you place the order. | ||||||
Q4: Can you use our brand? | Yes, OEM is available. | ||||||
