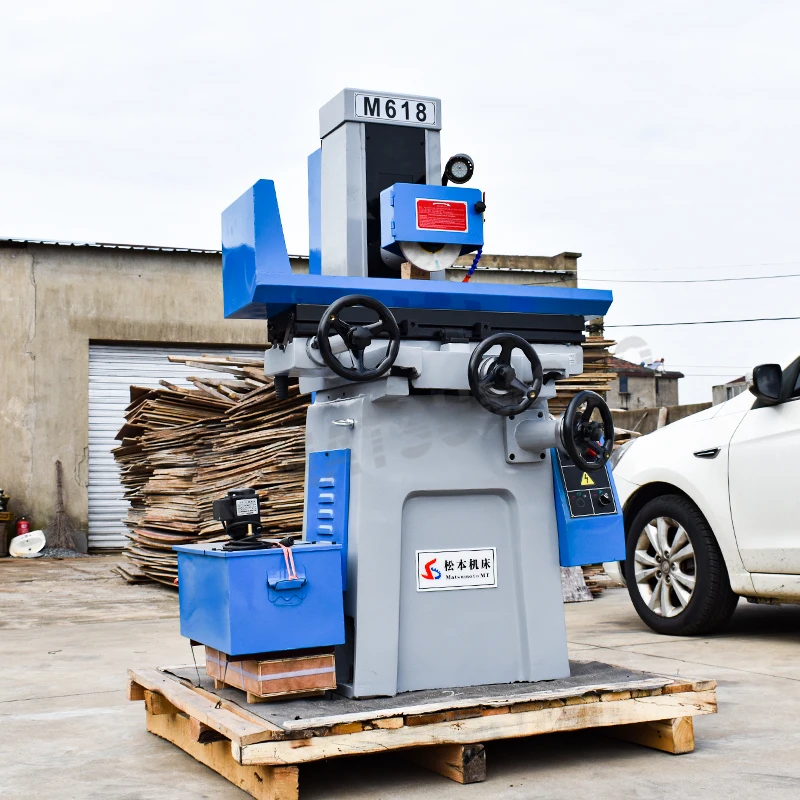

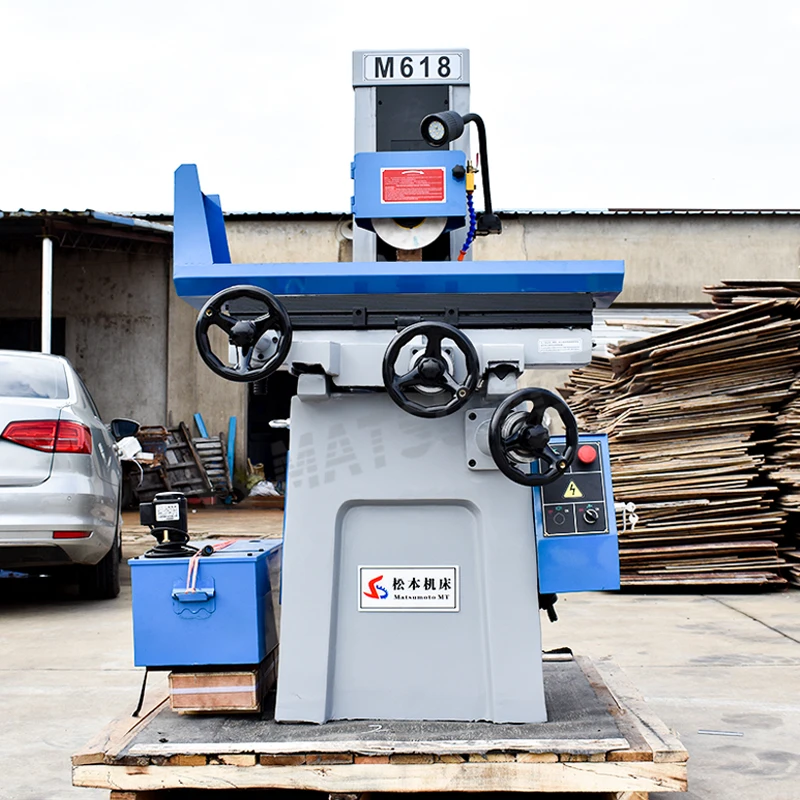

Плоские шлифовальные машины M618 высокоточная ручная Поверхностная шлифовальная машина
- Категории: Surface Grinding Machines >>>
- Поставщик: Shandong,Matsumoto,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Paramenters
M618 manual surface grinder performance

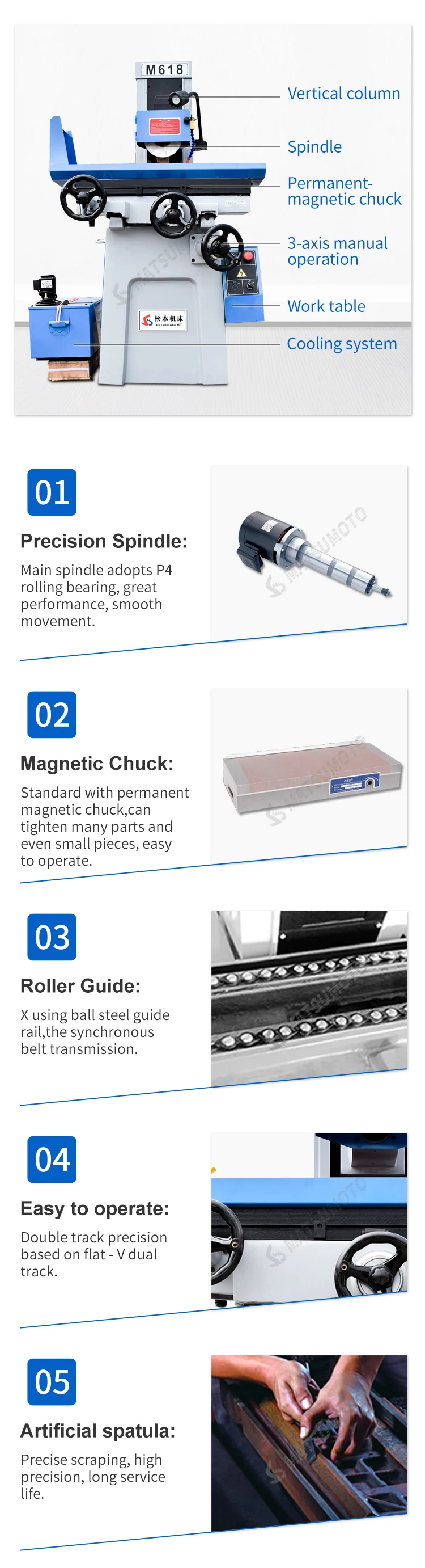

The spindle of M618 manual surface grinding machine adopts P4 grade precision bearing, which has high reliability and convenient maintenance.The machine tool adopts double V sticking plastic track horizontally, one V and one flat longitudinal track, and ball steel track (adopt overall quenching), which has high stability and accuracy, and easy and flexible operation.

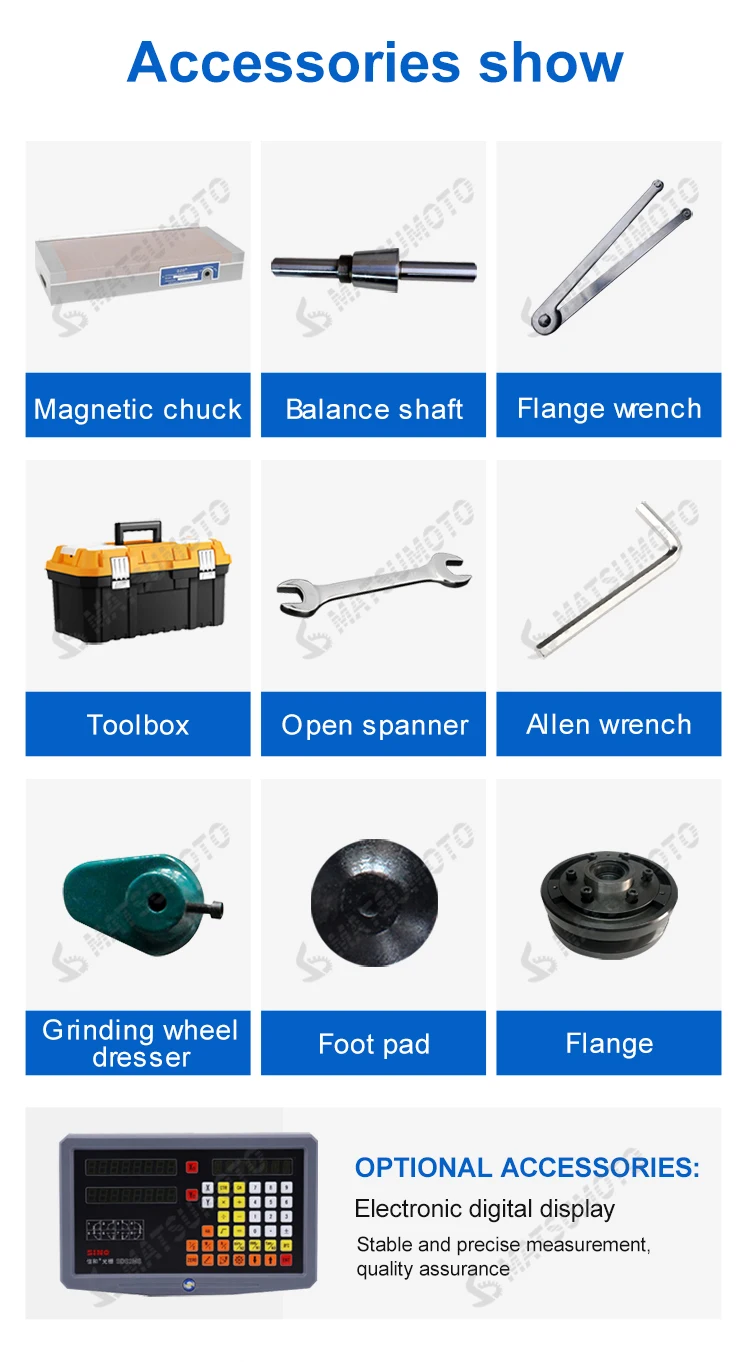

The movable parts are lubricated by hand-pulled oil lumps and equipped with various special accessories to meet the requirements of arc grinding and other complex forming.
Specifications | Parameters | Unit | M250 | M618 | ||
Worktable | Working Surface of Table | mm | 500*250 | 450*150 | ||
Max Table Travel | mm | 550 | 500 | |||
Max Grinding Size（W*L*H） | mm | 280*560*350 | 170*500*270 | |||
T Slot(Number*width) | mm | 1*14 | 1*14 | |||
Max Table Load | kg | 100 | 80 | |||
Grinding head | Distance Between Table Surface and Grinding Wheel Shaft Center | mm | 420 | 380 | ||
Table Speed | m/min | Manual | Manual | |||
Vertical feed Handwheel | 1 grad | mm | 0.01 | 0.01 | ||
1 rev | 4.0 | 4.0 | ||||
Cross feed Handwheel | 1 grad | mm | 0.02 | 0.02 | ||
1 rev | 5.0 | 4.0 | ||||
Feed per time（max） | mm | 0.07 | / | |||
Feed per time（min） | mm | 0.01 | / | |||
Work precision | Grinding Wheel（OD*W*ID） | mm | Φ200*20*Φ31.75 | Φ175*13*Φ31.75 | ||
Spindle Speed | 50HZ | rpm | 2850 | 2850 | ||
Parallelism of the machined surface to the base surface | mm | 300:0.005 | 300:0.005 | |||
Surface roughness | um | Ra0.63 | Ra0.63 | |||
Motor | Spindle Motor | kw | 1.5 | 1.1 | ||
Machine main motor | kw | 2 | 1.14 | |||
Machine size | Net Weight | kg | 950 | 650 | ||
Gross Weight | kg | 1000 | 700 | |||

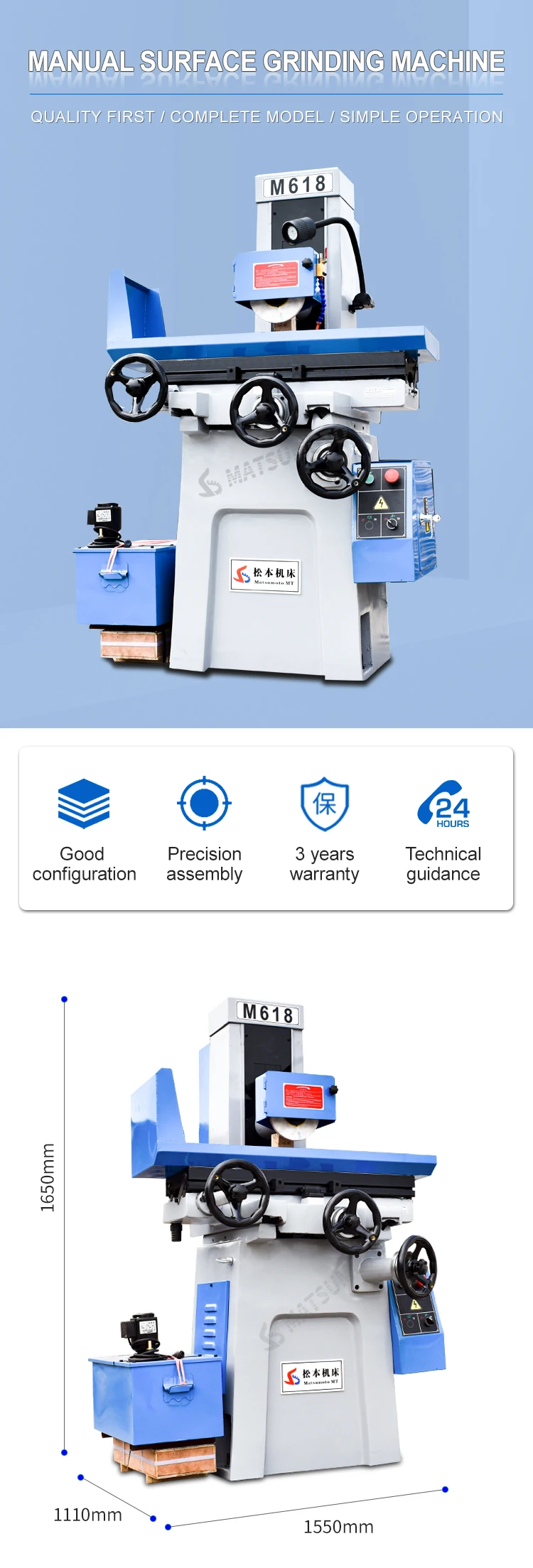

Dimension（L*W*H） | mm | 1700*1300*1800 | 1550*1110*1650 | |||
Details Images
Recommend Products
Company Profile
Certifications
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
