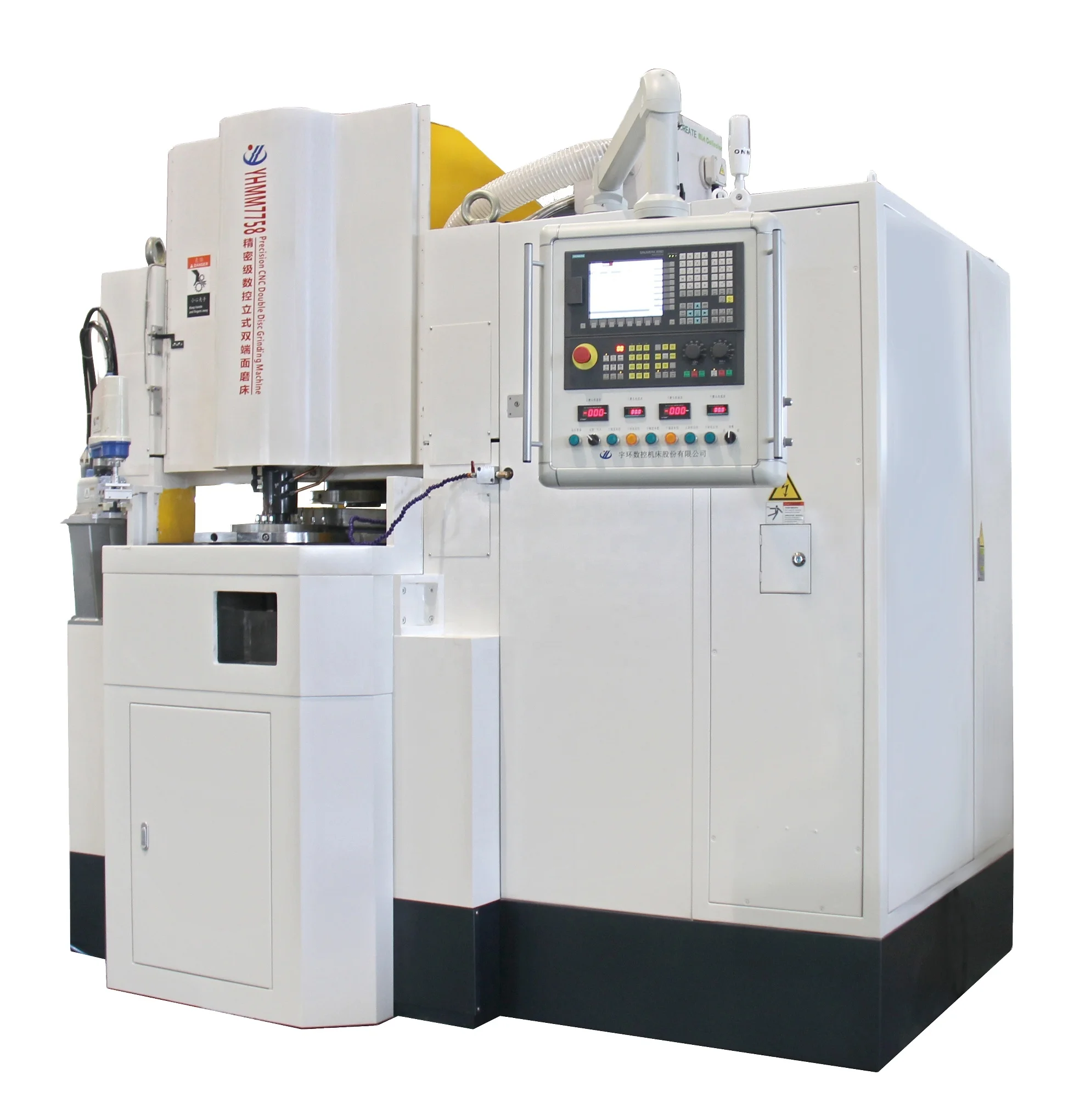

CNC valve surface Grinder Powder Metallurgical Parts Vertical Double Disc Surface Grinding Machine
Product Description

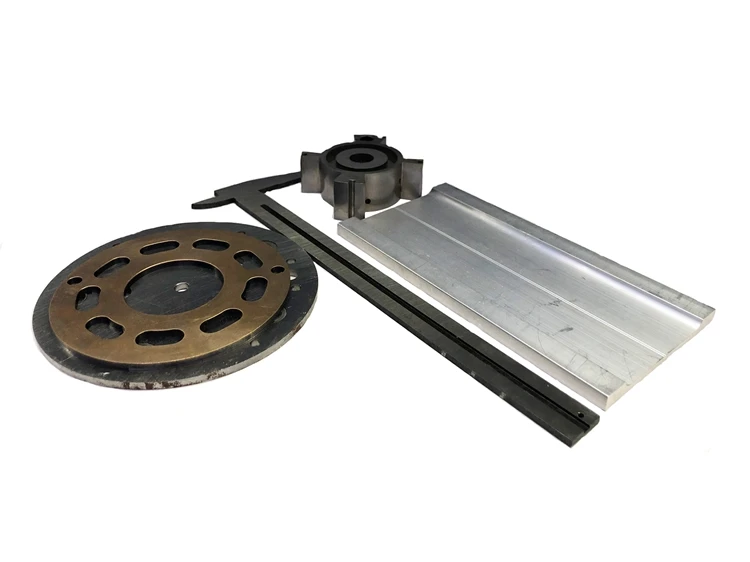

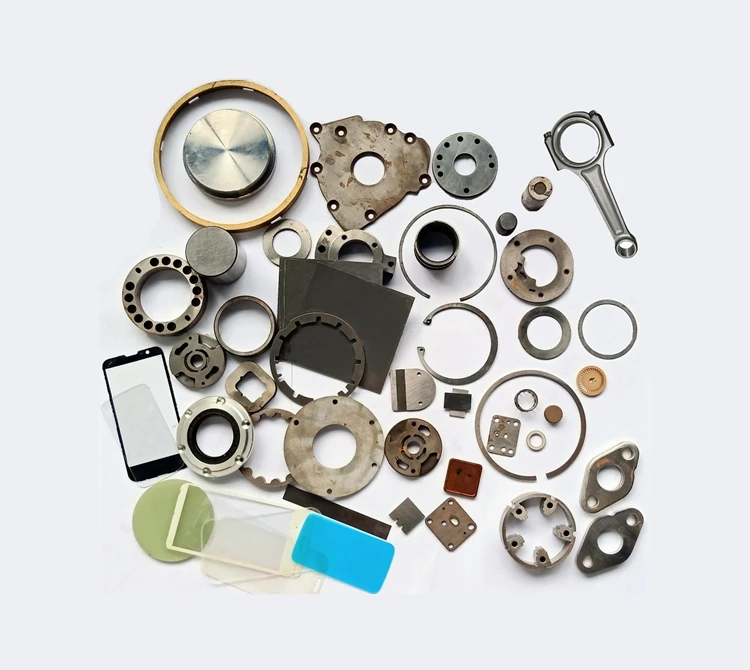

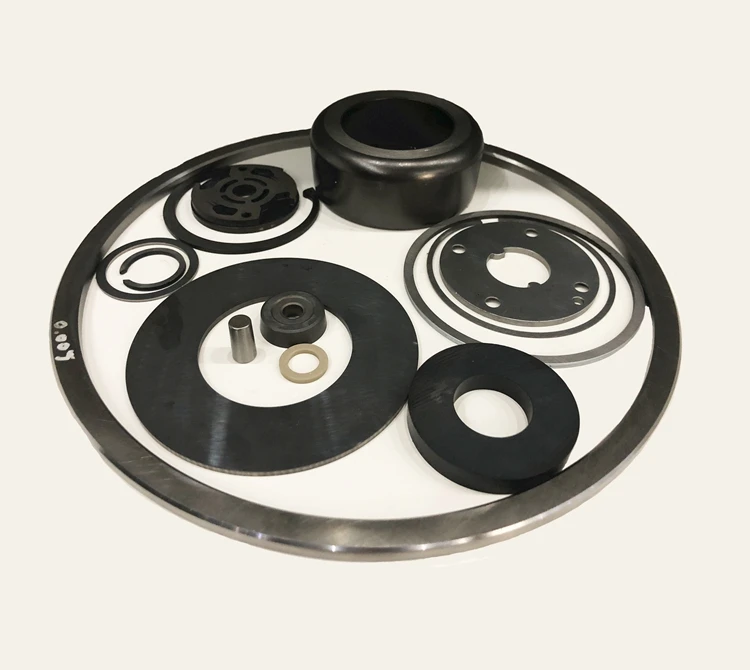

YUHUAN DOUBLE DISC SURFACE GRINDER is designed for high precision grinding of the two paralell surfaces of flat metallic parts such as bearing, valve plate, carbide chip, seal, oil pump vane, piston ring, etc. It can also grind the flat surfaces of non-metallic parts of hard & brittle materials like glass and ceramics.
Technical Feature
- SIEMENS CNC system with stable and reliable performance, HMI friendly.
- Grinding head feeding is controlled by special ball screw unit with high precision and high rigidity, feeding accuracy is up to 0.001mm.
- Grinding wheel spindle is driven by inverter control with speed range of 150-950r/min.
- Grinding head feed with reverse clearance elimination mechanism, featuring high feeding stability.
- Feeding carrier is driven by SIEMENS servo motor, flexible for C through type, oscillating and planetary feeding methods.
- Feeding rotary table is modularized and fixed onto the lower-case foundation. Robot arm is equipped for easy replacement of abrasive wheels.
- Both upper and lower tank of the machine body adopt casting parts, boasting high rigidity, stability and excellent grinding performance.
Main Specification
Model | YHDM7758 vertical double surface grinder machine |
Dimension of parts | Disc-shaped part : 12~120mm(diagnol) |
Thickness of parts | 0.8~50mm |
Size of grinding wheel | 585×195×65mm (diamond /CBN wheel) |
Power of wheelhead motor | 22Kw×2 |
Power of servo motor of wheelhead lifting | 1.5Kw×2 |
Wheel head speed | 150~950rpm |
Power of feeding carrier motor | 0.75 Kw |
Feeding carrier speed | 1~10rpm |
Plainness and parallelism | Max 0.003mm |
Surface roughness | Max Ra0.32μm |
Total Weight | 12000Kg |
Overall dimensions(L*W*H) | 2800×2150×2900mm |

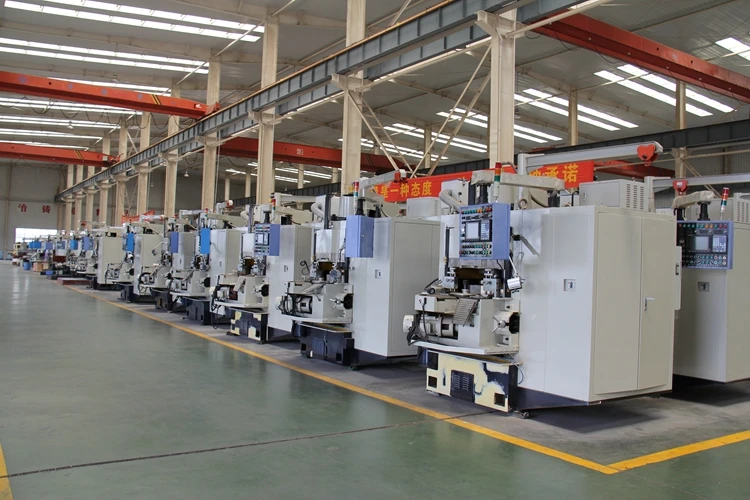

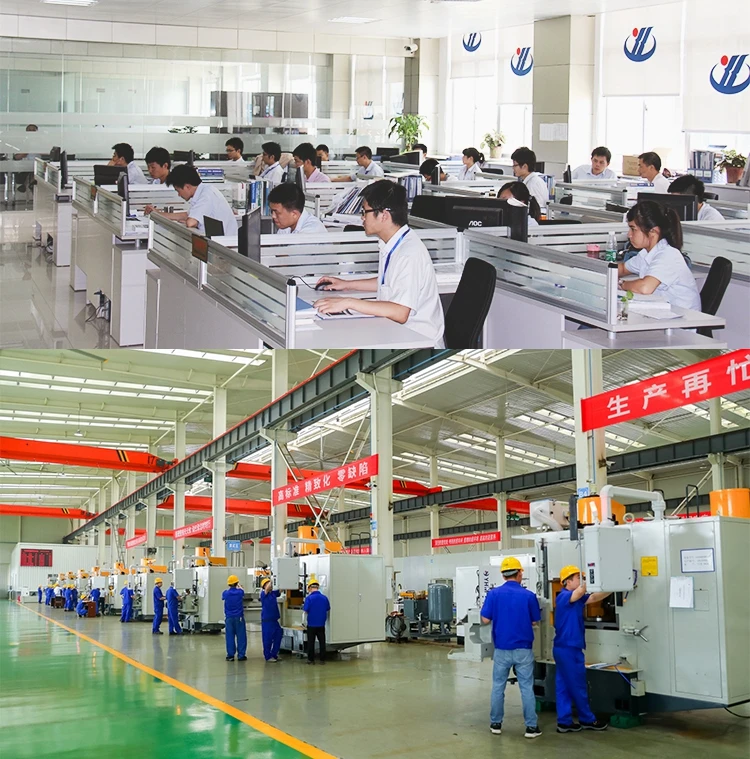

Our company has modern production workshop, Complex efficient grinding Laboratory , Computer Design Studio , has a variety of testing instruments and equipment over 30 sets of experimental facilities , a variety of processing equipment over 60 sets .

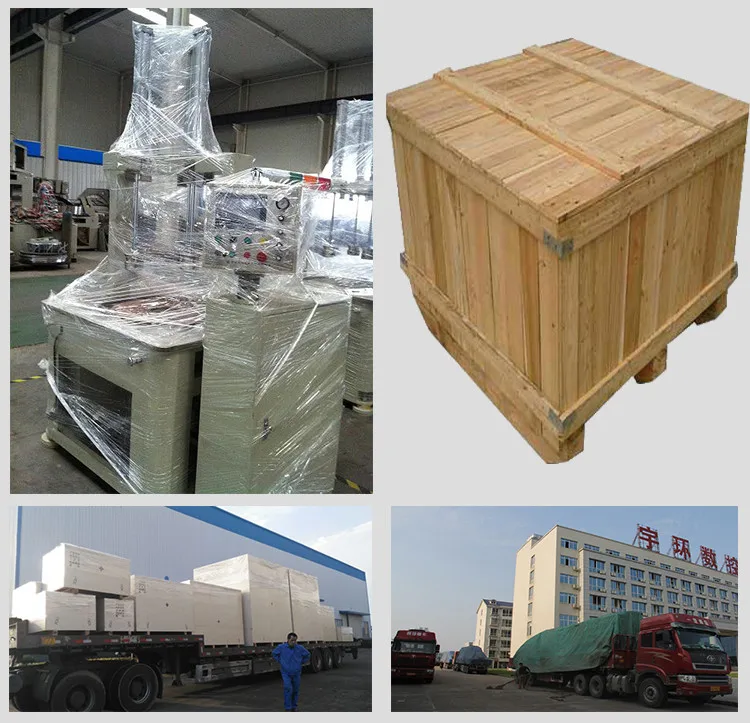

Packaging & Shipping
1.Fumigated wooden packages with IPPC stamp.
2.Special packing requirements available.
Company Information
Our R&D team has about over 50 engineers, occupied 20% of total staffs. Includes 19 SenierMechanical engineers( 4with doctor’s degree,8 with master’s degree),7 Senierelectrical engineers,5 CNC soft engineers
- The workshop and office area covers 20K Sqmeters.
- With over 270 staffs, including over 50 R&D technical engineers.
- Main products output more than 1000 sets per year.
Foreigners Visiting
Our products have been in great demand by more than twenty provinces including Taiwan all around China, and Vietnam, Portugal, Russia, Kenya, Brazil and other countries. We have obtained high prestige from our customers for the high quality products, satisfactory after-sales services and competitive price.
Customers
Our products are widely used in Automotive/3C IT Electronic/Military/ Aerospace/ Shipbuilding/Bearings/seals/ Household Appliances/ And other key areas of National Economy.
After-Sales Service
1.Guarantee period is one year. Within this period, the replaced parts will be offered free if has quality problem.
2.We could arrange engineers to user’s site for installation and final-acceptance according to customer’s requirements.
3. We will offer free the training for machine’s management /operation/maintenance to user’s related people.
Please feel free to contact us,we will reply within 24h!
