Автоматическая гидравлическая кормушка MY250 плоскошлифовальная машина Поверхностная шлифовальная со
- Категории: Surface Grinding Machines >>>
- Поставщик: Shandong,Matsumoto,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Paramenters

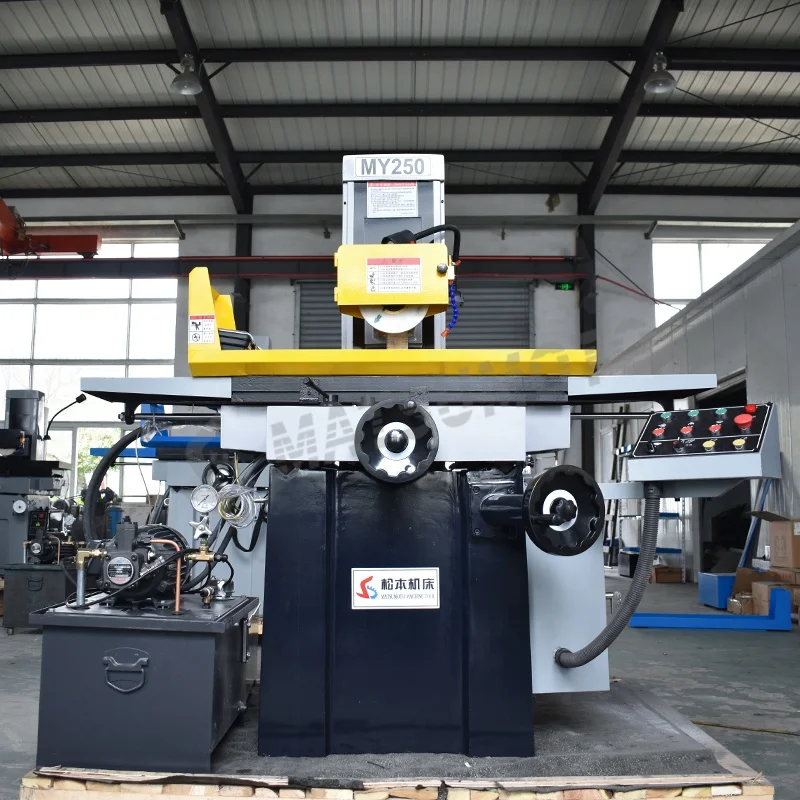

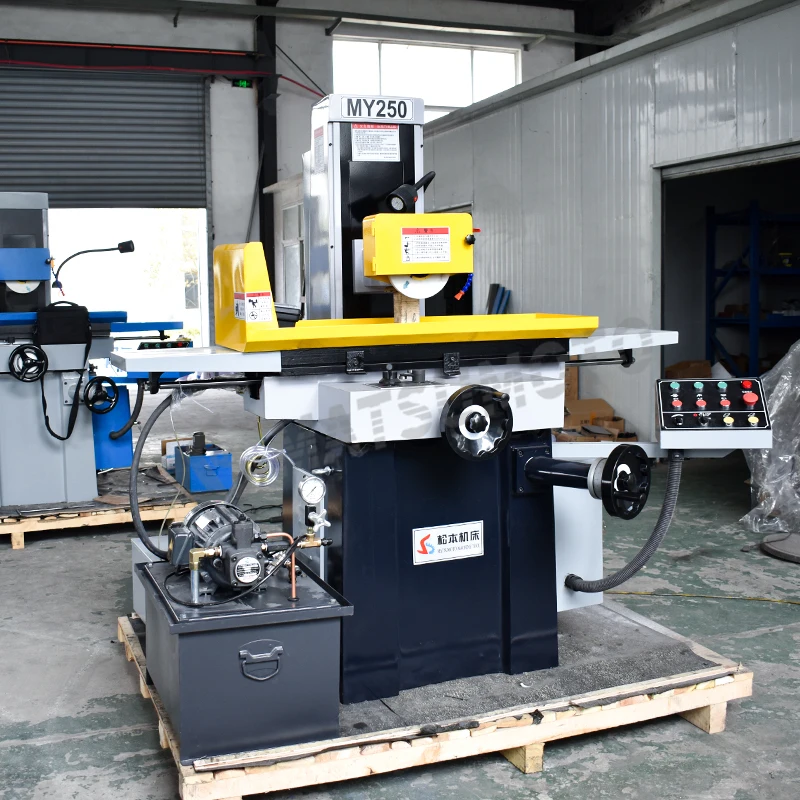

MY250 Hydraulic surface grinder performance
Surface grinding machine is a kind of grinding machine.The main grinding wheel is used to rotate and grind the workpiece to achieve the required flatness. According to the shape of the worktable, it can be divided into two kinds: rectangular worktable and circular worktable. The main parameters of the surface grinding machine of the rectangular worktable are the width and length of the worktable, and the main parameters of the circular worktable are the diameter of the worktable. According to the different types of shaft can be divided into horizontal shaft and vertical shaft grinding machine.
Specifications | Parameters | Unit | MY618 | MY250 | ||
Worktable | Working Surface of Table | mm | 460*180 | 500*250 | ||
Max Table Travel | mm | 500 | 550 | |||
Max Grinding Size（W*L*H） | mm | 200*480*280 | 280*560*350 | |||
T Slot(Number*width) | mm | 1*14 | 1*14 | |||
Max Table Load | kg | 80 | 100 | |||
Grinding head | Distance Between Table Surface and Grinding Wheel Shaft Center | mm | 360 | 420 | ||
Vertical feed Handwheel | 1 grad | mm | 0.01 | 0.01 | ||
1 rev | 4.0 | 4.0 | ||||
Cross feed Handwheel | 1 grad | mm | 0.02 | 0.02 | ||
1 rev | 4.0 | 5.0 | ||||
Feed per time（max） | mm | / | 0.07 | |||
Feed per time（min） | mm | / | 0.01 | |||
Hydraulic system | Spindle motor | kw | 1.5 | 1.5 | ||
Pressure of work | mpa | 3 | 3 | |||
Lubricating oil tank capacity | L | 60 | 70 | |||
Work precision | Grinding Wheel（OD*W*ID） | mm | Φ180*13*Φ31.75 | Φ200*20*Φ31.75 | ||
Spindle Speed | 50HZ | rpm | 2850 | 2850 | ||
Parallelism of the machined surface to the base surface | mm | 300:0.005 | 300:0.005 | |||
Surface roughness | um | Ra0.63 | Ra0.63 | |||
Motor | Grinding head motor | kw | 1.1 | 1.5 | ||
Machine main motor | kw | 1.14 | 2 | |||
Machine size | Net Weight | kg | 750 | 950 | ||
Gross Weight | kg | 850 | 1000 | |||

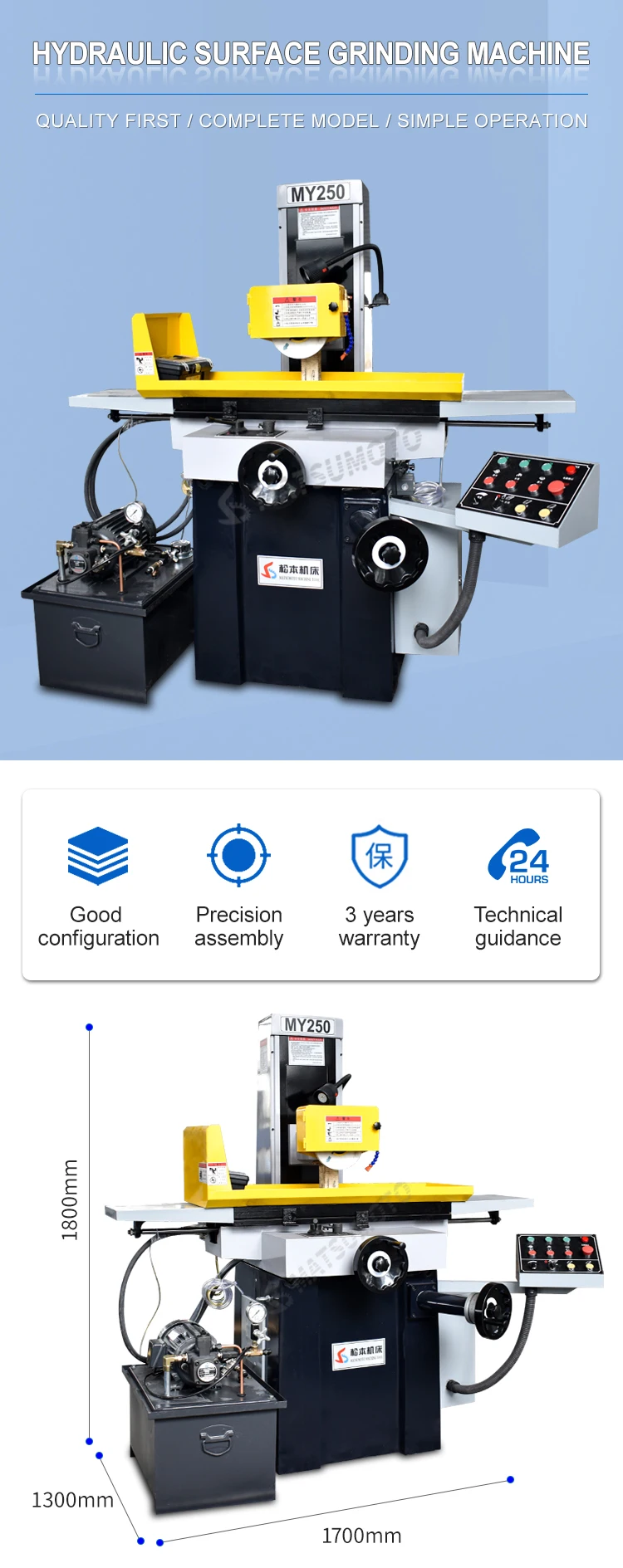

Dimension（L*W*H） | mm | 1680*1150*1700 | 1700*1300*1800 | |||
Details Images
Recommend Products
Company Profile
Certifications
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
