Product Specification

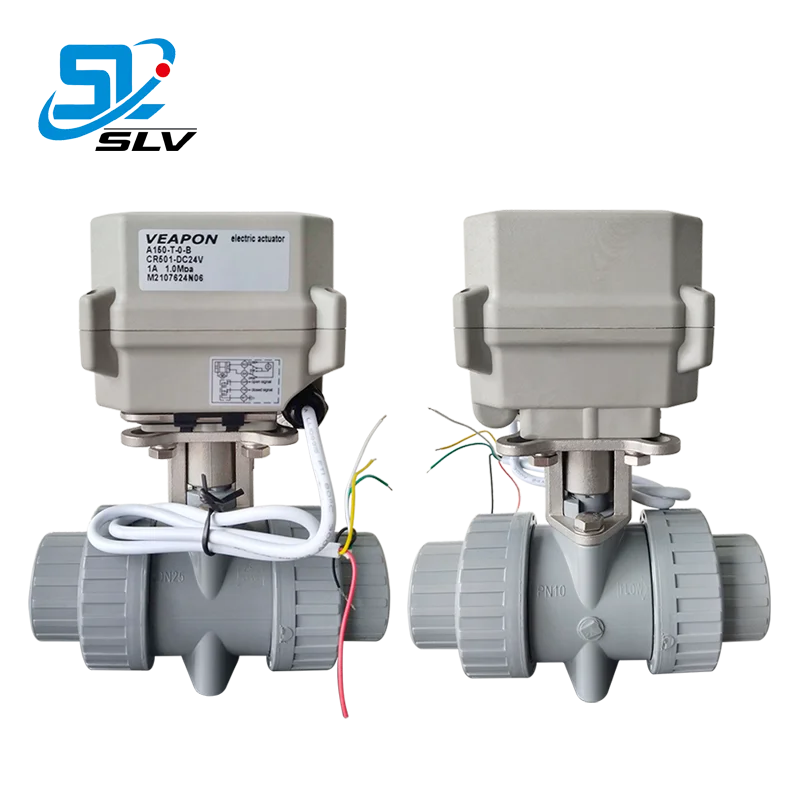

Double Union Plastic Ball Valve with Miniature Electric Actuator
Double Union ball valve with an miniature electric actuator. They are typically used for on-off control or regulate the flow of water or liquid media (not suitable for air or gas). Through rotate 90 degrees (quarter-turn) to change the flow diretion. While they typically operate more slowly than valves with a pneumatic actuator, it is often the case that electricity is available and compressed air is not.
Advatage:
1. Small in size and light in weight; easy to control and installation
left side
Front
back
Electric Actuator | Power | DC12V DC24V AC24V DC12-24V AC110-230V ( Optional ) |
Style | ON/OFF style, intelligent style, time controlled style | |
Run time | <5S, <12S, <15S (According to different size) | |
Input signal | 4-20mA, 1-5V, 0-10VDC, or customize (for intelligent style) | |
protection grade | IP67 | |
Actuator material | Engineering Plastics PPO | |
Plastic Valve | Valve Body Material | UPVC, CPVC, PVDF, PPH |
O-ring/Seat Material | EPDM, FPM, PTFE | |
End type | Socket, Threaded(NPT/BSP), Flanged | |
Connection Standard | ISO5211 F03、F05 | |
Size | 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" ( Optional ) DN15, DN20, DN25, DN32, DN40, DN50 | |
Liquid temperature | 2℃ ~ 55℃ | |
Life Time | 70000 times ( testing pressure is 0.4MPa, medium is water ) | |
Certification | ISO9001:2015 |

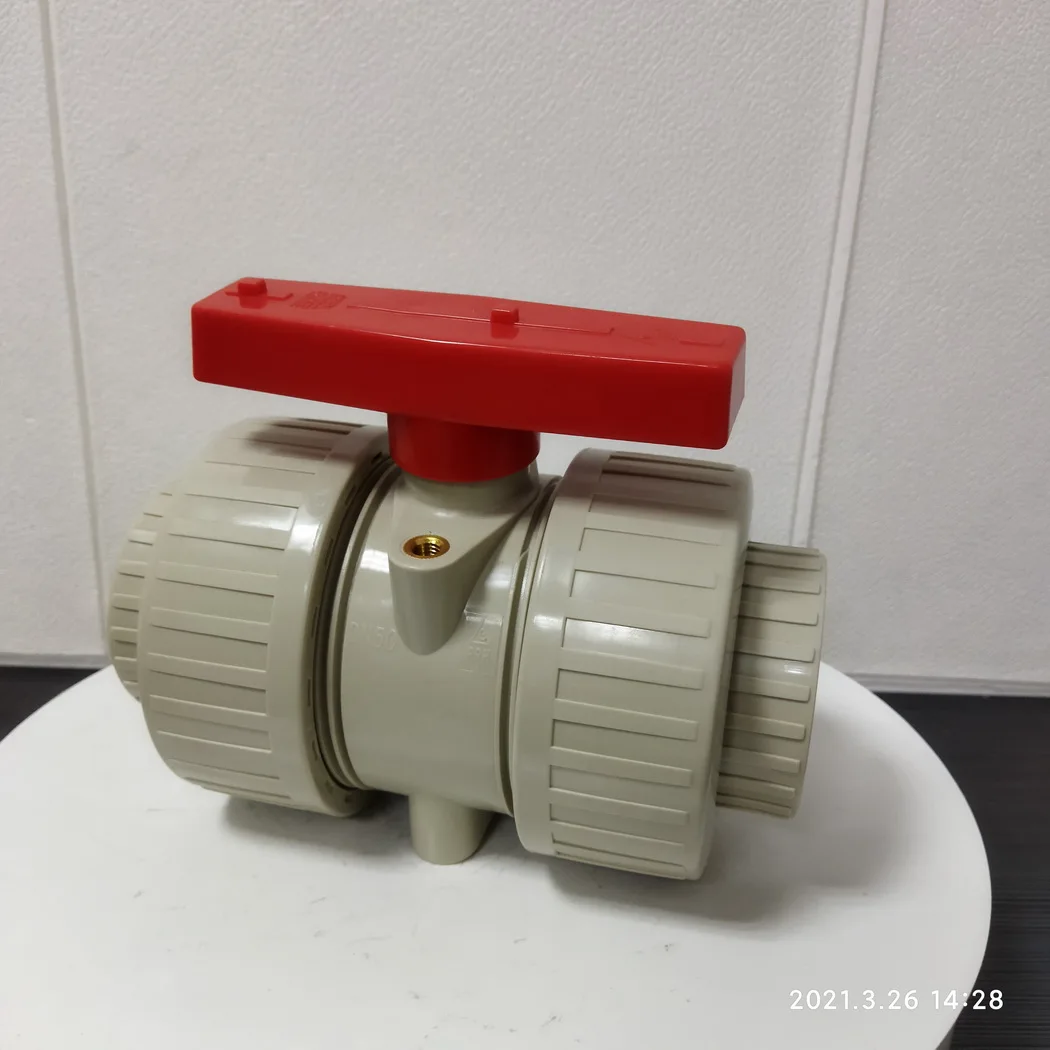

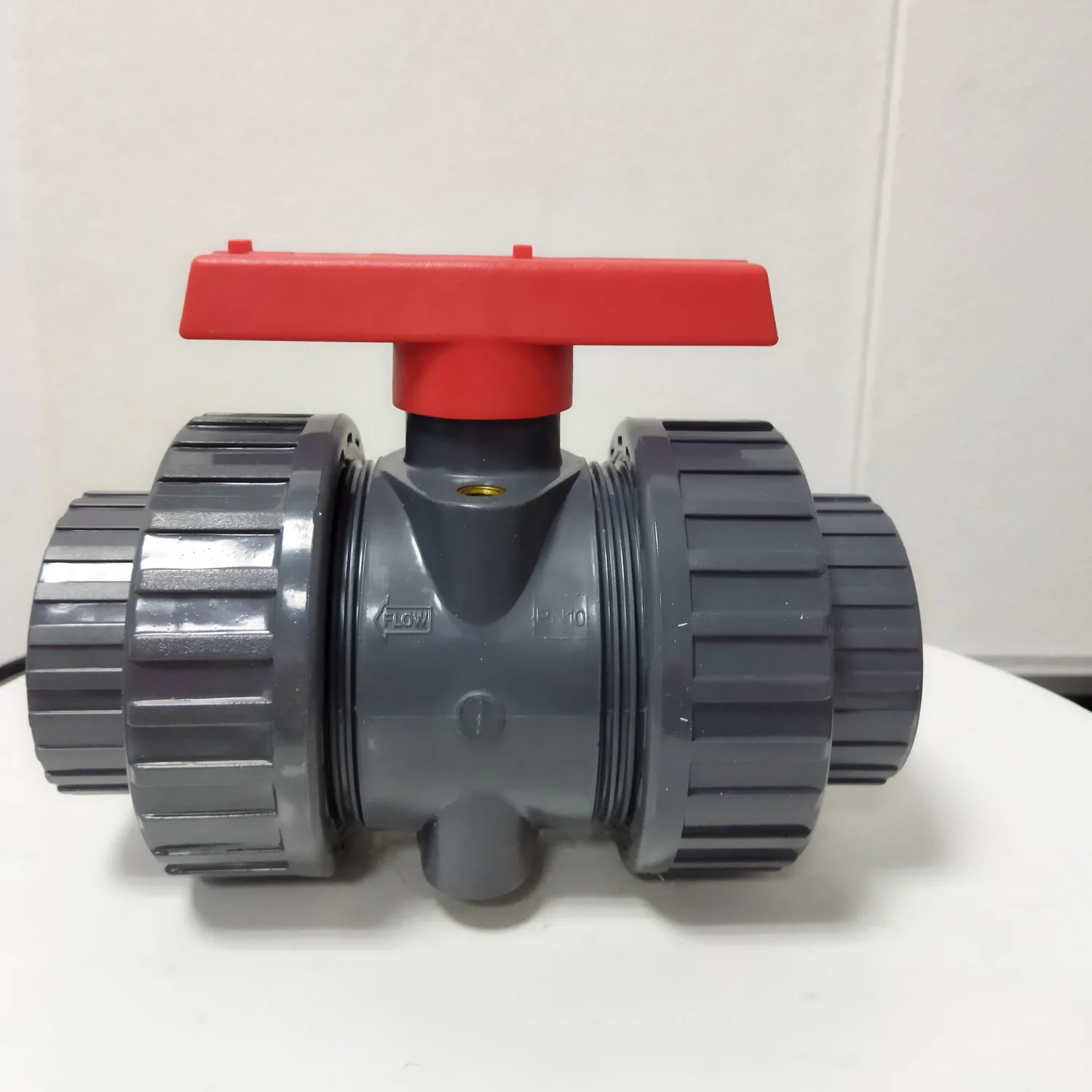

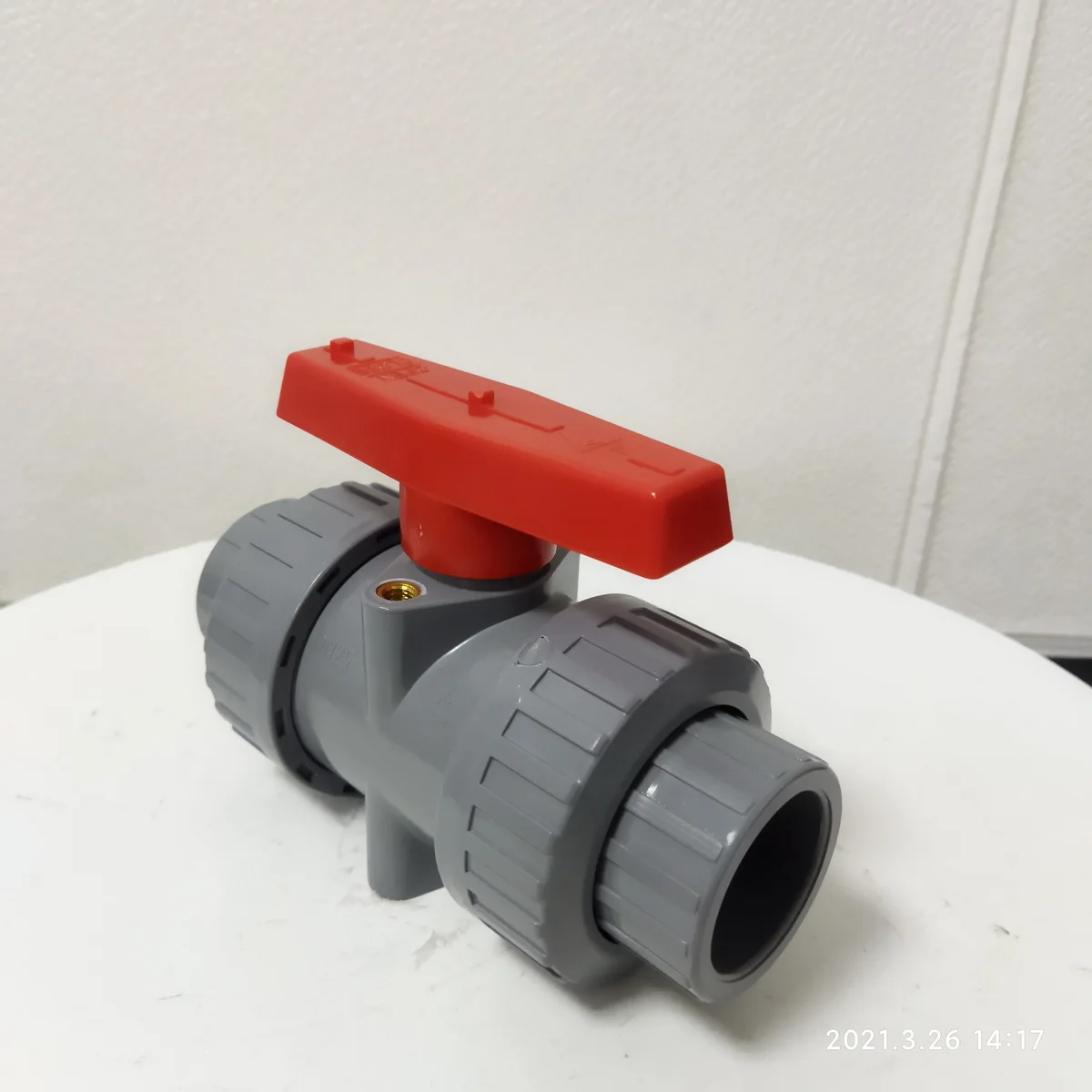

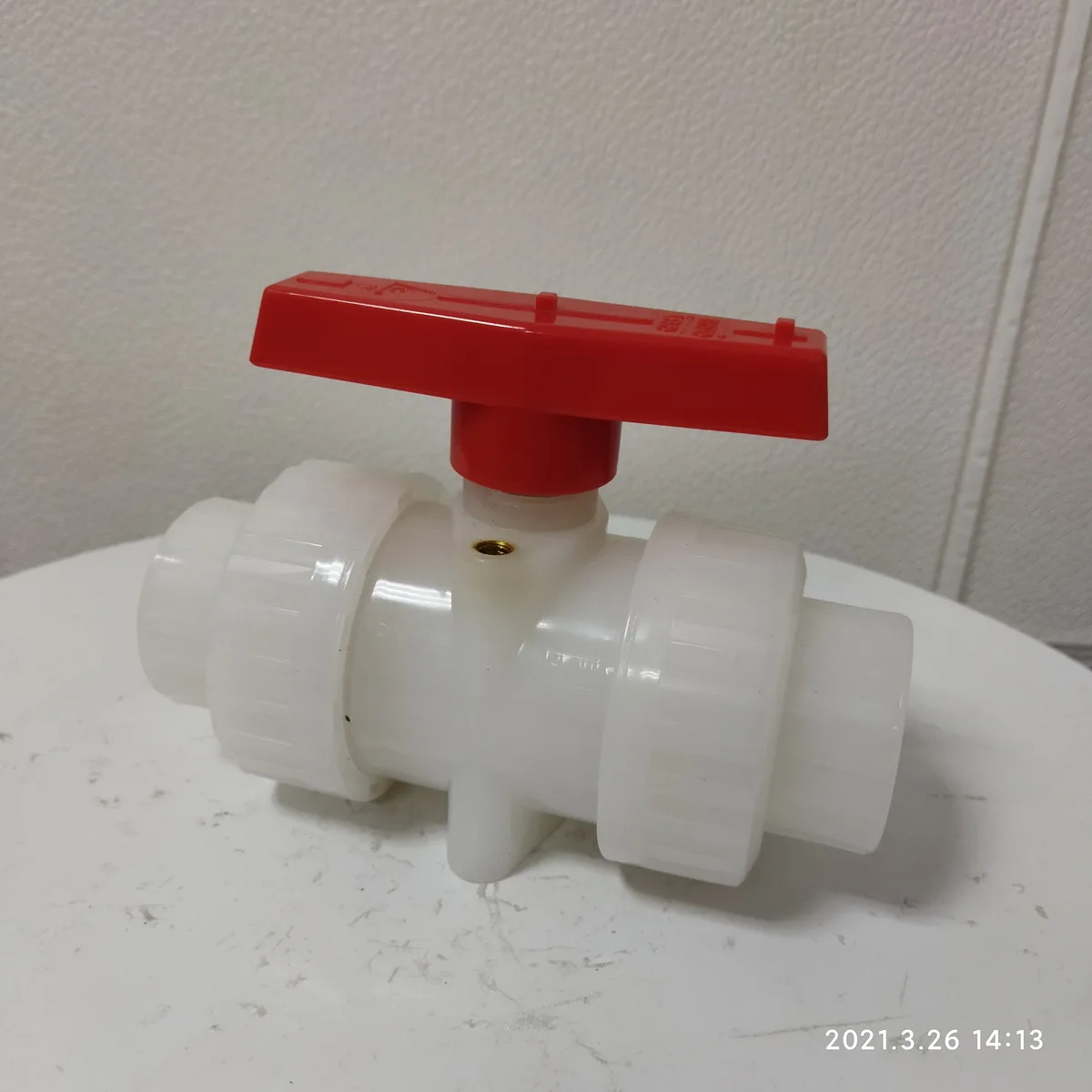

Plastic material distinction
We can offer below different material of valves: UPVC, PPH, CPVC, PVDF
Valve Body Material | UPVC | PPH | CPVC | PVDF | |||
Color | Black | Khaki | Grey | White | |||
Temperature of Media | <60℃ | <80℃ | <80℃ | <110℃ | |||
Corrosion resistant | Good | Better | Better | Best | |||
Price | UPVC < PPH < CPVC < PVDF | ||||||
Plastic Ball Valve detail photo:
left side
Breakdown
UP side

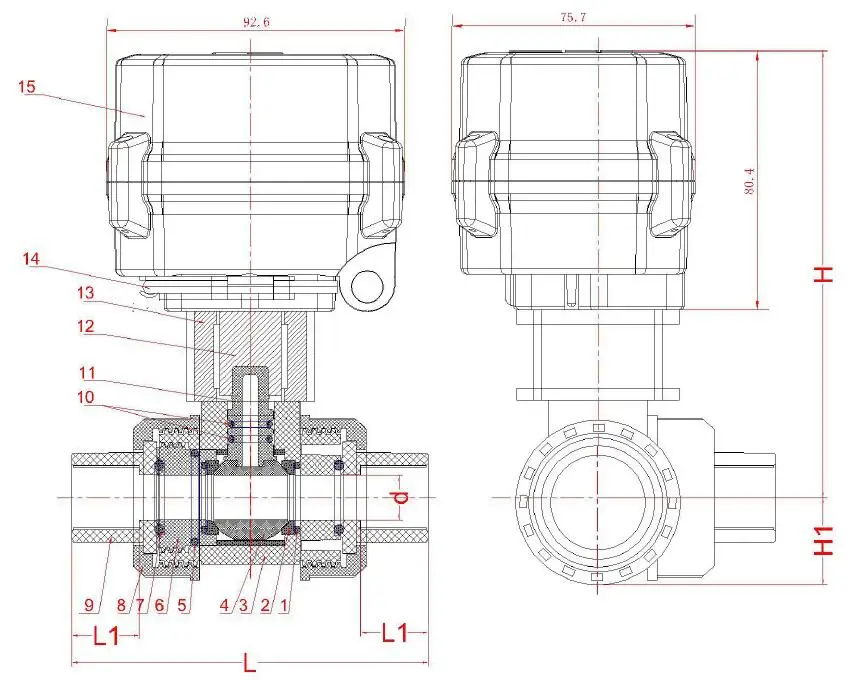

Dimension diagram & Size:
Double Union PVC Ball Valve with Miniature Electric Actuator Size Table | unit: mm | ||||||||||
Description | size | d | L | L1 | H | H1 | |||||
T15 | 1/2" | 15 | 104.8 | 22.3 | 136.7 | 27.5 | |||||
T20 | 3/4" | 20 | 113 | 25.5 | 141.2 | 32 | |||||
T25 | 1" | 25 | 127.2 | 28.6 | 156.25 | 37.25 | |||||
T32 | 1 1/4" | 32 | 142 | 32 | 162.4 | 42.75 | |||||
T40 | 1 1/2" | 40 | 157 | 35 | 174 | 50 | |||||
T50 | 2" | 50 | 171 | 38 | 194.4 | 60 | |||||
More Miniature Electric Valve:
2pcs Threaded Ball Valve with Miniature Electric Actuator
3Ways Threaded Ball Valve with Miniature Electric Actuator
Sanitary Ball Valve with Miniature Electric Actuator
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Packing: Carton box for small and light products. / Wooden box for big and heavy products
Company Profile
SLV-Jiangsu Shoulong Valve Co., Ltd. is a comprehensive enterprise engaged in research & development, produciton, sales and import & export of automatic control valves.
Founded in 1988, factory area in Nanjing and Wuxi: 30 acres.
Certifications
Our company has a complete set of prodction and testing equipment, perfect organization and quality system and a number of high-quality professional technicians and also has passed ISO9001-2000, TRD100, CE, API6D, API607, DNV, CNS and other certification successively.
Exhibition
FAQ
Q: Can we visit your factory before placing orders?
A: Yes, sure. Welcome to visit our factory at any time.
Q: How long is your delivery time?
A: Yes, sure. Welcome to visit our factory at any time.
Q: How long is your delivery time?
A: 5 days in stock. 15 days if the goods are not in stock.
Q: Do you provide samples? Is it free?
A: Yes, we could offer the sample with favorable price. The amount will be return after bulk order.
Q: What are your terms of payment?
A: Order<=1000USD, 100% in advance. Order>=1000USD, 30% T/T in advance,70% balance before shipment.
Q: Do you provide related accessories?
A: Yes, we can provide solenoid valve, locator, air filter regulator, limit switch and so on.
Q: How long is the warranty period for your product?
A: 18months after shipment. After the warranty period, we could also provide after-sales service.
Q: Do you provide samples? Is it free?
A: Yes, we could offer the sample with favorable price. The amount will be return after bulk order.
Q: What are your terms of payment?
A: Order<=1000USD, 100% in advance. Order>=1000USD, 30% T/T in advance,70% balance before shipment.
Q: Do you provide related accessories?
A: Yes, we can provide solenoid valve, locator, air filter regulator, limit switch and so on.
Q: How long is the warranty period for your product?
A: 18months after shipment. After the warranty period, we could also provide after-sales service.
