TKFM q11f один кусок pn16 ПТФЭ запечатывание ss316 шаровой клапан производитель прайс-лист
- Категории: >>>
- Поставщик: Shenyang,Taike,Fluid,Control,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Products Show
Product Description
1. The fluid resistance is small, and its resistance coefficient is equal to that of a pipe section of the same length.
2. Simple structure, small size and light weight.
3. It is tight and reliable. At present, the sealing surface material of the ball valve is widely used in plastics and has good sealing performance. It has also been widely used in the vacuum system.
4. It is easy to operate and open and close quickly. It only needs to rotate 90° from fully open to fully closed, which is convenient for remote control.
5. The maintenance is convenient, the structure of the ball valve is simple, the sealing ring is generally movable, and it is convenient to disassemble and replace.
6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when the medium passes.
7. It has a wide range of applications, with a diameter ranging from a few millimeters to a few meters, and can be applied from high vacuum to high pressure. When the ball rotates 90 degrees, it should show a spherical surface at the entrance and exit, so as to cut off the flow.
2. Simple structure, small size and light weight.
3. It is tight and reliable. At present, the sealing surface material of the ball valve is widely used in plastics and has good sealing performance. It has also been widely used in the vacuum system.
4. It is easy to operate and open and close quickly. It only needs to rotate 90° from fully open to fully closed, which is convenient for remote control.
5. The maintenance is convenient, the structure of the ball valve is simple, the sealing ring is generally movable, and it is convenient to disassemble and replace.
6. When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when the medium passes.
7. It has a wide range of applications, with a diameter ranging from a few millimeters to a few meters, and can be applied from high vacuum to high pressure. When the ball rotates 90 degrees, it should show a spherical surface at the entrance and exit, so as to cut off the flow.
Products Show

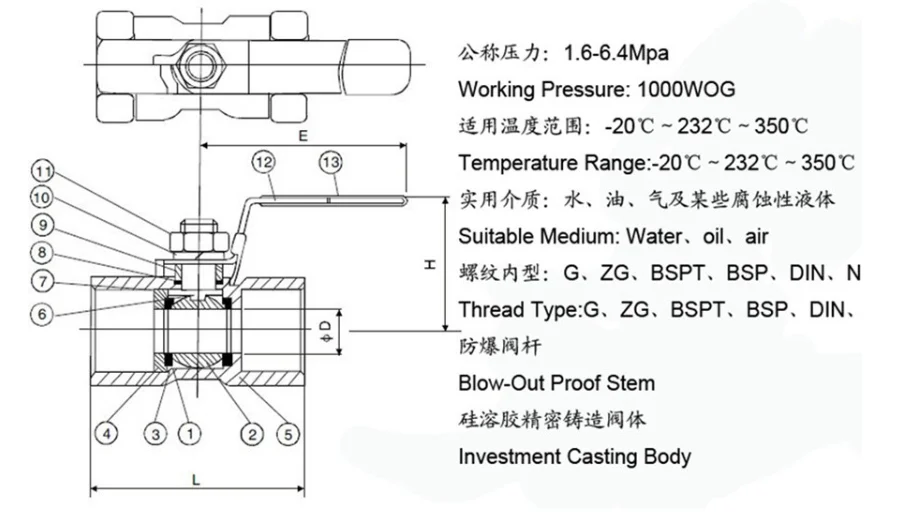

SIZE(mm) | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
D | 5 | 7 | 9.2 | 12.5 | 15 | 20 | 24.5 | 32 |
L | 40 | 45 | 56.5 | 60 | 72 | 78 | 85 | 100 |
H | 35 | 37 | 43.5 | 47 | 50 | 57 | 69 | 74.5 |
E | 64 | 70 | 90 | 90 | 103 | 103 | 127 | 127 |
