Горячая Распродажа M250AHD Серводвигатель PLC CNC плоскошлифовальный станок 3 оси Автоматическая плоская Плоскошлифовальный
- Категории: Surface Grinding Machines >>>
- Поставщик: Shandong,Matsumoto,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Paramenters

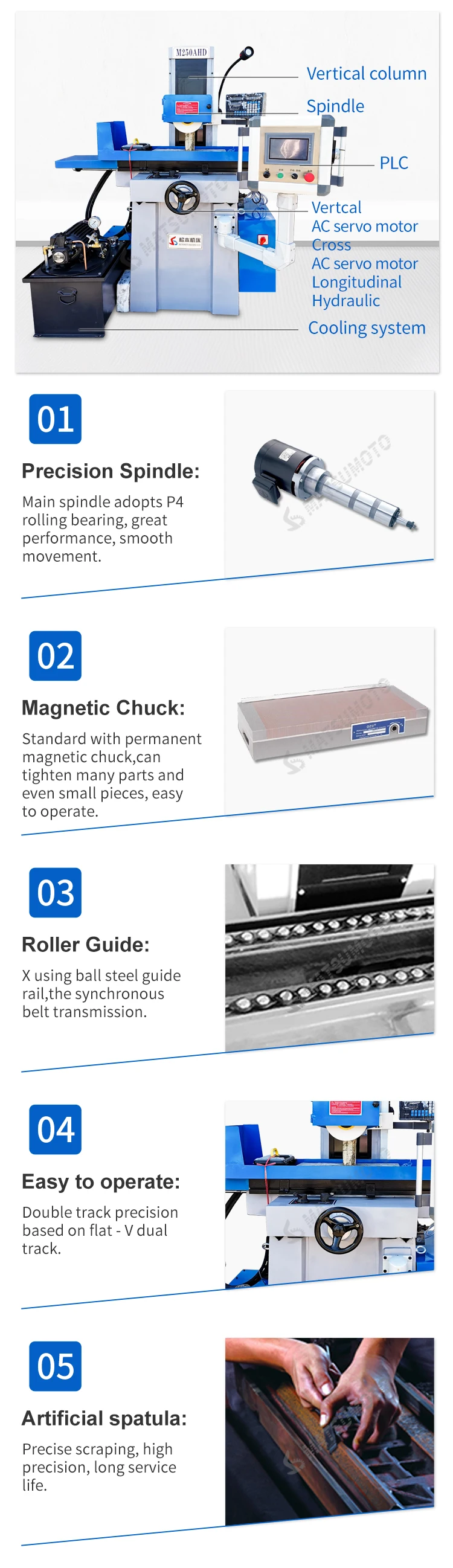

Features:

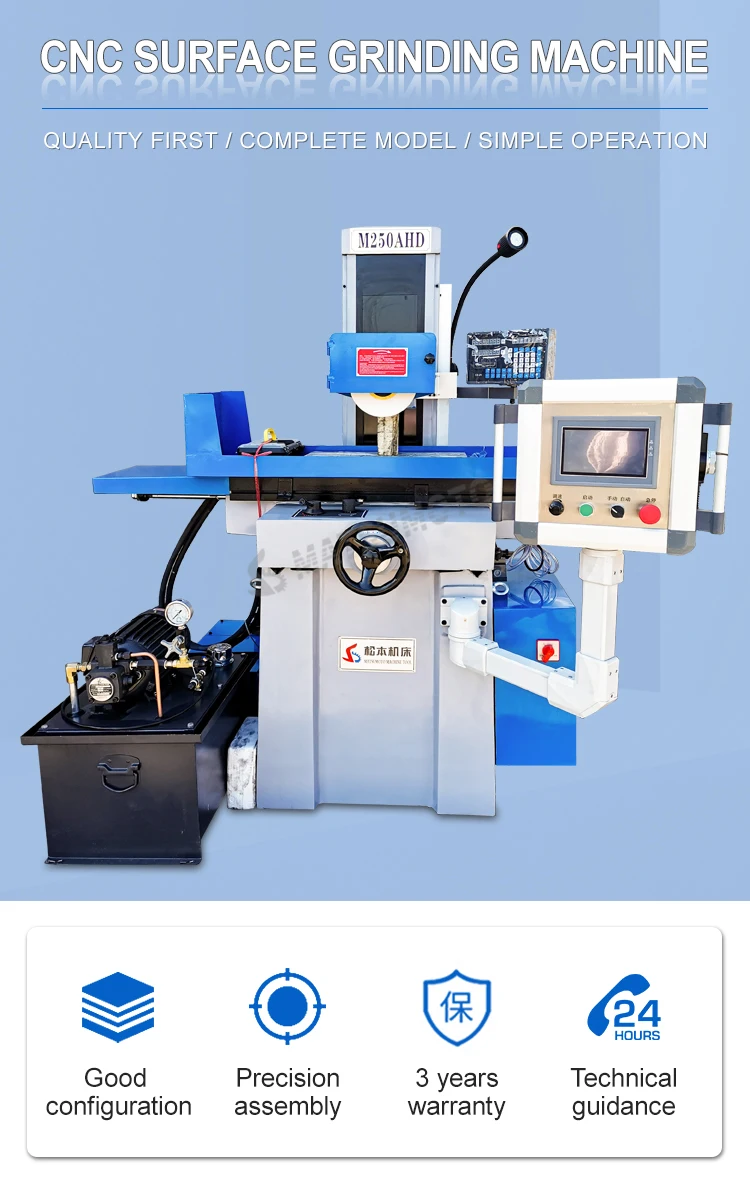

1.M250AHD is a 3 axis full automatic metal surface grinding surface grinder,with Taiwan PLC control panel , quality castings and magnetic chuck.
2.Longitudinal feeding: Hydraulic.
3.Cross feeding: motor electric.
4.Vertical feeding: rapid AC servo motor.
5.M250AHD surface grinder grinding machine can grind all kinds of surfaces or grind complex surfaces by dressing of grinding wheel.
2.Longitudinal feeding: Hydraulic.
3.Cross feeding: motor electric.
4.Vertical feeding: rapid AC servo motor.
5.M250AHD surface grinder grinding machine can grind all kinds of surfaces or grind complex surfaces by dressing of grinding wheel.
Model | Unit | M250AHD | ||||
Bench | Worktable size(L*W) | mm | 500*250 | |||
Max travel of table(L*W) | mm | 550*250 | ||||
Table max cutting area(L*W*H) | mm | 580*260*380 | ||||
Number of T-Slot | mm | 1*14 | ||||
Grinding head | Distance from Table Surface To Spindle Center | mm | 470 | |||
Wheel Size(dia * width* bore) | mm | Φ200*20*φ31.75 | ||||
Spindle speeds (50HZ) | r/min | 2850 | ||||
The amount of feed | Table longitudinal (left and right) speed (stepless) | m/min | 3--23 | |||
Table horizontal (before and after) the amount of feed | Continuous (variable speed) | mm/min | 150 | |||
Intermittent (stepless) | mm | 0-5 | ||||
The handwheel rotatos | mm | 2.5 | ||||
Hand wheel each grid | mm | 0.02 | ||||
Vertical (up and down) feed | Handwheel rotates | mm | 1.25 | |||
Hand wheel each grid | mm | 0.01 | ||||
Motor power | Spindle motor | kw | 1.5 | |||
Cooling motor | w | 40 | ||||
Weight of machine& working precision | The machined surface of the base of parallelism | mm | 300/0.005 | |||
Surface Roughness | μm | Ra0.32 | ||||
Net weight | kg | 950 | ||||
Cross weight | kg | 1000 | ||||
Machine size (L*W*H) | mm | 1700*1300*1800 | ||||
Details Images
Recommend Products
Company Profile
Certifications
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
