X6332 Китай мини хобби cnc фрезерный станок
US $3200-$3400

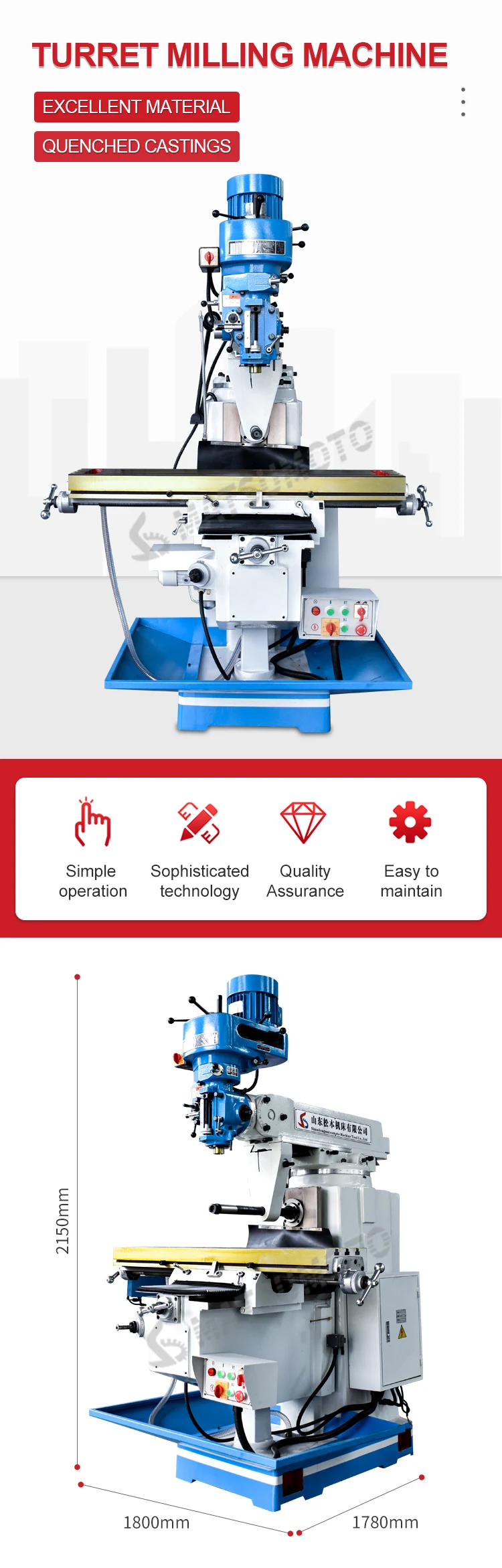

Manual mills M5W M6W universal turret milling machine
- Категории: Milling Machines >>>
- Поставщик: Shandong,Matsumoto,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Paramenters

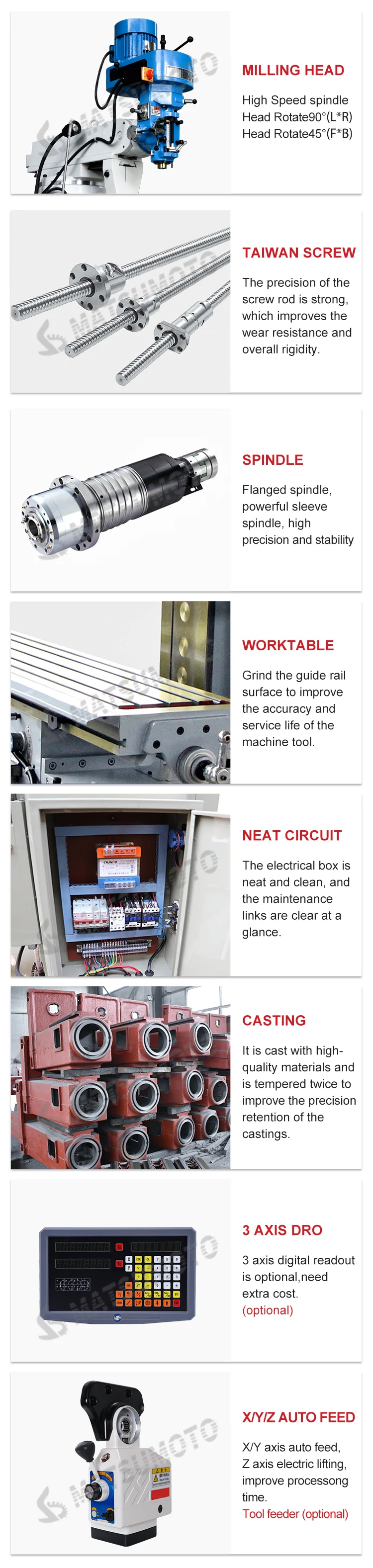

Main performance characteristics：
1.High strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings, ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed , high speed，wide range of variable speed, torque.
Application：
The milling machine is a kind of universal light duty metal cutting machine,
1.High strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings, ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed , high speed，wide range of variable speed, torque.
Application：
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline,etc.
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Specifications | Units | M5W | M6W | |
Table size | mm | 1370*305 | 1570*320 | |
Table travel | mm | 900/400/450 | 1000/400/450 | |
Spindle taper | - | (V) R8/ISO40 (H) ISO40 | ||
Spindle travel | mm | 127 | ||
Spindle speed range | rpm | (V)50HZ:65-4540 60HZ:60-5440,16 steps; (H)45-1350,12 steps | (V)50HZ:65-4540 60HZ:60-5440,16 steps; (H)45-1350,12 steps | |
T slot(number-width-pitch) | mm | 3-16-76 | ||
Spindle feed range | mm | 0.76/0.003 | ||
Distance between spindle axis and table surface | mm | 0-400 | ||
Main motor power | kw | 380v 2.2/4(V) 3(H) | ||
Lifting power | kw | 1.1 | ||
Head rotation (left - right ) | ° | ±90° | ||
Head rotation (front - rear) | ° | ±45° | ||
Weight | kg | 1560 | 1780 | |
Overall dimension | mm | 1800*1780*2150 | 1900*1780*2150 | |

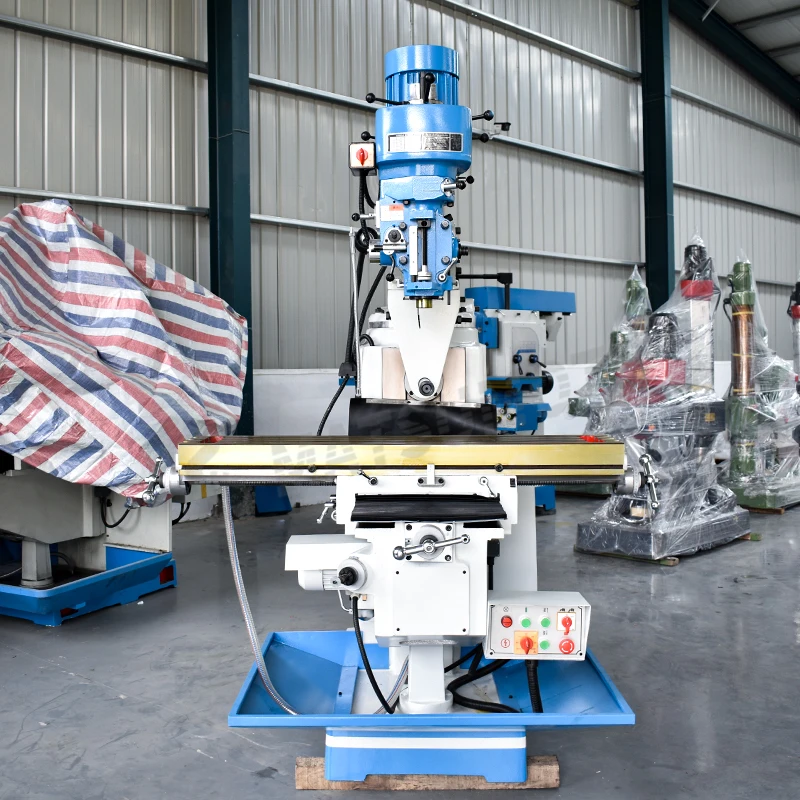

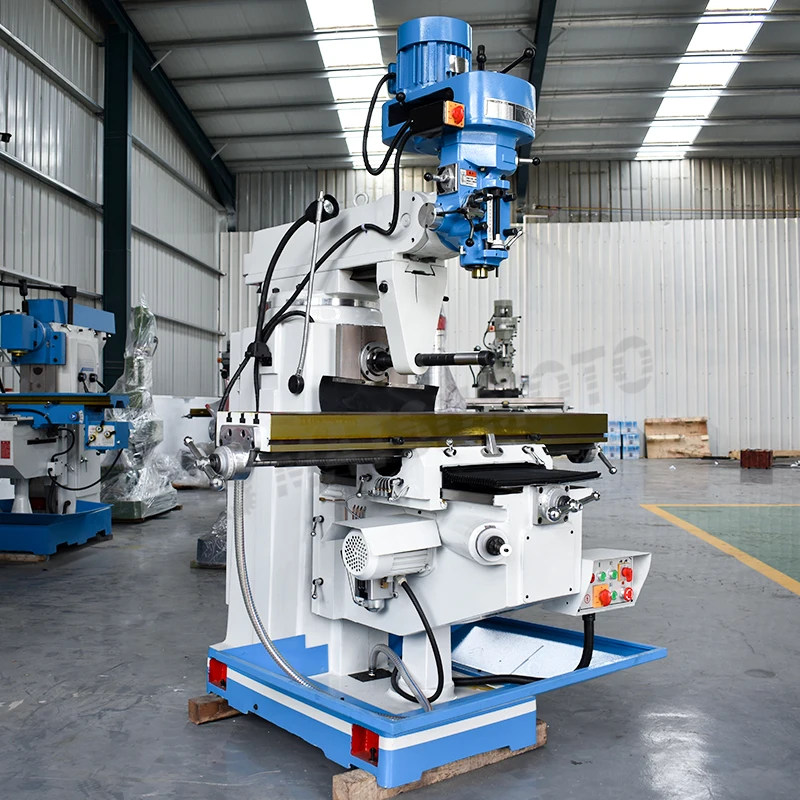

Details Images
Recommend Products
Company Profile
Certifications
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
