Product Description
2 Way DN25 1 Inch Auto Water Valve Off Motorized Electric Control Brass Irrigation Ball Valve
Forward series straight-through motorized valve, Has compact size with smart shape, Perform reliably, with long life time,intelligent control, high torque actuators, low noise, no leak, and many other features.
Product Features
1 | Mini size and perform reliably for small equipment | ||||||
2 | Easy to install | ||||||
3 | All metal gear | ||||||
4 | Long life time —70000-100000 circles | ||||||
5 | Floating seal structure, good sealing,protection class IP67 | ||||||
6 | Low working current, suitable for battery supply set | ||||||
7 | Manual override is safe and convenient | ||||||
8 | Passed CE certification and NSF61-G certification | ||||||
Applications
1 | IC card water meters, heat energy meters, solar instrument. | ||||||
2 | The central air conditioning fan coil, fire sprinkler | ||||||
3 | Water saving irrigation, automatic control system, industrial mini automatic control equipment. | ||||||
4 | Agriculture Irrigation equipment | ||||||
5 | Drinking water equipment, Water heater, washing machine, AHW etc. | ||||||
Parameters Table
Product size | 1" (NPT/BSP 1/4" 3/8" 1/2" 3/4" 1-1/4" ) Optional | ||||||
Maximum working pressure | 1.0MPa | ||||||
Circulation medium | Fluid, air | ||||||
Rated voltage | DC5V,DC12V,DC24V, DC7-35V,AC/DC9-35V,AC/DC110-230V(Optional) | ||||||
Wiring control methods | CR2-01,CR2-02,CR3-01,CR3-02,CR3-03,CR3-04,CR4-01,CR5-01,CR5-02,CR7-01,CR7-02 CR7-03,CR7-04(Optional) | ||||||
Working current | ≤500MA | ||||||
Open/close time | ≤5S | ||||||
Life time | 70000 times | ||||||
Valve Body material | Brass | ||||||
Actuator material | Engineering Plastics | ||||||
Sealing material | EPDM & PTFE | ||||||
Actuator rotation | 90 degree | ||||||
Cable length | 0.5M, 1.5M | ||||||
Max. torque force | 2 Nm | ||||||
Environment temperature | -15centigrade - 50 centigrade | ||||||
Liquid temperature | 2centigrade - 90centigrade | ||||||
Manual override | Yes | ||||||
Indicator | Yes | ||||||

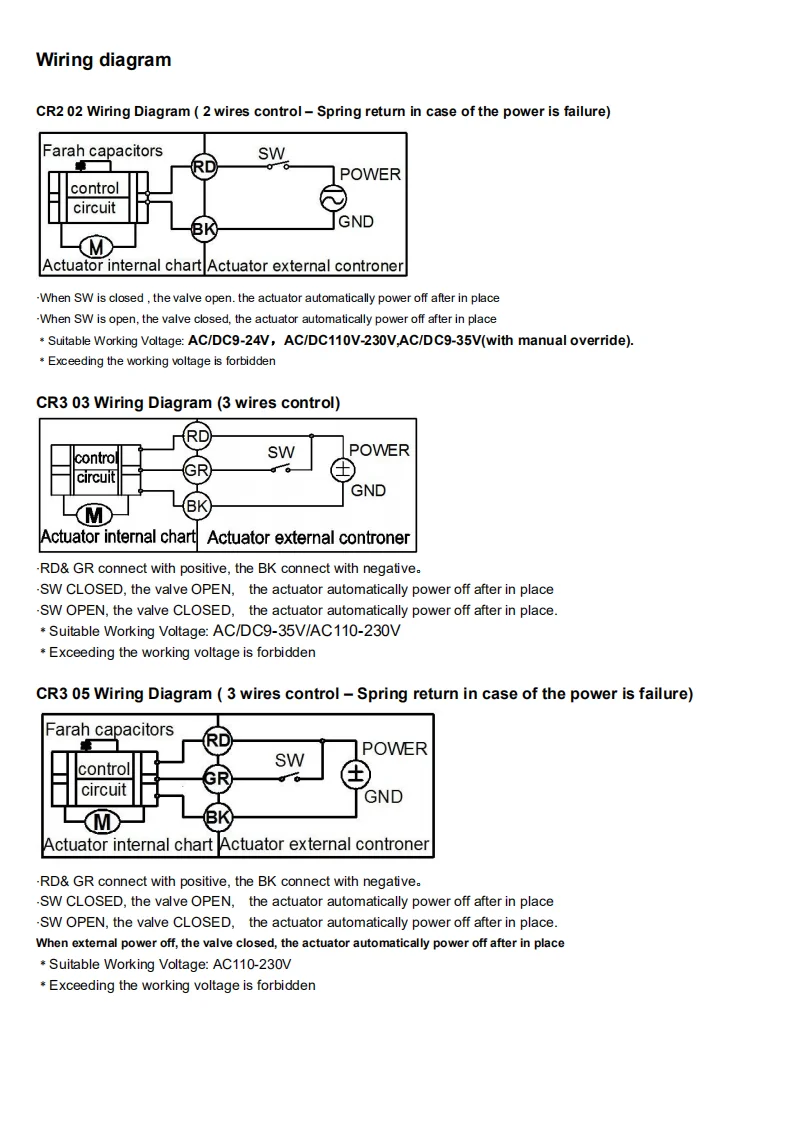

Wiring diagram
Contact us
Packing and shipping
Packing
Inner box per pc+Standard export carton+Export pallet+Plastic film wrapped
Delivery
3-4 days if having spare parts stock;15-30 days if no stock.Sample order or small order will be finished in 7-8 days.
Can the product be labeled our own brand?
Yes,we'd like to accept labeled your own brand if you need when batch order.
How long is the guarantee period of products?
1 year for products.And we'd like to offer lifelong technical service for free if you need.
Do the products have relative Certificates?
Yes.Our products have CE,NSF61-G,Rohs ect.
