Stone Powder Making Mills Mill Price Silica Sand Grinding Machine



Input Size: 0-70mm

Finish fineness: 80-325mesh
Capacity: 3-340TPH
Material: Limestone, calcite, dolomite, petroleum coal, gypsum, barite, marble, talc, coal powder, etc.







Product Advantages of Stone Powder Making Mills Mill Price Silica Sand Grinding Machine

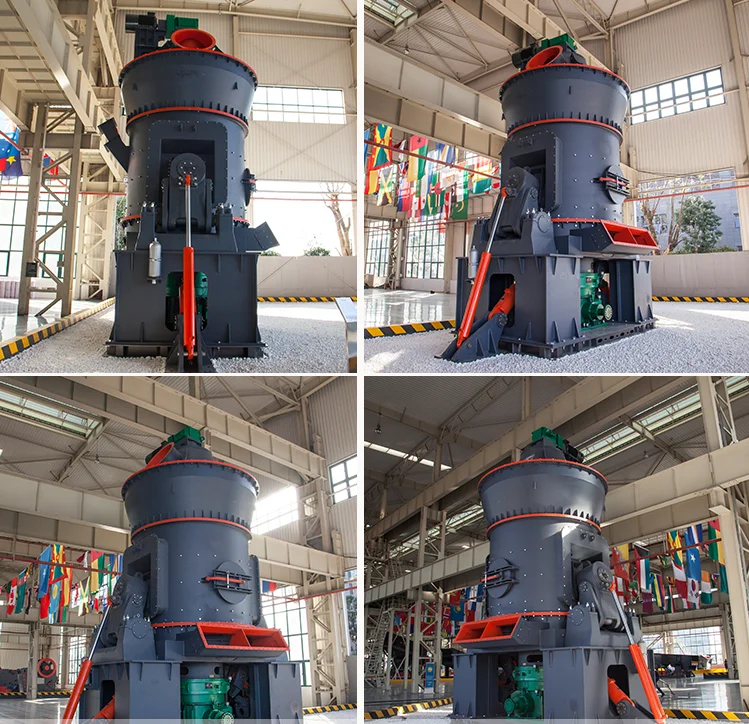

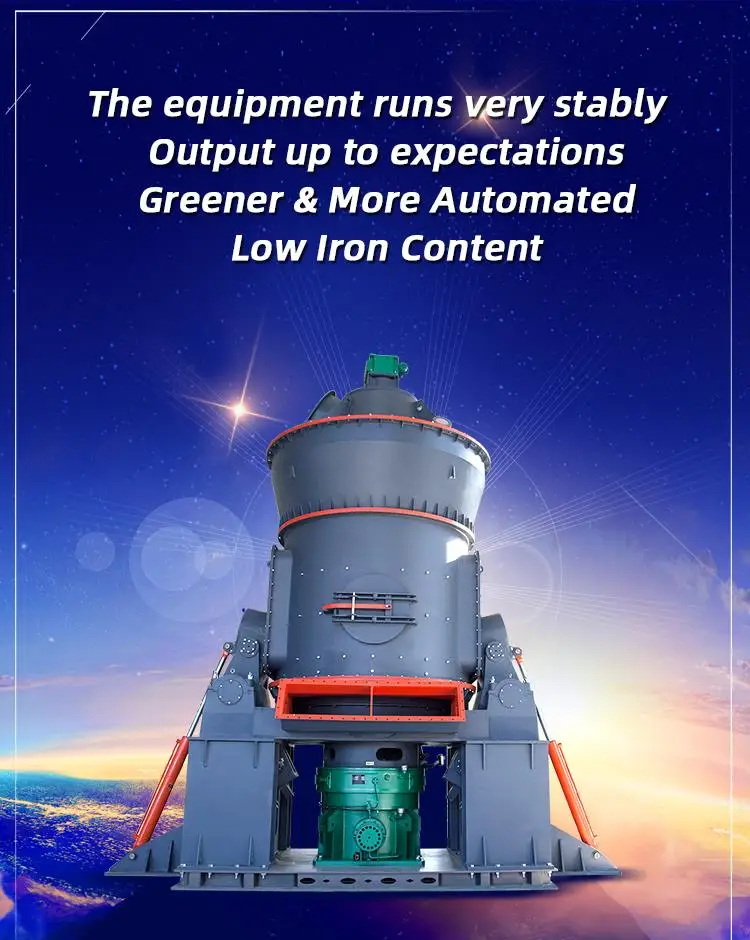

LM Vertical Grinding Mill achieves lower energy consumption, stronger drying capacity, as well as lower abrasion and easier checks of core parts, saving operating costs greatly.

Materials linger in the grinding mill for a short time, which can reduce repeated grinding and is easy to detect and control the grain size and chemical component of the product.

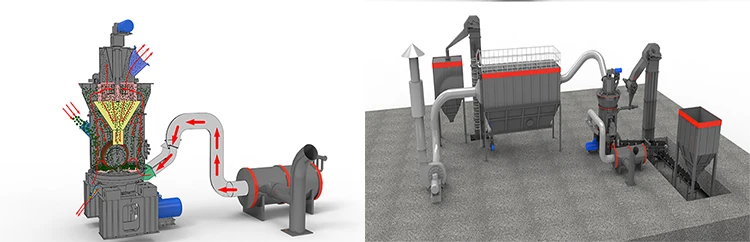

The system is sealed in an integral manner and works under negative pressure, so that there is no dust spilling and the environment can keep clean.

Its occupational area is about 50% of that of the ball-milling system. The LM grinding mill can also be arranged outdoors, which greatly reduces the investment cost.

Product Parameters of Stone Powder Making Mills Mill Price Silica Sand Grinding Machine



Models and parameters	LM150Y	LM170Y	LM190Y	LM250Y	LM340Y
Plate diameter (mm)	1500	1700	1900	2500	3400
Grinding roller (piece)	2	2	2	3	3
Max feed size(mm)	20	20	20	20	20
Feed Capacity (t)	15~25	25~40	35~50	80~120	200~250
Output fineness 1 (R0.08mm)	≤15%	≤15%	≤15%	≤15%	≤15%
Output capacity 1 (t/h)	6~10	10~16	14~20	32~48	80~100
Output fineness 2 (R0.2mm)	≤5%	≤5%	≤5%	≤5%	≤5%
Output capacity 2 (t/h)	9~15	15~24	21~30	48~72	120~150
Mill cycle throughput (t/h)	60~100	100~160	140-200	320-480	800-1000
Main motor (kW)	280	450	560	1400	2500

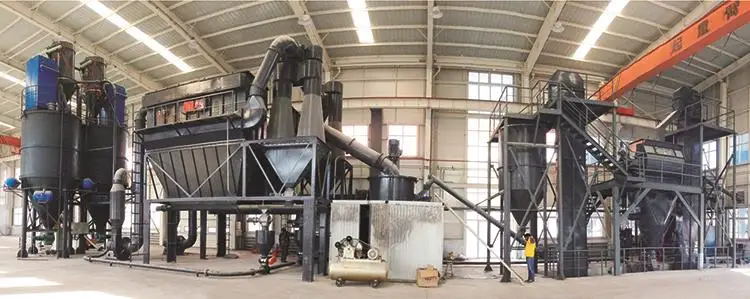

Customer Site

Jordan 30TPH Coal Grinding Line



Customer: Lafarge Group

Material: Coal

Capacity: 30TPH

Input Size: <35mm

Output Size: R0.08=5%-10%

Daily Operation: 24h

Equipment: A complete set of LM190M coal milling system



Customer Feedback
What we received was a turnkey project. ZENITH team helped us fulfill our expectations perfectly through rigorous schematic design, equipment selection and construction as well as high efficiency. On the whole, the equipment runs very stably with output up to expectations. We are looking forward to the subsequent cooperation in future.

                                            ---------A project engineering director of the group company

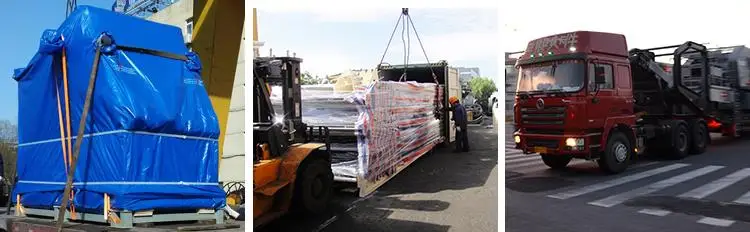

Packaging & Shipping

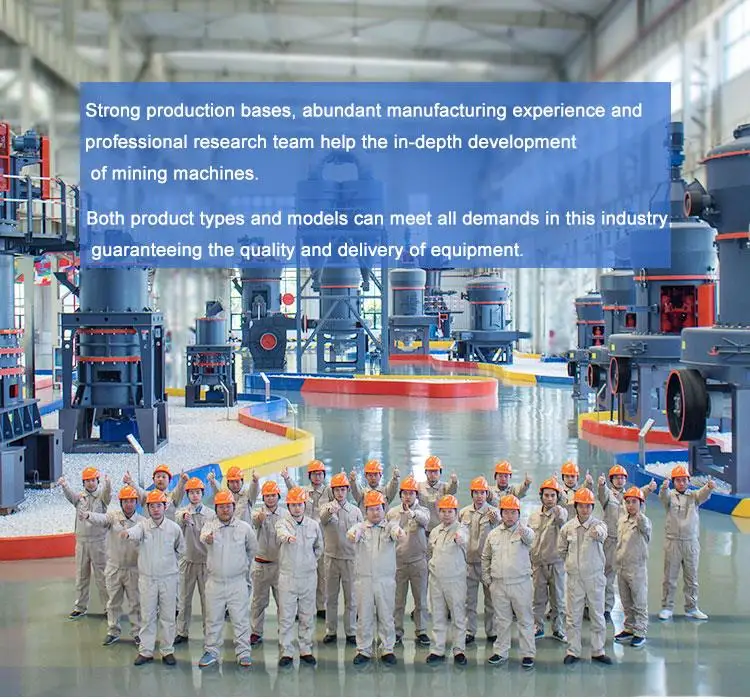

Our Strength

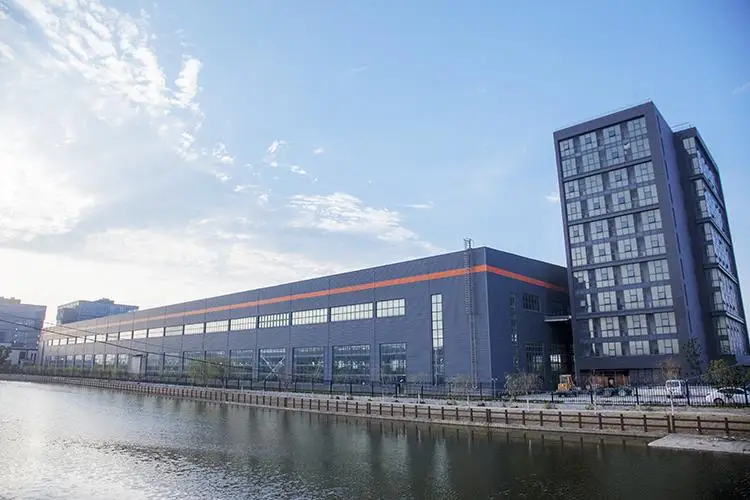

6 large-scale production bases1,200,000m2
>1500 production personnel
100 advanced management personnel
30% senior technical workers





Service

Exhibition





 Frequently Asked Questions



1,How is the quality of your machine?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.



2,How about price?
We are factory and be able to give you the lowest price than market one.



3,Payment Terms?
30% of total prices should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.

Connect Us



In order to recommend the suitable models and supply more complete quotation for you, Send your Requiry Details in the below!



Include:
1. Which machine do you need?

(such as crusher, grinder, vibrating screen, vibrating feeder, belt conveyor and others)



2. Which kind of material you are going to process?

Soft stone (dolomite, limestone and others) or hard stone (granite, basalt, river pebble and others) ?



3. What's the production capacity you want?

How many tons or cubic meters per hour?



And please tell me your email and phone, I will give you factory price with full specification and you will know all details about machine and discount.
