Product Description
GZG series of coal mine special discharge feed system is mainly used for coal mine belt corridor or product warehouse quantitative feeding, the coal of different nature is adaptable, the feed volume is large, the feed is uniform, stable, the equipment structure is simple, easy to install and repair, low energy consumption, high efficiency, low noise, also applicable to the power plant belt corridor feeding.
GZG series coal discharging and feeding system is mainly composed of chute, feeder body, VVB series vibration motor, vibration damping device, auxiliary hanger, electro-hydraulic flat gate (small specifications can be used rack and pinion manual gate) and so on.
Product Parameters
Model and Meaning:
GZG: equipment Model
240: width of feed groove

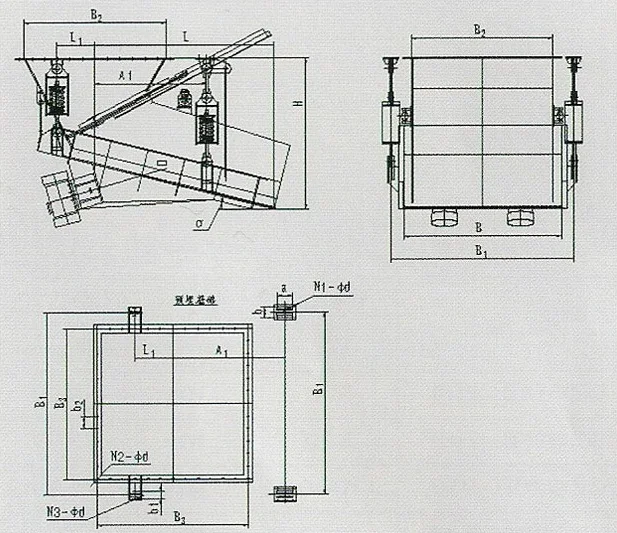

structural form:
model | GZG120 | GZG150 | GZG180 | GZG200 | GZG240 | GZG290-400 | |||||||
capacity t/h | 600 | 600-1000 | 1000-1500 | 1500-2000 | 2000-2500 | 2500-3600 | |||||||
material size | ≦300 | ||||||||||||
double-amplitude | 5-7 | ||||||||||||
vibration motor | model | VBB-45306-W | VBB-60376-W | VBB-60376-W | VBB-80556-W | VBB-135906-W | VBB-1601106-W | ||||||
power kw | 2*3.0 | 2*3.7 | 2*3.7 | 2*5.5 | 2*9.0 | 2*11 | |||||||
electric hydraulic pushing pole | driving mode | One stop two drives | |||||||||||
pushing force/ drawing force | 30/25 | 50/33.75 | 50/33.75 | 50/33.75 | 120/100 | 120/100 | |||||||
stroke | 620 | 800 | 850 | 1000 | 1300 | 1700 | |||||||
power kw | 4 | 4 | 4 | 4 | 7.5 | 7.5 | |||||||
weight | 3680 | 4440 | 5320 | 6830 | 12660 | 14480 | |||||||
L | 1627 | 1610 | 2000 | 2283 | 2815 | 3300 | |||||||
L1 | 700 | 700 | |||||||||||
A1 | 1100 | 1100 | 1450 | 1515 | 1860 | 2060 | |||||||
B | 1200 | 1500 | 1800 | 2000 | 2400 | 2900 | |||||||
B1 | 1600 | 1900 | 2200 | 2400 | 2960 | 3370 | |||||||
B2 | 1000 | 1400 | 1600 | 1800 | 2200 | 2616 | |||||||
B3 | 1120 | 1520 | 1708 | 1960 | 2366 | 2772 | |||||||
α (°) | 12 | 12 | 12 | 12 | 14 | 14 | |||||||
a | 400 | 400 | 400 | 400 | 280 | 280 | |||||||
b | 250 | 250 | 250 | 250 | 210 | 210 | |||||||
b1 | 140 | 140 | |||||||||||
b2 | 280 | 304 | 244 | 245 | 338 | 231 | |||||||
d | 270 | 27 | 27 | 27 | 33 | 33 | |||||||
N1 | 8 | 8 | 8 | 8 | 12 | 12 | |||||||
N2 | 4 | 4 | |||||||||||
N3 | 16 | 20 | 28 | 32 | 28 | 48 | |||||||
H | 1738 | 1858 | 1945 | 2270 | 2679 | 2800 | |||||||
Company Certifications

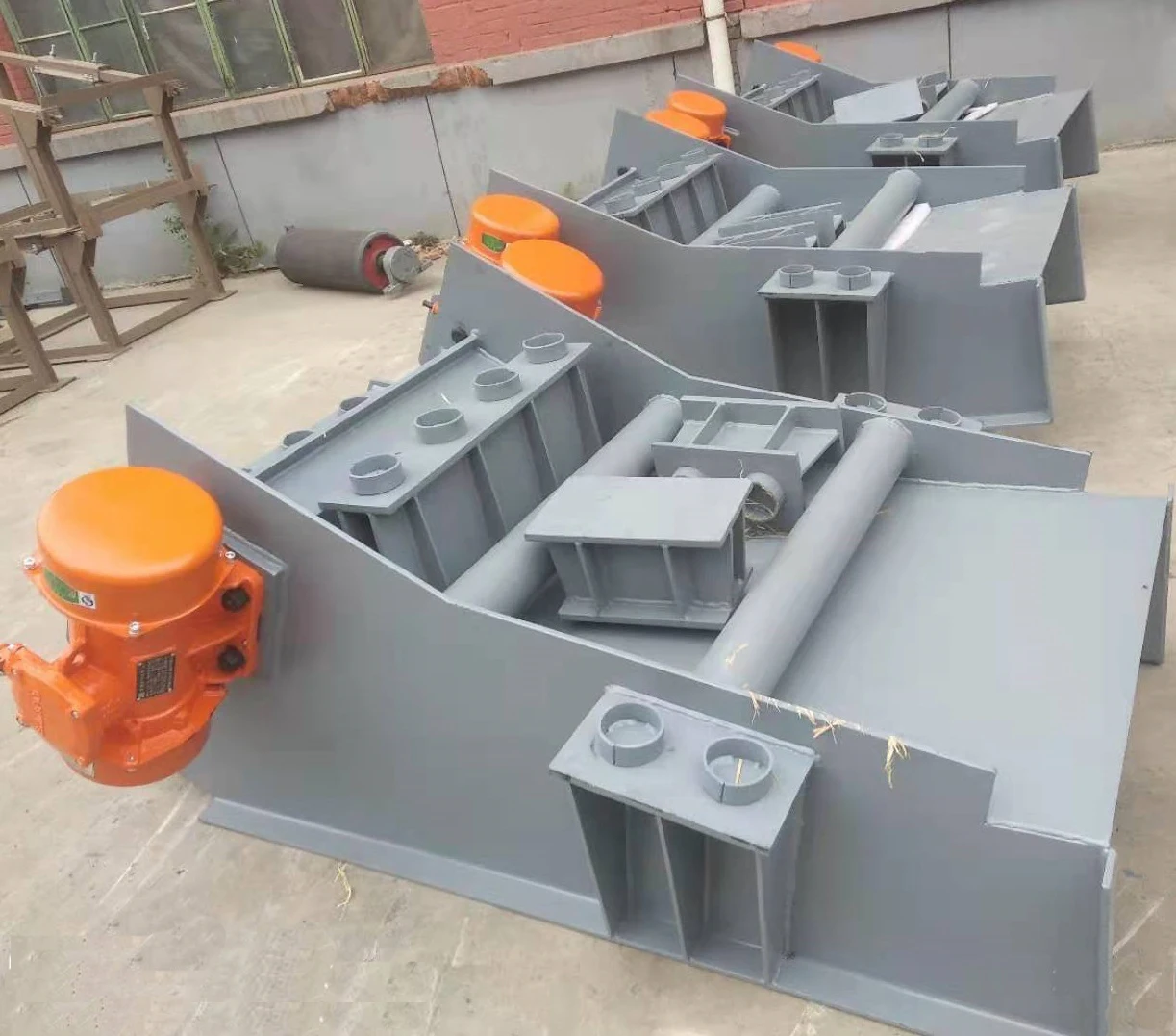

Factory Show
