Полипропиленовая кислотная и щелочная вакуумная Фильтрующая Ткань для


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики





Product Description

Product Description



























































Product Name

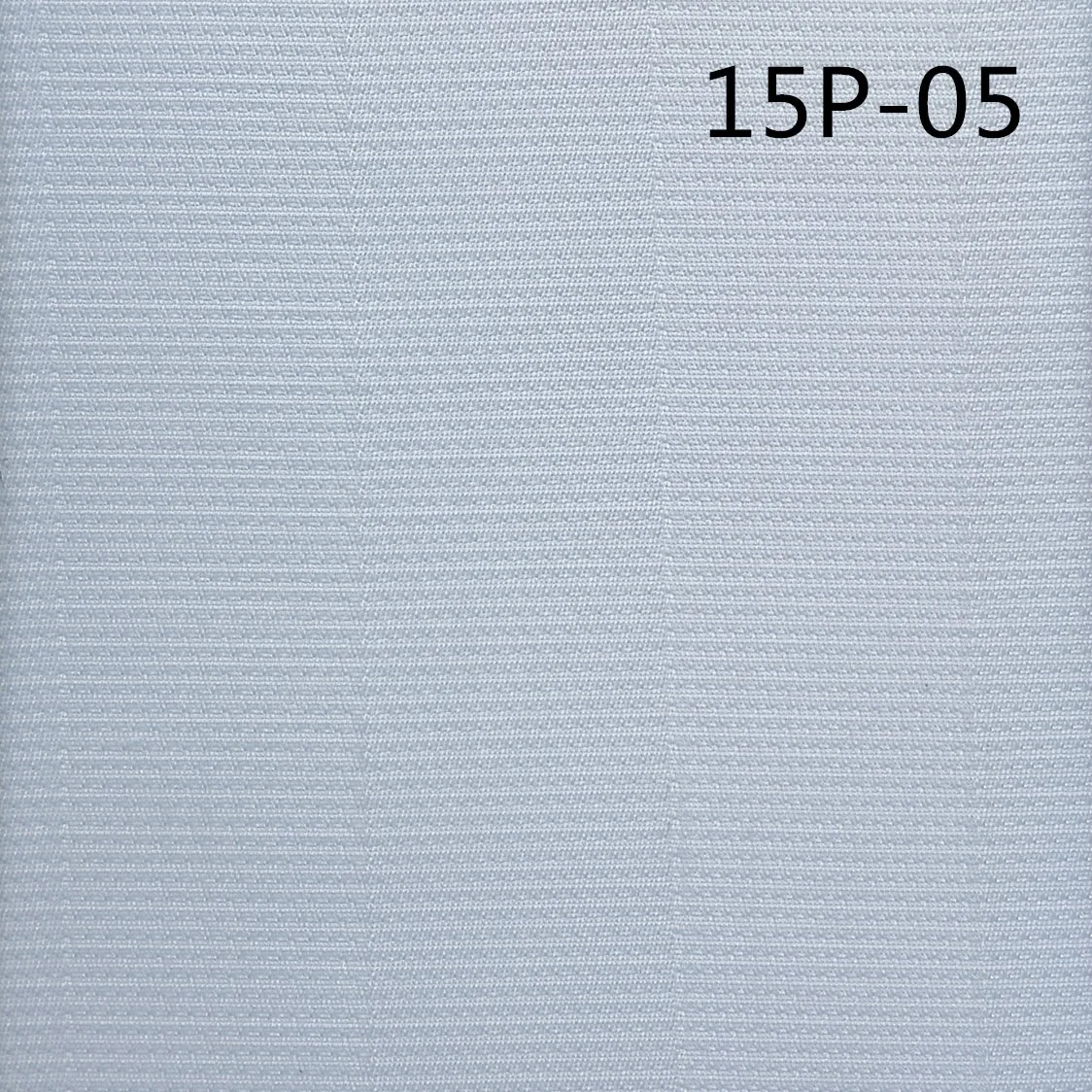

PP chemical industry vacuum filter fabric  15P-05
This style can customized interception accuracy  5~120 μm !



Color


white, customized other color


Diameter of Warp Yarns (mm) / Material


surface: 0.2/PP
interior: 0.35/PP




Diameter of Weft Yarns


(mm) / Material




surface: 1000D/PP
interior: 0.45/PP




Air Permeability at 127 Pa





15~25 L/m2.S


3~5 CFM




Air Permeability at 200 Pa



20~35 L/m2.S


4~7 CFM




Thickness


1.13 mm


Tensile strengths


740 N/cm



Elongation rate                    (warp direction)




20%


Elongation rate (500kg/m)


0.84%


Weight


804 g/m2


Interception accuracy


1~5 μm


Using range/ application


It is mainly used in chemical industry (such as phosphoric acid filtration, yeast production, etc.).

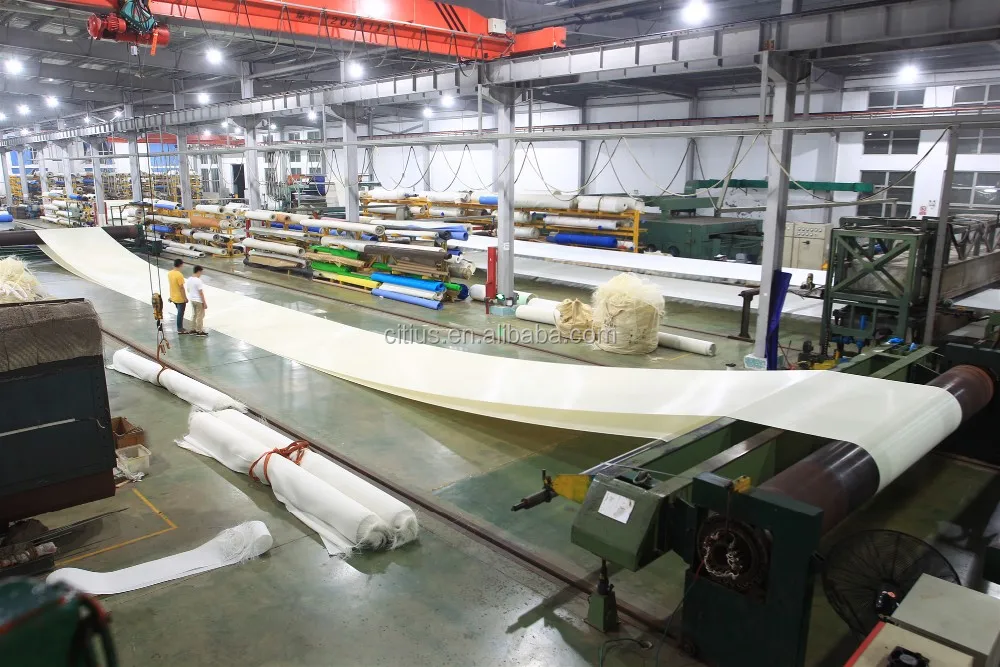

ProductsShow

ProductsShow









Our Service

Our Service



Our technilogy department can do the test according to your data or samples to give you the best suggestion or design the most suitable belt for you.

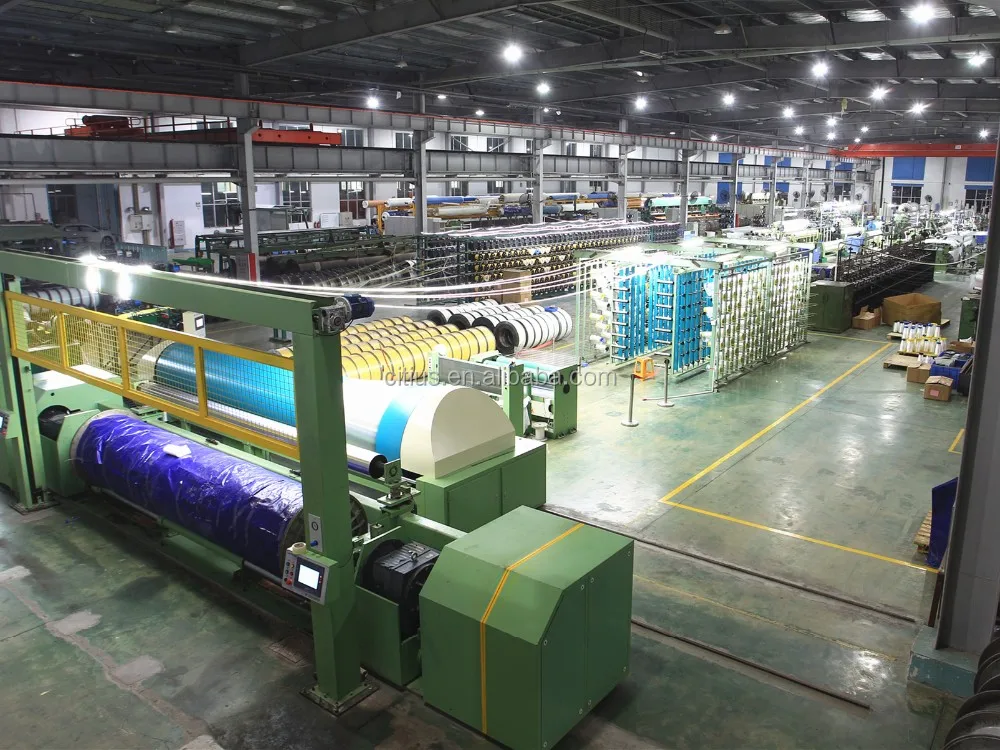

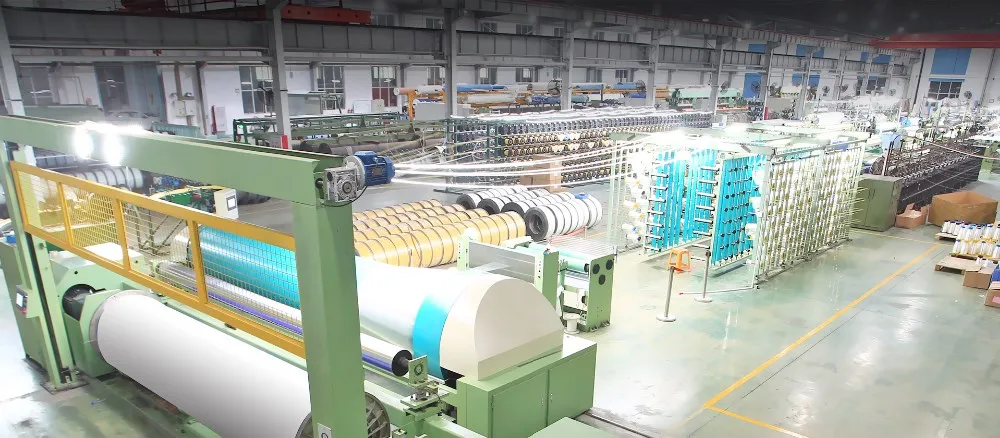

Our Company

Our Company




Company information.





1. Xiamen Citius Environment Technologies Co., Ltd specializes in the engineering, design, and manufacturing of industrial  filter fabrics. We have a professional technical team and specialized laboratory to customize products for clients.

2. Citius products have been divided into four applications: Sludge dewatering, Vacuum filter, Paper-making, and Refined.    The products are widely applied in dewatering equipment including belt presses, horizontal, vacuum belt presse, paper      machines, plate and frame filter presses, disc filters, drum filters, and continuous filter presses.




Citius makes many different industry specific fabrics and filters. All fabrics are woven with monofilament wire or a combination of monofilament and multifilament wires from virgin high viscosity PET, PP, PA, PPS chips. After heat-setting or calendaring the fabric has the following advantages:



1. Shape stability: The fabrics will maintain their shape under proper temperature and tensile strength settings.

2. Chemical stability: Citius fabrics are acid proof, alkali proof, and anti-corrosive. They also are able to withstand high          temperatures.

3. Long life-span: Citius fabrics are anti-abrasive and have a strong tensile strength.

4. Can meet different filtration requirement (2-100um).

5. Strips easily.

6. Strong seam strength: Citius fabrics combine high quality materials and advanced manufacturing procedures to increase the life of their products.


Our products are also exported to Australia, America, South Africa, Brazil, Europe, southeast Asia and other countries and regions, and have been successfully applied to the filtration equipment of dwt-engineering LTD of Finland, DELKOR of the UK, BELLMER of Germany, etc., which has been highly praised by users.

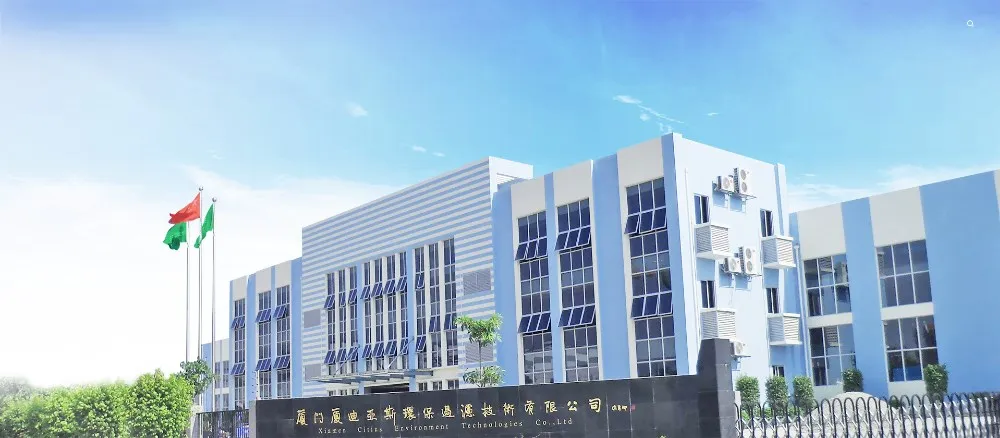

company

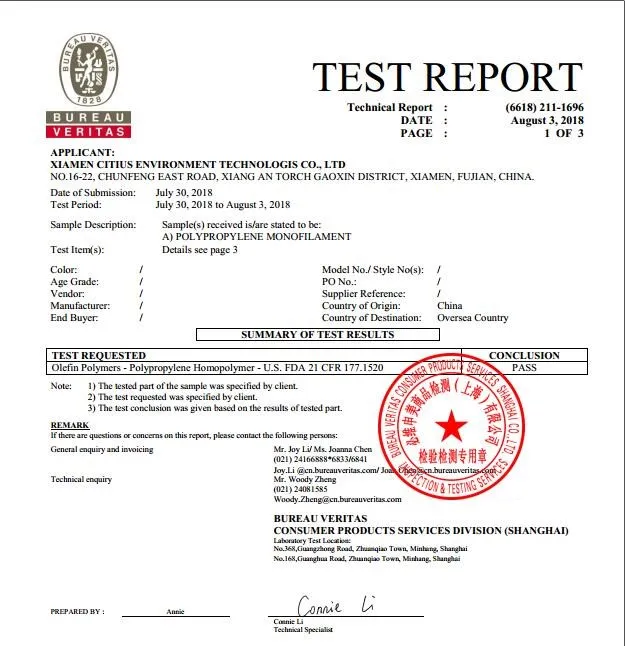

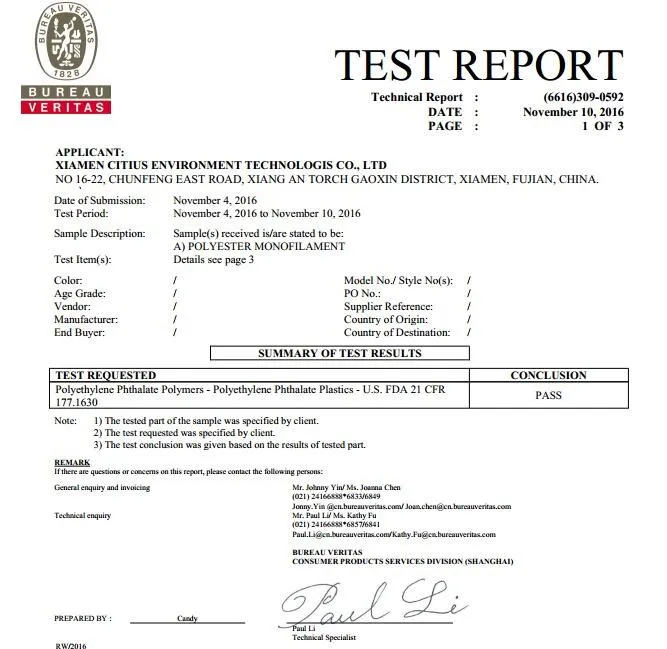

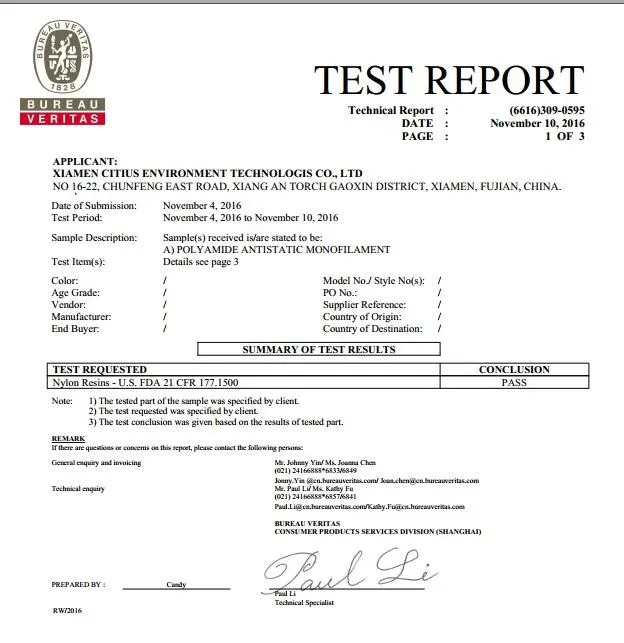

certificate































Packing & Delivery

Packing & Delivery

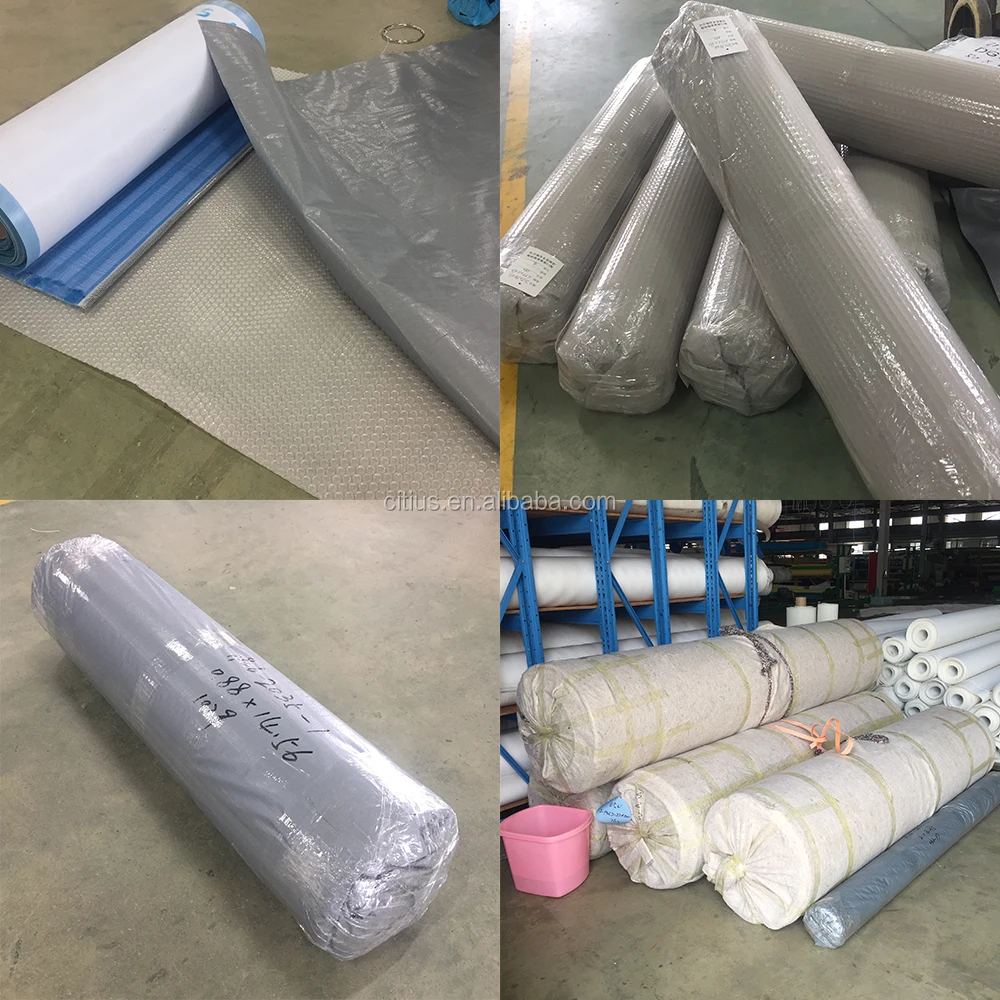

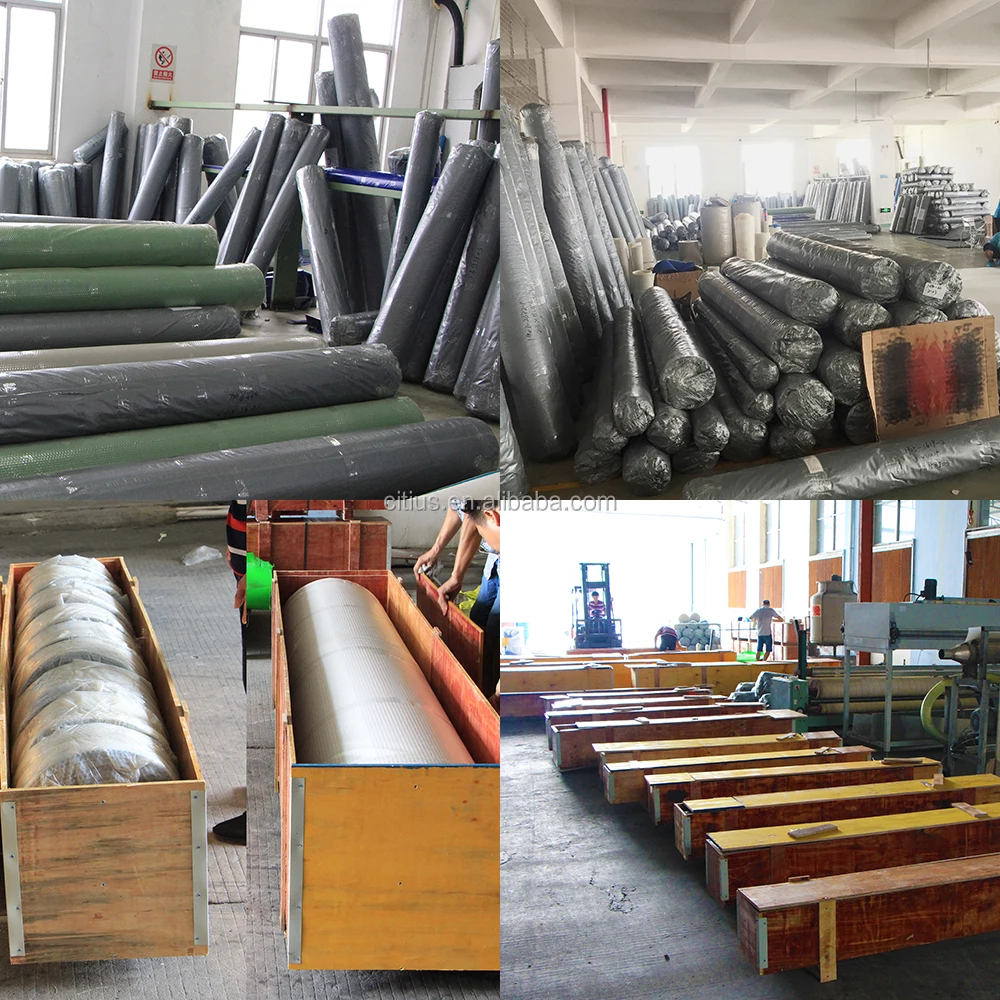

Packing Details : Wooden packing, ordinary packing with waste fabric or leader cloth around the whole roll.
Delivery Details : 20 days


21













Our Certifications
