Новый 1.2ton 1200 кг повышенной проходимости противовесом электрический штабелер Электрический лифт Подъемник 2021
- Категории: Material Handling Equipment >>>
- Поставщик: Welift,Machinery,(Changhzou),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

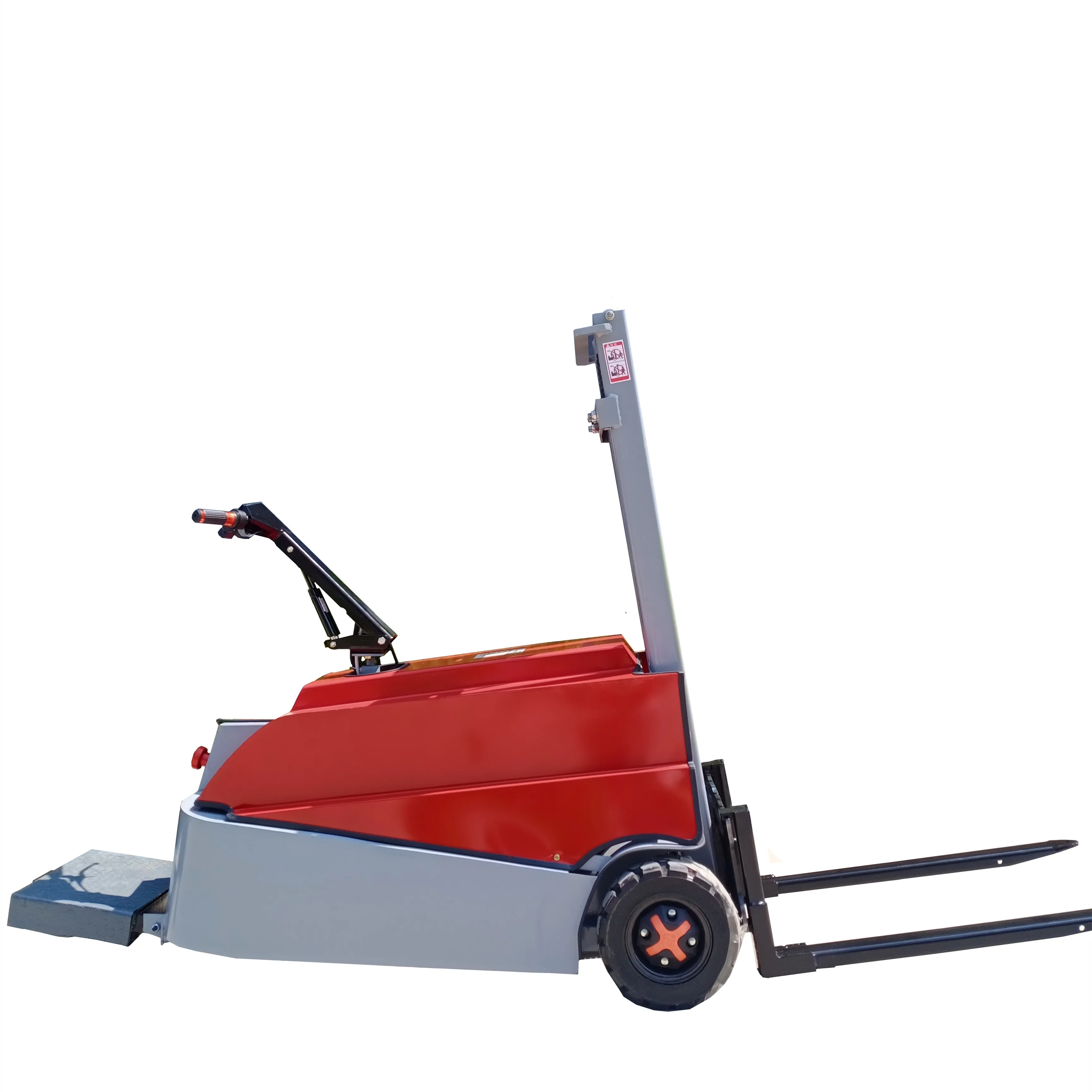

New 1.2ton 1200kg Rough Terrain Counterbalanced Electric Stacker Powered electric stacker elevator lifter 2021 Design WELIFTRICH

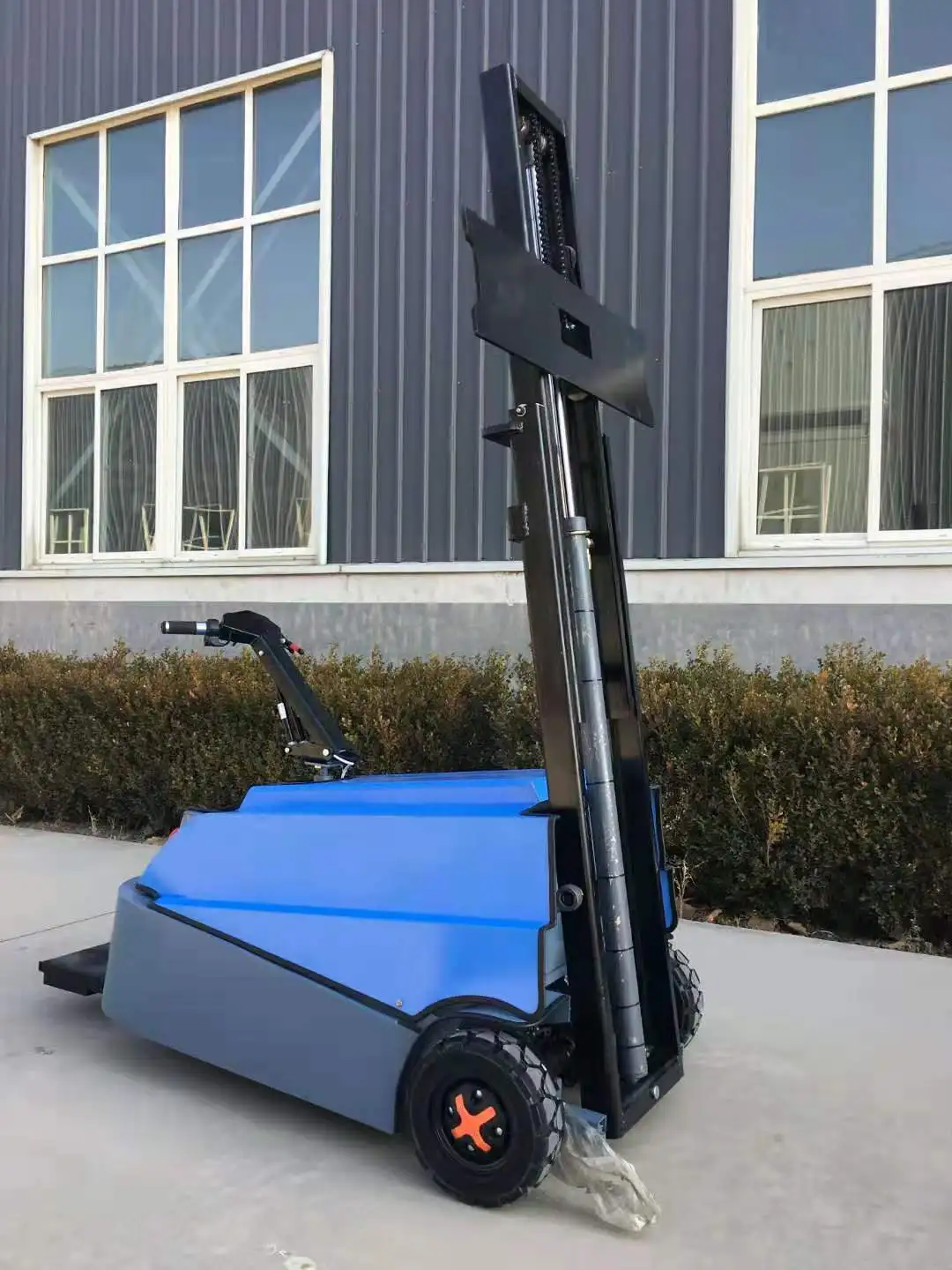

![2WNE7MRH]R%Z(_KNW7_D82.jpg](http://sc04.alicdn.com/kf/H03ebb55bb42242bb9947ec58c8937542t/237970206/H03ebb55bb42242bb9947ec58c8937542t.jpg)

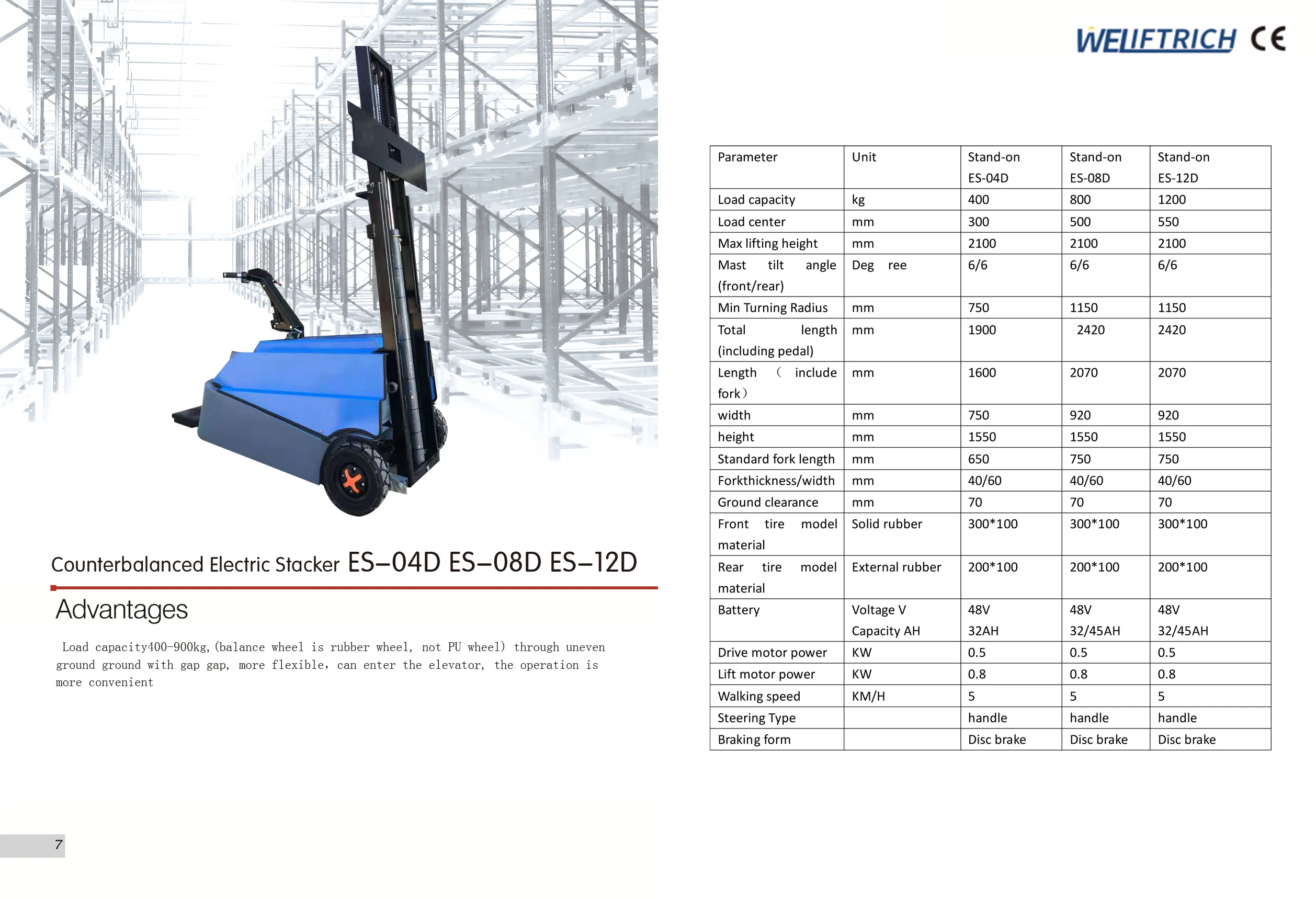

| Parameter | Unit | Stand-on ES-04D | Stand-on ES-08D | stand-on ES-12D |
| Load capacity | kg | 400 | 800 | 1200 |
| Load center | mm | 300 | 500 | 550 |
| Max lifting height | mm | 2100 | 2100 | 2100 |
| Mast tilt angle (front/rear) | Degree | 6/6 | 6/6 | 6/6 |
| Min Turning Radius | mm | 750 | 1150 | 1150 |
| Total length (including pedal) | mm | 1900 | 2420 | 2420 |
| Length ( include fork) | mm | 1600 | 2070 | 2070 |
| width | mm | 750 | 920 | 920 |
| height | mm | 1550 | 1550 | 1550 |
| Standard fork length | mm | 650 | 750 | 750 |
| Fork thickness/width | mm | 40/60 | 40/60 | 40/60 |
| Ground clearance | mm | 70 | 70 | 70 |
| Front tire model material | Solid rubber | 300*100 | 300*100 | 300*100 |
| Rear tire model material | External rubber | 200*100 | 200*100 | 200*100 |
| Battery | Voltage V Capacity AH | 48V 32AH | 48V 32/45AH | 48V 32/45AH |
| Drive motor power | Kw | 0.5 | 0.5 | 0.5 |
| Lift motor power | Kw | 0.8 | 0.8 | 0.8 |
| Walking speed | KM/H | 5 | 5 | 5 |
| Steering Type | handle | handle | handle | |
| Braking form | Disc brake | Disc brake | Disc brake |

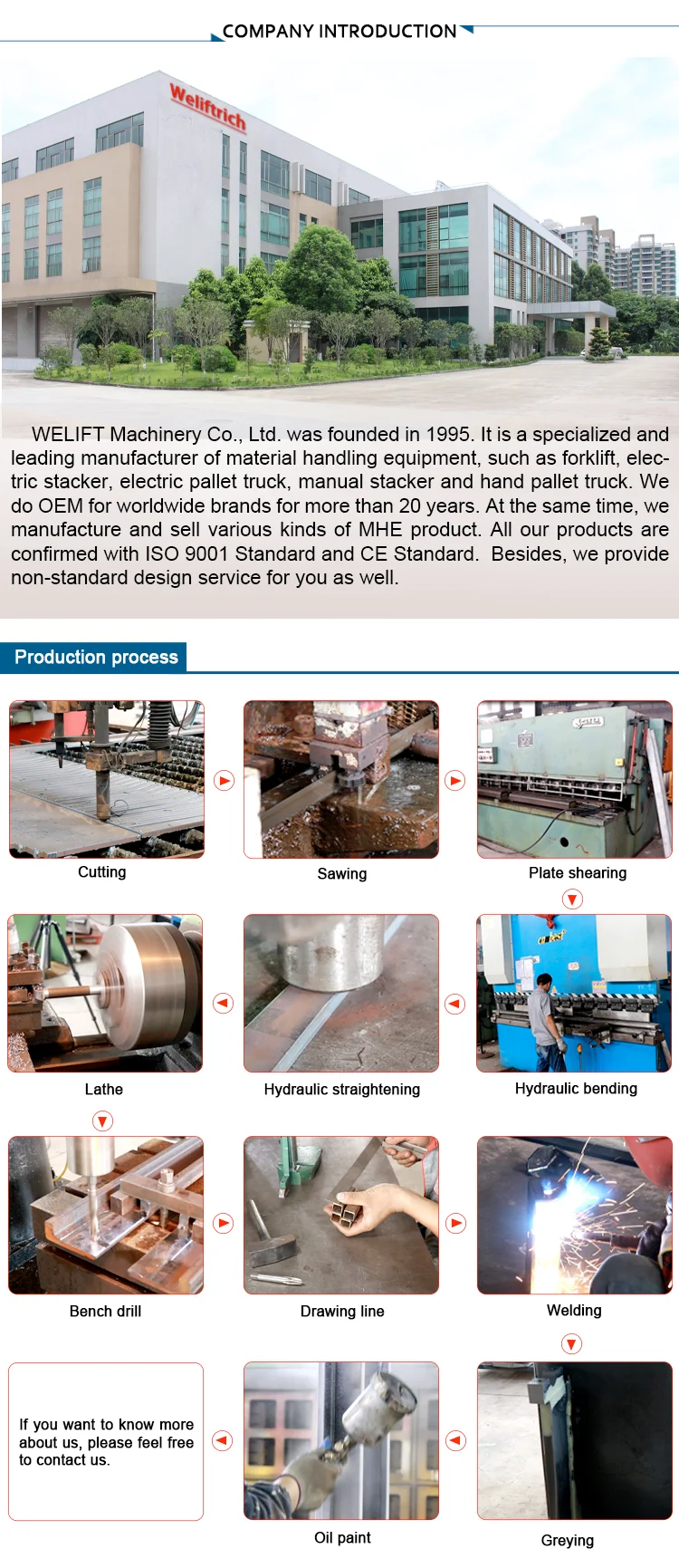

Company Information
Packaging & Shipping

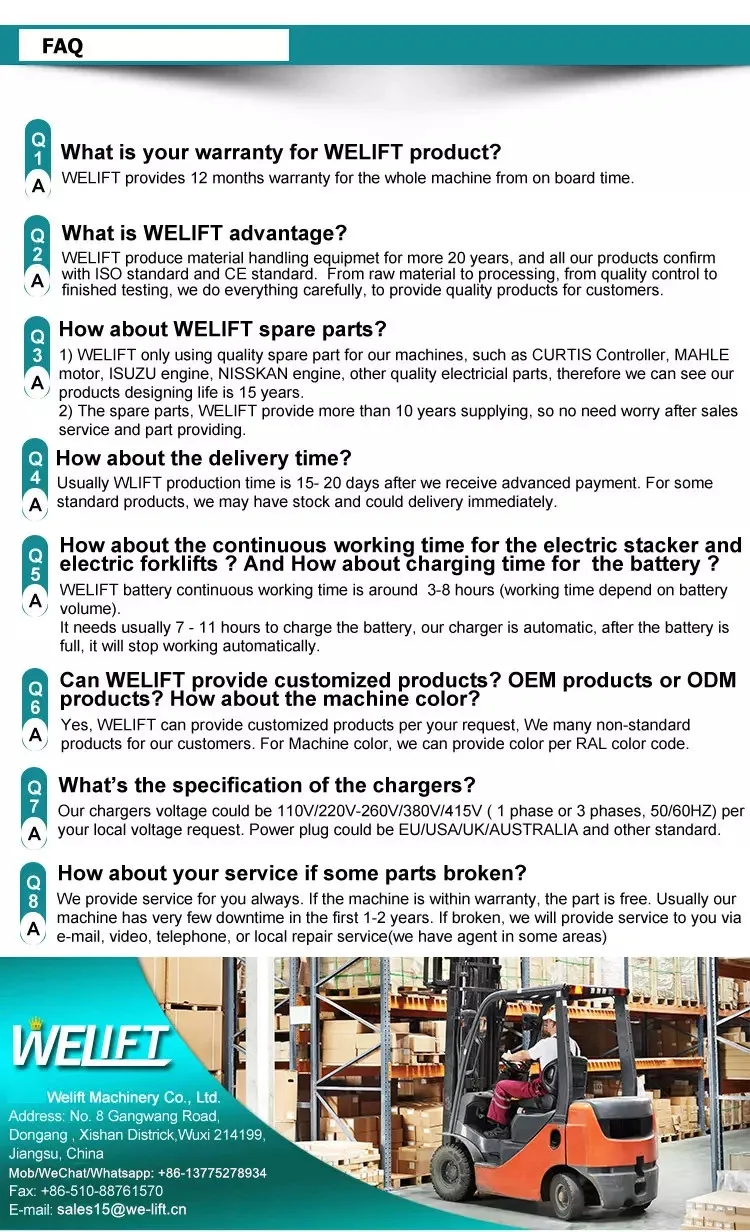

FAQ
