X6332 Китай мини хобби cnc фрезерный станок
US $3200-$3400
Высокоточная универсальная фреза ZX7550CW маленький хобби автоматизированный универсальный фрезерный и сверлильный станок
- Категории: Milling Machines >>>
- Поставщик: Shandong,Matsumoto,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Paramenters
Advantages:
1.Three axis hardened treatment, high rigidity.
2.Vertical horizontal multi-functional ,drilling ,milling, boring operation.
3.X axis mechanical feed,Y.Z axis can be added the automatic feed device.
4.Belt drive milling head, stable transmission, compact structure ,easy maintenance, easy to operate.
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.

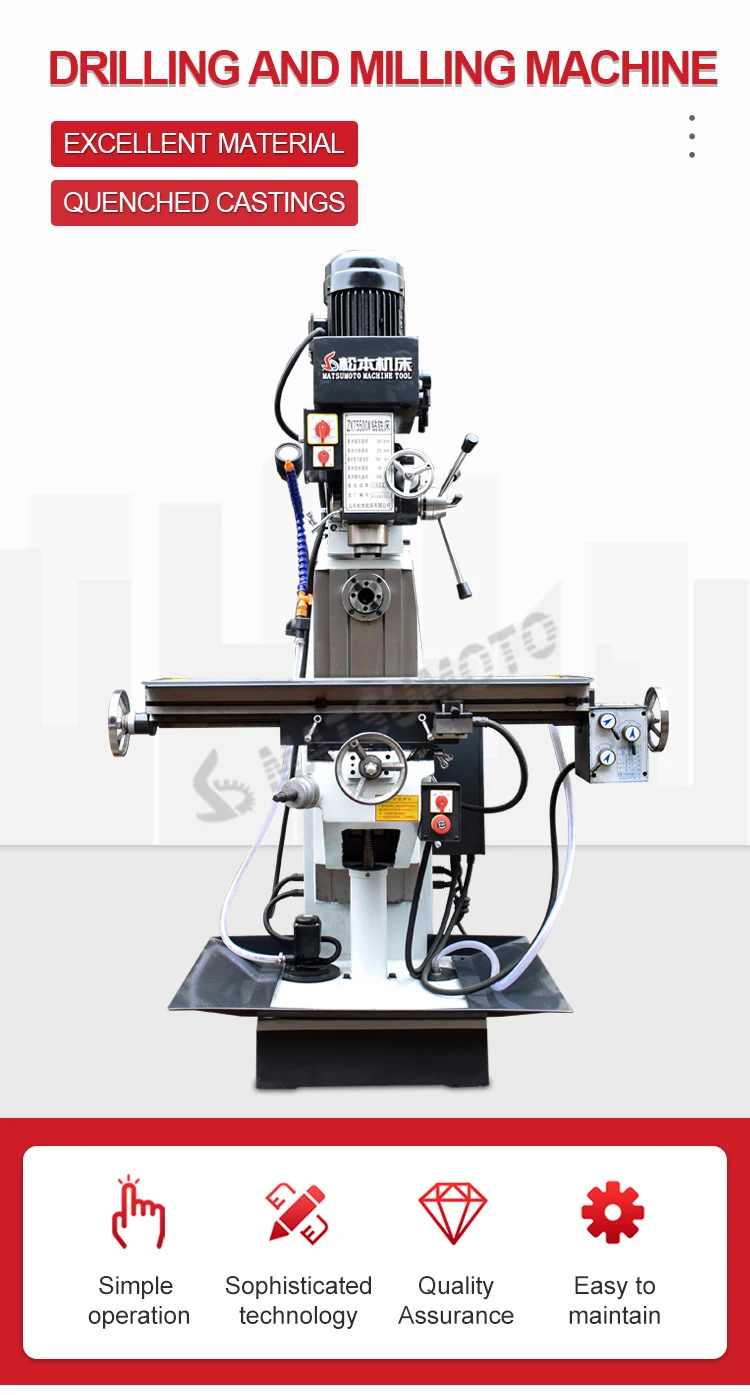

vertical milling and horizontal milling machine ZX7550CW
Specifications(mm) | ZX7550CW |
Max. drilling dia.(mm) | 50 |
Max. end milling width(mm) | 100 |
Max. vertical milling dia.(mm) | 25 |
Max.boring dia.(mm) | 120 |
Max. tapping dia.(mm) | M16 |
Distance from spindle nose to table surface(mm) | 90-490 |
Vertical spindle taper | MT4 |
Horizontal spindle taper | ISO40 |
Spindle speed range(r.p.m) | 115-1750(V) 80-1300(H) |
Spindle travel(mm) | 120 |
Table size(mm) | 1000×240 |
Table travel(mm) | 600×230 |
Table feed speed(mm/min) | X:16-480 |
Overall dimensions (mm) | 1280×1285×2080 |
Spindle motor power (kw) | 1.5/2.2(V) 2.2(H) |
Machine weight (kg) | 900/1000 |

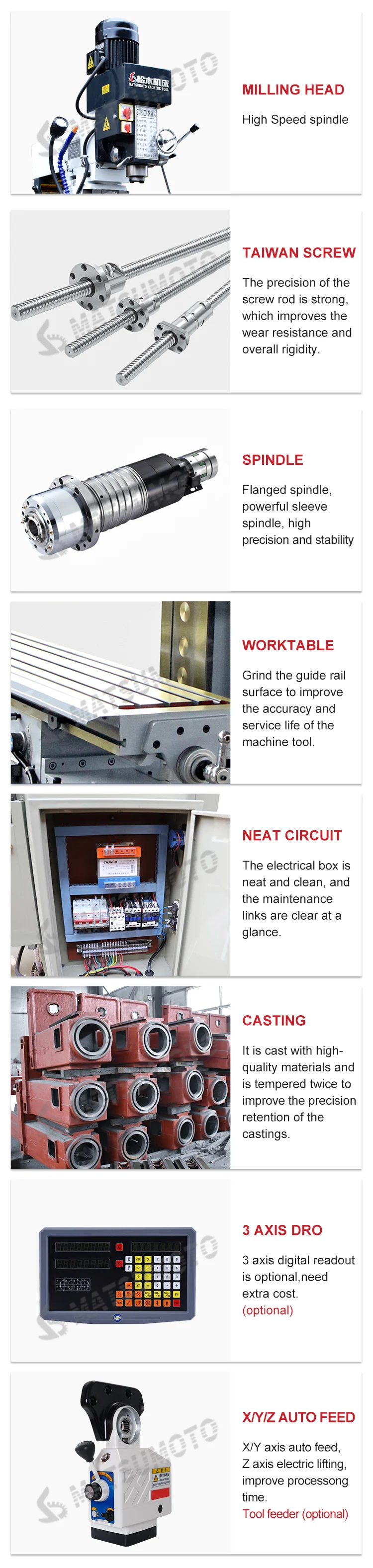

Details Images
Recommend Products
Company Profile
Certifications
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
