Product Description
Application:
PE, PP film, Silk, Flakes (≤0.5mm), Bags, etc.
Note, our ZL series compactor granulator can be pull strip cutting method, or water ring cutting method for option
Consist of:

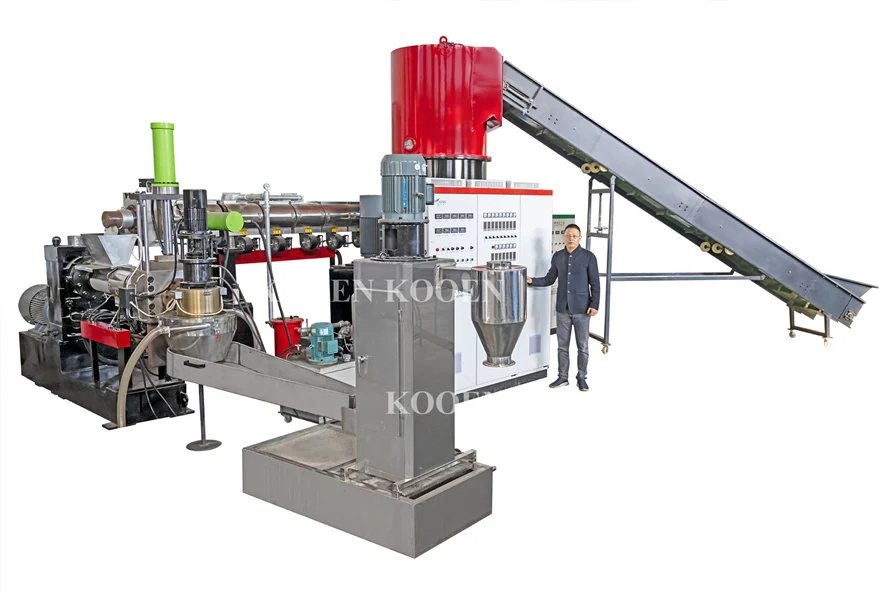

Belt conveyor(metal detector) → Compactor → Main extruder(vacuum degassing system) → Hydraulic screen changer → Sub- extruder →Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage hopper → control cabinet
PE, PP film, Silk, Flakes (≤0.5mm), Bags, etc.
Note, our ZL series compactor granulator can be pull strip cutting method, or water ring cutting method for option
Consist of:
Belt conveyor(metal detector) → Compactor → Main extruder(vacuum degassing system) → Hydraulic screen changer → Sub- extruder →Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage hopper → control cabinet
Main Components ZL series compactor recycling granulating/pelletizing machine:
Belt conveyor
Control method: frequency control
Metal detector for selection
Metal detector for selection
Compactor
Rotation knives/fix knives inside
Motor power: 45/55/75/90 KW
Cutter material: Cr12Mov
Motor power: 45/55/75/90 KW
Cutter material: Cr12Mov
Main extruder
Screw diameter: 85/100/130/160/180mm for option Aluminum heater
crew/barrel material: 38CrMoAl, Nitrify processing Equipped with vacuum pump
crew/barrel material: 38CrMoAl, Nitrify processing Equipped with vacuum pump
Venting system:
Quantity: 2 pieces, Vacuum pump: 1 pc
Hydraulic screen changer
Motor power:2.2/3KW
Special design board (no-stopping screen change, no leak)
Special design board (no-stopping screen change, no leak)
Sub extruder
Screw diameter: 100/130/160/180mm for option Aluminum heater
Screw/barrel material: 38CrMoAl, Nitrify processing
Screw/barrel material: 38CrMoAl, Nitrify processing
Hydraulic screen changer
Motor power:2.2/3KW
Special design board (no-stopping screen change, no leak)
Special design board (no-stopping screen change, no leak)
Water-ring cutting system
Motor power: 2.2/3kw
Frequency control
Frequency control
Centrifugal dryer
Motor power:4/5.5/7.5KW for option
Rotation speed: 1200rpm
Made of SUS304 stainless steel
Rotation speed: 1200rpm
Made of SUS304 stainless steel
Control cabinet
Word famous brand electric components
Optional device components
Horizontal water ring cutting system
Easy for fix/disassemble the knives.

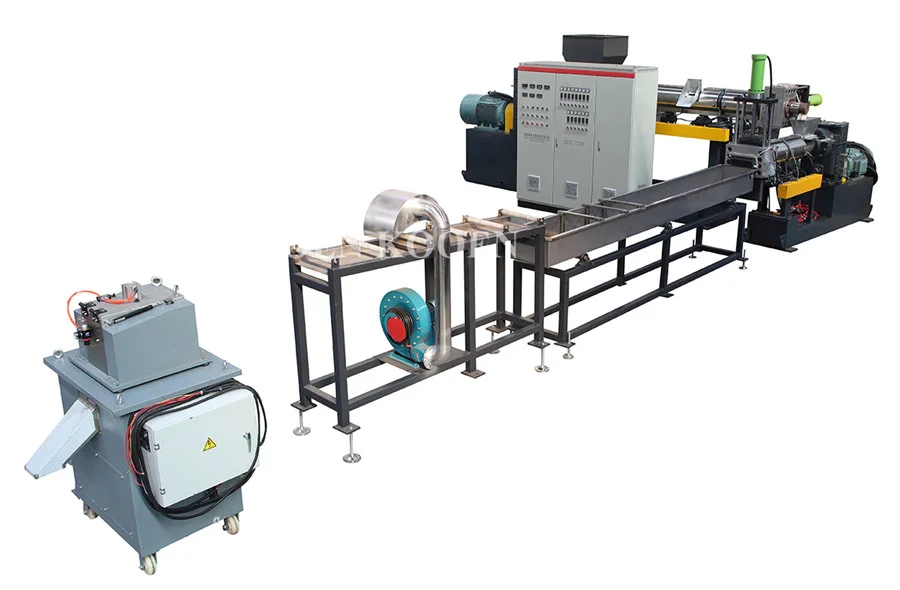

Pull strip cutting
Hole diameter: 3mm
Vibration screen
Three layers, to separating the pellets
Made of stainless steel
Made of stainless steel
Advantages:
1. Our ZL series compactor pelletizing line has pull strip cutting, and water ring cutting method(include vertical water ring cutting and horizontal water ring cutting) for option.
2. The machine with high efficiency, working stable, large capacity etc.
3. World famous brand components applied on the production line
4. The whole production line with CE certification, ISO9001 certification .
2. The machine with high efficiency, working stable, large capacity etc.
3. World famous brand components applied on the production line
4. The whole production line with CE certification, ISO9001 certification .
Related products
KOOEN company more plastic recycling machine for reference
http://www.kooenmachine.com/pe-pp-film-washing-line-2/ （Website link）
http://www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ （Video link）
http://www.kooenmachine.com/pe-pp-film-washing-line-2/ （Website link）
http://www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ （Video link）
http://www.kooenmachine.com/hdpe-pp-rigid-plastic-washing-line/ （Website link）
http://www.kooenmachine.com/plastic-washing-line-video/hdpe-pp-bottle-washing-line-video/ （Video link）
http://www.kooenmachine.com/pet-bottle-washing-line/ （Website link）
http://www.kooenmachine.com/plastic-washing-line-video/pet-bottle-washing-line-video/ （Video link）
http://www.kooenmachine.com/zl-single-stage-pepp-film-compactor-pelletizing-machine/ （Website link）
http://www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ （Video link）
http://www.kooenmachine.com/zl-double-stage-pepp-film-compactor-pelletizing-machine/ （Website link）
http://www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ （Video link）
http://www.kooenmachine.com/sj-single-stage-pepp-film-pelletizing-machine/ （Website link）
http://www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/ （Video link）
http://www.kooenmachine.com/sj-single-stage-pepp-film-pelletizing-machine/ （Website link）
http://www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/（Video link）
http://www.kooenmachine.com/squeezer-machine/ （Website link）
http://www.kooenmachine.com/recyling-machine-auxiliary-machine-video/plastic-squeezer-machine-video/（Video link）
http://www.kooenmachine.com/shredder-machine-crusher-machine/ （Website link）
http://www.kooenmachine.com/shredder-machine-crusher-video/ （Video link）
Our Company
Our Service:
1. KOOEN will provide all the machines for the complete production according to customer's requirements.
2. KOOEN will provide complete service for factory layout and other information to help customer to build the factory.
3. KOOEN will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. For long-term cooperation, we always provide good quality, good price and good service to customer.
2. KOOEN will provide complete service for factory layout and other information to help customer to build the factory.
3. KOOEN will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. For long-term cooperation, we always provide good quality, good price and good service to customer.
If want to see videos of our plastic recycling machine, please log on our web: www.kooenmachine.com
