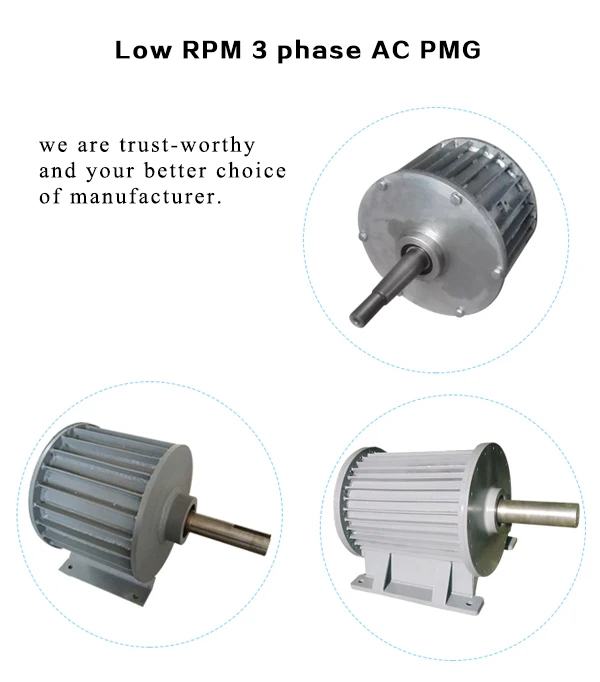

Высокая эффективность 3 кВт низкий RPM Осевой поток без сердечника генератор постоянного

Описание и отзывы

Характеристики









Main Features:

• Gearless, direct drive, low RPM generator




• Low start up speed due to low cogging and resistive torque design




• High standard, quality components for use in harsh and extreme environments for wind turbines




• High efficiency and Low mechanical resistance energy loss




• Excellent heat dissipation due to the Aluminium alloy outer frame and special internal structure




• High strength from the specially desy selecign structure and fully heat treatment Aluminium




• Generator is designed using speciallted material and treated to resist corrosion and oxidation




• Designed for reliable and long operational lifetime under long-term full output




• Designed for 25-year operation life




• Patent protected design

3kw Permanent Magnet Generator Specification:

Model	RC-3KP
Technical Details
Rated Power	3KW
Max Power	4KW
Rated Voltage	48/96/120V
Rated RPM	300
Start Torque	0.96Nm
Rated Torque	95.5Nm
Output Current	AC
Efficiency (%)	92%
PMG Collocation	Y
Winding	3 Phase 3Wires
Material Details
Permanent Magnet Material	Rare Earth NdFeB
Bearing	HRB or For your order
Coil	100% Pure Copper
Core	High grade Cold rolling silicon sheet
Shaft Material	Stainless Steel
Shell Material	Aluminium Alloy
Mechanical Details
Insulation Class:	F
Protection Grade	IP54
Net Weight	70kg
Service Life	More Than 20 years
Working temperature	-40℃ - 80 ℃

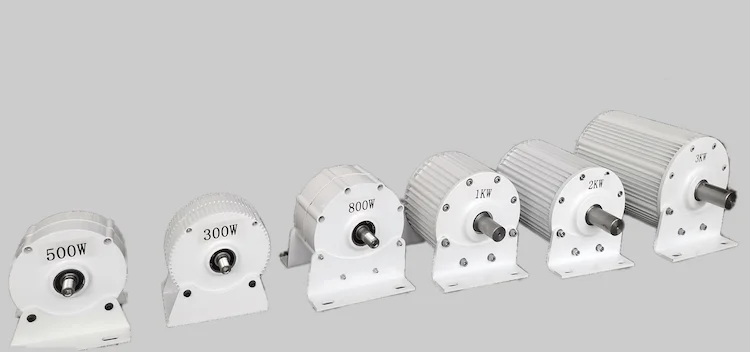

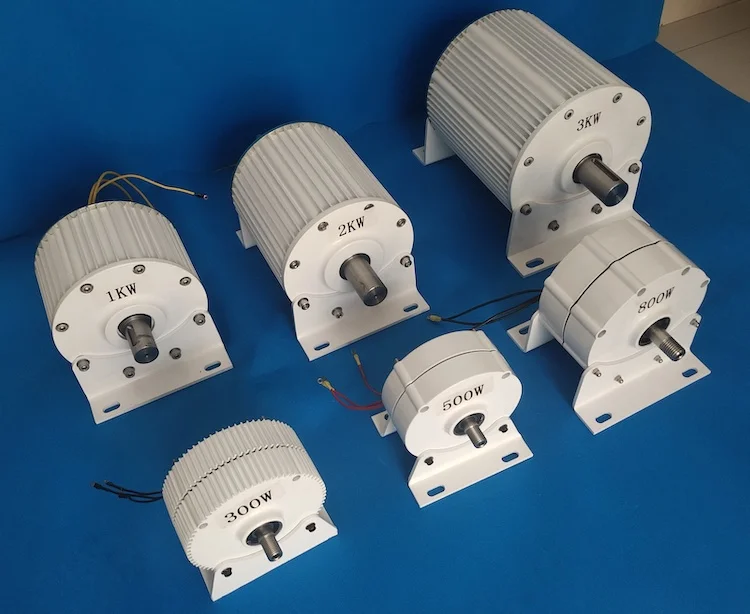

We Also Provide Permanent Magnet Generator with different Power and RPM. If you have RPM requirements, pls contact us directly.
