TEG 50W Thermoelectric Power Generator

TEG 50W Thermoelectric Power Generator

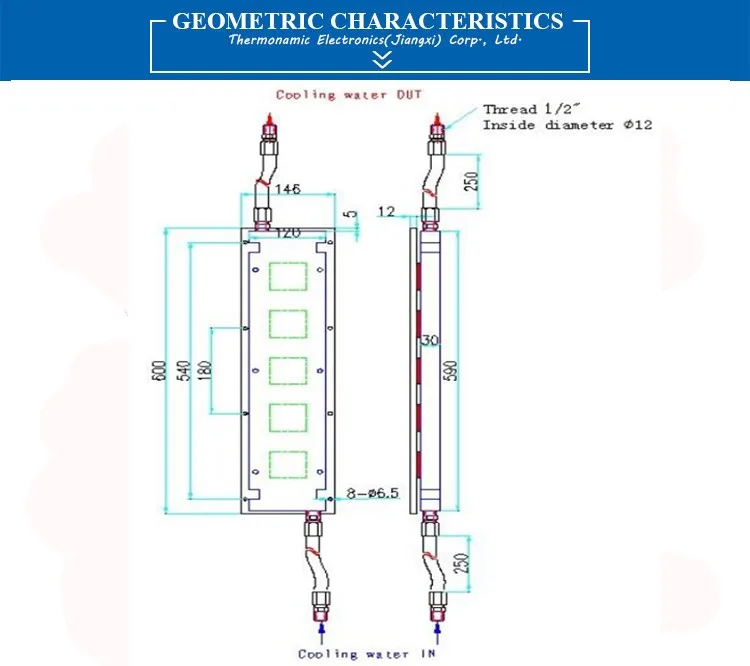

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>     The below is a 50 watts thermoelectric power generator designed for mounting on a flat hot surface to generate the electricity. The cooling of the generator is by circulated water. The generator can be attached to the outside hot plate of a heater to convert its waste heat to generate electricity.     The thermoelectric power generator consists of 5pcs thermoelectric modules, one aluminum plate used for collecting heat and a liquid cooling block. The aluminum plate conducts the heat from the heat source surface to the hot side of the thermoelectric module. The heat flowing through the thermoelectric modules of the generator is dissipated by liquid like water. Higher heat source temperature will generate higher output power and voltage.     The generator is installed with 5pcs 56mmx56mm modules connected in series to generate about 50 watts if its hot plate is heated up to 270℃(518F). The generator features with light in weight, no noise, no vibration, reliability and easy installation.





Performance Specification Sheet

Application

1.Living waste heat

2.Industrial waste heat

3.Aerospace industry

4.Exhaust gas of vehicles
