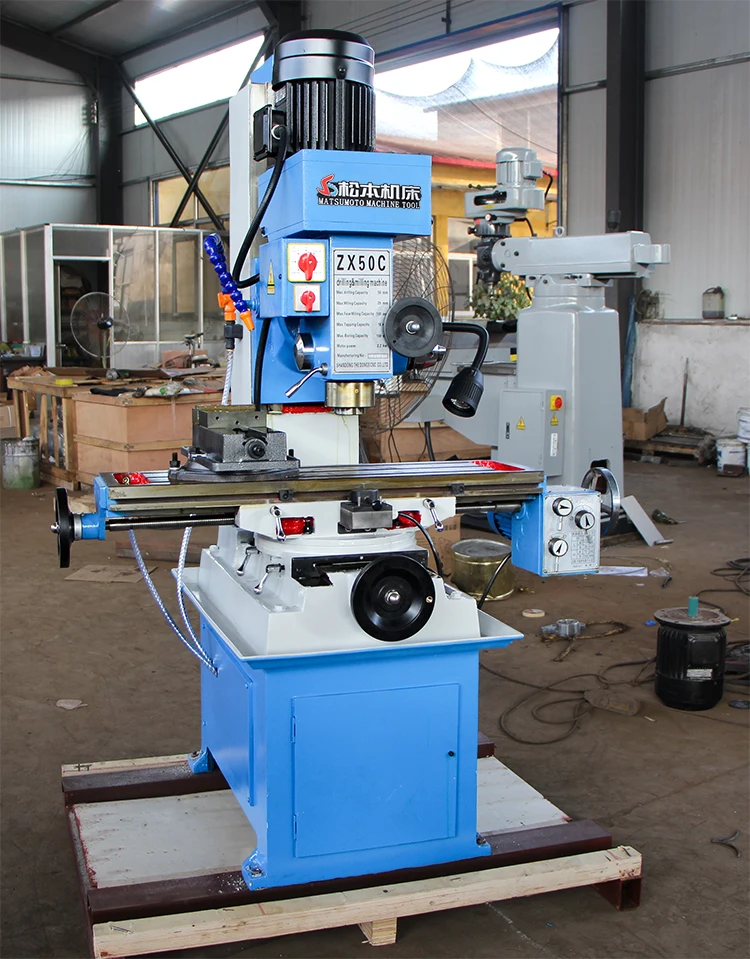

Универсальный разделитель ZX50C ручные фрезы фрезер сверло вертикальный сверлильный и фрезерный станок тайваньский
- Категории: Manual Mills >>>
- Поставщик: Shandong,Matsumoto,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Paramenters
The main performance characteristics:
1.Universal use as milling machines and drill press
2.Easily shiftable gear drive ensures power transmission without losses
3. With v-belt spindle drive.
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axis
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
Application:
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Product main technical parameters:
specifications | ZX50C |
Max.drilling dia.(mm) | 50 |
Max.end milling width(mm) | 100 |
Max.vertical milling dia.(mm) | 25 |
Max.tapping dia. | M16 |
Spindle speed range (r.p.m) | 230-1825 |
Spindle travel(mm) | 120 |
Table size(mm) | 800×240 |
Table travel(mm) | 400×230 |
Z axis travel(mm) | 400 |
Overall dimensions(mm) | 1100*970*1650 |
Motor(kw) | 0.85/1.5 |
N.W/G.W(kg) | 550/650 |

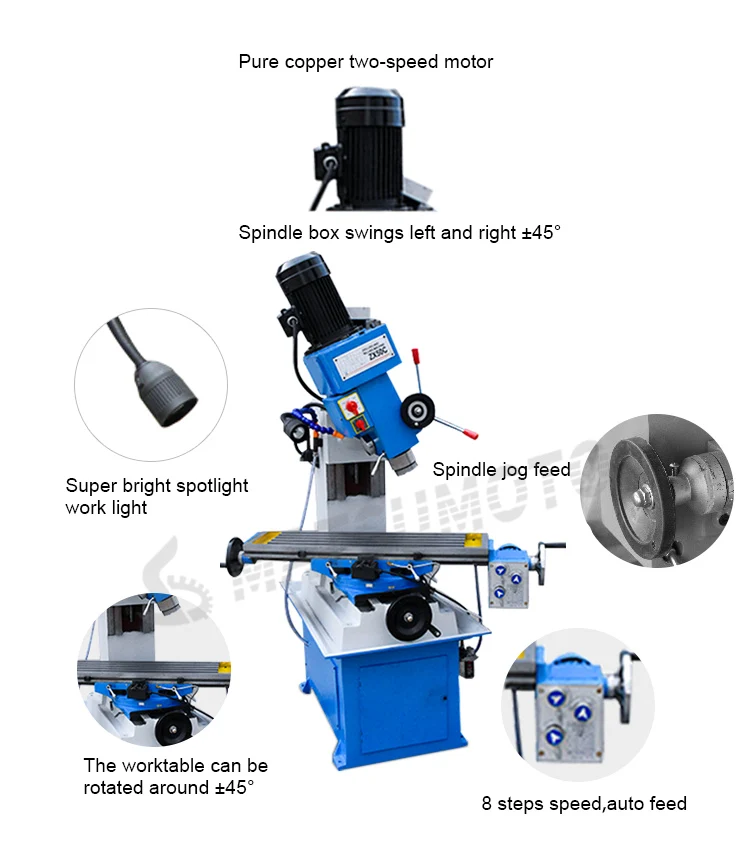

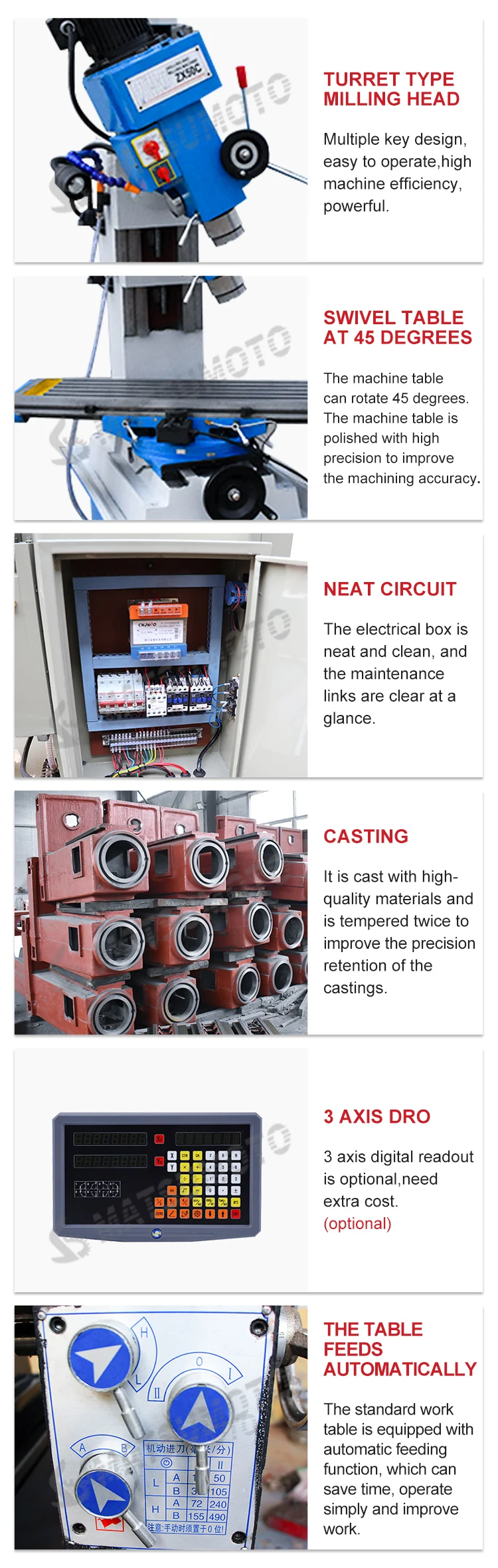

Details Images
Recommend Products

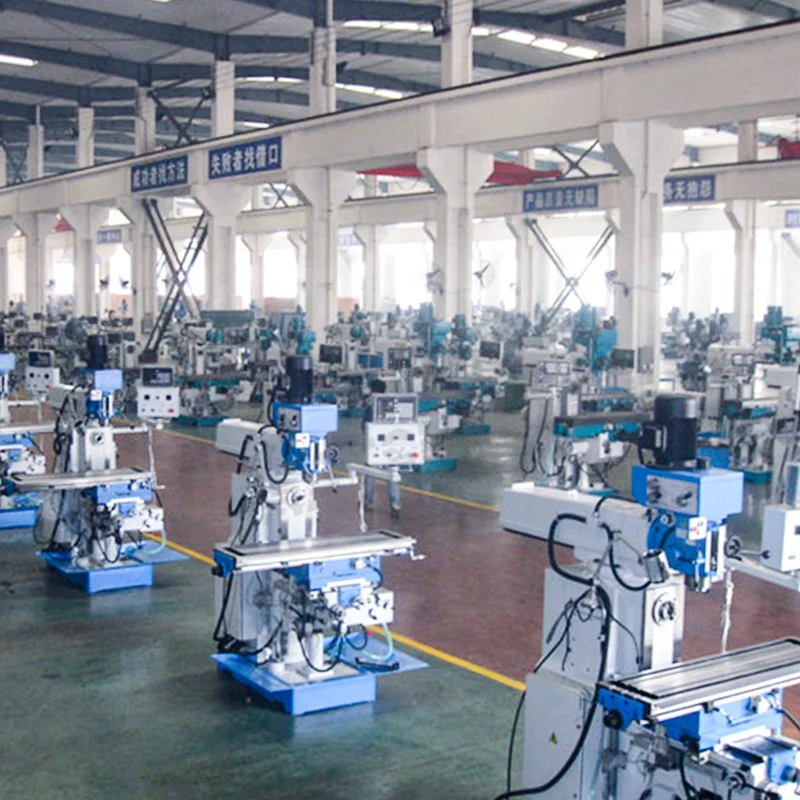

Company Profile
