Product Description
Contructional Tools Manual Chain Block 5 ton chain pulley block
1:suspension and load hooks are made of antiading alloy steel,high strength ,deformation occurs when the cse will be first event of overload without sudden fracture.
2.all spart use high quality material make.and plan coating ,can good be anticorrosive
3.strong the steel cover and plate good to protect inside spart structure
4.roller and gear structure all have cover to good protect,can use in every where.
5.load wheel use good material and producten precision,good for use load chain accuracy.
6.hook with safety latch securely can roate freely 360degrees .ergonomic handle design engineering so that the hoist is easy to operate.
7:closed design protects the internal components from contamination
8.all parts of the load disc brakes come on by the high quality steel and anti corrosion.

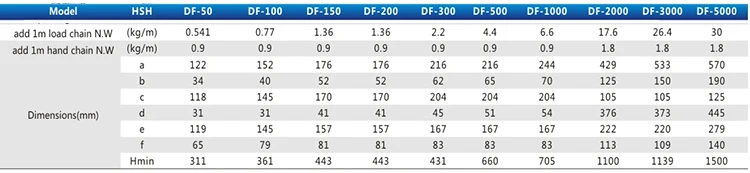

MODEL | HSH | DF-50 | DF-100 | DF-150 | DF-200 | DF-300 | DF-500 | DF-1000 |
Capacity load | kg | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | 10000 |
standard lift | m | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
load chain number of fall | 1 | 1 | 1 | 1 | 1 | 2 | 3 | |
force | N | 240 | 305 | 340 | 360 | 370 | 370 | 380 |
running testload | kg | 750 | 1500 | 2250 | 3000 | 4500 | 7500 | 15000 |
load chain diameter x number of falls | mm | 5x15 | 6x18 | 8x24 | 8x24 | 10x30 | 10x30 | 10x30 |
hang chain diameter x number of falls | mm | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 |
net weight | kg | 5.7 | 11 | 17 | 17 | 26 | 40 | 73 |
packing weight | kg | 6 | 11.5 | 17.6 | 17.6 | 26.5 | 40.6 | 73.6 |
packing size | cm | 27.5x14.5x15.5 | 28x17x18.5 | 31x17.5x22 | 31x17.5x22 | 39x19x26 | 44x24x26 | 58x46.5x24.5 |
Certifications
Detailed Images

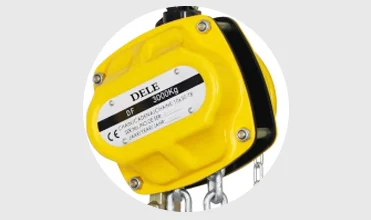

Spray
the plate finish is electrophoretic painting
which protects from moisture.Hosit bodycover painting is done which special technology
for long lasting color

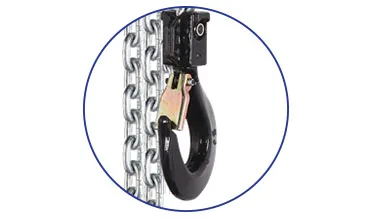

HOOK
Drop forged hooks can swivel fully.Hook uses
embedded design tip ensuring better safety.
thickness of safety latch is much heavy duty
compared to other brands in market
Overload device
overload device standard.Protection from excessive overloads .
(optional feature available based on customer need.)

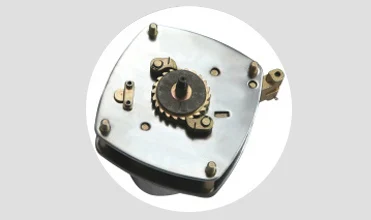

pawl
lock gear side have bush
can keep well-oiled with hub.

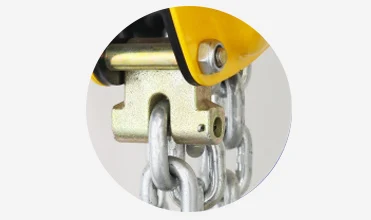

END ANCHOR
end anchor is designed to touch the hoist
plate so that it can withstand more force
and be stronger

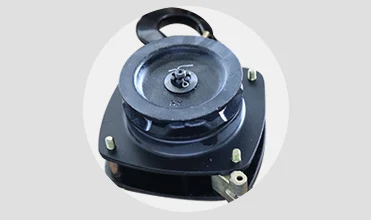

Wheel
load bearing wheel is made of
high quality material and smooth
finish

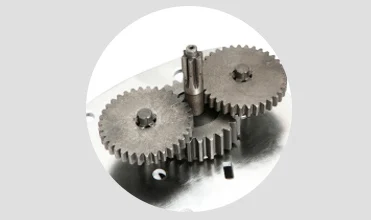

Gear
Gear material use 20crmm ti,instead#45
good at working load

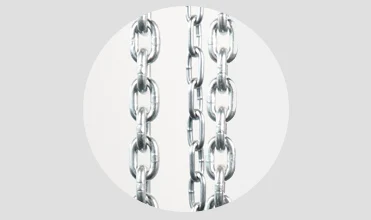

Chain
Galvanized lifting chain can guarantee against rust and corrosion features a long time

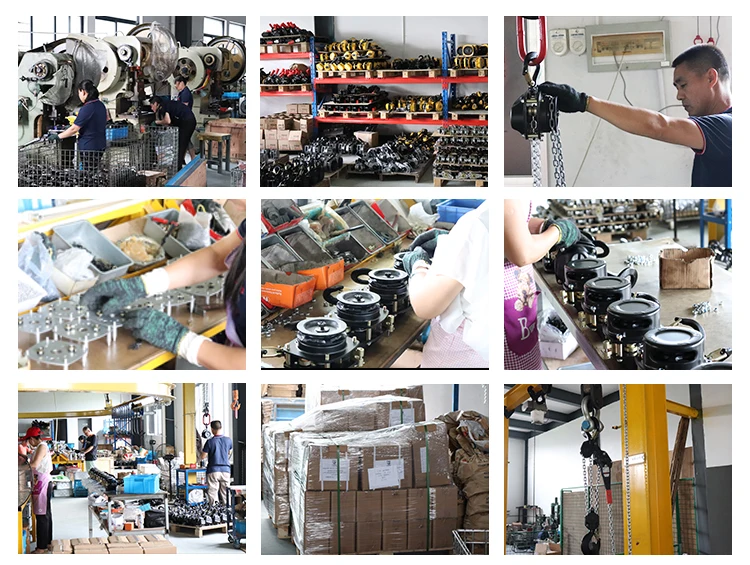

Our Company
Payment
Our service
FAQ
1. Q: What is our factory product range?
A:1) We are specialize in chain block, lever block, electric hoist, webbing sling, cargo lashing, hydraulic jack,forklift, mini crane, etc.
2) Hoist Accessories: Load chain, wire rope, rigging, hook ,pulley and shackles.
2.Q:How about sample policy?
A: Welcome sample order. Please inform your detailed sample requirement, such as the quantity, the capacity, the chain, the lift and so on. If we have the sample in stock , the ship will be quicker. If we don't have stock, please understand to wait for the produce. Express fee is charged by the shipping company. The sample fee and express fee usually paid by client, for special policy need to apply by client and approved by our leaders.
3. Q: How to order?
A: Please send us your purchase order by Email or Fax, or you can ask us to send you Perform Invoice for your order. We need to know the following information for your order:
1) Product information: Quantity, Specification (capacity, lifting height, voltage, size, material, color and packing requirement),
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder's contact details if there is any in China.
4. Q: What are the trade terms we can be accepted?
A: FOB, CIF.
A:1) We are specialize in chain block, lever block, electric hoist, webbing sling, cargo lashing, hydraulic jack,forklift, mini crane, etc.
2) Hoist Accessories: Load chain, wire rope, rigging, hook ,pulley and shackles.
2.Q:How about sample policy?
A: Welcome sample order. Please inform your detailed sample requirement, such as the quantity, the capacity, the chain, the lift and so on. If we have the sample in stock , the ship will be quicker. If we don't have stock, please understand to wait for the produce. Express fee is charged by the shipping company. The sample fee and express fee usually paid by client, for special policy need to apply by client and approved by our leaders.
3. Q: How to order?
A: Please send us your purchase order by Email or Fax, or you can ask us to send you Perform Invoice for your order. We need to know the following information for your order:
1) Product information: Quantity, Specification (capacity, lifting height, voltage, size, material, color and packing requirement),
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder's contact details if there is any in China.
4. Q: What are the trade terms we can be accepted?
A: FOB, CIF.
