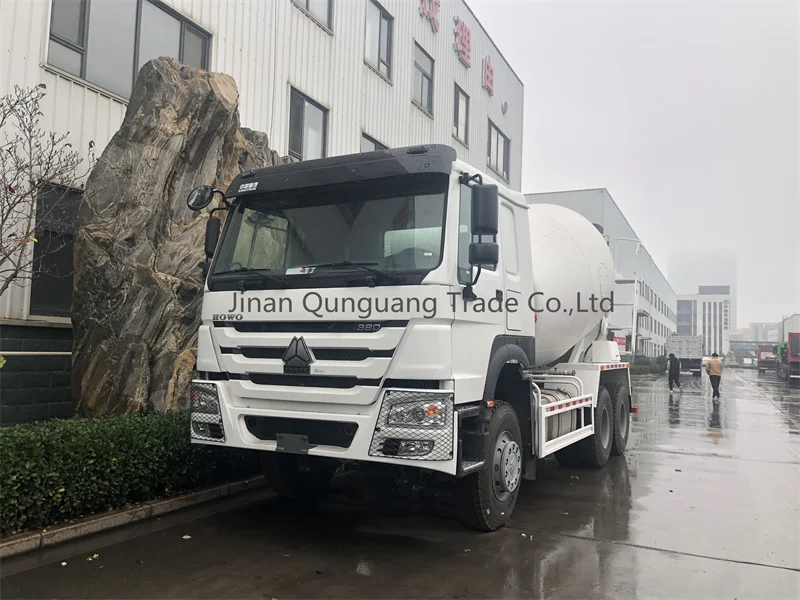

ZZ1257N3841W б/у автобетономешалка 10 м3 12 куб. М WD615.47 371 HP
- Категории: Truck Alternators >>>
- Поставщик: Jinan,Qunguang,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Overview
Concrete Mixer Truck
Concrete truck mixers is composed of automobile chassis and specialized concrete mixing device.
The production of concrete mixer truck chassis mostly used as grade B common chassis provided by manufacturers.
Its special institutions mainly including the power lifter, before and after the mixing drum bracket, deceleration machine, hydraulic system, mixing barrel, operating mechanism, cleaning system, etc. Working principle is that power is taken from chassis, and drives variable pump of the hydraulic system,changing mechanical energy into hydraulic energy to quantitative motor,then the motor drives reducer,then to mixing device, for mixing concrete.
The production of concrete mixer truck chassis mostly used as grade B common chassis provided by manufacturers.
Its special institutions mainly including the power lifter, before and after the mixing drum bracket, deceleration machine, hydraulic system, mixing barrel, operating mechanism, cleaning system, etc. Working principle is that power is taken from chassis, and drives variable pump of the hydraulic system,changing mechanical energy into hydraulic energy to quantitative motor,then the motor drives reducer,then to mixing device, for mixing concrete.
FEATURES AT A GLANCE
1>Original parts and good working condition;
2>Low working hours and well-test service for machinery;
3>Strong engine power.
4>Complete accessory and no oil leaking;
5>Competitive price ,price is negotiatable to some degree .
6>Good After-sales Service!
2>Low working hours and well-test service for machinery;
3>Strong engine power.
4>Complete accessory and no oil leaking;
5>Competitive price ,price is negotiatable to some degree .
6>Good After-sales Service!
Right
Left
Front

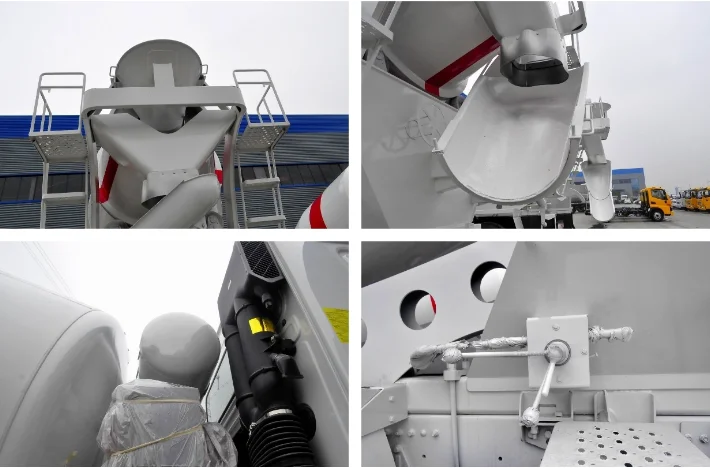

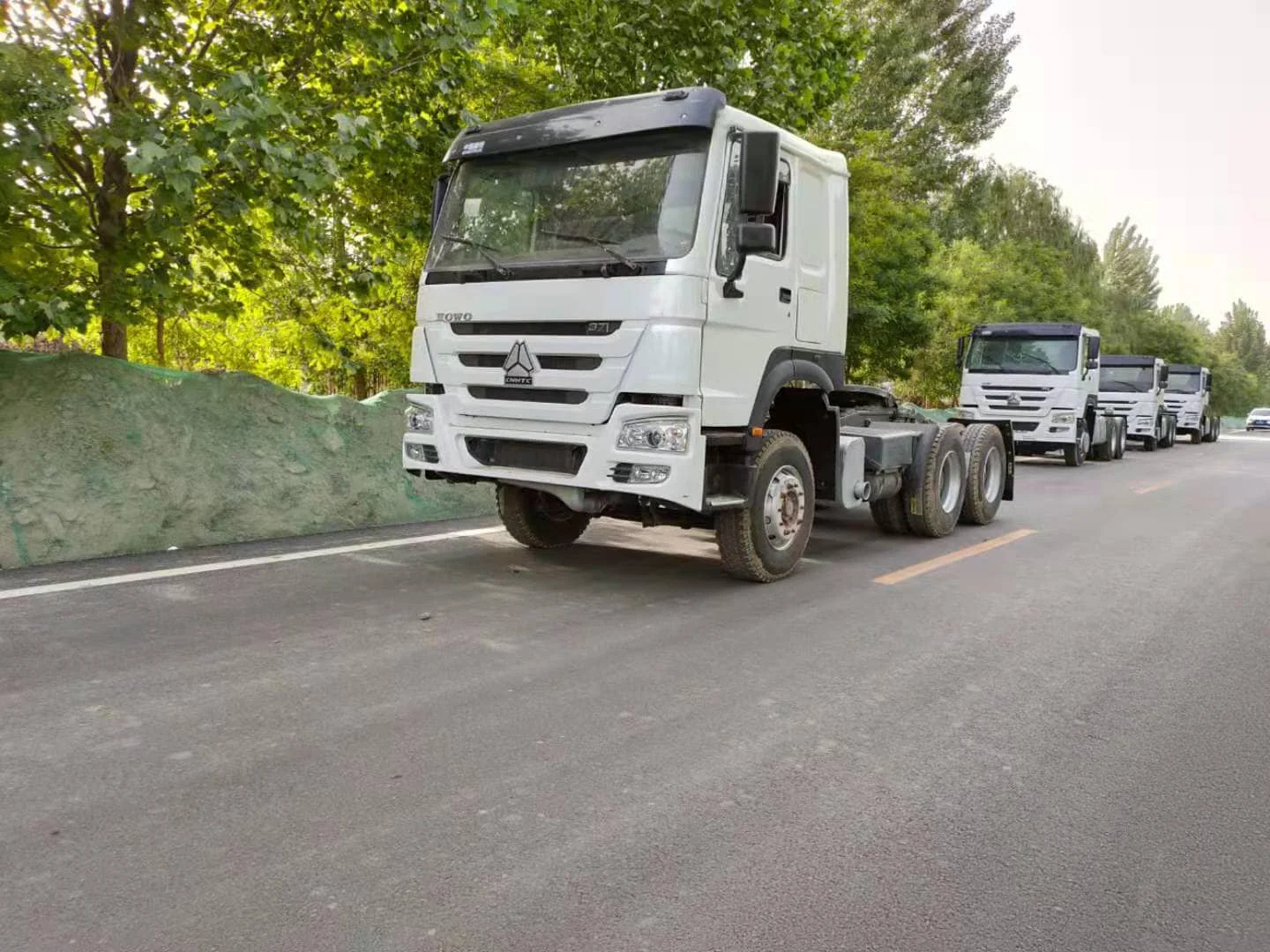

Details Images
PRODUCT SPECIFICATIONS
Chassis & Add Components | ||
Model | ZZ1257N3841W | |
Engine | ||
Model | WD615.47 | |
Power | 371hp | |
Emission | EURO II | |
Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |
Kind of Fuel | Diesel | |
Gear Box | HW19710 transmission ,10 forward and 2 reverse | |
Axles | ||
Front Axle Model | HF9 axle. Capacity: 9000kg | |
Rear Axle | HC16 axle. Capacity:2X 16000kg | |
Brake System | ||
Service brake | ABS | |
Parking brake | spring energy, compressed air operating on rear wheels | |
Auxiliary brake | Engine exhaust brake | |
Steering system | ||
Model | ZF8118 | |
Type | hydraulic steering with power assistance | |
Wheels & Tyres | ||
Type | 12.00R20 | |
Cabin | HW76 long cab, one bunk, air conditioner. | |
Certifications

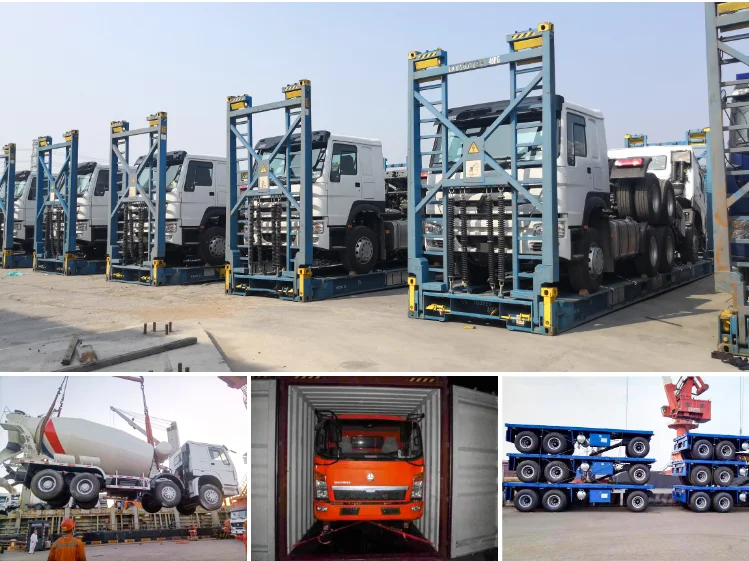

Transport And Payment

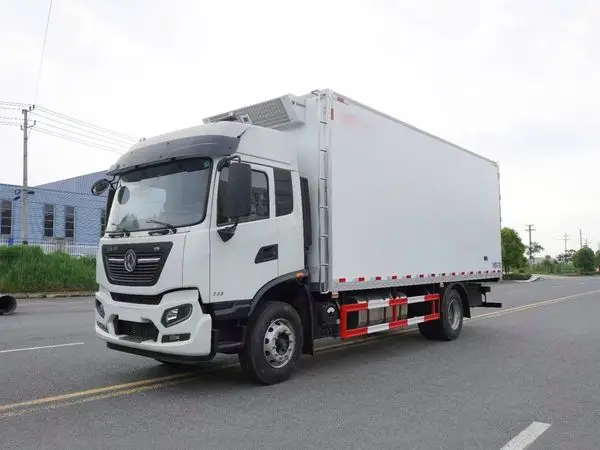

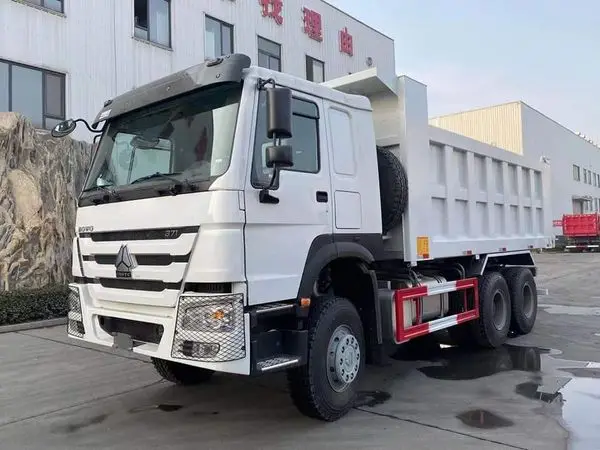

SIMILAR PRODUCTS
FAQ
Q1. What is your terms of packing?
A: Generally, we pack you goods use brown or white blank neutral boxes. If you have legally registered , we can pack the goods in
your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
