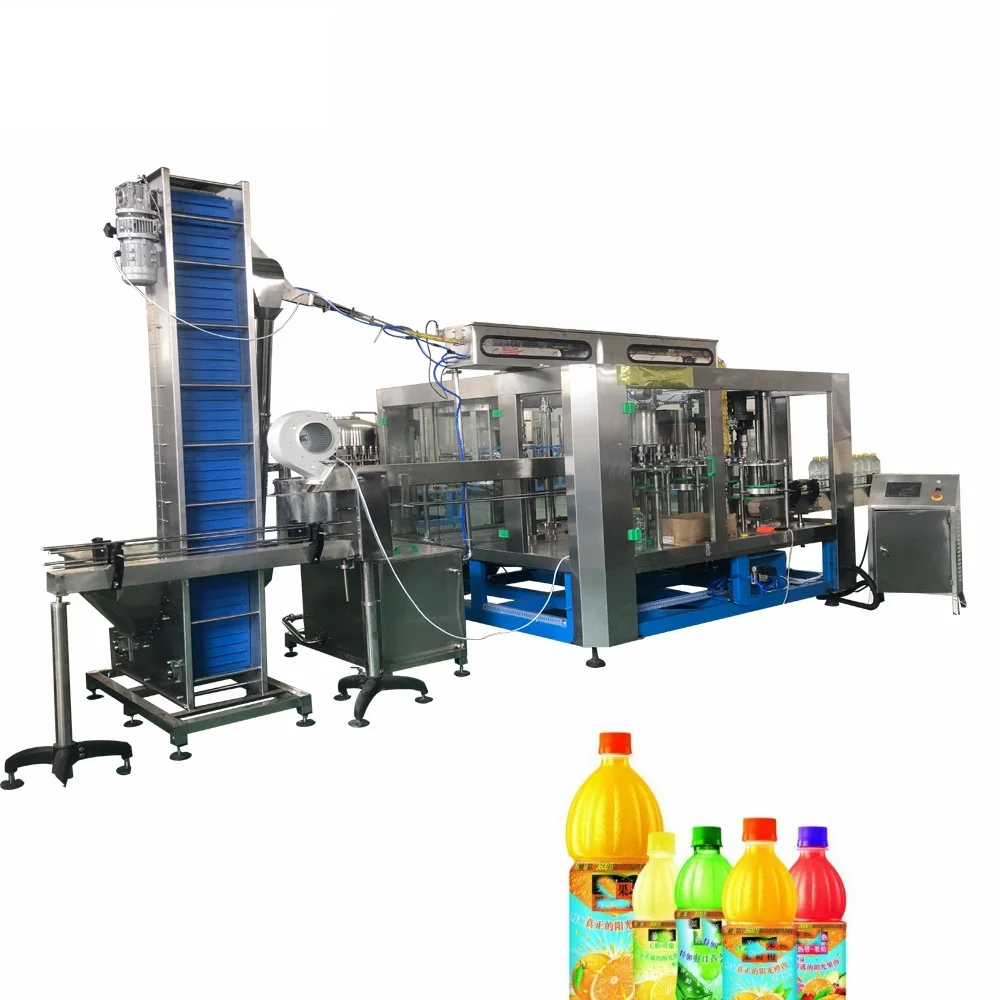

Малая автоматическая машина для наполнения фруктового сока и упаковки пластиковая Линия производства фруктовых

Описание и отзывы

Характеристики

Product Description



Application :

         This machine works harmoniously with working table;
        This machine is used to wash bottles, fill juice into pet bottle and with screw capping function.
        Integrated three function: 1. Pure water rinsing the empty bottles,
      2. Filling the rinsed bottles, 3. Capping the filled bottles

      Rinser Station

Water distributor combined with Food Grade Rubber plate & SUS304 cover.

SUS304 water collecting tray

Spraying inject design, can completely washing the bottles.

Washed water recycling system, for water saving !!

(Wash bottle---drip in water tank--water pump---raw water tank)

       Filler Station

       The entire filler is plunger piston filling system.

High accurate SUS304 construction filling nozzle, make sure high accurate filling level

SUS304 liquid bowl, & pipeline system.

Filling level adjustable by choosing different silicone gasket (quick change over parts)

Capper station

Place & capping system. Automatic caps arranging, feeding.

Electromagnetic capping heads, with burden discharge function,

All 304stainless steel construction

No bottle no caps delivery.

Automatic stop when lack of bottle.



Technical Parameter



Output Capacity	18000BPH on 500ml PET Bottle
Rinsing /Filling / Capping heads Quantity	40pcs /40pcs / 12pcs
Suitable PET bottle size	Bottle Diameter Φ50~Φ120mm Bottle Highness:160~260mm, Bottle neck: 28mm, for Bottle Volume 200-2250ml
Suitable to fill	Still Water & Non-carbonated drink
Washing Water Required	1000 liter per hour
Washing Pressure Required	0.3Mpa
Working Power	380V AC60HZ 3-phase, (other power supply is available)
Control Panel Power	24V DC
Compressed Air Pressure (for caps arranger)	0.4MPa
Compressed Air Consumption (for caps arranger)	0.2m3/min
Filling Pressure	0.1MPA
Machine Dimension	3900x2600x2350mm
Gross Weight	8000kg approximately
Power	2.5Kw





Production Application
