0.35- 1 mm C channel drywall ceiling profile roll forming machine



The introduction for C channel drywall ceiling profile roll forming machine:



 One set C channel drywall ceiling profile roll forming machine can produce several sizes through adjust the roller spacer.

And the machine have punching system to punching holes. Machine speed, length production quantity can be control by PLC control system.

Profile drawing:





Working process:

Uncoiling---feeding the material into machine---roll forming---hydtaulic cutting---product collect table



Packing list:



Series	Quantity(set)	Remark

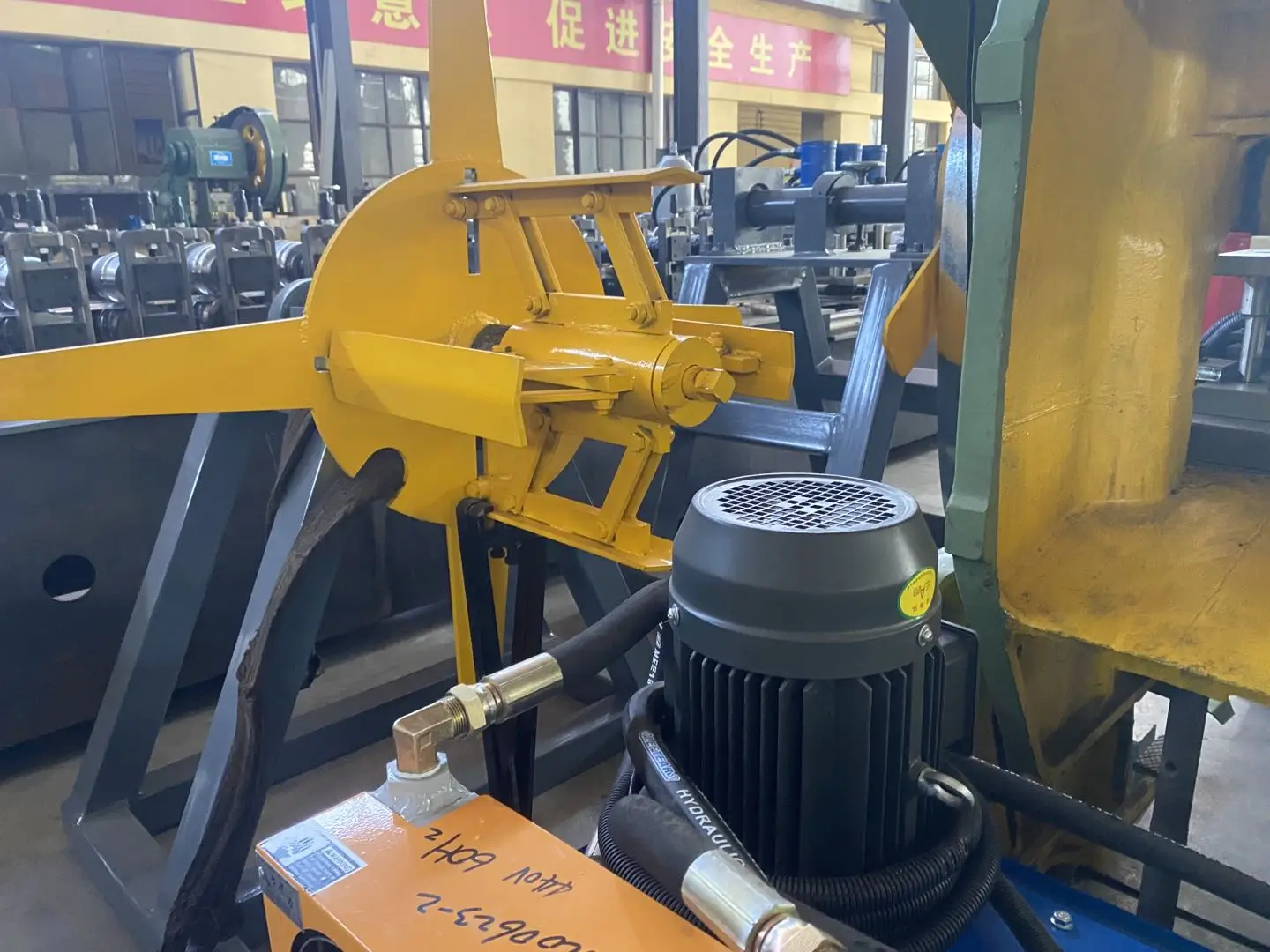

Decoiler	1	3Tons,manual
Main roll former	1	Chains drive
PLC control system	1
hydraulic  cutting system	1	Delta brand,tracking cutting
Product receving table	1	3m length





Technical parameter:



Series	Details	Parameter
Product	Raw material	GI
	Material thickness	0.35-1 mm
Decoiler	Work type	Manual
	Loading capacity	3 Tons
	Coil inner diameter	450-550 mm (adjustable)







Series	Details	Parameter

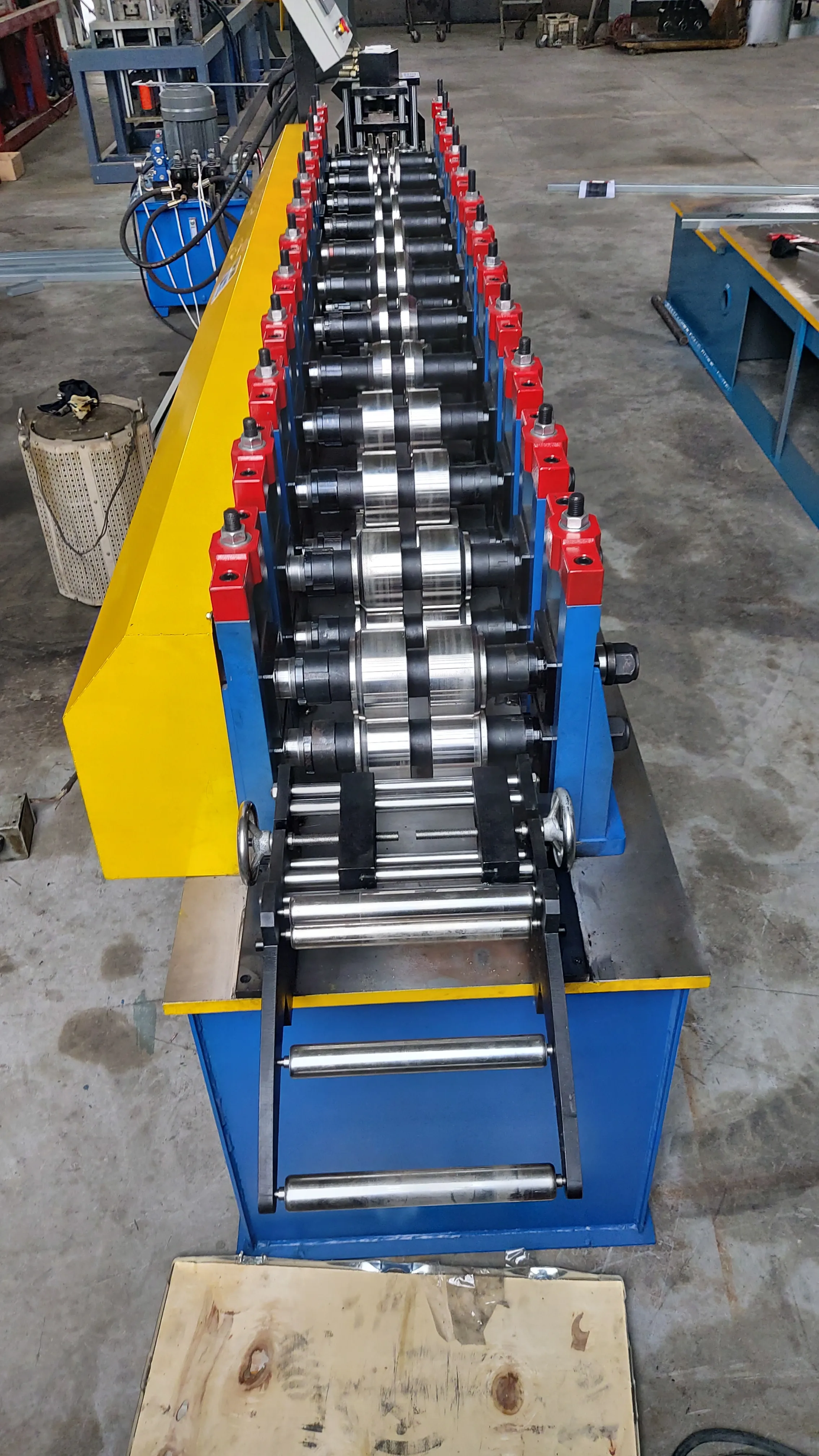

Main roll former	Rolling shaft material	45# steel with tempering treatment
	Shaft diameter	60mm
	Roller material	GCr15
	Rolling station	14 stations
	Work speed	0-12 m/min
	Machine frame	Casting vertical grinding
	Motor brand	Siements
	Work power	11 KW
	Transmission	By chains drive





Series	Details	Parameter
PLC control system	Frequency brand	Delta
	PLC brand	Delta
	Screen type	Touch screen with button





Series	Details	Parameter

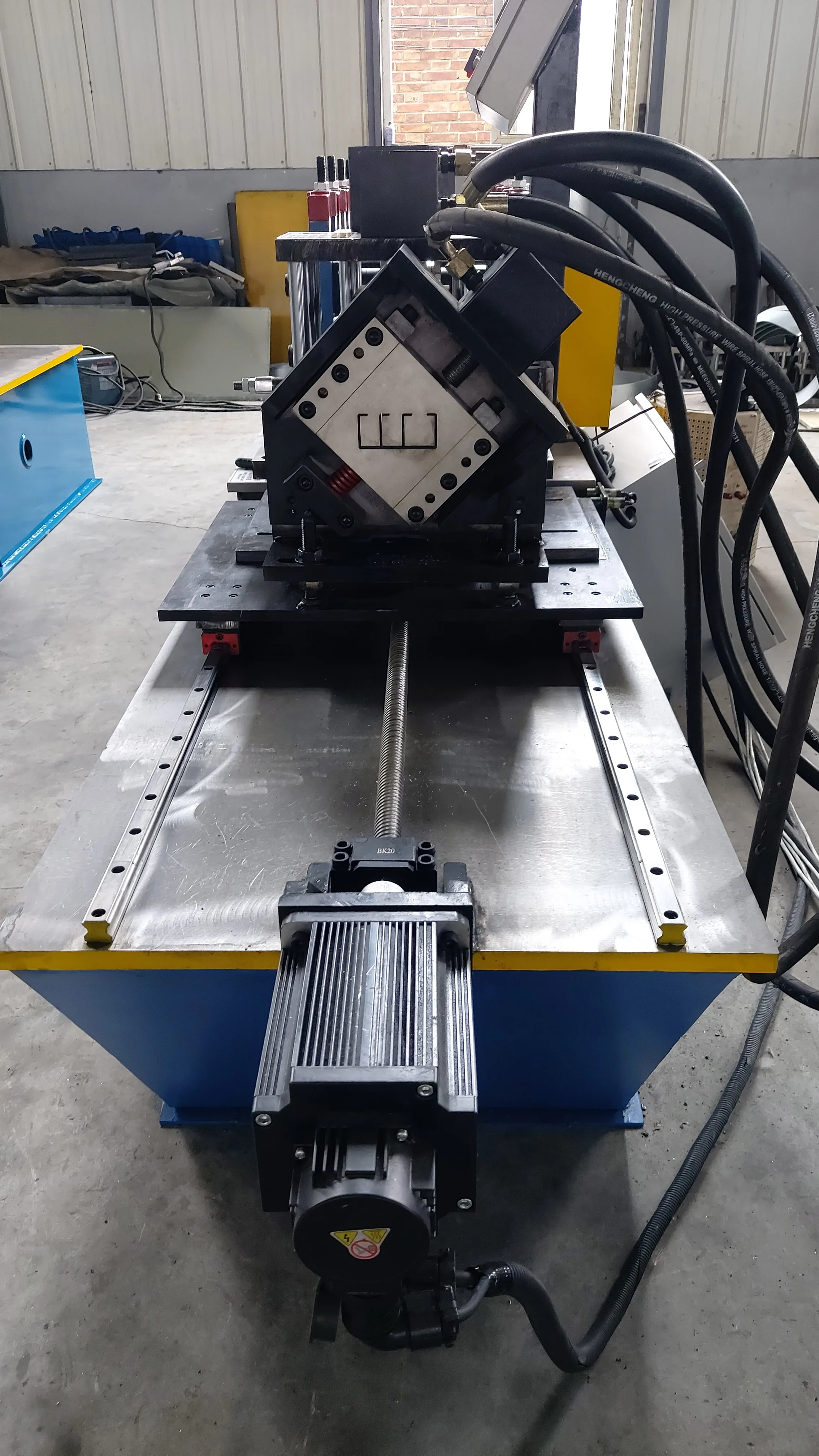

Cutting system	Work type	hydraulic cutting
	Driving method	By pillar type cylinder
	Motor power	5.5 KW
	Length tolerence	±1mm/3m





Series	Details	Parameter

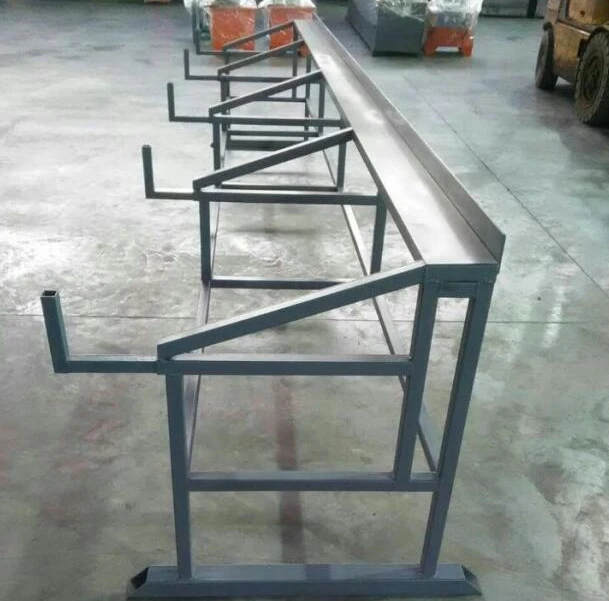

Product receiving table	Length	3 m
	Width	0.5 m
