Product Overview


multi-spindle machining center
More spindles can be processing as milling,drilling and tapping at the same time
the work efficiency of this produce several times the traditional machining center


stuff change
Because of the personnel change. NOW, new person charge the part of lathe and machining center!!! NAME: Klein
EMAIL:zoulongyugz@126.com
PHONE/WECHAT: +86 1338000192
Linkedin: klein klein
WhatsApp: +61 0421165440
Please check it! contact me if you looking for our INF of machine tool part


PRODUCT SPECIFICATIONS


Item
Item
SV-450
worktable
table size
450x320mm
2
T-slot size
3x14x110
3
MAX. load capacity
100kg
travel
MAX.X/Y/Z axis travel
450/350/250
5
spindle nose to table surface
50~300mm
spindle
spindle bore
ER32
7
MAX.spindle speed
4000rpm
8
X axle base
150mm
Y axle base
180mm
spindle drive
belt drive
feeding
cutting feedrate
10000mm/min
X/Y/Zaxis rapid traverse
48/48/36m/min
Ballscrew spec
X/Y/:3216  Z:3612
three axis guide spec
30/45/45
positional accuracy
0.01
Repeated positioning accuracy
0.007
Servo motor
spindle motor
5.5kw
X/Y/Z axis servo motor(FANUC)
1.2/1.2/1.8kw
X/Y/Z axis servo motor(GSK)
2.0/2.0/2.0kw
coolant motor
0.49kw
general
air requirement
8KG
power capacity
15KVA
Measurement
1.3x0.9x1.6m
N.W
1.25T


PRODUCT CONFIGURATION


CHANGCHAI high power engine
Japan Shimadzu hydraulic motor

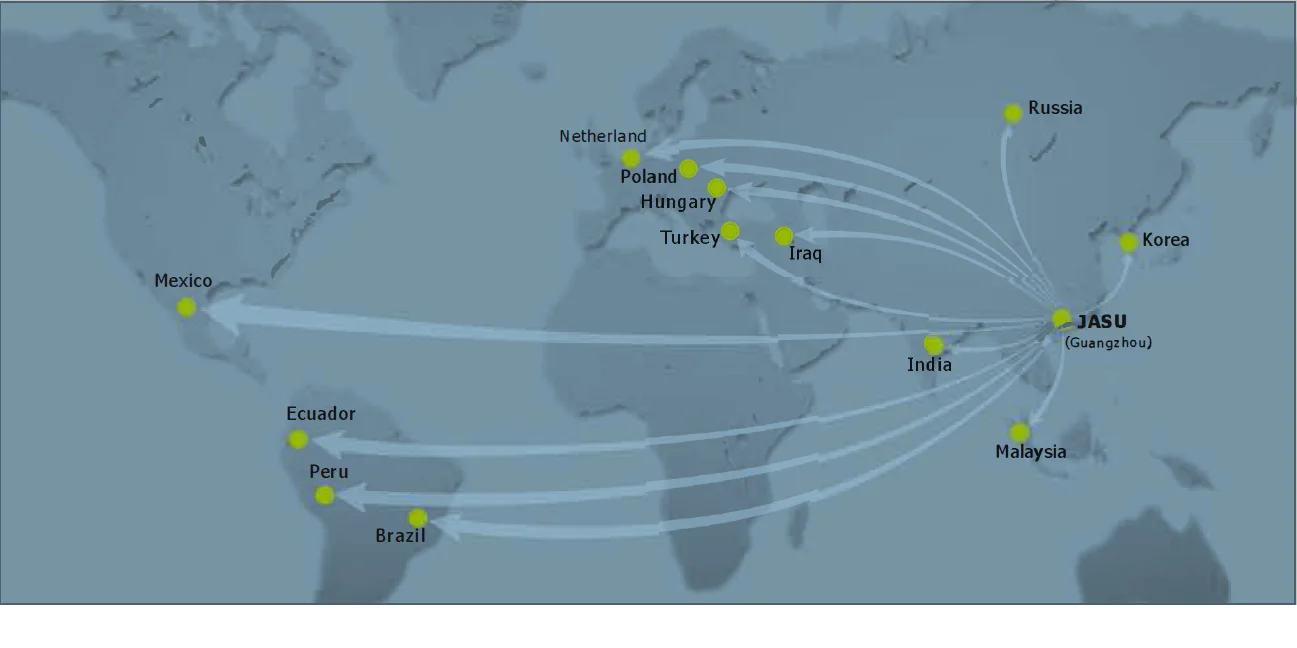

SALES AND SERVICE NETWORK
