Китай миниатюрные шлифовальные машины для поверхности MJ7115 универсальная маленькая ручная шлифовальная
- Категории: Surface Grinding Machines >>>
- Поставщик: Shandong,Matsumoto,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Paramenters

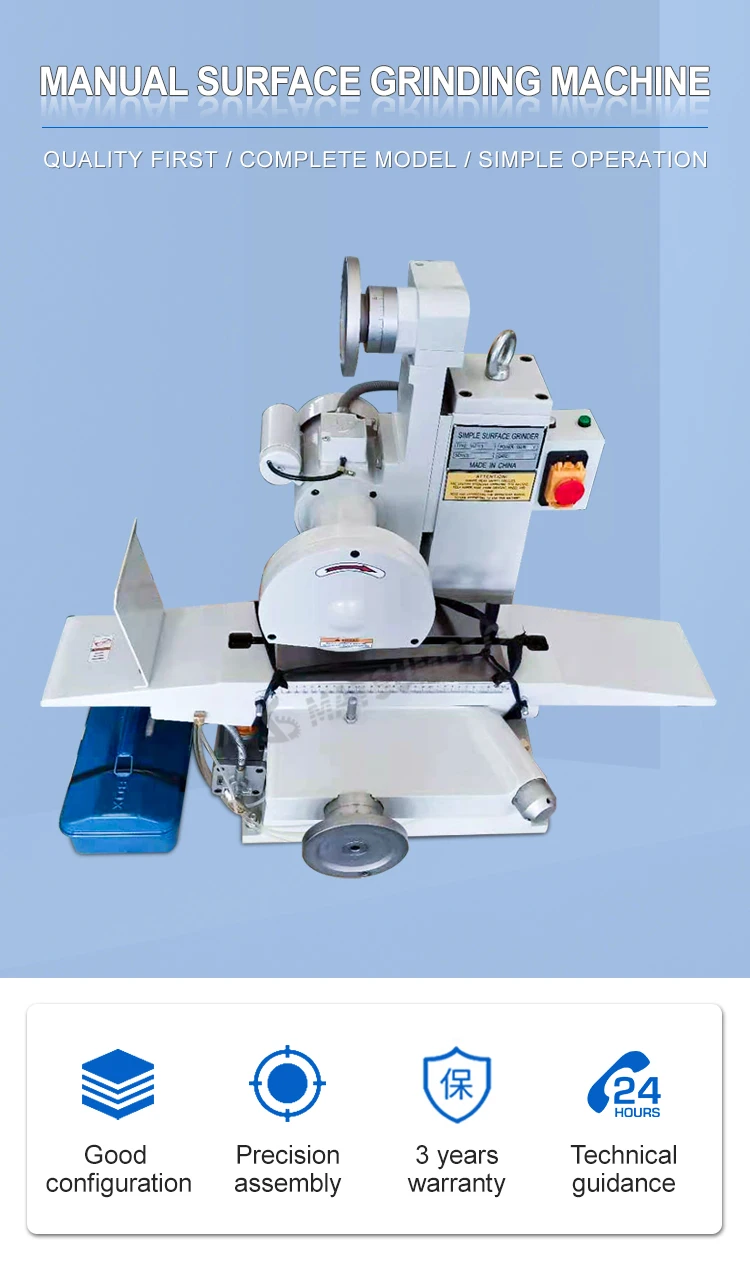

MJ7115 surface grinder is designed to grind various horizontal and vertical surfaces of the workpieces by the periphery and end faces of the grinding wheel respectively. It can also grind contoured workpieces with shaped wheel or craftsmanship apparatus. With small dimensions, light wight, smoothly safe operation and convenient maintenance, etc., it can be used in small enterprises,repairing shops, household industry, lab, teaching demonstrations, etc.
1.Integrated grinding head of high quality, high rigidity and accuracy.
2. Small size and light weight, easy operation and maintenance.
3. Pompa manual pelumas terpusat.
1.Integrated grinding head of high quality, high rigidity and accuracy.
2. Small size and light weight, easy operation and maintenance.
3. Pompa manual pelumas terpusat.
SPECIFICATIONS | Metric | Inch | |
Longitudinal stroke | 340mm | 14 | |
Lateral stroke | 170mm | 7 | |
Grinding height | 210mm | 8 | |
Area of table | 152*304mm | 6*12 | |
Width of T-slot | 1-12mm | 1-0.47 | |
Cross feed per graduation | 0.02mm | 0.001 | |
Cross feed per round | 2.54mm | 0.1 | |
Vertical feeds per graduation | 0.025mm | 0.001 | |
Vertical feed per round | 1.25mm | 0.05 | |
Roughness | 1.6μm | ||
Grinding wheel | 180mm*32mm*13mm | ||
Power of motor | 0.55kw | ||
N. W. / G.W.of machine | 210/260kg | ||
N. W. / G.W.of stand | 30/54kg | ||
Overall dimension of machine L*W*H | 930*780*730mm | ||
Case dimension of machine L*W*H | 930*780*1480mm | ||
Case dimension of stand L*W*H | 720*550*550mm | ||
Oil tark capacity | L | ||
Surface Roughness | μm | ||
Paraller Level | mm | ||
Weight | KG | ||
Machine Size (L*W*H) | mm | ||
Packing Size (L*W*H) | mm | ||
Details Images
Recommend Products
Company Profile
Certifications
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
