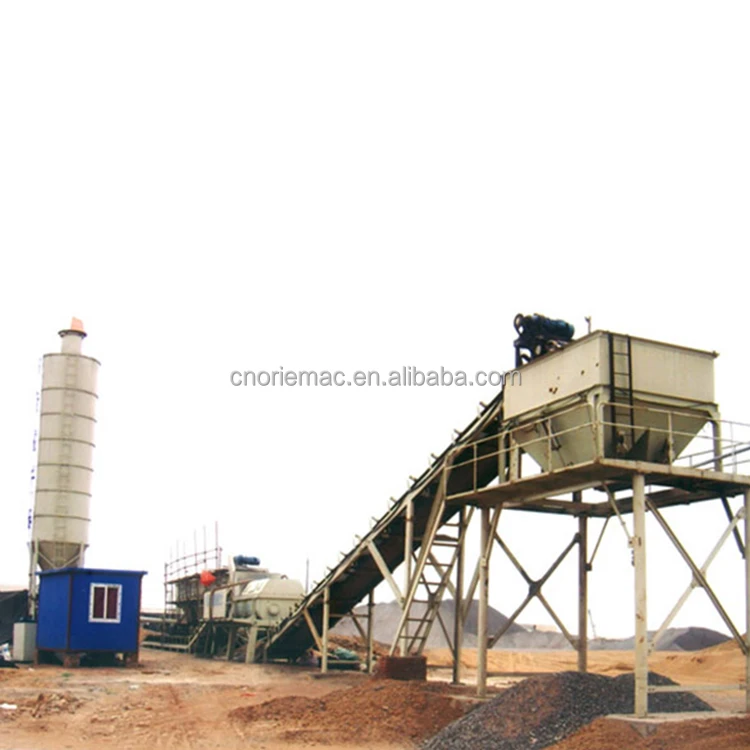

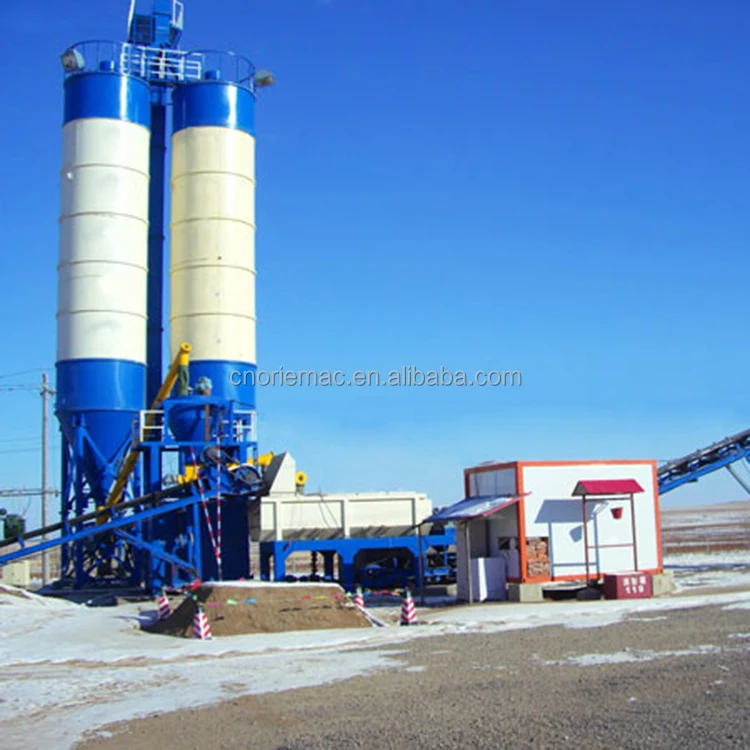

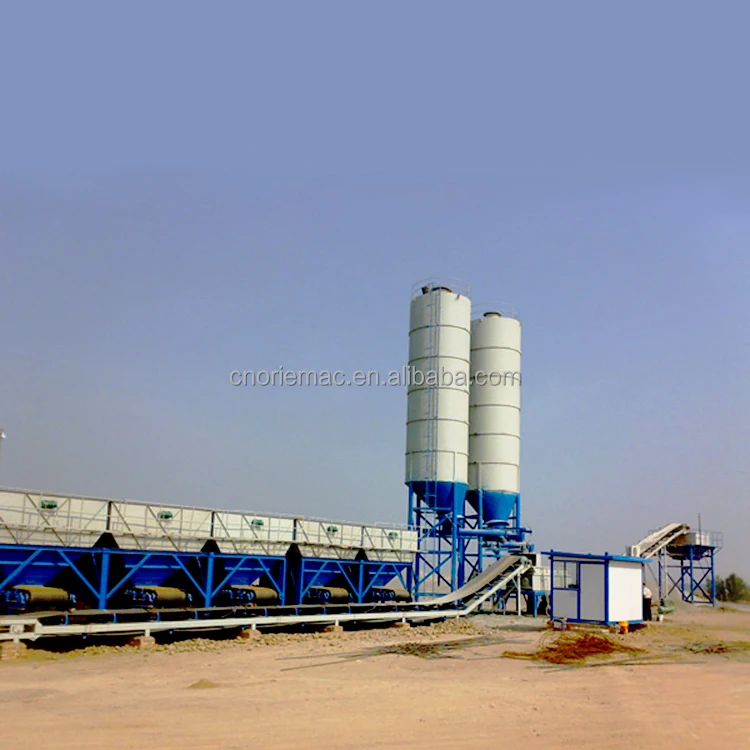

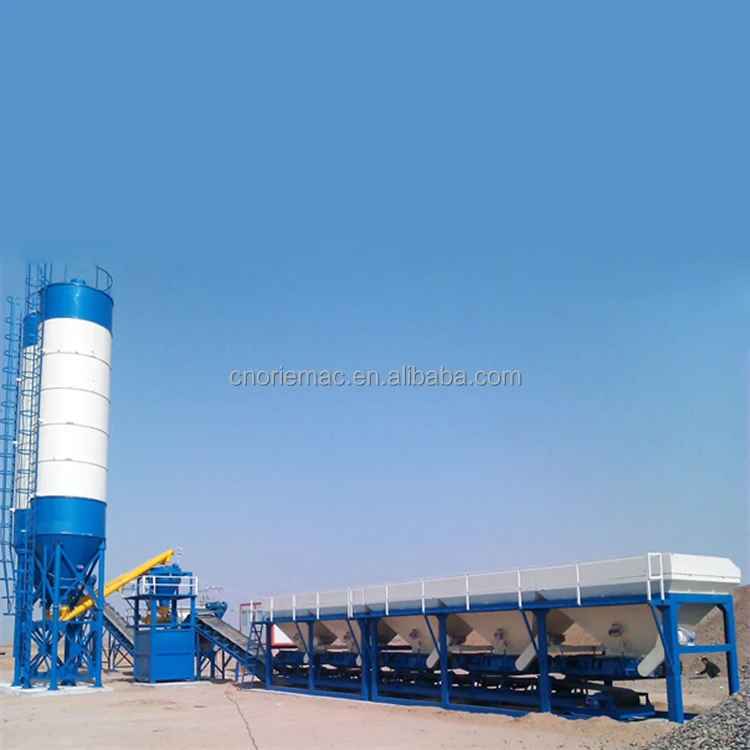

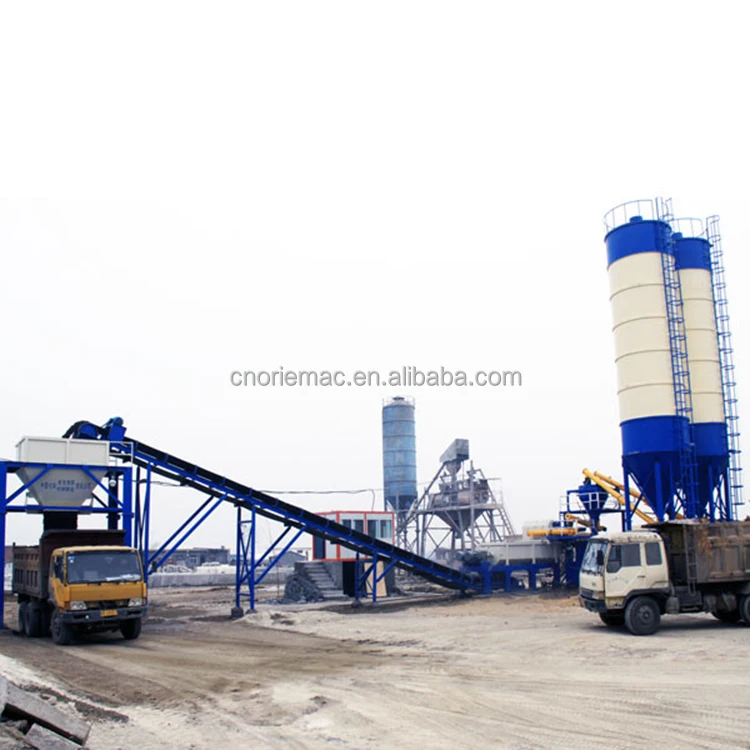

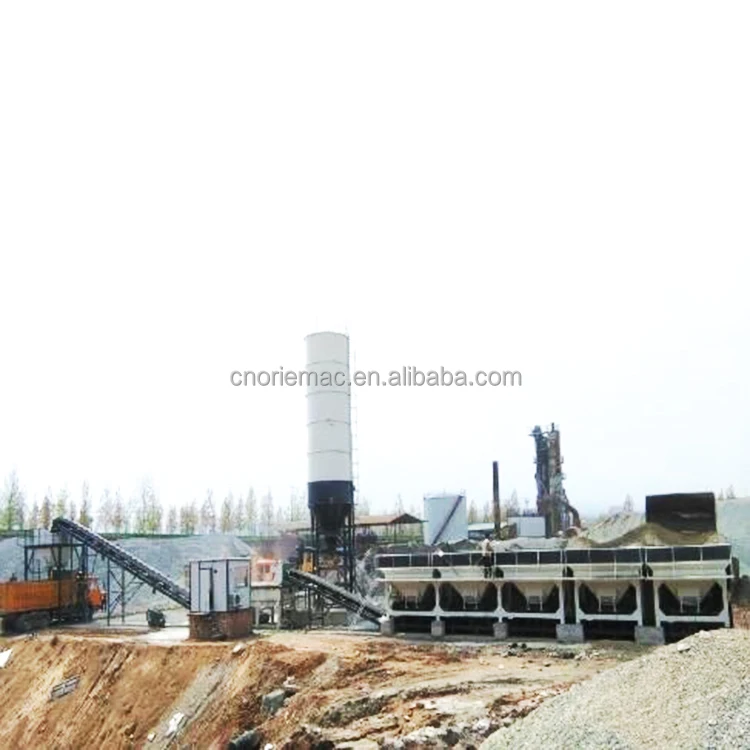

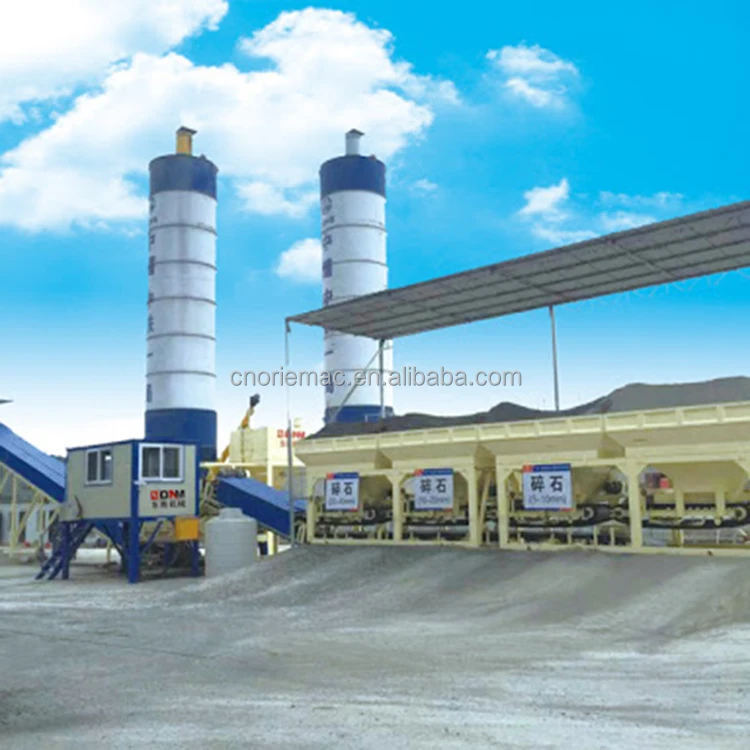

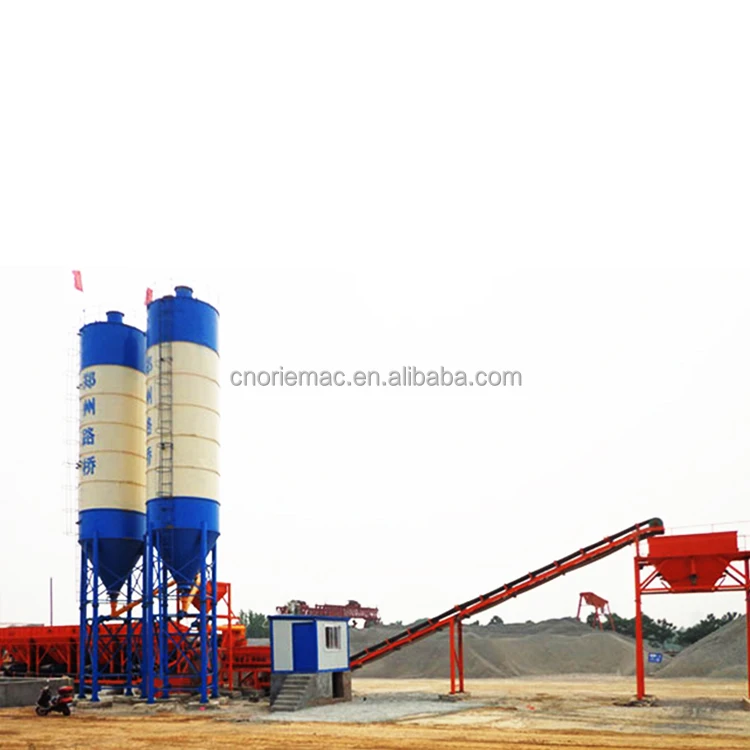

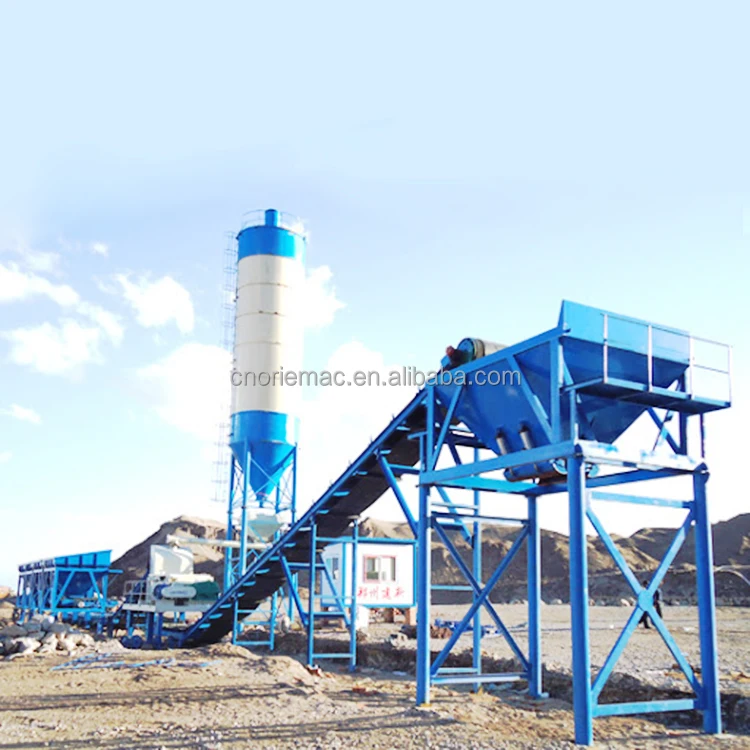

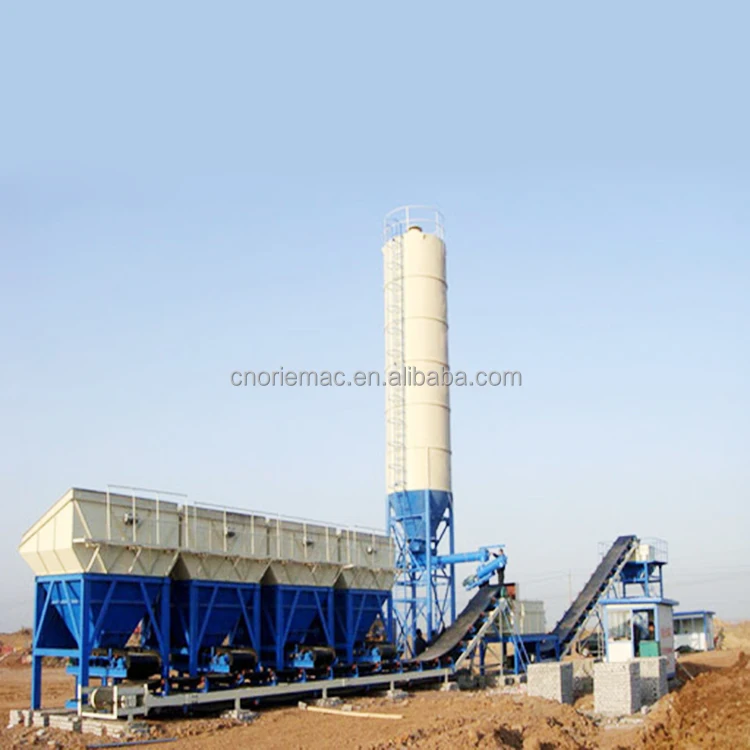

XC500 500t/h Soil Stabilizer Mixing Plant High Quality Concrete Plant

XC series stabilized soil mixing plant is one of main road construction equipments, which is a group mixer dedicated to mixing various stabilized mixtures combined with water rigid materials. Due to the mixing process concentrated in a fixed site, it features accurate batching, even mixing, and materials-saved, etc.

So the equipment is widely used for high-grade highways and urban roads base/sub-base layer construction, as well as freight yard, parking lot, airport construction. The XC Series Stabilized Soil Mixing Plant has the advantages of advanced performance, high efficiency and comfortable operation. Many components adopt international famous products to guarantee the quality.

Performance and characteristic
Module-typed assembly structure with a plurality of combination types is convenient for arrangement, disassembly and shipping.

· Batching plant suitable for different working mediums is provided. Except for the standardized batching plant, there are batching plants with forcing arch-breaking device for choice, which are used for the material supply of the easy stock bridging material (moist fly ash, soil and sand grain).

· A plurality of powder material supply system of different stabilizers is contented. The powder material is conveyed by the spiral conveyor, in order to avoid the dissipation and dust and ensure no environmental pollution.

· Large-capability low-position dual-horizontal shaft forcing no-liner mixer makes more uniform mixing, higher reliability, more convenient mainte nance and curing, better economy and lower maintenance cost.

· The mixing material storage bin adopts the driving of the cylinder, with reliable motions.

· The blanking conveyor has the foldable structure which is convenient for transportation and installation. The material collecting belt conveyor and the blanking belt conveyor adopt the electric roller for driving, which are suitable for poor site environment and have simple maintenance and curing. The conveying belts are ring-shaped belts and have unique deflection-proof function.

· The application of the frequency conversion control technology has good stability and high reliability, compared with the electromagnetic speed regulation.

Model		XC500
Rated productivity		500t/h
Total Power		135kw
Aggregate Size		60mm
Accuracy	Aggregate	≤±1.5%
	Soil	≤±1.5%
	Lime,Cinder	≤±1.5%
	Cement	≤±1%
	Water	≤±1%
	Bitumen emulsion
	Bitumen foam
Max.motor power		75kw
Structure1
Cover(L×W)		48×15
Speed-adjusted mode		Variable freguency control
