Цена:17,00 $ - 19,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

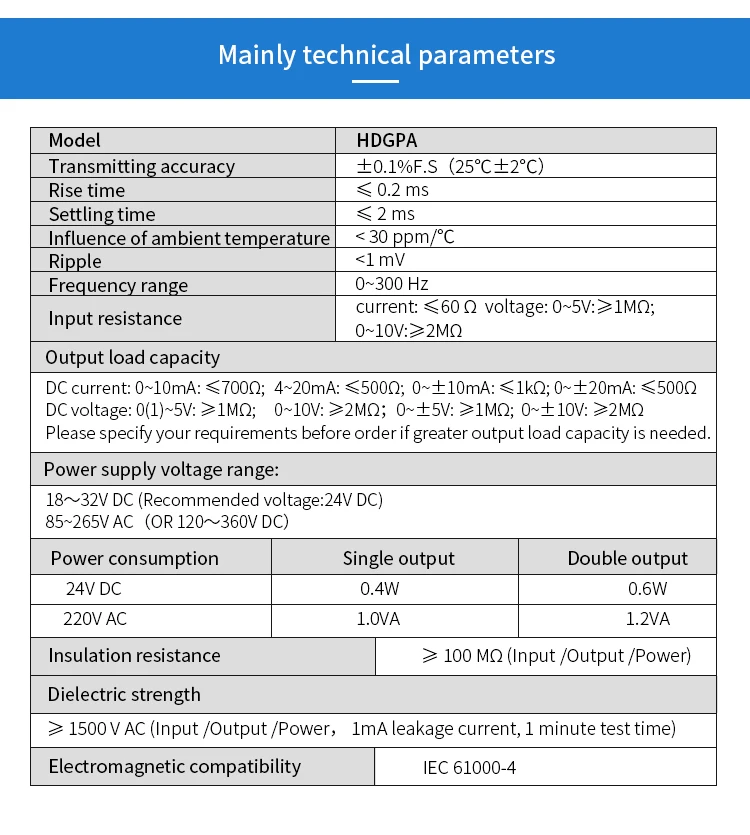

Характеристики



Product name
4 20mA Signal Converter
Model
HDGPA
Input signal
4-20ma,0-20ma,0-5V,0-10V, RS485
Output Signal
4-20ma,0-20ma,0-5V,0-10V, RS485
Channels
1 in 1out
1 in 2 out
1 in 4 out
2 in 2 out
2 in 4 out
Power consumption
1.2W (1 in 1out)
1.8W (1 in 2 out)
3.0W (1 in 4 out)
2.4W (2 in 2 out)
3.5W (2 in 4 out)
Power supply
DC24V, DC12V, 85-265VDC
Accuracy
0.1%
Distribution voltage
19-26VDC
Insulation Resistance
>=100MΩ(Input/Output/Power supply)
Input Impedance
100Ω
Output Load
<=500Ω


Product Description


1 In 2 Out 4-20mA Input 0-10V Output Analog Signal Isolator Transmitter 24Vdc Power Signal Converter Transformer
  This apparatus provides isolated power supply to the field two-wire, three-wire transmitter, and detects the current signal in a circuit meanwhile. It transmits the input current or voltage signal to an isolated current or voltage signal in a circuit or two isolated circuits, and the input, output, and power supply are galvanically isolated from each other.

   It can be used together with modular instrumentation and DCS, PLC and other systems, to offer signal isolation, signal conversion, signal distribution, signal processing and other functions to field instrument, thereby enhancing the immunity of automatic control system in the industrial production process, and ensuring system stability and reliability. This product has many varieties, such as 1 in/1 out, 1 in/2 out, 1 in/4 out,2 in/2 out, with input/output magnetic isolation.

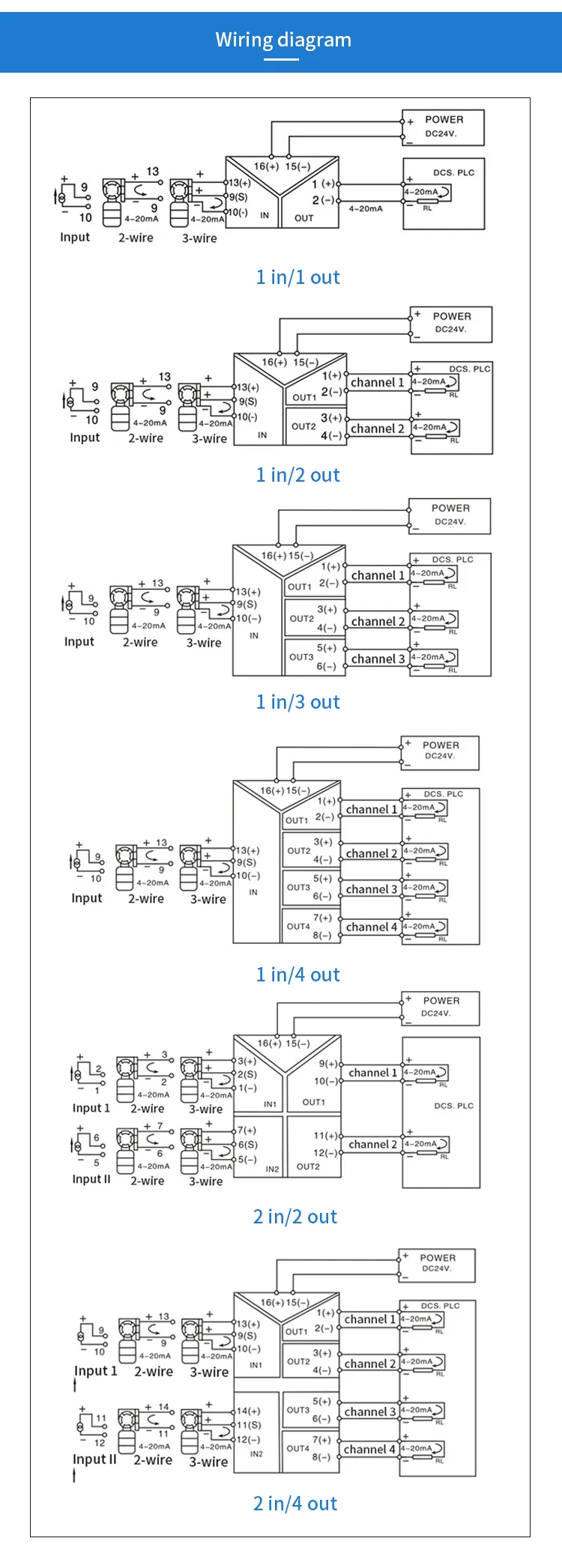

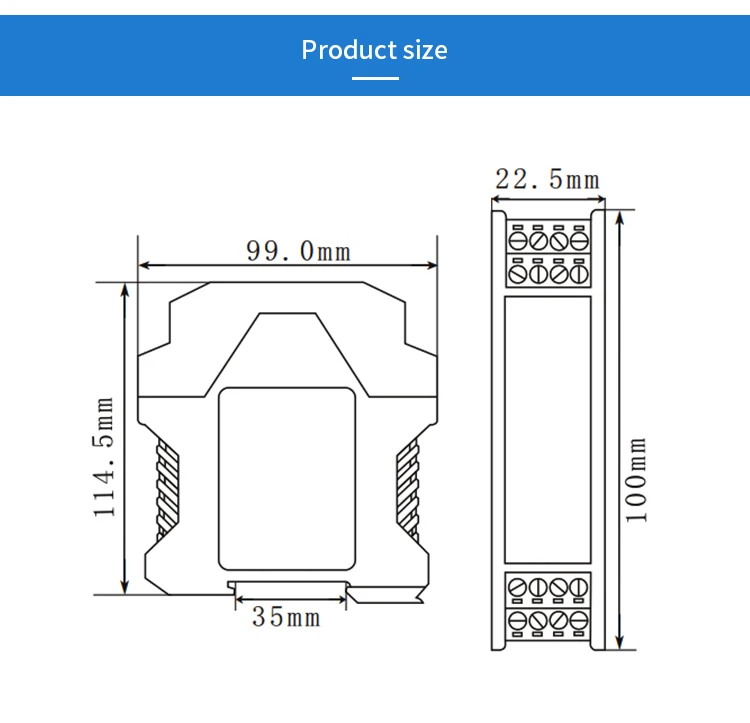

Detailed Images

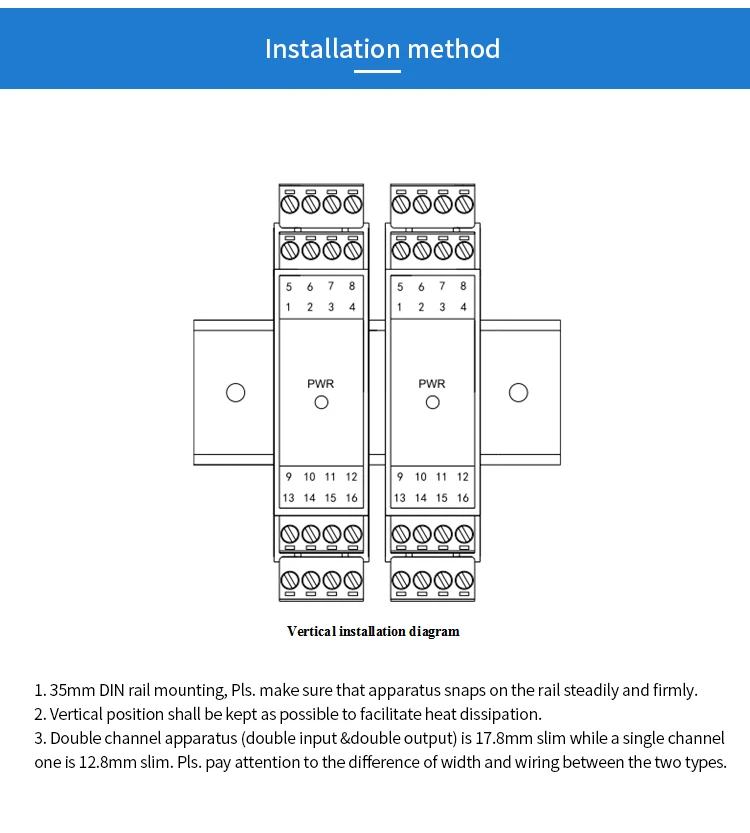

Installation Instructions

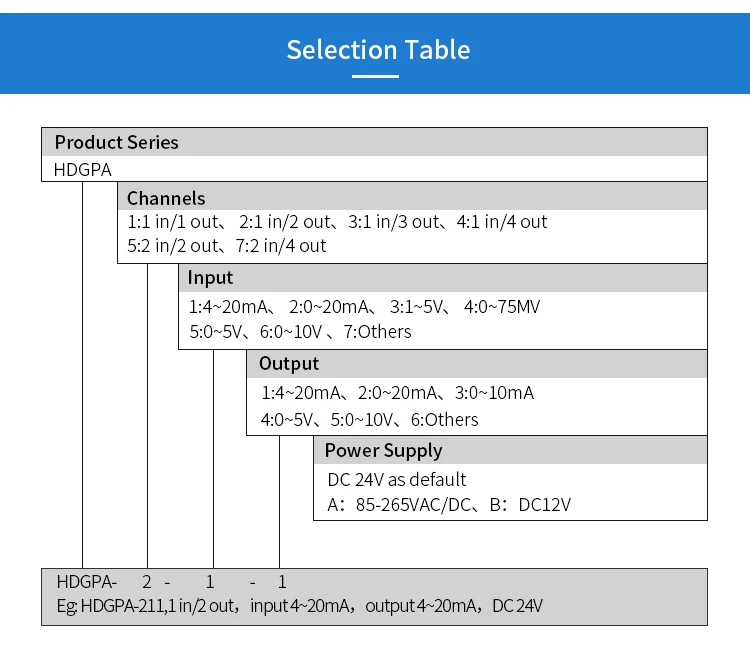

Selection table






Company and Certificates




Packing&Shipping




FAQ



Q: Are you trading company or manufacturer?
 A: We are a manufacturer, committed to producing high accuracy, long-term stability, cost-efficient pressure/ level/ temperature measuring instruments.

Q: What's your quality control system?
 A: All of our products are completed with temperature compensation and 48 hours aging test before shipment. And all of our products will be fully pre-inspection by QC departments before shipping to you. We have the certification of ISO, CE we could send the certification test of our company to you.

Q: What is the warranty for your products?
A: 2 years for the level transmitter and pressure transmitter series others are 5 years from shipment date, for non-man-made damages.

Q: What is your shipping method?
A: Small orders are delivered with DHL, FedEx, TNT, UPS, EMS. Large orders are recommended to ship by sea.

Q: Do you provide samples?
A: Yes, we have materials in stock to help you to get the samples as soon as we can.

Q: How long will you give me a reply?
A: We can support you 24Hours online service via email, skype, WhatsApp, facebook, etc within 1 hour.
