Новый тип лабораторный Настольный Электрический роликовый пресс для литий-ионных
- Категории: Laboratory Heating Equipments >>>
- Поставщик: Guangzhou,Minder-Hightech,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Heat Press Machine for Lithium Battery Research

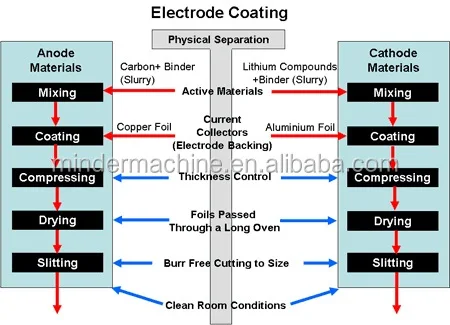

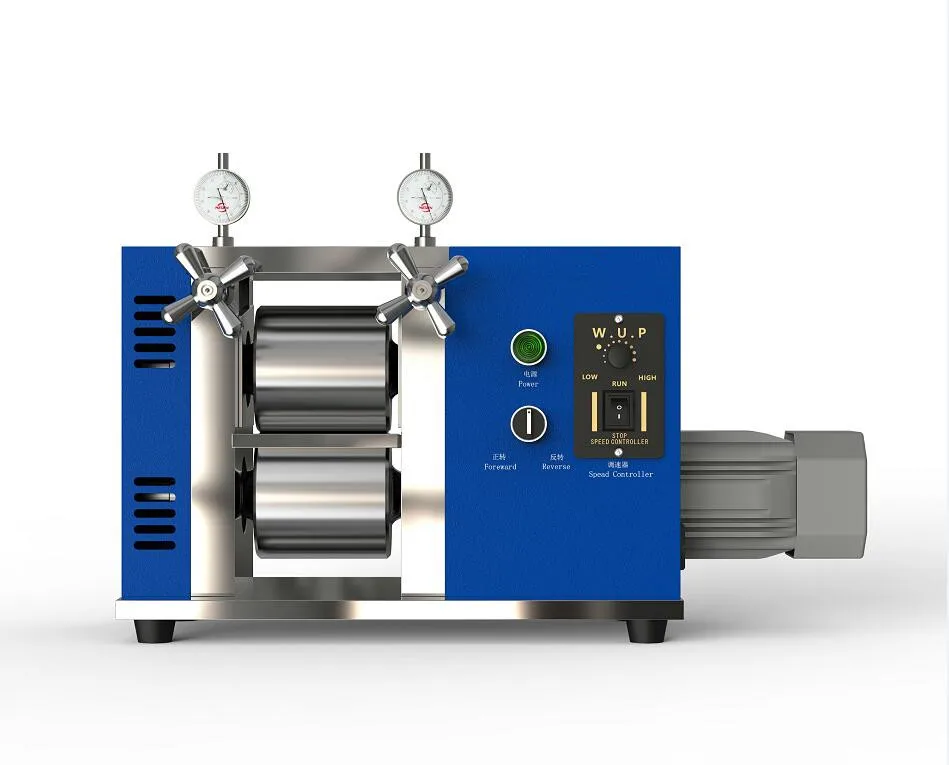

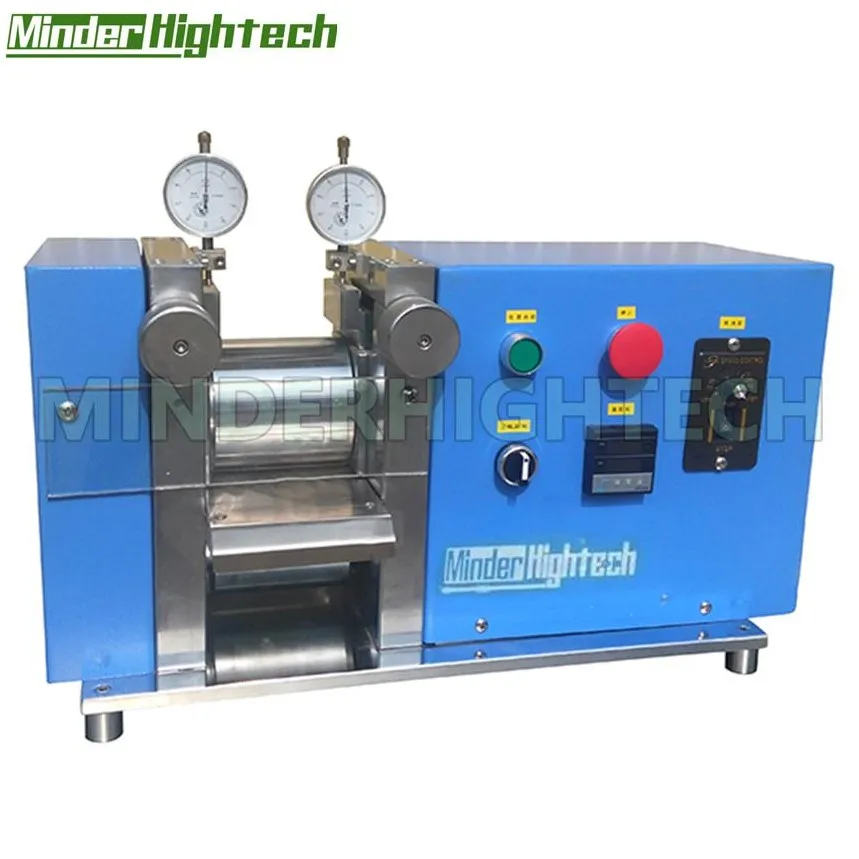

MD-GYJ Rolling Press Machine. It has dual rollers and dual grade micrometer. This lab roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.
This machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.
This Lab roll press machine is mainly used in the laboratory lithium battery materials, small amount of precious metals such as gold and silver materials, copper, aluminum and other non-ferrous metal materials manually suppressed.
This machine is a compact hot rolling press machine mainly serves for pressing samples in the lab or other applications in the material research especially for increasing active material density of the electrode in Li-Ion batteries research after coating.
This Lab roll press machine is mainly used in the laboratory lithium battery materials, small amount of precious metals such as gold and silver materials, copper, aluminum and other non-ferrous metal materials manually suppressed.
Features
1.Hot rolling, thermostat control temperature, digital display.
2.Can choose working with or without heating.
3.Roll made from hardened tool steel (HRC≥62) with Cr electroplated coating.
4.Using inclined block adjustment tableting clearance, the self-locking is good, high precision of adjustment.
5.High precision rolling roller, cylindrical degree≤±2um.
6.The gear rotation of roller press.
7.The thickness of the tablets and the speed can be adjusted. Beautiful appearance.
8.Automatic electric rolling, reversing operation.
9.Small size, easy to operate, flexible and efficient.
Specification
Model | MD-GYJ100/150/200/300 |
Voltage | 110V - 240V AC, 50/60Hz |
Roller | 1. Dimensions: 96 mm(Dia.)*100/200/300 mm(W) 2. Material: ceramic coated on hardened tool steel with HRC > 62, which have much hard than Cr plated roller and provides better surface roughness. 3. Ceramic coating material: 97% is chromic oxide; 3% is aluminum oxide, calcium oxide and magnesium oxide 4. High resistance to corrosion, acid and alkalinity, and reduce metallic contamination |

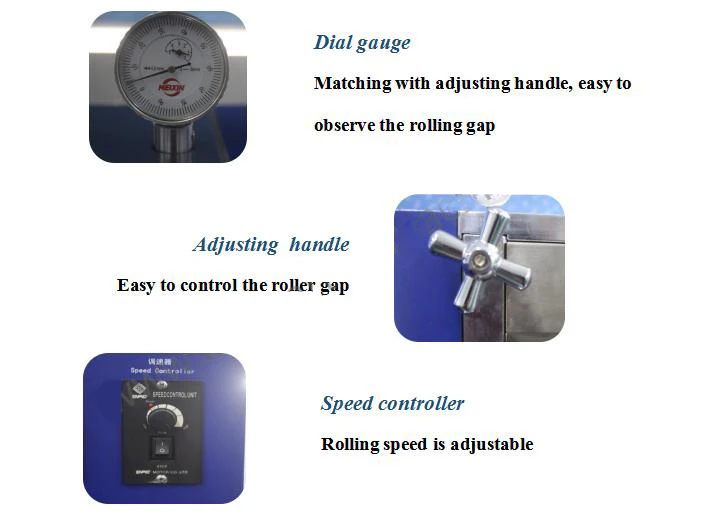

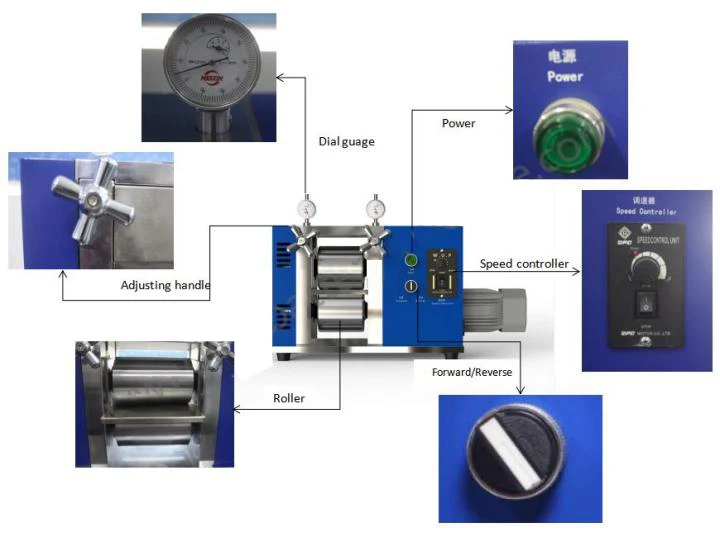

Structure | 1. Heavy duty steel frame, gears and handle 2. φ96 mm Rollers made from hardened tool steel (HRC>62) with Cr electroplated coating 3. Dual micrometer for accurate thickness adjustment in the range 0~2 mm maximun. |
Rolling Press Accuracy | ≤±0.005 mm |
Rolling Press Thickness | 0~2 mm adjusted with dial gauge |
Cylindrical Degree | ≤±2um |
Rolling Press Width | 0~300mm, can be customized |
Rolling Speed | 0~40mm/s, can be adjusted |
Rolling Temperature | 0~200℃, temperature can be adjusted, digital display |
Dimensions(L*W*H) | 385 *245 *355 mm |
Weight | 55 kg |
Standard Configuration | An Allen wrench, two dial indicator, one feeler |
Applications
The MD-GYJ roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise.
1. Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting.
2. Apply anti-rust lubricant on roller surface if machine were to be unused for a long period of time.
3. The minimum thickness of the rolled sheet should depend on the physical property of the materials. Here are some results from our test:
1. Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting.
2. Apply anti-rust lubricant on roller surface if machine were to be unused for a long period of time.
3. The minimum thickness of the rolled sheet should depend on the physical property of the materials. Here are some results from our test:
Electrode | Size | Original thickness | Finished thickness |
LiFePO4 double sides | 50mm Width x 260mm Length | 0.205mm | 0.07mm |
LiMn2O4 double sides | 50mmWidth x 260mm Length | 0.205mm | 0.07mm |
Copper foil + graphite (single side) | 75mm Width x 240mm Length | 0.09mm | 0.04mm |
FAQ
Q: Can I have my LOGO on my products?
A: Yes, We can offer LOGO silk-screen, grave. LOGO fee could be free while order quantity reach requirement.
Q: What is the bulk order delivery time?
A: Order lead time will be 5-10 working days
Q: How long is your warranty?
A: Lasts for 12 months.
Q: How could I make the payment?
A: Paypal, T/T, Western Union and Escow are the most popular methods.
Q: How about the package?
A: Foam and wooden case to protect products.
Q: How about the delivery method?
A: Normally we will take express such as DHL, Fedex, UPS and TNT for sample orders.For bulk order, will take air flights or Sea shipment.
A: Yes, We can offer LOGO silk-screen, grave. LOGO fee could be free while order quantity reach requirement.
Q: What is the bulk order delivery time?
A: Order lead time will be 5-10 working days
Q: How long is your warranty?
A: Lasts for 12 months.
Q: How could I make the payment?
A: Paypal, T/T, Western Union and Escow are the most popular methods.
Q: How about the package?
A: Foam and wooden case to protect products.
Q: How about the delivery method?
A: Normally we will take express such as DHL, Fedex, UPS and TNT for sample orders.For bulk order, will take air flights or Sea shipment.
