Product Overview

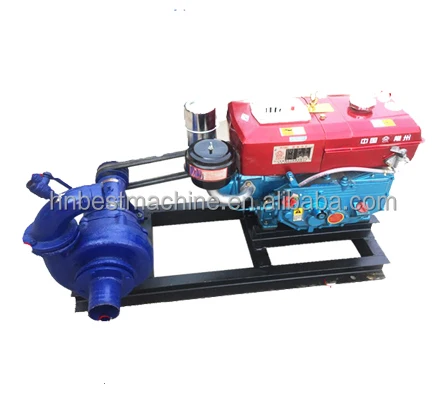

Diesel Engine Water Pump
BSM brand B100NB-A series diesel engine water pump is a single-stage end-suction centrifugal pump, it is suitable for industrial and city water supply, water drainage, and widely used for agricultural irrigation, transportation pure water or other liquids which physical and chemical nature is similar to pure water.
FEATURES AT A GLANCE
Working principle and structure
1. BSM brand diesel engine mixed flow pump is a new generation product developed by our company.
2. The pump body adopts a front and rear door structure to facilitate installation and maintenance.
3. The shaft seal is sealed with a water ring and soft packing to prevent air from being drawn into the pump and water from leaking out of the pump, which greatly improves the pump's operational reliability and use
effect.
4. It is widely used in industrial and agricultural production, domestic water supply and drainage, and exported to Africa
and Southeast Asian countries in large quantities.
and Southeast Asian countries in large quantities.
PRODUCT SPECIFICATIONS
Model | Inlet | Outlet | Flow Rate | Power |
B80NB | 3'' | 2.5'' | 50m³ | 8HP diesel engine |
B100NB-B | 4'' | 4'' | 180m³ | 25HP diesel engine |
B200NB-B | 8'' | 8'' | 360m³ | 56KW turbocharged diesel engine |
Application
BSM diesel pump is a horizontal, single-stage, single-suction vortex shell mixed flow pump with front and rear door opening. Suitable for conveying clean water, or other liquids with similar physical and chemical properties to water. The temperature of the liquid
being conveyed should not be higher than 50 ° C. It is widely used in farmland drainage and irrigation, aquaculture, industrial
and urban water supply and drainage.
being conveyed should not be higher than 50 ° C. It is widely used in farmland drainage and irrigation, aquaculture, industrial
and urban water supply and drainage.
BSM brand disel pump is of simple structure, reliable use, convenient decoration, high efficiency, small size and light weight.
Transmission mode: There are direct transmission and variable speed transmission. Commonly used power are electric motors and
diesel engines. When ordering, the model of the power machine (power, number of revolutions) should be specified in order to
determine the specifications of the coupling or the pulley.
diesel engines. When ordering, the model of the power machine (power, number of revolutions) should be specified in order to
determine the specifications of the coupling or the pulley.
farm use diesel irrigation pump
Diesel power water pump
Pump
SIMILAR PRODUCTS

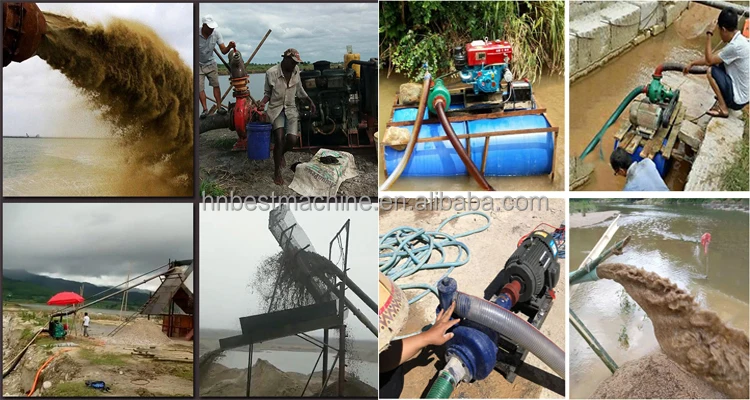

Widely Application
BSM brand diesel engine water pump can match with the following devices for working:
·Domestic water boosters·Sprinkler/Firefighting
·Water treatment plants
·Seawater pumping
·Chemical / Processing
·Food processing
·Irrigation
·Designed for heavy duty industrial use including belt drive applications.
·General water transfer in processing plants, mines, construction sites and irrigation

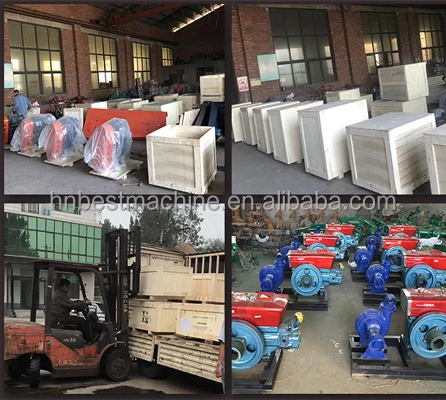

Product packaging
Packing of the disel engine water pump
1. Standard export plywood case
2. Carton packing
3. Wooden box package
4. Direct loading container
5.As you required
FAQ
Q1：Can you produce the pump with my own brand ?
A1：Yes, OEM service is available
Q2: Is there any after-sales service?
A2: Yes, We have after sales department to follow up customers, we can arrange our engineer to go to your application site for assembly or maintenance.
Q3: What information should I let you know if I want to get a quotation?
A3: Please let us know the pump capacity, head, medium, operation situation, quantity, etc.
