Полностью автоматическая шина перерабатывающая машина производственная линия по переработке


Поделиться:

Цена:4 000,00 $ - 4 500,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Full automatic tyre recycling machine waste tire recycling production line

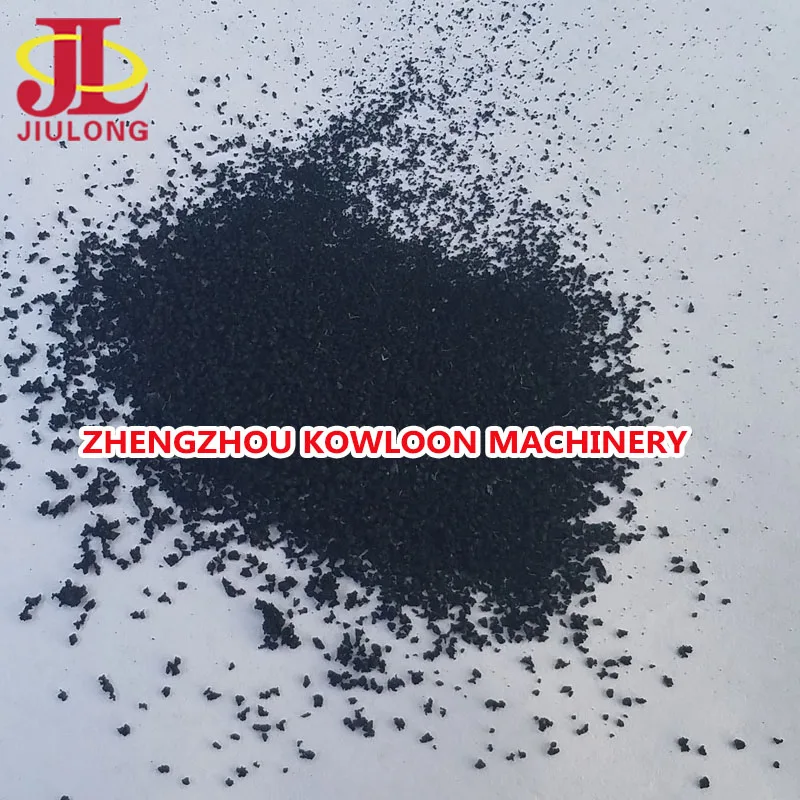

Kowloon tire recycle plant is sort of full automatic waste tire downsize system, applicable to car tires, truck tires, mining tires….etc, end product after recycling could be 50-120mm TDF shreds,10-15mm steel free rubber mulch, 1-7mm pure rubber granules, 30-120mesh fine rubber powder.
Kowloon has 14 years' manufacturing experience in recycling machinery, now have exported products to more than 30countries.




Features
1.To granulate waste tires into fine rubber powder with steel and fiber completely recycled at ambient temperature.
2.High purity of rubber powder is 99%.
3.High automation, fewer labors requirement.
4.Unique design, high output and long service time.
5. In line have dust remover, equipment running pollution-free, meeting the environmental requirement of the government.
6.It is controlled by automatic PLC, with easy operation and high efficiency
7.Our tire shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following
advantages:High Efficiency,Greater Stability,Compact Size,Higher Torque Density,Cost Effective Precision,High Radial Loads.


Specification


Model
JLSS600
JLSS1000
JLSS1200
JLSS1500
JLSS1900
JLSS2600
Main shaft power
4-15kw*2
4-30kw*2
4-37kw*2
4-45kw*2
4-90kw*2
4-160kw*2
Main shafe rotary speed
18-20rpm
18-20rpm
18-20rpm
18-20rpm
18-20rpm
18-20rpm
Working capacity
2-5t/h
5-10t/h
6-15t/h
8-18t/h
10-25t/h
25-60t/h
Weight
3000kg
5000kg
6000kg
12000kg
15000kg
36000kg
Conveyor motor power
None
None
None
4-3KW
4-3kw
4-3KW
Number of cutter head
20pcs*φ400
34pcs*φ400
42pcs*φ400
46pcs*φ550
50pcs*φ600
40pcs*φ720
Finished ships size
3-10cm
3-10cm
3-10cm
3-10cm
3-10cm
3-10cm
Feeding tank size
0.82*0.9m
1.2*1m
1.4*1m
2*2m
2.3*2m
2.5*1.4m
Dimension
2.6*2*1.9m
3*2*1.9m
3.2*2*1.9m
4*1.7*2.4m
8*2.5*2.4m
8.2*4.4*4.3m




Details Images

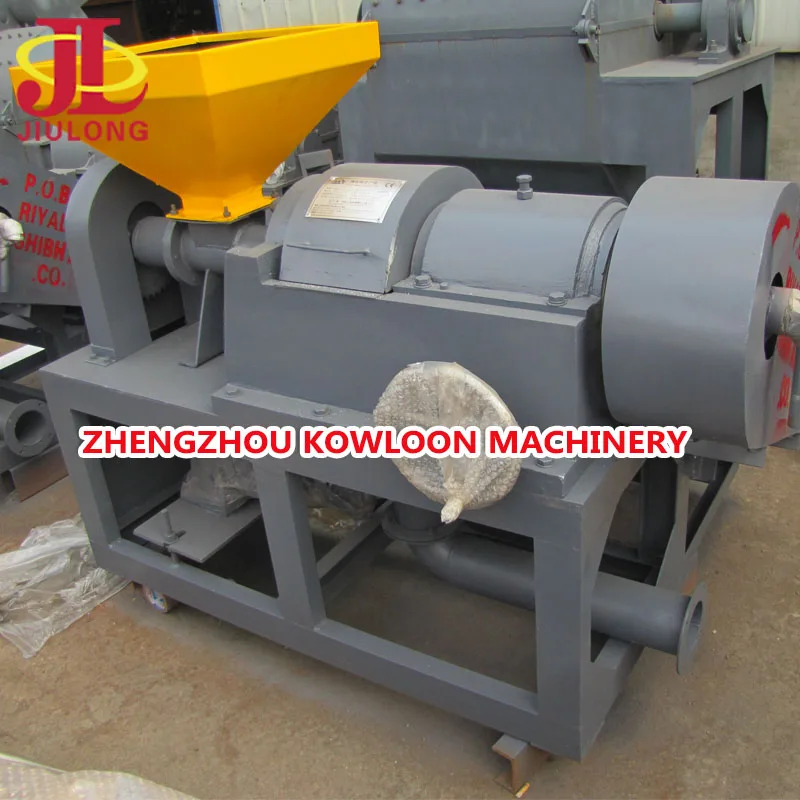

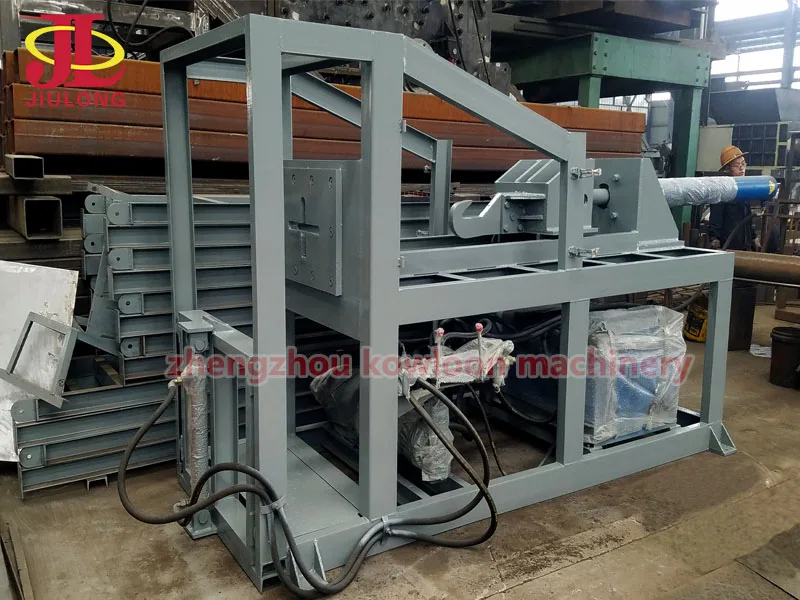

waste rubber tire steel wire debeader
The tire rubber steel wire debeader machine is widely used into the different kinds of the tires . its used to the tire diemater
over 1,200mm tire waste . the hydrualic system has been used into this machine.
through the debeader outcomes :
1. purity big diameter steel wire from beader
2. protect the blade of tough shredder

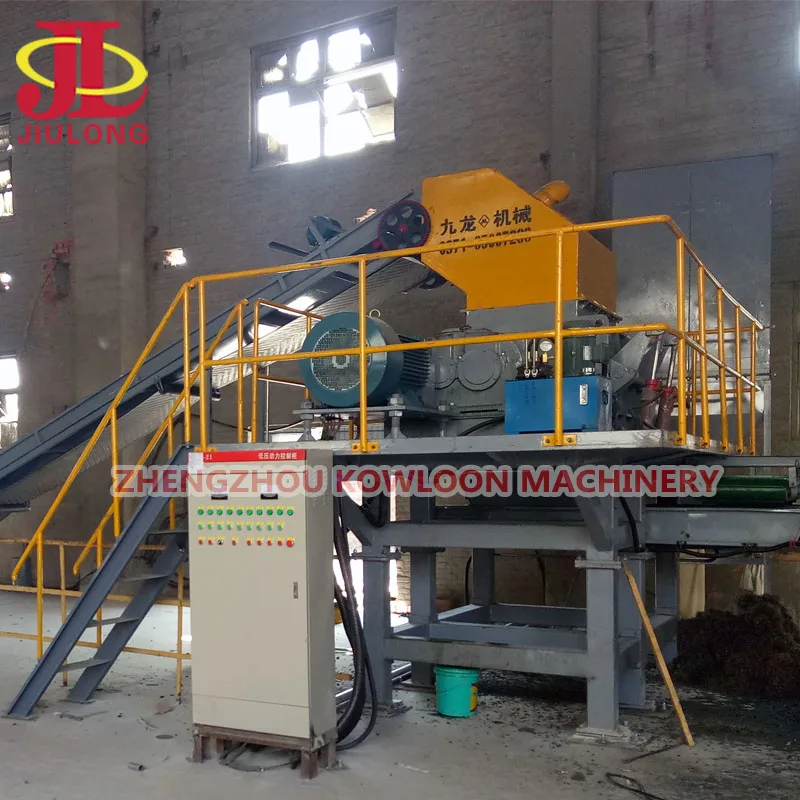

Waste tire rubber shredder machine
Tire rubber waste shredder machine is for all kinds of the rubber tire through the double shafts shredder outcomes size aout 50*50
mm .the blade is made of specially alloy , much more durable

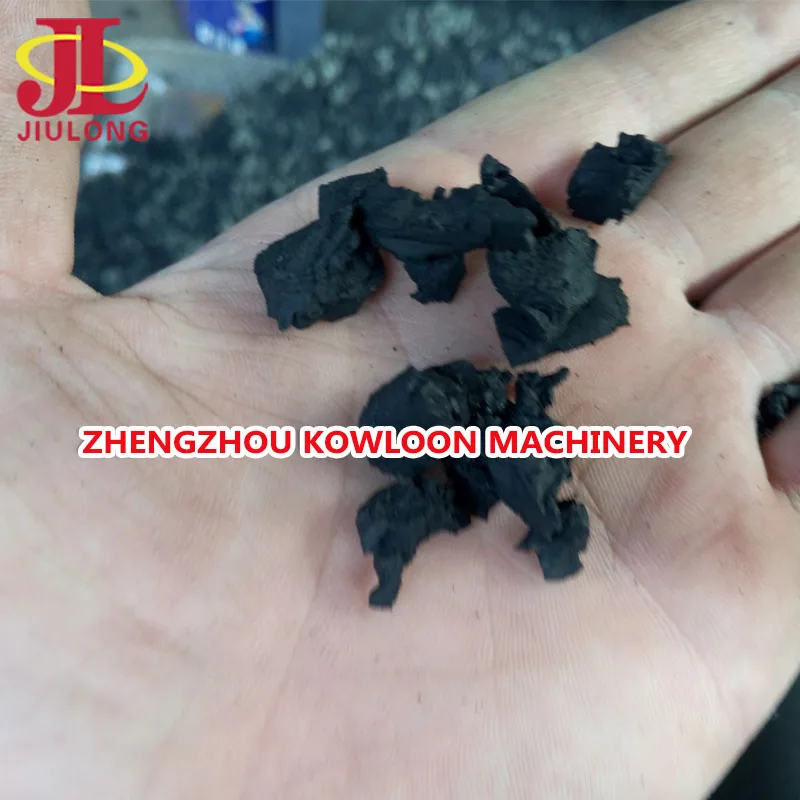

Tire rubber crusher
ire rubber crusher machine is for the plastic rubber to crushing , outcomes is about 10-17 mm .the thin wire steel will be sorted
by the magnetic

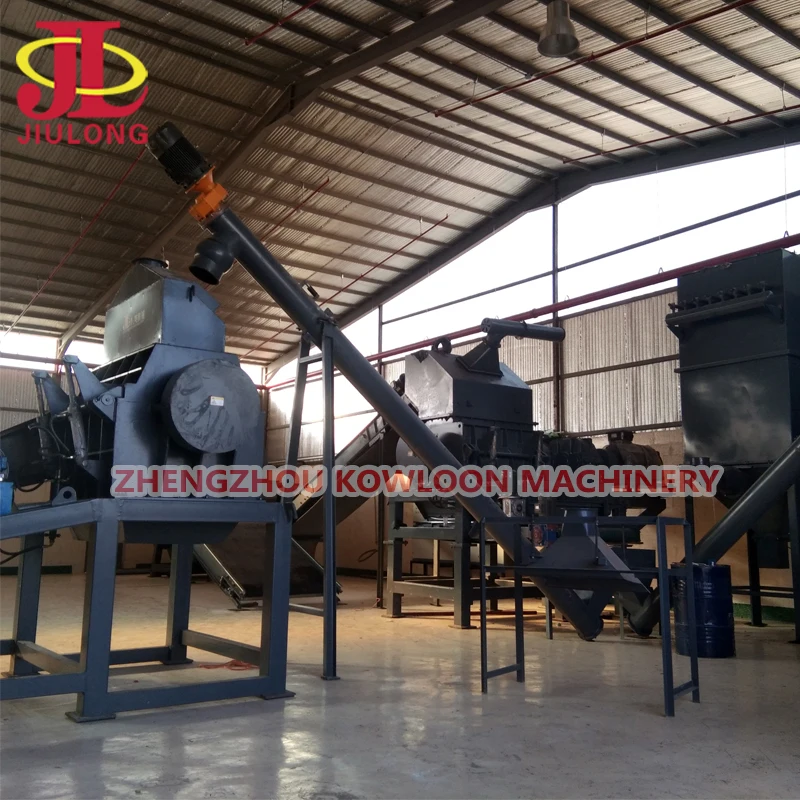

rubber granulator machine
rubber tire granualtor machine is used to the rubber from the tire crusher , outcomes size is 1-7 mm adjustable . meanwhile , the
Nylon will be collected by the cyclone and dsut catcher . behind is assembly with the vibration screen to sort diffferent zie of
the rubber .


Rubber mill
To grinding the matereials 30-80 meshes .

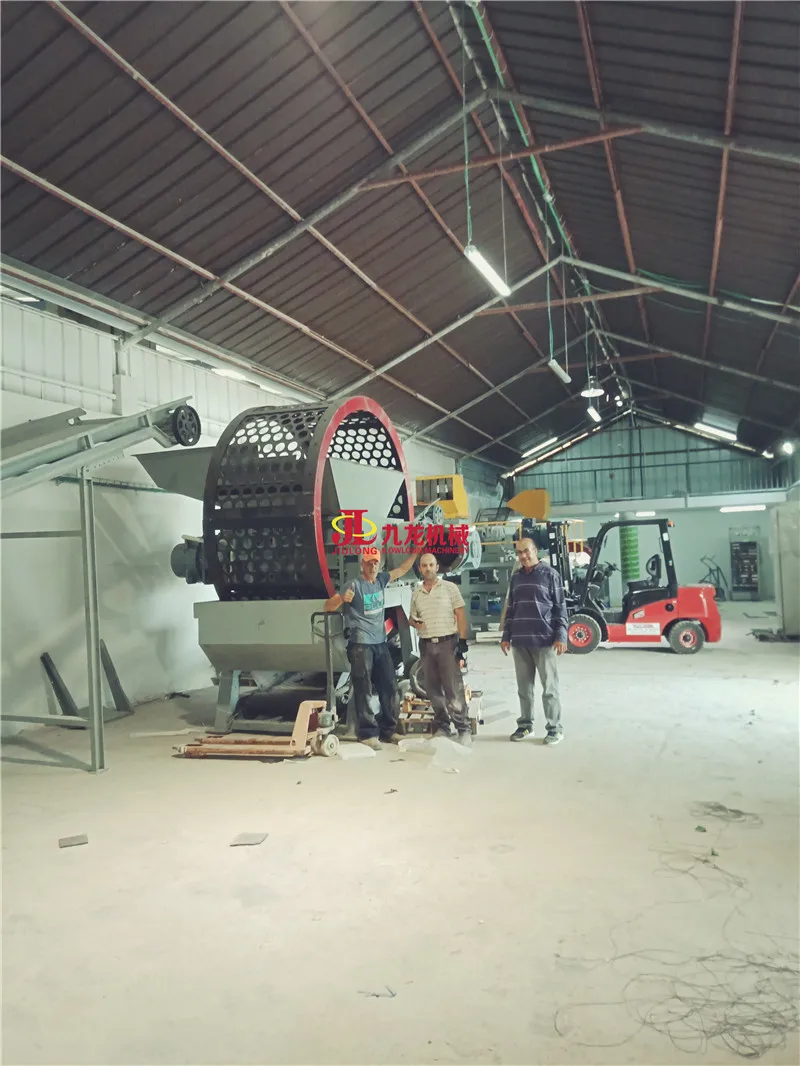

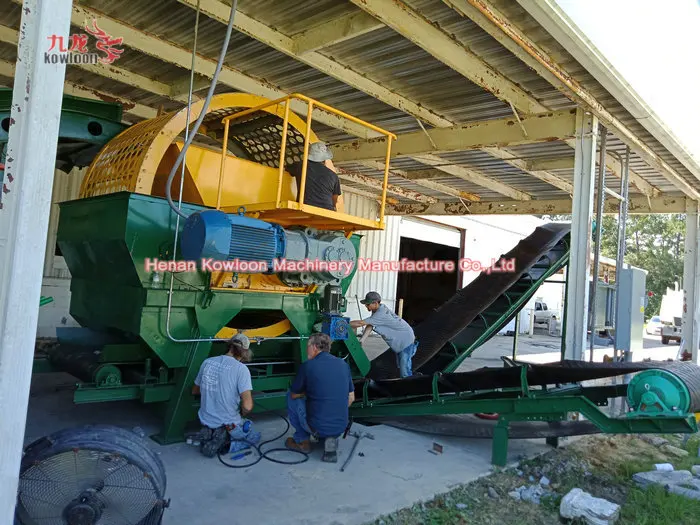

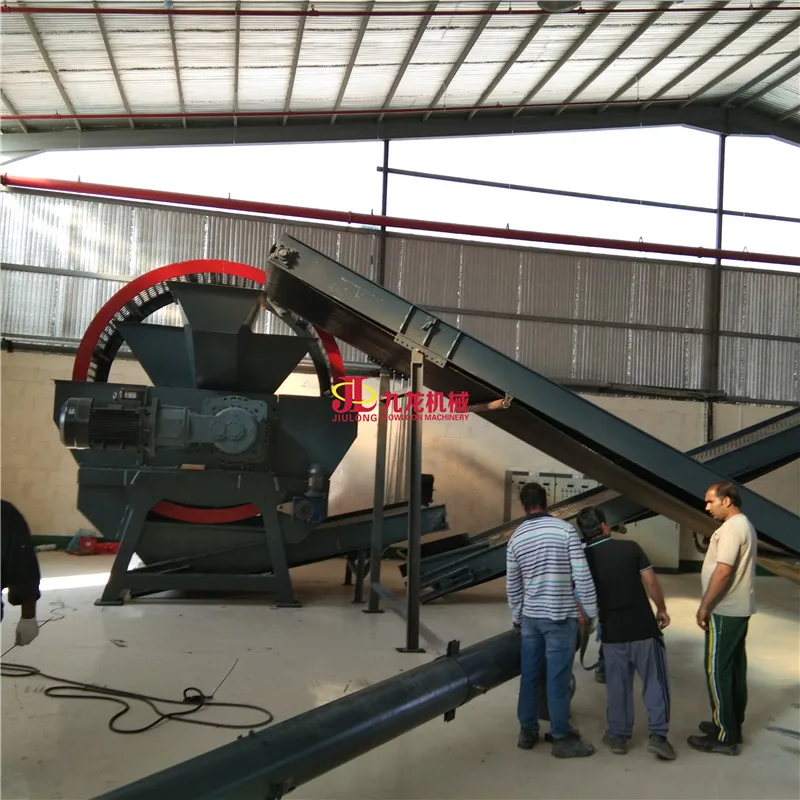

Customer site

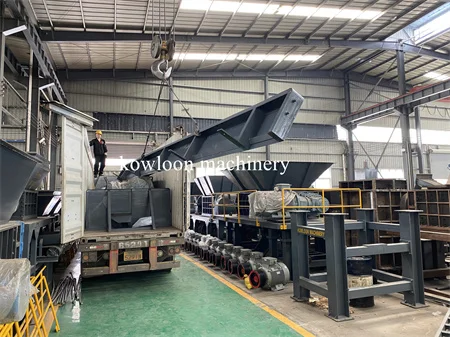

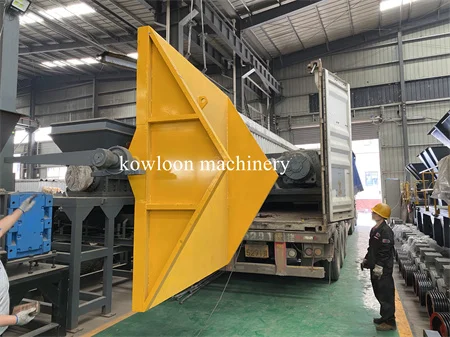

Packing & Delivery

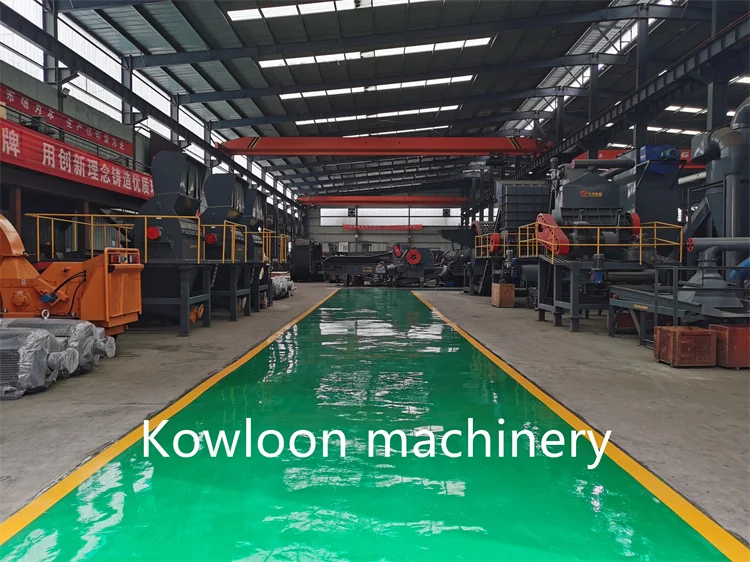

Company Profile






Kowloon machines adopt advanced technology parts, design and craft, united technology from USA, Germany,
Japan and Australia, not only suits Chinese market and woods, as well as different materials and countries.
Kowloon support team has more than 20 professional engineers to provide clients professional solutions,
facing multitudinous requirements, Kowloon team always pay patience and offer as more options as possible,
to ensure every users have all security while running our machines, in this way, Kowloon keep growing and
now owns ability of taking large wood processing project, wood sawdust, wood pellet and wood flour
production line in China or abroad, under the support of internal business department, Kowloon is able to take
"Turn-Key" projects in China or abroad.

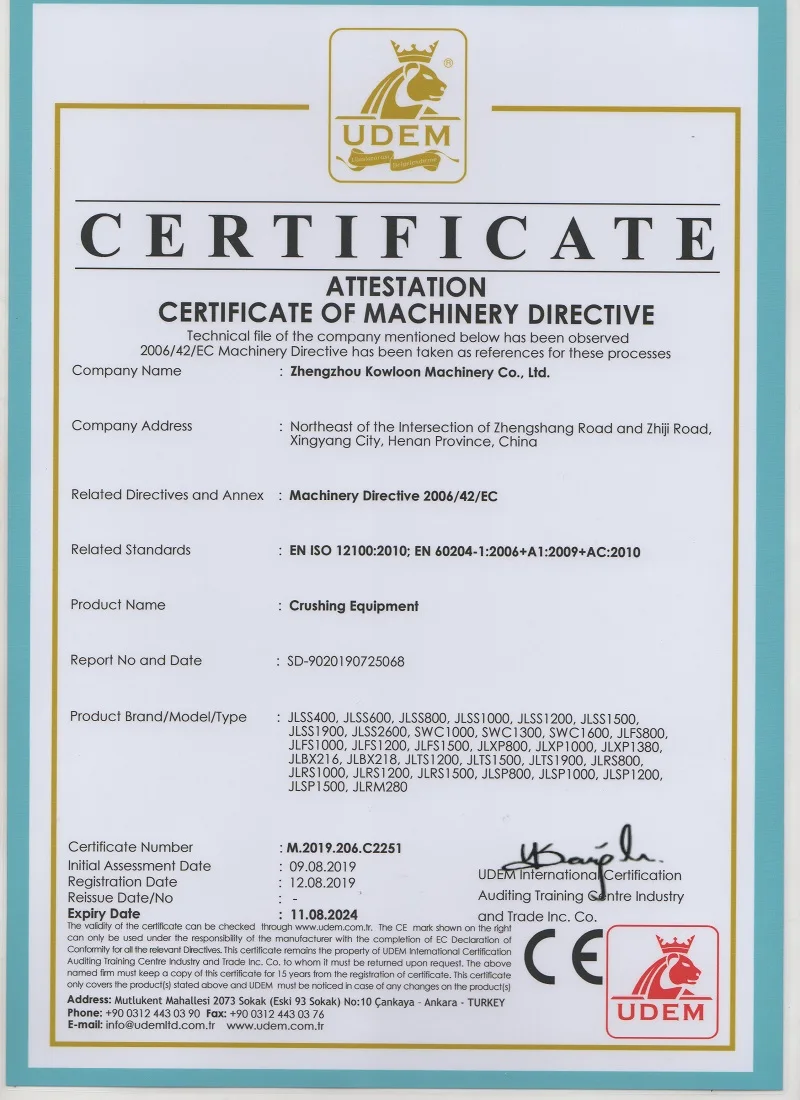

Certifications




FAQ


You May Have Following Questions:
Q1:Are You Trading Company or Factory?
Kowloon Machinery is a Factory with 31 years experience in Machinery Manufacturing,we provide you competive Factory Price and good After-sale Service!
Q2:What About The Machine Installation?
For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful
installed machinery picture or video;for large machines and complex productioin line,we could send our engineers to guide
the installation if necessary
Q3:How About The Spare Parts?
We offer some free spare parts like belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing
parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts in stock.
Q4:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service,if customers outside China have problems when machine working,just feel free to send us the picture or video to show us,we will give you solutions in 24hours.
Q5:Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
