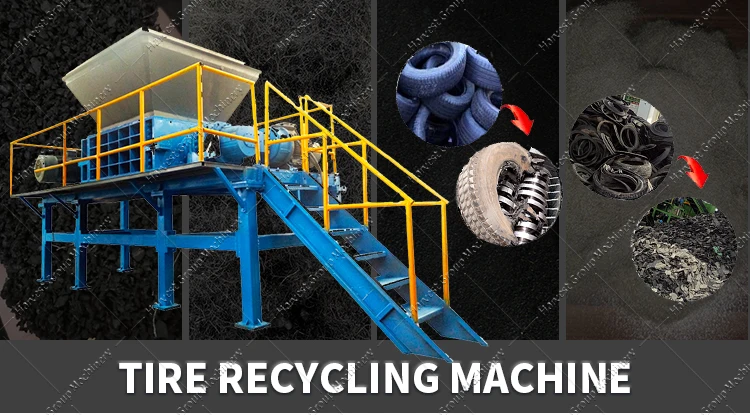

Машина для измельчения шин переработка
- Категории: Rubber Recycling Machinery >>>
- Поставщик: Zhengzhou,Harvest,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Technical Parameter
Model | Input size | Output size | Capacity | Motor | Weight |
TS-800 | 800mm | 50*50mm | 1-2t/h | 2*22kw | 8t |
TS-1200 | 1200mm | 60*60mm | 3-5t/h | 2*37kw | 14t |
TS-1600 | 1600mm | 50-150mm | 6-8t/h | 2*45kw | 18t |
TS-1800 | 1800mm | 50-150mm | 7-10t/h | 2*55kw | 23t |

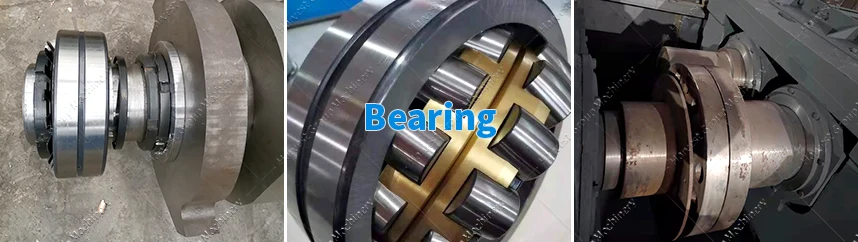

Details Images
Planetary Reducer
PLC Control cabinet
PLC control system
①. Overloading automatic reversal function.

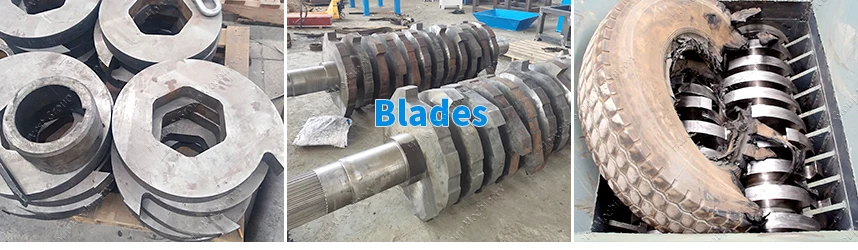

②. Replaceable blade bit tool is fixed by both screws and grooves on the blade base, so the screws won’t get loosen.
③. The transmission parts are connected by coupling to reduce vibration and protect the main shaft and reducer from force loss.
④. Crushing chamber is open structure, easily for maintenance.
⑤. High torque and strong power, ensures low noise and power consumption with high productivity.
⑥. Blades are made one of best material 9Cr2Mo, long service life.
⑦. Planetary reducer is equipped with high accuracy, high loading power, high speed ratio, durable use, low noise, low vibration and low inertia.
⑧. Driven by SIEMENS motor, quality and power guaranteed.
②. Replaceable blade bit tool is fixed by both screws and grooves on the blade base, so the screws won’t get loosen.
③. The transmission parts are connected by coupling to reduce vibration and protect the main shaft and reducer from force loss.
④. Crushing chamber is open structure, easily for maintenance.
⑤. High torque and strong power, ensures low noise and power consumption with high productivity.
⑥. Blades are made one of best material 9Cr2Mo, long service life.
⑦. Planetary reducer is equipped with high accuracy, high loading power, high speed ratio, durable use, low noise, low vibration and low inertia.
⑧. Driven by SIEMENS motor, quality and power guaranteed.

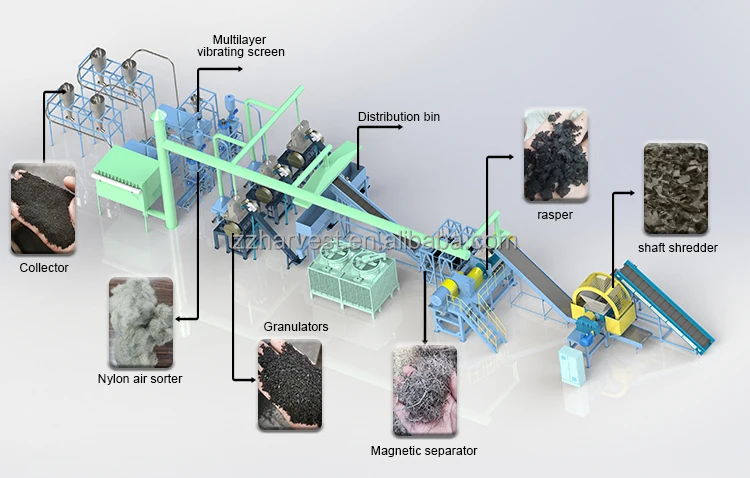

Main Recycling Process
PLC Fully-automatic Production Line
1.Conveyor-Transport the tire to the shredder; 2.Double shaft shredder---Shears the tire into 5-10 cm blocks;
3.Recirculation system---To control the size of shreds going to the raspers;
4.Raspers-Reduce the shreds into 15-20 mm chips and liberates steel from the rubber;
5.Over belt magnet--Separation of liberated steel from the rubber chips;
6.Vibratory feeder--Transports the rubber chips;
7.Granulator--Size reduction of the chips to 1-4 mm granules and liberates the textile fraction to air flow separation.
8.Vibratory screen-Sorts the granules by size and removes the majority of textile;
9.Classifer-Removal of remaining textile; Drum magnet-Removal of remaining steel fines;
10.Central de-dusting unit--Remove dust and fines from the system and filter the air before returning it to the atmosphere.
3.Recirculation system---To control the size of shreds going to the raspers;
4.Raspers-Reduce the shreds into 15-20 mm chips and liberates steel from the rubber;
5.Over belt magnet--Separation of liberated steel from the rubber chips;
6.Vibratory feeder--Transports the rubber chips;
7.Granulator--Size reduction of the chips to 1-4 mm granules and liberates the textile fraction to air flow separation.
8.Vibratory screen-Sorts the granules by size and removes the majority of textile;
9.Classifer-Removal of remaining textile; Drum magnet-Removal of remaining steel fines;
10.Central de-dusting unit--Remove dust and fines from the system and filter the air before returning it to the atmosphere.

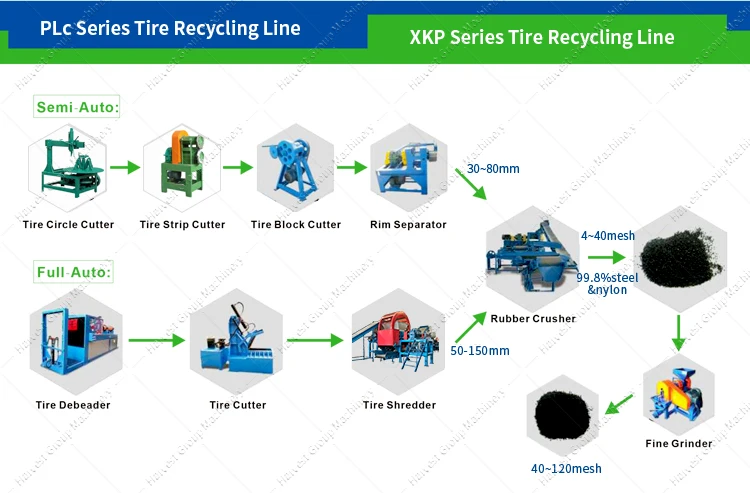

Flow chart of tire recycling
(Fully-automatic Production Line):
Waste tire - Tire debeader- whole tire cutting - tire shredder - Rubber crushing - magnetic separator - fiber separator - Rubber powder
Flow chart of semi automatic tire recycling line
Whole tire--tire circle cutter--tire strip cutter--tire slice cutter--rubber crusher--Magnetic separator--Nylon fiber separator--rubber powder
(Fully-automatic Production Line):
Waste tire - Tire debeader- whole tire cutting - tire shredder - Rubber crushing - magnetic separator - fiber separator - Rubber powder
Flow chart of semi automatic tire recycling line
Whole tire--tire circle cutter--tire strip cutter--tire slice cutter--rubber crusher--Magnetic separator--Nylon fiber separator--rubber powder

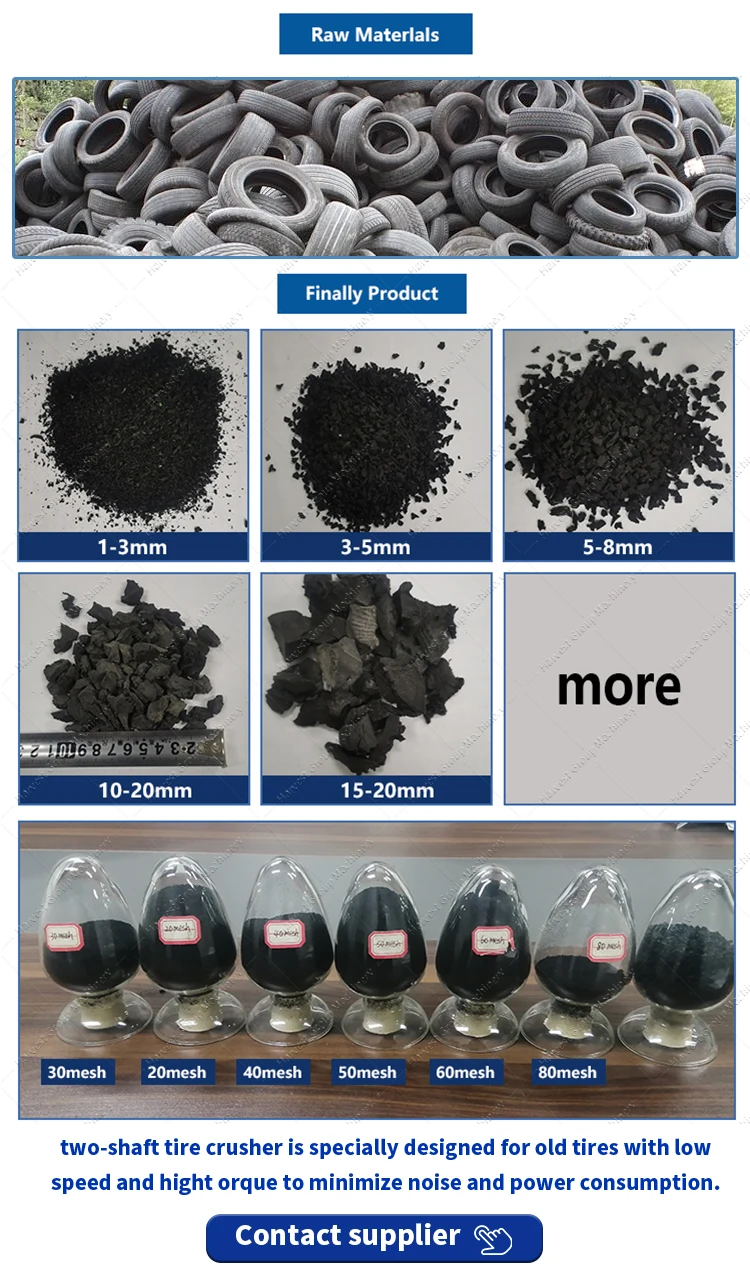

Application Scopes
Why Choose Us
Zhengzhou Harvest Machinery Co., Ltd
HVET's main focus is to provide our customer cost-effective waste recycling system applied in all kinds of waste recycling like tire/plastic/wood/metal/car/pcb board recycling and could provide output products like chips(50-150mm), mulches( 10-30mm), granules (1-6mm), powder (30-120 mesh) and other size as customer required. HVET also offers machines for specialized markets. The most important to theHVET family of products is the Tire Shredding System. These machines are designed to process used car and truck tires. We offer complete systems to produce separated crumb or powder.
Our Services
1. We can arrange our engineer to client’s working site, and client needs to afford the air tickets, hotel, meals and salary $100/day for our engineer.
2. Operation manual: yes.
3. Install & Training: ①. We will assemble the main parts, then mark all the joint parts and send videos to guide the installation and training ②. We can arrange our engineer to client’s working site, and client needs to afford the air tickets, hotel, meals and salary $100/day for our engineer
4. Global inspection service: Our company provides a free inspection service within one year from the end of installation.
5. Repair service: If the abnormal damage occurs during the warranty period, the engineer maintenance fee will be paid.
5. Repair service: If the abnormal damage occurs during the warranty period, the engineer maintenance fee will be paid.

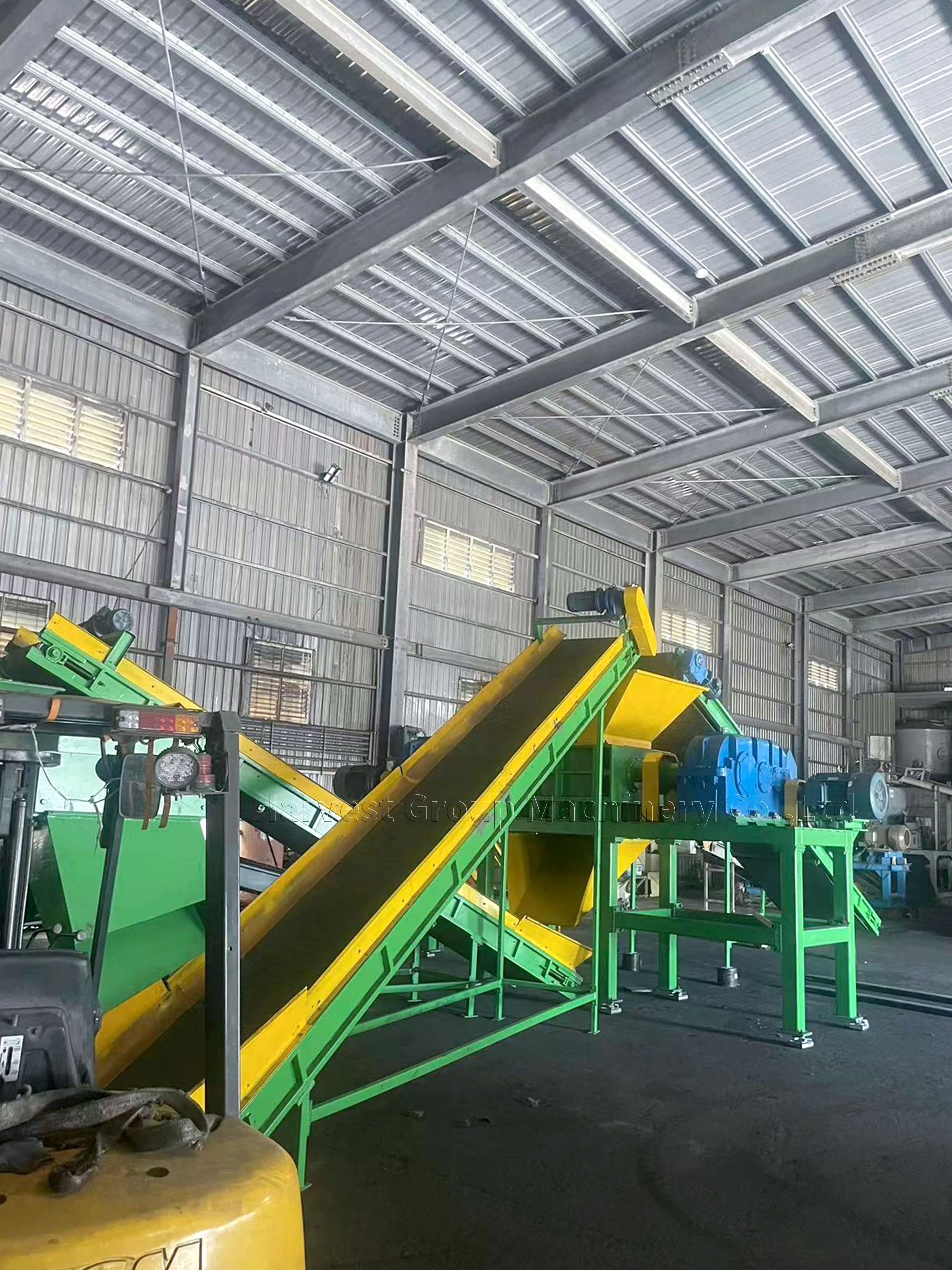

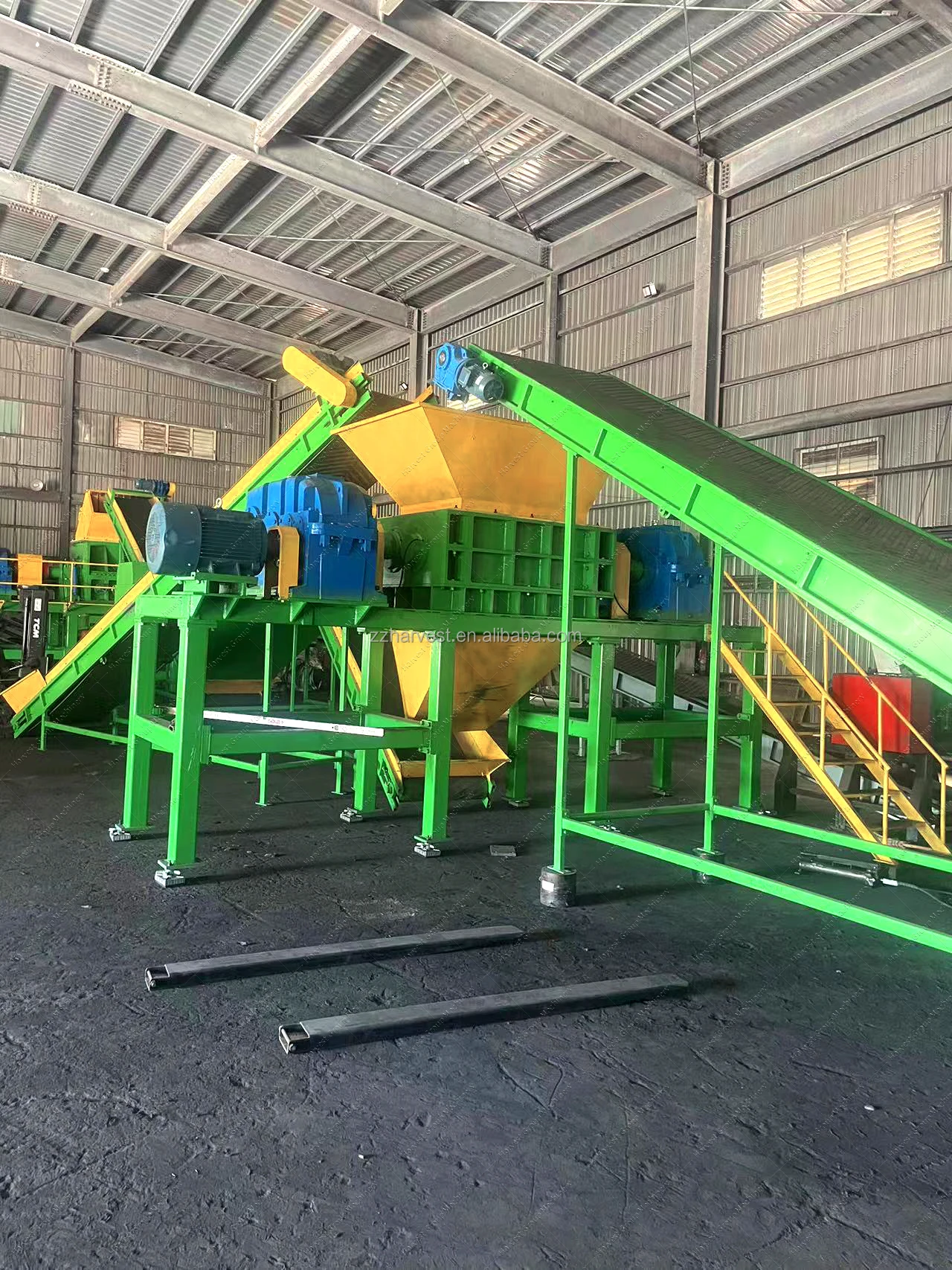

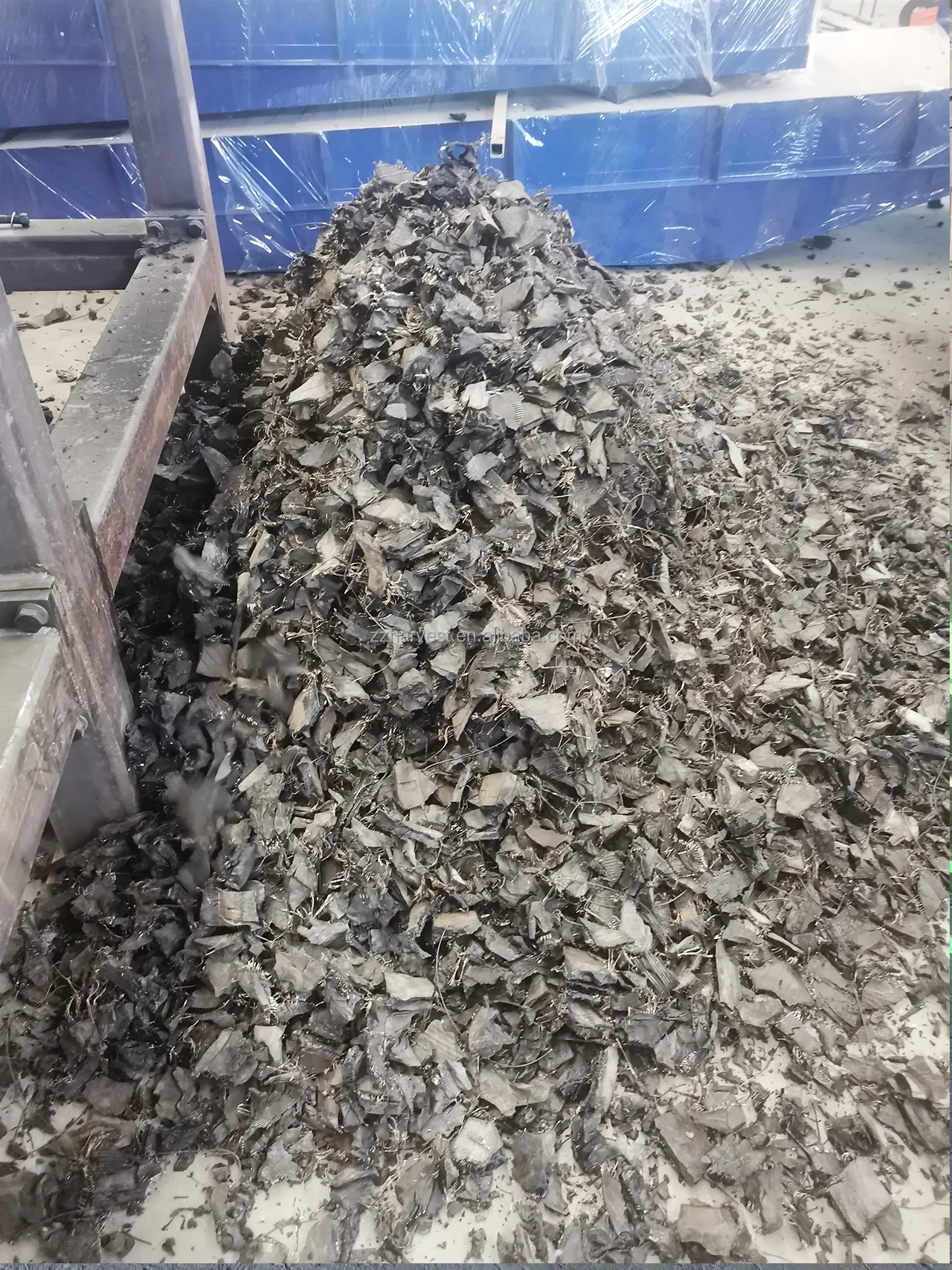

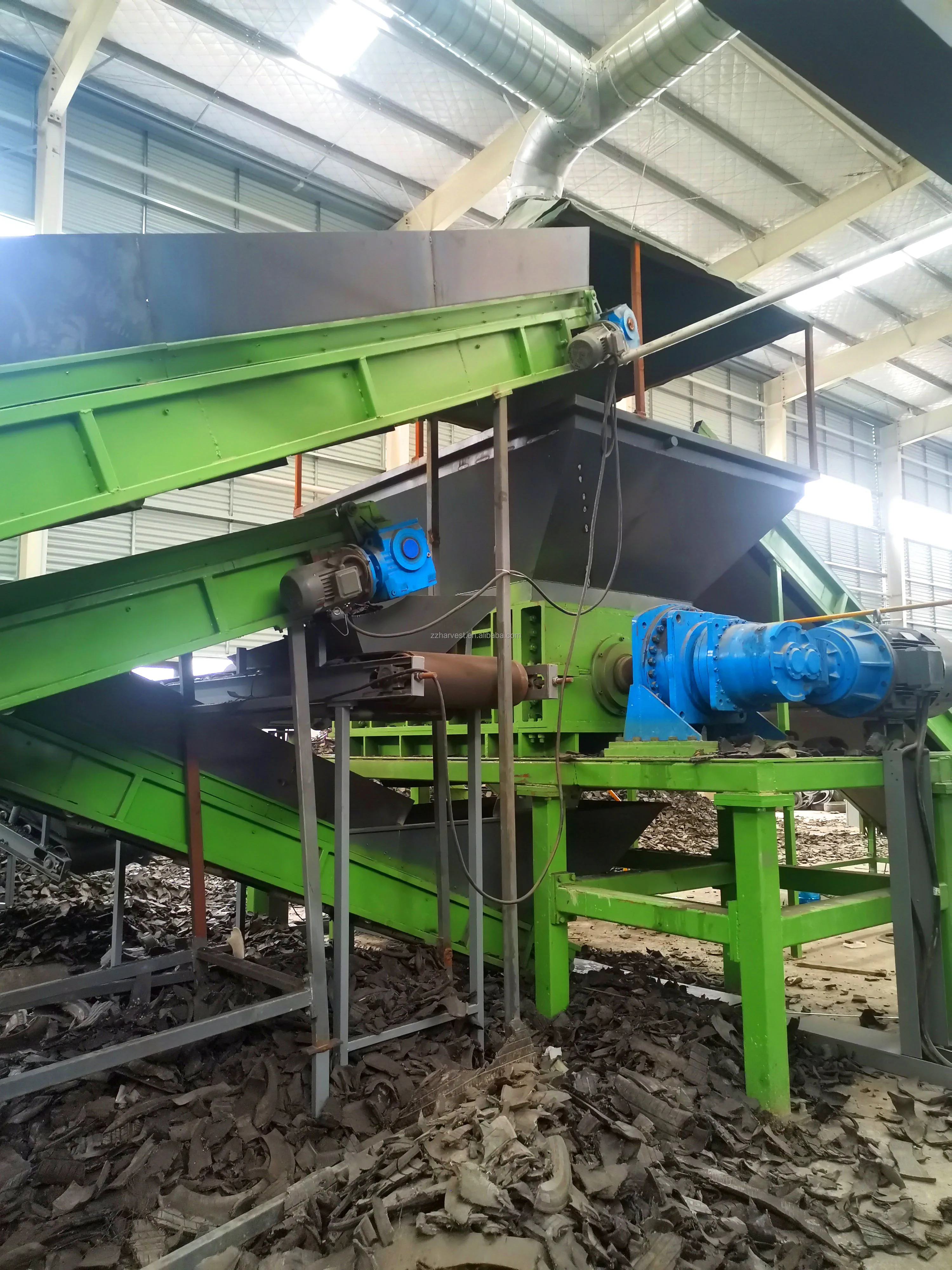

Customer Site
FAQ
1. who are we?
We are based in Henan, China, start from 2013,sell to South America(20.00%),Africa(20.00%),Southeast Asia(20.00%),North America(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),Mid East(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Waste Tire Recycling Machine/Rubber Crusher/Tire Shredder/Tire Crusher/E-waste Recycling/Metal Shredder/Plastic Recycling/Cable Wire Recycling/Wood Shredder, Waste Tire Recycling Machine/Metal Shredder/PCB Recycling/Copper Wire Recycling/Plastic Recycling/Wood Shredder
4. why should you buy from us not from other suppliers?
1.Our factory established in 1987, With nearly 30 years experience
2. All machines are 2 years warranty
3. Competitive price with high quality
4.We got SGS inspection certificate and CE certificate
5. Factory visited is welcomed
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Arabic,Korean
We are based in Henan, China, start from 2013,sell to South America(20.00%),Africa(20.00%),Southeast Asia(20.00%),North America(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),Mid East(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Waste Tire Recycling Machine/Rubber Crusher/Tire Shredder/Tire Crusher/E-waste Recycling/Metal Shredder/Plastic Recycling/Cable Wire Recycling/Wood Shredder, Waste Tire Recycling Machine/Metal Shredder/PCB Recycling/Copper Wire Recycling/Plastic Recycling/Wood Shredder
4. why should you buy from us not from other suppliers?
1.Our factory established in 1987, With nearly 30 years experience
2. All machines are 2 years warranty
3. Competitive price with high quality
4.We got SGS inspection certificate and CE certificate
5. Factory visited is welcomed
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Arabic,Korean
