Экскаватор гидравлический грейфер 360 Поворотный Грейфер Для От 3 до 4
- Категории: Grapples >>>
- Поставщик: Xuzhou,Bonovo,Machinery,&,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Bonovo © 2021 All Rights Reserved
HYDRALIC GRAPPLE
Application Range:
The rotation degree-360*clockwise or antidockwise and rotation speed can be controlled by operator, special
rotary gears are used to prolong lifespan and lower the cost, fit for all operations where
there need grappling and loading, such as stone, timber,waste,
tube operations, garden and stone laying projects.
Full Arange
HYDRALIC GRAPPLE
Make Perfect Fit is always Our Team 's Aim. Bonovo Promise You the Best Level Steel in China for Our
Bucket. With Over Ten Years Welding Experience Welders and other Workers Striving for
Perfection on Every Details, Bonovo Keep Providing a Large Quantities of
Strong Thumbs with Best Cost Performance Globally.
Bucket. With Over Ten Years Welding Experience Welders and other Workers Striving for
Perfection on Every Details, Bonovo Keep Providing a Large Quantities of
Strong Thumbs with Best Cost Performance Globally.

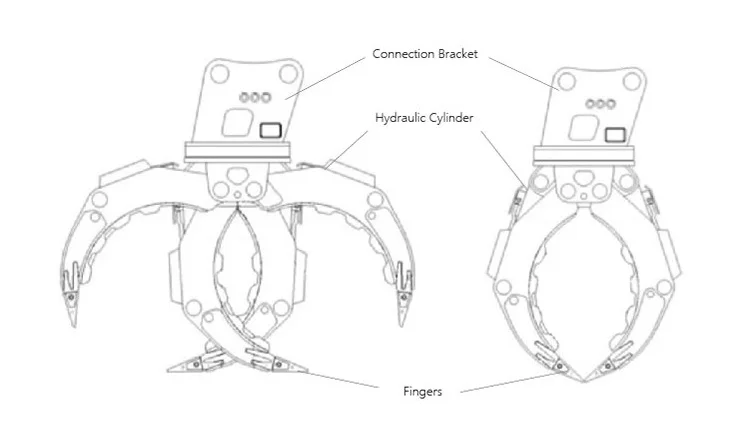

Structure
Details
Specification
Model | BRHG50 | BRHG80 | BRHG120 | BHRG200 | BRHG300 | BRHG400 | ||
Weight | Kg | 300 | 390 | 740 | 1380 | 1700 | 1900 | |
MAX OPENING | mm | 1300 | 1400 | 1800 | 2300 | 2500 | 2500 | |
Operating Pressure | Kg/m² | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 | 180-200 | |
Set Up Pressure | Kg/m² | 170 | 180 | 190 | 200 | 210 | 250 | |
Operating Flux | L/Min | 30-55 | 50-100 | 90-110 | 100-140 | 130-170 | 200-250 | |
Suitable excavator | Ton | 4-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 | |
Technical Advantage
Manufacture

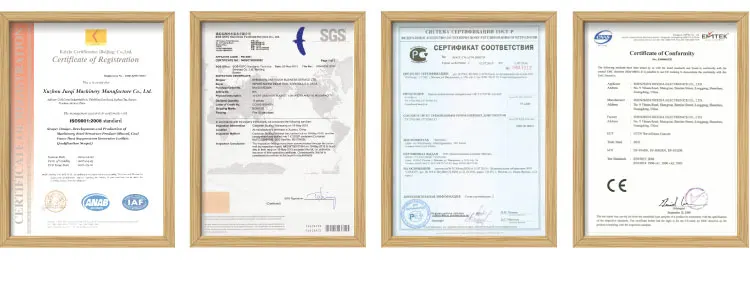

Certifications
FAQ

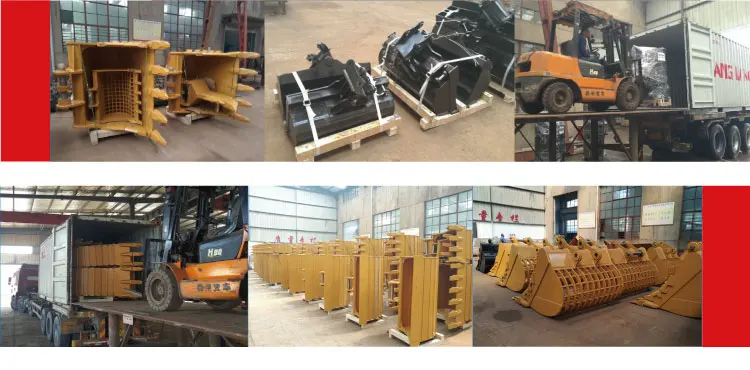

Shipping
