Medical Diagnosis Stone Crusher Machine Extracorporeal Shock Wave Lithotripter




Product Description




MSLEL02 Extracorporeal shock wave lithotripter is the most functional, best performance, structural optimization, the most beautiful appear, it is a low price and high performance lithotripter. This model is the first created "green shock wave source", more than ten inventions and utility model patents safety and minimally invasive, low carbon environmental, efficiency and low consumption.

Humanized design
Main units rotates 90° ,shock wave source could be reversed easily, and it is convenient for patients.



Specification


item
value
Model Number
MSLEL02
Power Source
Electricity
Product name
Extracorporeal Shock Wave Lithotripter
Ambient temperature
15~ 35°C
Relative humidity
45~ 85%
Atmospheric pressure
86 ~ 106kPa
Power requirements
AC 220V 50/60+1Hz, PW≤3 kW
Space requirements
 room area ≥3m×3m×2.5m
High-voltage discharge range
12~20kV
Water requirements
de-mineralized water
Energy level
46—128J
Plus front
≤0.5 S
Plus width
 ≤ 1mS

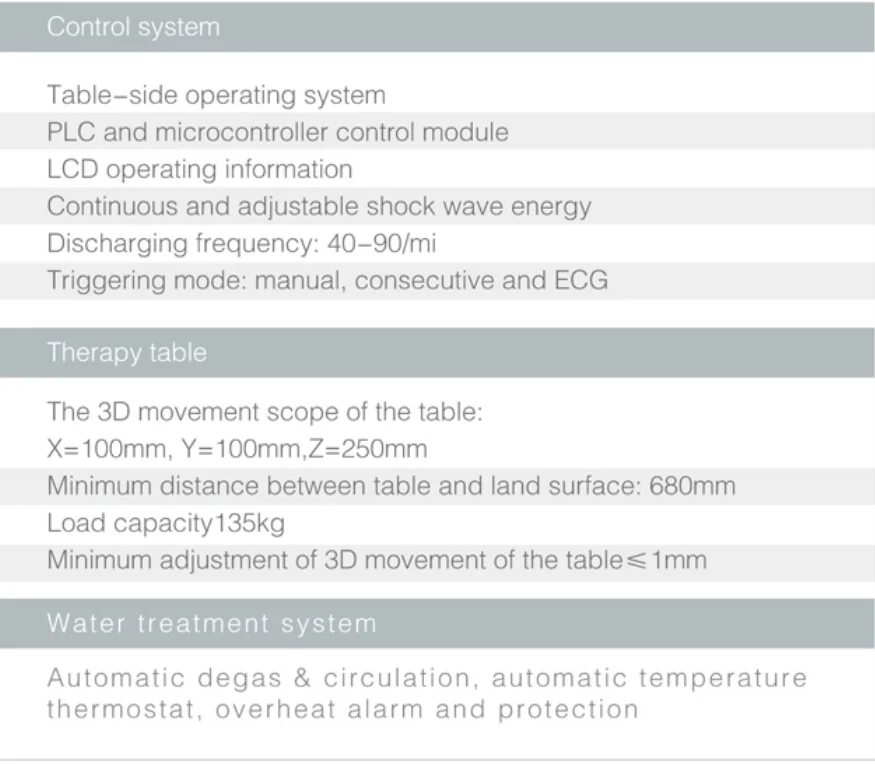

Features


Shock wave generator (plate electromagnetic shock wave)
Range of HV discharge 12~20kV
Peak value of shock wave: 20~50MPa
Height of focus:≥130mm
Swing angle of shock wave generatoris土45°
Shock wave generator axes rotate 270° round focus
round 40°.
Localization system
B-ultrasound localization system (broadside positioning device)
Distance of probe axes moving linearly round focus is 100mm.
Probe axes rotate 360° round focus.
Electron measures focus distance that is direct indication.
The localization and measuring error is within 1mm





Packing & Delivery




Related product




Certificate






Company Profile












Contact Kelly


Your inquiry very welcome!

We can accept small order,OEM order

If you have any questions,you could contact me and we are willing to serve with you!
