Производитель экран для ноутбука eDP 15 6 uhd ips 4k ЖК-панель oled amoled
- Категории: OLED\/E-Paper Module >>>
- Поставщик: Shenzhen,Duobond,Display,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
GENERAL INFORMATION
item | Specification | Unit | Note |
Display area | 344.2176 (H) x 193.6224 (V) (15.6”diagonal) | mm | |
Driver Element | LTPS TFT active matrix | ||
Display colors | 1,074M(RGB 8bit+2FRC) | ||
Number of pixel | 3840 * 2160 (UHD) | Pixel | 16:9 |
Pixel Arrangement | RGB Stripe Type | ||
Pixel pitch | 89.64 x 89.64, Sub Pixel : 29.88 x 89.64 | um | |
Display Mode | OLED | ||
Thickness of glass | 0.7 | mm | |
Surface treatment | Glare | ||
Environmental safe regulation | Pb Free, Halogen Free |

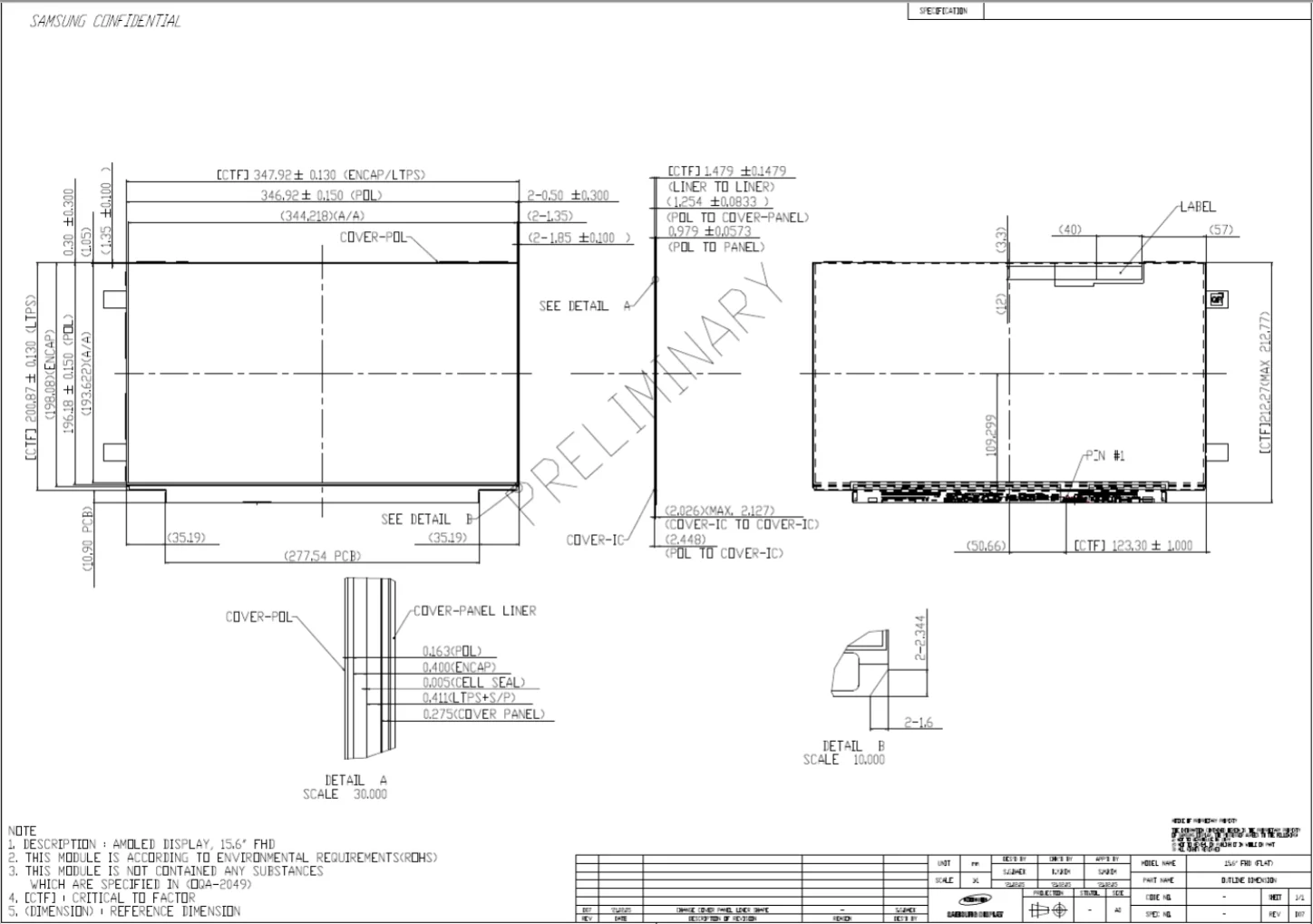

MECHANICAL INFORMATION
Item | Min. | Typ. | Max. | Unit | Note | ||
Module Size | Horizontal (H) | 348.0876 | 348.2176 | 348.3476 | mm | - | |
Vertical (V) | 215.034 | 215.662 | 216.29 | mm | To C-IC | ||
Depth (D) | 1.039 | 1.154 | 1.215 | mm | POL ~ Cover Panel(Body) | ||
- | - | 2.653 | mm | C-IC ~ C-IC | |||
Weight | - | - | 200 | g | w/o Cover Panel | ||

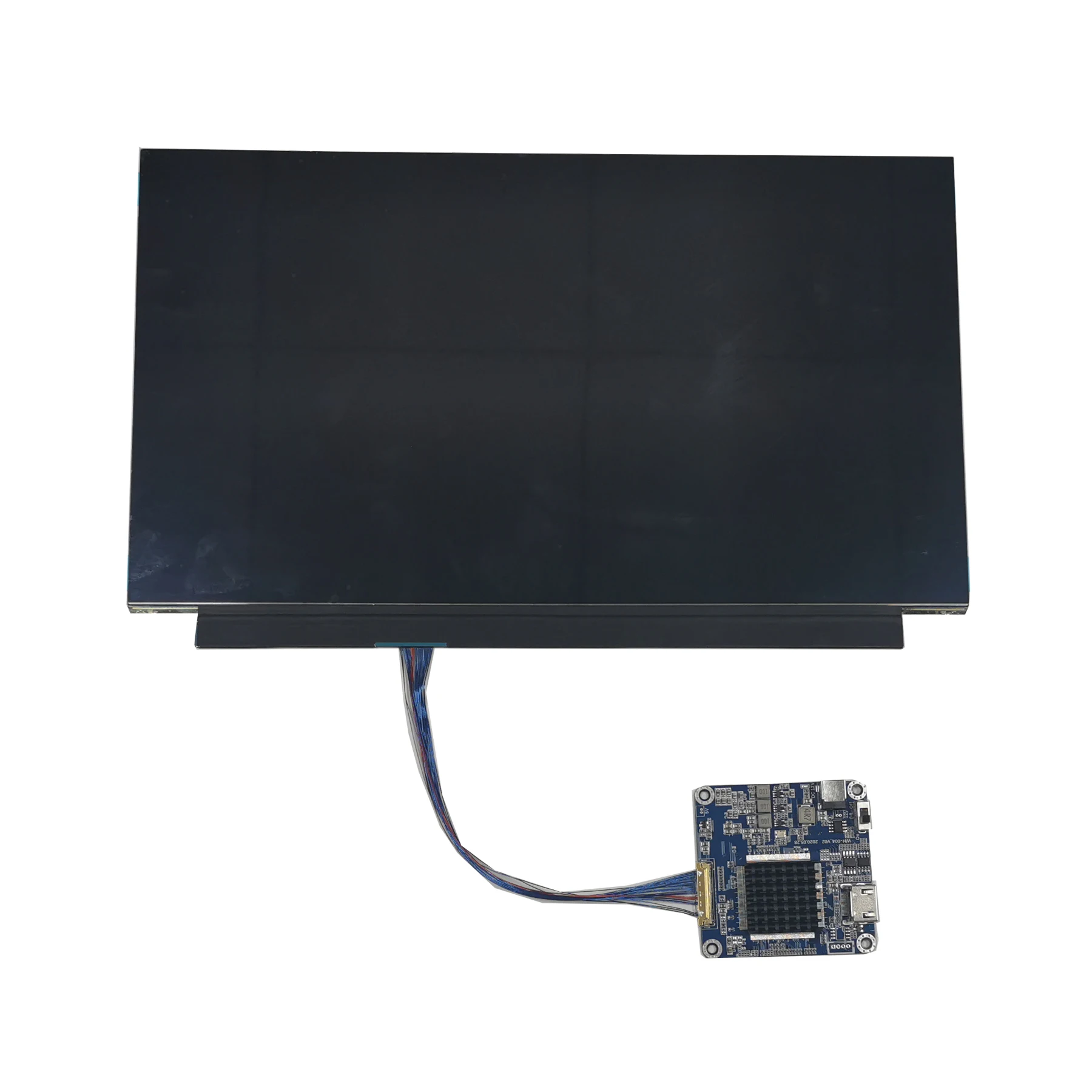

Driver board for 15.6 inch UHD AMOLED
(It includes HDMI board, LCD cable and connector)
Product packaging
Application

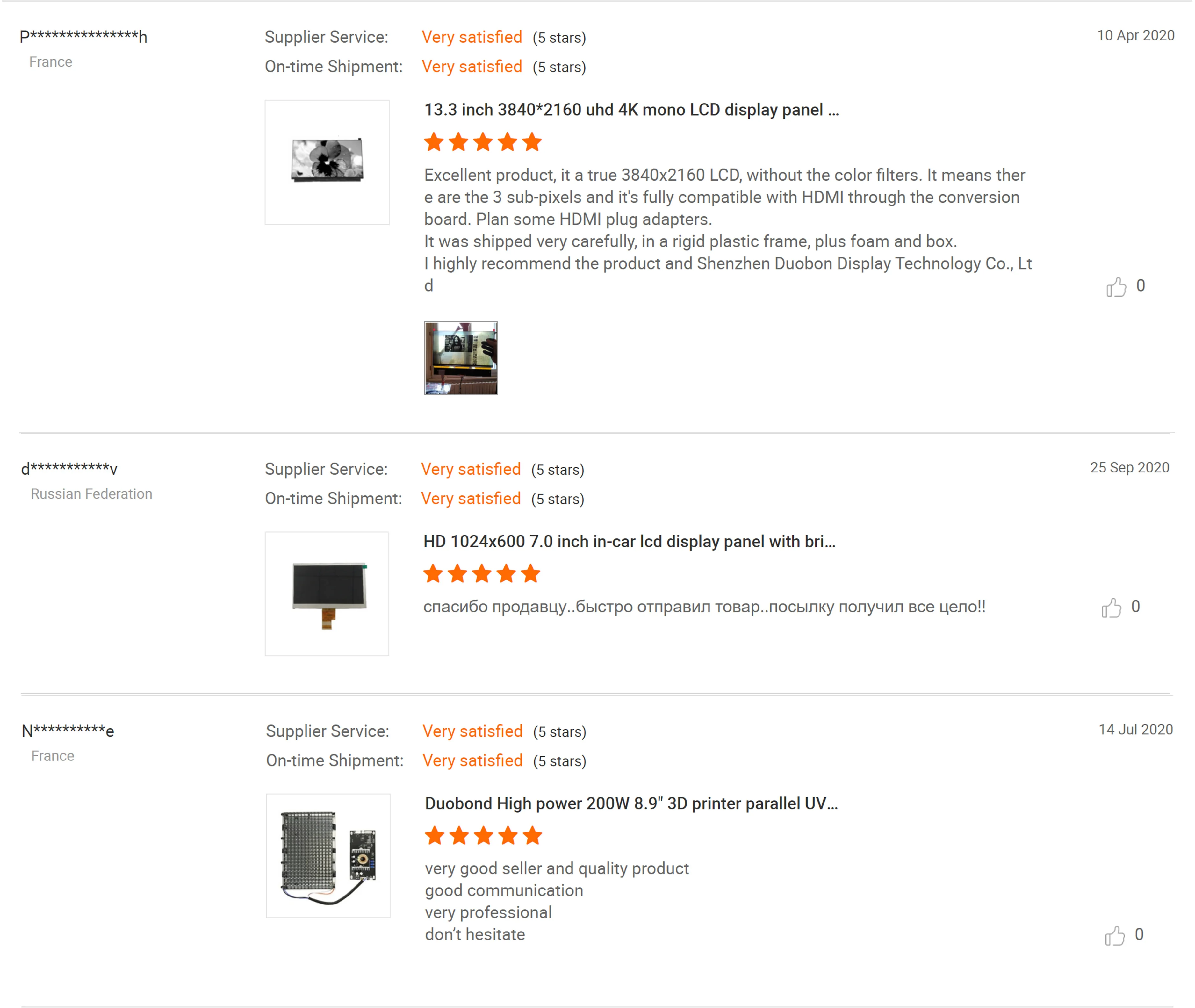

Customer Reviews
About Us
FAQ
Q: What is the MOQ?
A: MOQ is 1 pcs.We can do the support when the test process.
Q: What about the delivery time?
A: We have 15.6 inch UHD AMOLED in stock,can ship them within 3 working days.
Q: What's your payment method?
A: We usually accept the payment methods include T/T,Alibaba order,Paypal.
Q: What's your shipping method?
A: We provide comprehensive shipping methods.
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.
Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now!
