GTWY2 Series High Quality Manual Hydraulic Double Masts Vertical Lift Aerial Working Platforms For Sale 8m 10.4m 12m 14m

GTWY2 Series High Quality Manual Hydraulic Double Masts Vertical Lift Aerial Working Platforms For Sale 8m 10.4m 12m 14m

Категории: Lift Tables >>>
Поставщик: Beta(Hangzhou),Industrial,Machinery,Co.,Ltd.

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Product Description

Double Masts Vertical lift
Model	GTWY2-8	GTWY2-10	GTWY2-12	GTWY2-14	GTWY2-16
Platform
Max. Working Height	10m	12.4m	14m	16m	18m
Max. Platform Height	8m	10.4m	12m	14m	16m
Loading Capacity	250kg	250kg	200kg	200kg	150kg
Occupants	2	2	2	2	1
Platform Dimension	1.45m x 0.7m	1.45m x 0.7m	1.45m x 0.7m	1.8m x 0.7m	1.8m x 0.7m
Overall Dimension
Overall Height	1.99m	1.99m	1.99m	2.68m	2.68m
Overall Width	0.81m	0.81m	0.81m	0.81m	0.81m
Overall Length	1.45m	1.45m	1.45m	1.88m	1.88m
Outrigger coverage	2.45m x 1.75m	2.45m x 2.1m	2.45m x 2.1m	2.7m x2.8m	2.7m x2.8m
Weight
AC	645kg	715kg	750kg	892kg	996kg
DC	695kg	765kg	800kg	942kg	1046kg
Power
AC	380V/220V/110V	380V/220V/110V	380V/220V/110V	380V/220V/110V	380V/220V/110V
AC Motor	1.5KW	1.5KW	1.5KW	1.5KW	1.5KW
DC	2x12V	2x12V	2x12V	2x12V	2x12V
DC motor	2.2KW	2.2KW	2.2KW	2.2KW	2.2KW
Charger	12V/15A	12V/15A	12V/15A	12V/15A	12V/15A

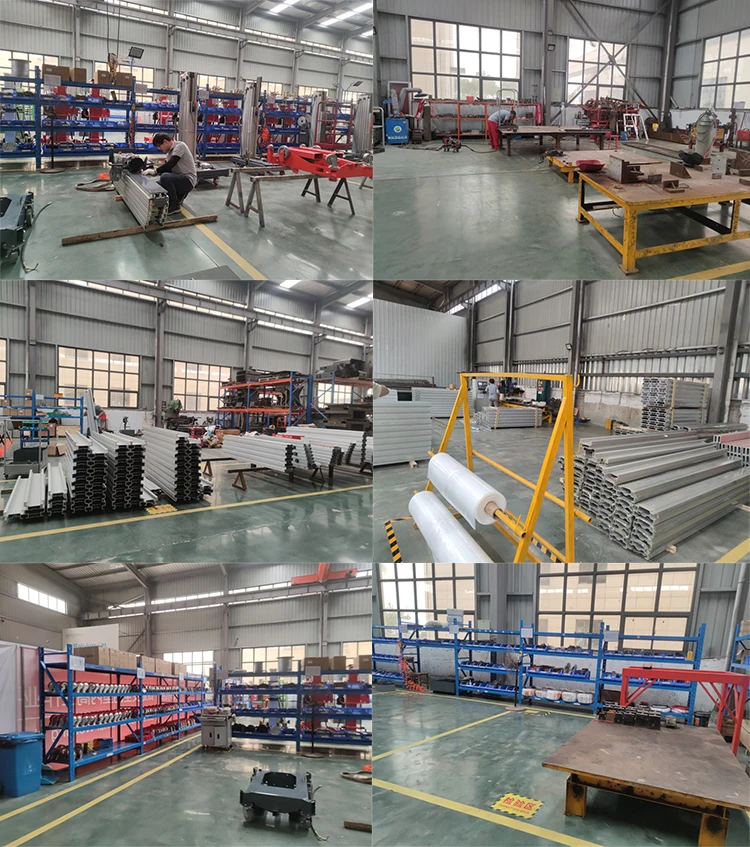

Company Profile

Certifications

Payment & Delivery

Why Choose Us

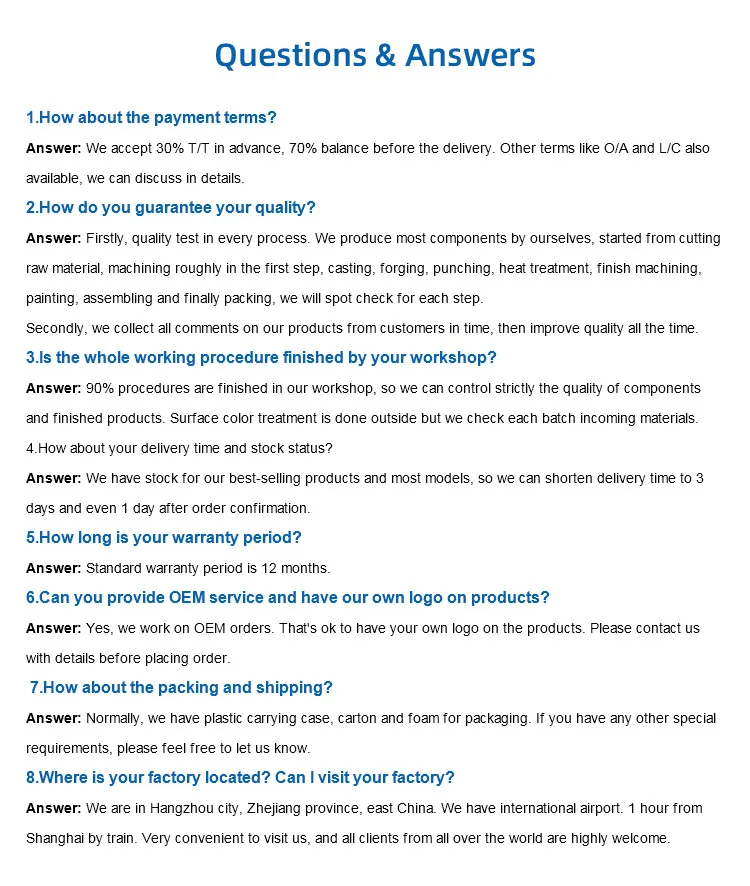

FAQ
