WD6 118 6140 Быстросменные инструменты 44 кг горизонтальный электроинструмент

Описание и отзывы

Характеристики

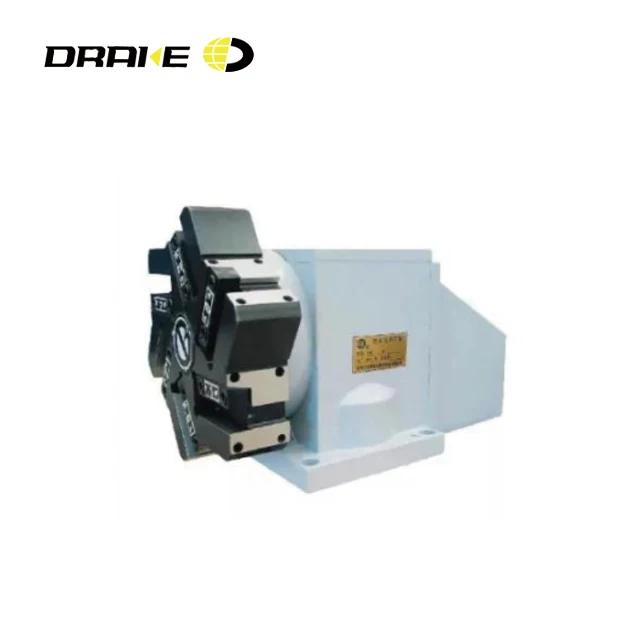

WD6 118 6140 quick change tools 44kg horizontal power tool turret











Technical features:

Unidirectional choose tool, Non-Contact transmitter, gear teeth
Precise positioning, camlock-type, compact-conruct and reliable.
It suites for all kinds of lathes whose grades is higher than
C6140.







Performance Parameters





Model	Changing time(s)			Max. allowable torque (Nm)		The max bias torque (Nm)	Repeatability accuracy (mm)	Indexing accuracy	Motor power (w)	Motor speed (r/min)	Net weight (kg)
	60º	120º	300º	axial	tangential
WD**-100(0625)	1.5	2	3.5	600	600	8	<0.005	±7"	60	1400	25
WD**-118(6132)	1.5	2	3.5	1200	1200	10	<0.005	±7"	120	1400	40
WD**-118(6140)	1.5	2	3.5	1200	1200	10	<0.005	±7"	120	1400	44

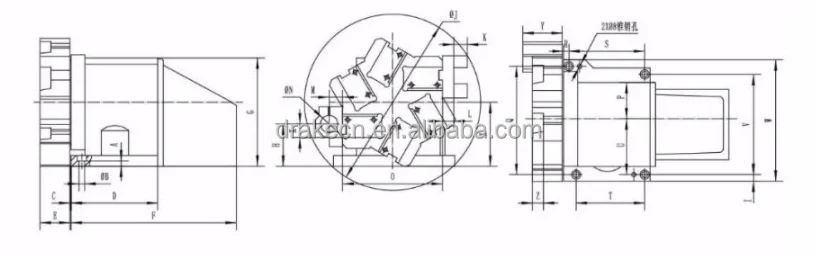

Size Parameters



Model	Dimension
	H	A	B	C	D	E	F	G	1	J	K	L	M	N	0	P	Q	R	S	T	U	V	W	X	Y	Z
WD6-100(0625)	59	10	11	2	133	37	279	172	10	251	16	21	15	20	130	45	144	38	80	106	89	144	164	100	45	16
WD6-118(6132)	78	10	11	2	160	55	305	200	13	311	20	19	25	32	184	67	200	10	140	140	103	185	224	118	73	20
WD6-118(6140)	78	10	11	2	160	55	305	200	13	326	25	21	25	32	184	67	200	10	140	140	103	185	224	118	73	20
