Высокоточные регулируемые гидравлические держатели инструментов для токарного станка с
- Категории: Machine Tools Accessories >>>
- Поставщик: Shanghai,Thinkfon,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
The world's competence leader for gripping systems and clamping technology and leading technology supplier of robots and production machines.
The world's largest product portfolio of gripping systems and clamping technology with more than 11,000 standard components
All the leading large and medium-sized companies in the automotive, machine building, robotics, assembly and handling, aviation, metal cutting industries and many more.
Description
Our program of gripping systems, with its standard grippers, ready-for-use gripping system assembly groups, and diverse customized gripping system solutions, is considered the almost comprehensive of its kind.
SCHUNK grippers are characterized by the high product quality, precision, and their many monitoring options, and have set the benchmark in automation systems in all industries worldwide for more than 30 years..
Advantages
For example, our low-lateral run-out PRISMO3 tool grinding toolholder has a run-out and clamping repetition accuracy of 0.005 mm.

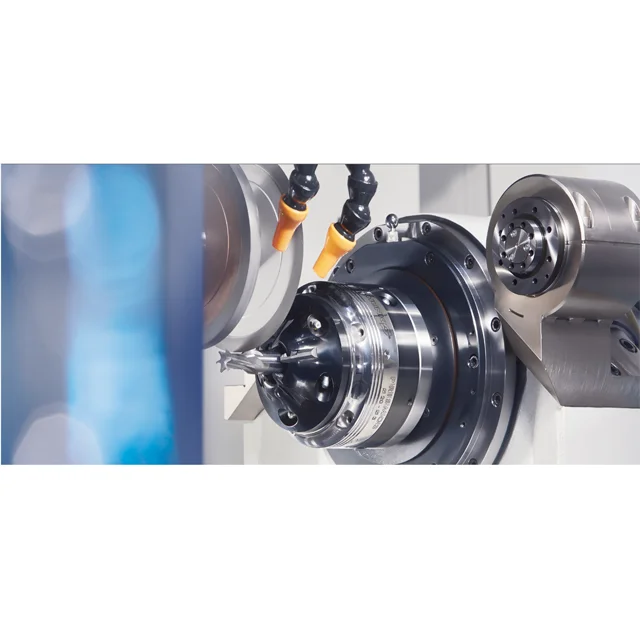

And our low-vibration clamping systems ensure precise, 5-sided grinding process, even on workpieces that are deformaiton sensitive.Special tasks require special solutions, especially for workpieces that present new challenges in terms of precision or output.
And our low-vibration clamping systems ensure precise, 5-sided grinding process, even on workpieces that are deformaiton sensitive.Special tasks require special solutions, especially for workpieces that present new challenges in terms of precision or output.
Just like for workpieces, a few thousands of a millimeter can make all the difference in terms of quality when it comes to
manufacturing and surface-finishing chip-removing tools.
With its unique polygonal honeycomp structure and increased outer diameter, TRIBOS-R offers an optimum ratio between radial
rigidity and damping, and provides the best dynamic run-out properties.
rigidity and damping, and provides the best dynamic run-out properties.
Workpiece weight
is calculated for force-fit gripping with a coefficient of static friction of 0.1 and a safety factor of 2 against workpiece slippage at acceleration due to gravity g. For form-fit or capture gripping, there are significantly higher permissible workpiece weights.
Advantages
Axial length adjustment
Length adjustment in the range of 0.01 mm accuracy, with adjustment travel of 10 mm
Extremely slim design
Precise metal cutting applications, even in hard-to-reach workpiece areas
High degree of flexibility
Clamping of different diameters due to the use of slotted or coolant-proof intermediate sleeves
Lightweight design
High feed rate and a speed range of up to 85,000 RPM (HSC)
Field of application
For optimum grinding and sharpening as well as measuring and testing applications
Clamping force
The clamping force results from the product of pressure difference and effective area: F = Δp x A
Gripping force maintenance device
possible by using the version with mechanical gripping force maintenance or pressure maintenance valve SDV-P.

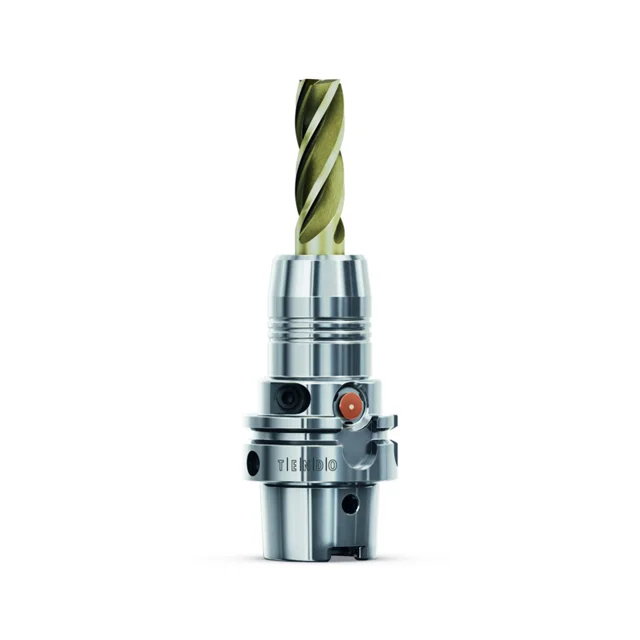

Technology | Hydraulic Expansion Toolholders |
Series | iTENDO² |
Toolholder interface | HSK-A 63 |
Toolholder standard | DIN ISO 12164-1 |
Clamping diameter D1 | 20 mm |
D2 [mm] | 42 |
D3 [mm] | 50 |
D6 [mm] | 38 |
Projecting length L1 [mm] | 90 |
L2 [mm] | 51 |
L3 [mm] | 10 |
L4 [mm] | 48 |
L5 [mm] | 64 |
G | M16x1 |
Min. torque [Nm] | 330 |
Weight [kg] | 1.3 |
Battery life [h] | 10 |
Acceleration sensor [G] | 100 |
Max. RPM [1/min] | 30000 |
External cooling / internal cooling [bar] | 80 |
Fully automatic sorting of curtain clips | ||
Workpiece Plastic curtain hooks | Task Sorting, testing, and depositing curtain clips on a conveying belt. | |
Solution Two SCHUNK MPG-plus grippers for small components grip two curtain clips each and deposit them on the conveying belt. If the optical test is negative, the information is sent to the gripper, and the faulty clip is deposited in a reject container. | Customer benefits The cycle times are significantly shortened and the parts are precisely handled. | |
Q1. Are you a trading company or a manufacturer?
We are a trading company.
Q2. What is your minimum order quantity?
One set
Q3. How long is your preparation time?
our product preparation time is about 7-15 days. If we have stock, we can deliver the goods immediately.
Q4.: Is there a warranty for the goods?
it is usually guaranteed for one year after delivery, except for manual damage.
Q5. How to process orders?
first of all, please let us know your request or application. In addition, we offer according to your requirements or our suggestions.
first of all, please let us know your request or application. In addition, we offer according to your requirements or our suggestions.
