500KG Electric Lift Table

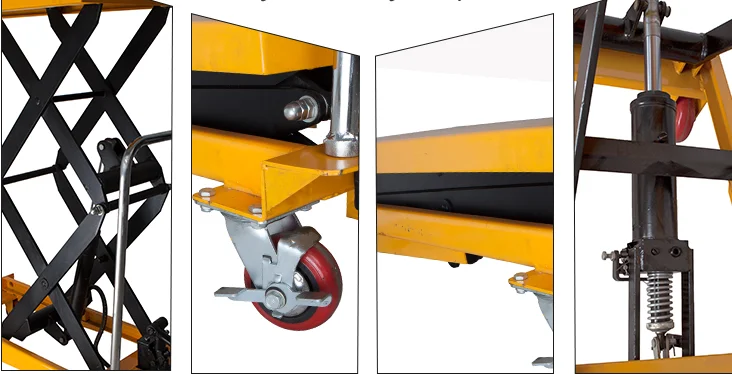

Hydraulic Lift Table
Model | Capacity(KG) | Lifting Height (mm) | Table Size(mm) | Wheels | Photo |

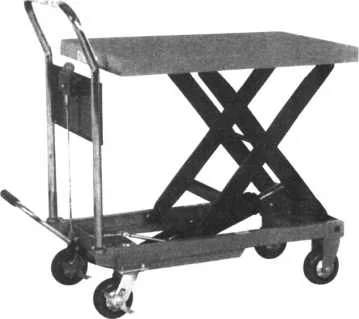

GY15-73 | 150 | 730-220 | 700*450*35 | PU | ![]() |
GY15-127 | 150 | 1270-285 | 700*450*35 | ||

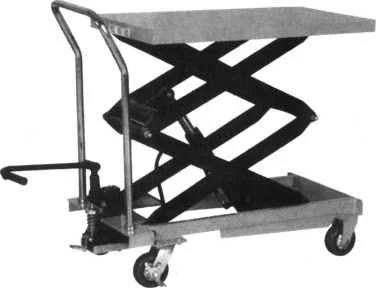

GY35-130 | 350 | 1300-350 | 900*500*50 | ![]() | |
GY50-90 | 500 | 900-280 | 810*500*50 | ![]() | |

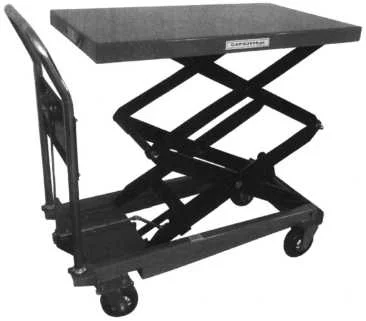

GY50-150 | 500 | 1500-350 | 900*500*50 | ![]() | |

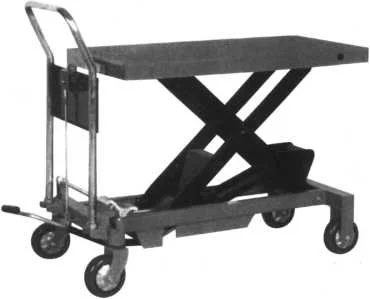

GY100-100 | 1000 | 1000-415 | 1010*505*55 | ![]() |
1. Application Environment and related issues
A. This product is used in hard flat ground;
B. This product is usedin the environment temperature of-20°C to 40 °C.
2. Points to note and relevant
A. Before using this product, you must read the instructions carefully, understand the performance of the product and use requirements, and obtain permission.
B. Overloading is prohibited, this product must be used within the scope of the rated license.
C. This product is prohibited to c arry p as s eng er s.
D. No human hands or feet are allowed to enter the covered area of the table.
E. No loose or unstable articles shall be loaded.
F. No partial loading shall be allowed on the Mesa or loading on the sloping and uneven road surface.
G. When loading goods must be good brake, in order to prevent the body movement.
H. Do not leave the goods on the platform for a long time.
I. It is not allowed to move the body while loading goods.
J. No lateral movement of goods on the body after lifting.
3. FirstAssembly and use
A. assembly: This product for transportation and packing convenience, not assembled handle and pedal handle, use before the assembly of these two parts. First, assemble the handle and place the handle 60 in the direction shown in the explosion drawing. After unscrewing the Bolt 18, rescrew the bolt 18 and tighten it. Second, adjust and assemble the universal joint and tighten the universal j oint 41, then lift the fork 54 about 5 mm up from the mounting box, adjust and align the lower joint hole 46, insert the small pin shaft 44 and the Open Pin 45; Third, assemble the foot handle, place the foot handle 80 in the direction shown in the explosion diagram, after unscrewing the bolt, insert the foot arm 76, then screw in Bolt 78 and tighten.
B. usage: when rising, repeatedly up and down pedal handle 80 can; when descending, slowly press the handball 52 can; loading and unloading items remember to brake, moving the body remember to release the brake.
/.Maintenance and upkeep
This product can extend the service life and safety by the necessary maintenance and maintenance.
A. The body parts have no deformation, bending and other visual damage.
B. Whether tile car body all fastenings has the loose or the loose phenomenon.
C. Excessive wear of wheel and brake, etc.
D. Double check the hydraulic system for leaks.
E. Repair or replace parts and components in a timely manner if any of the above-mentioned phenomena occur.
F. Before use, add lubricating oil to each friction part.
G. Change the hydraulic oil every 12 months, according to the climate conditions in different areas of the selection of the corresponding hydraulic oil, a, the temperature is often in -10°Cto 40 °C areas YBN32, b,the temperature is often in-20 °C to 40°6 areas YCN32.
H. Hydraulic oil replacement method:
a. the table to rise to a suitable height (to facilitate the insertion of oil filling appliances as the standard), and equipment fixed shear fork,
b. Screw down oil mouth 9),
c. Unloading handle pinch to unloading position,
d. Injection of hydraulic oil, E, re-tighten oil mouth screw 9).
I. Vulnerable Parts Maintenance: In the explosion diagram of 23,1), 3) , 5), 7), 10), 13), 23), 24), 28), 291,30), 32) for vulnerable parts (the main materials foriiylon,
poly amine resin, rubber, etc.), their shelf life is generally two years, at that time please pay attention to replace, in order to prevent hydraulic oil leakage, wheel damage.
