Product Description
Medical regulator is used for oxygen breathing in hospital.

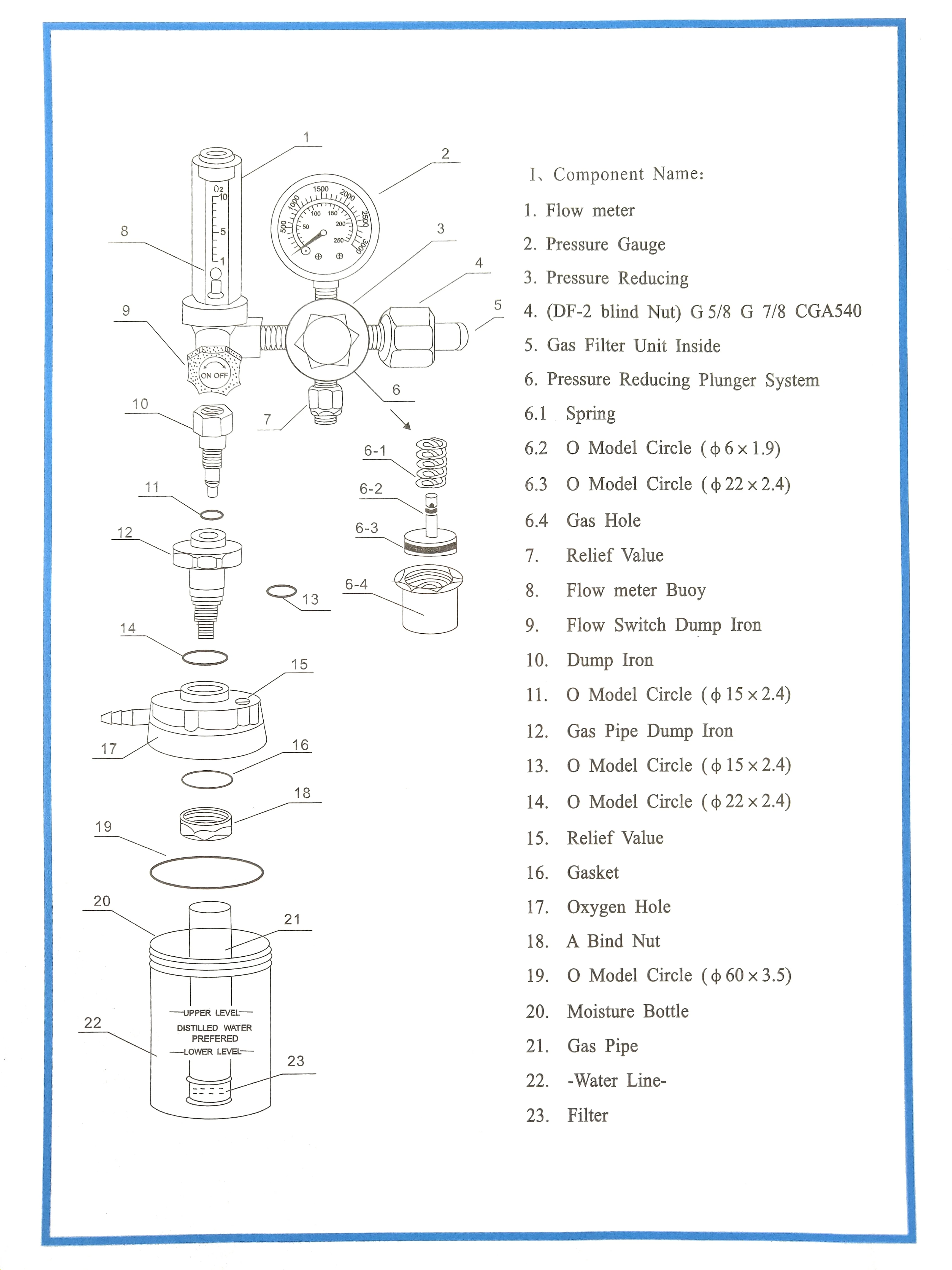

1、Mainly component name (Please see overleaf)
2、Mainly function:
①Oxygen flow range: 1-10L/Min 1-15L/ Min
②Pressure reducing range: 2.0 ~ 3.0kg
③Relief valve Pressure range: (3.5kg士0.5kg)
3、Appliance introduction:
①Before using. please fill pour clear w ater into moisture bottle about one third reaching water line site.
②DF-2 blind nut straw into bolt head, make the pipe of flow meter square water line.
③Pur off regulator(9), put on oxygen tube switch, so you will the data from needle position of pressure gauge(2). At last, straw
flow on/off at anticlockwise according to patients need, adjust switch.
④If patient need oxygen for a long time, can nse nose pipe to help patient absorb oxygen.
⑤Moisture bottle (20) circles at clockwise, adjust(17) oxygen hole to other site
4、Attention point:
①Before using the suction, you will check all parts bad or good and clean it by drying cloth.
②Pressure gauge(2), regulator(3)no oil, otherwise explode.
③Clearwater in moisture bottle keeps clean.
④There is adjustable nut(6)in the front of plunder shall be straw at clockwise.
⑤Relief value(7)(15) keeps out of danger.
⑥Oxygen dosage is decided by doctor.
⑦After using suction, put off the oxygen tube switch, make rest oxygen out,pressure gage to zero site, last put off flow switch if
using again, first put on the oxygen tube switch, avoid exploding.
⑧The product must be examined periodical, at least once every 6 month.
5、If you don't understand, plese contact to us.
2、Mainly function:
①Oxygen flow range: 1-10L/Min 1-15L/ Min
②Pressure reducing range: 2.0 ~ 3.0kg
③Relief valve Pressure range: (3.5kg士0.5kg)
3、Appliance introduction:
①Before using. please fill pour clear w ater into moisture bottle about one third reaching water line site.
②DF-2 blind nut straw into bolt head, make the pipe of flow meter square water line.
③Pur off regulator(9), put on oxygen tube switch, so you will the data from needle position of pressure gauge(2). At last, straw
flow on/off at anticlockwise according to patients need, adjust switch.
④If patient need oxygen for a long time, can nse nose pipe to help patient absorb oxygen.
⑤Moisture bottle (20) circles at clockwise, adjust(17) oxygen hole to other site
4、Attention point:
①Before using the suction, you will check all parts bad or good and clean it by drying cloth.
②Pressure gauge(2), regulator(3)no oil, otherwise explode.
③Clearwater in moisture bottle keeps clean.
④There is adjustable nut(6)in the front of plunder shall be straw at clockwise.
⑤Relief value(7)(15) keeps out of danger.
⑥Oxygen dosage is decided by doctor.
⑦After using suction, put off the oxygen tube switch, make rest oxygen out,pressure gage to zero site, last put off flow switch if
using again, first put on the oxygen tube switch, avoid exploding.
⑧The product must be examined periodical, at least once every 6 month.
5、If you don't understand, plese contact to us.
Details Images
Real figure
Logistics mode
We support shipping, air, land, express and other transportation methods.
FAQ
Q1: What is the name of your product?
A: Oxygen regulator
Q2: What is the minimum order quantity?
A: 100 pieces
Q3: Can you use our brand?
A: Yes, we can
Q4: What terms of payment do you support?
A: TT, Alibaba, Western Union, Paypal, MoneyGram, Overseas Local Payment, International Credit Card, Spot Letter of Credit, etc
A: Oxygen regulator
Q2: What is the minimum order quantity?
A: 100 pieces
Q3: Can you use our brand?
A: Yes, we can
Q4: What terms of payment do you support?
A: TT, Alibaba, Western Union, Paypal, MoneyGram, Overseas Local Payment, International Credit Card, Spot Letter of Credit, etc
