500 мм 750 Высокоточный токарный станок с ЧПУ наклонная кровать CK36L для поворота
- Категории: CNC Lathe >>>
- Поставщик: WMT,CNC,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

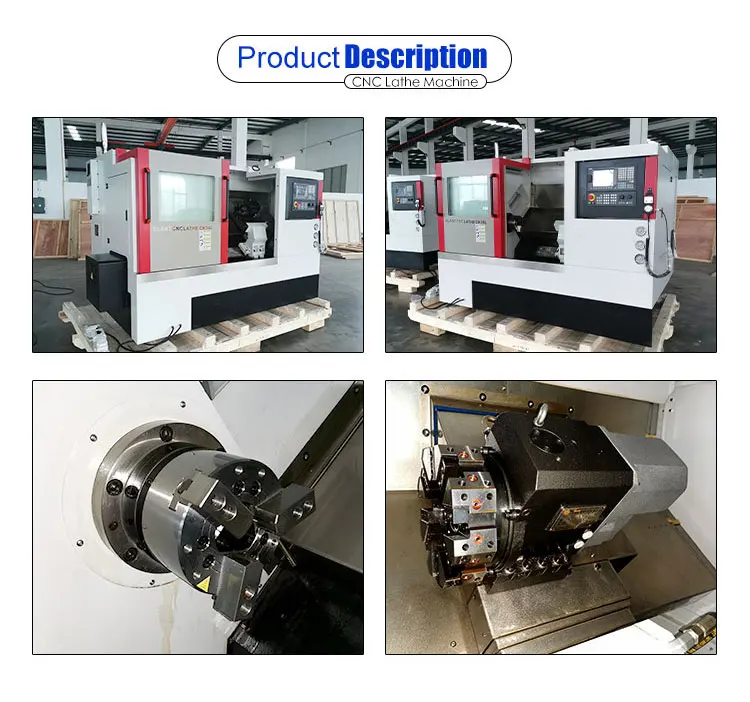

Product Description
CNC Slant Lathe Machine Features:
1. High rigid 45 degree slant bed.
2. X/Z Taiwan linear guideway.
3. X/Z Taiwan precision ballscrew.
4. A2-5 spindle unit.
5. Artistic apprearance with high precision.
6. GSK, Siemens, Fanuc CNC system optional.
Specification
Model | CK36L |
Max. swing oner bed | φ360mm |
Max. swing over carriage | φ210mm |
Max. cutting length | 500/750mm |
Rail width | 284mm |
Spindle nose | A2-5,A2-6 |
Spindle bore | φ56mm,(62mm) |
Taper of spindle bore | 1:20 |
Chuck | 6" , ( 8") |
Range of spindle speed | 150-4200rpm |
X axis travel | 210mm |
Z axis travel | 500/750mm |
X/Z rapid speed | 20/20m/min |
Hydraulic turret | 8 |
Max. section of tool | 20*20mm |
Stroke of tailstock sleeve | 80mm |
Diameter/ Hole of tailstock sleeve | φ60mm/MT4 |
Main motor power | 5.5KW/7.5KW |
Coolant pump power | 370W |
Overall dimensions L*W*H | 2630/2910*1550*1750mm |
Packing size L*W*H | 2830/3130*1750*2150mm |
N.W/G.W | 2700KG/3000KG |

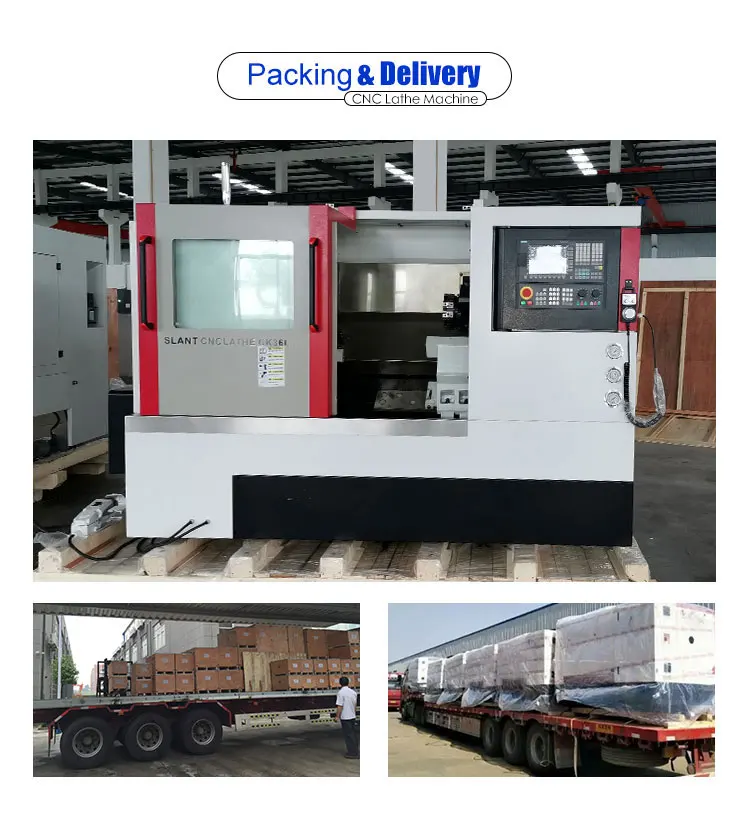

Package&Shipping
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
