Dc водонепроницаемый 12v 24v щеточный двигатель промышленный линейный
- Категории: DC Motor >>>
- Поставщик: Dongguan,TOMUU,Actuator,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

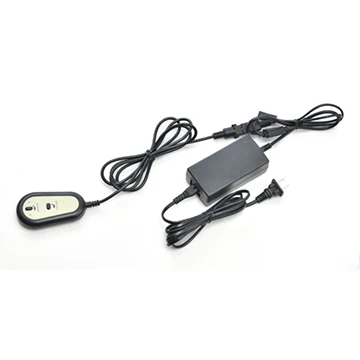

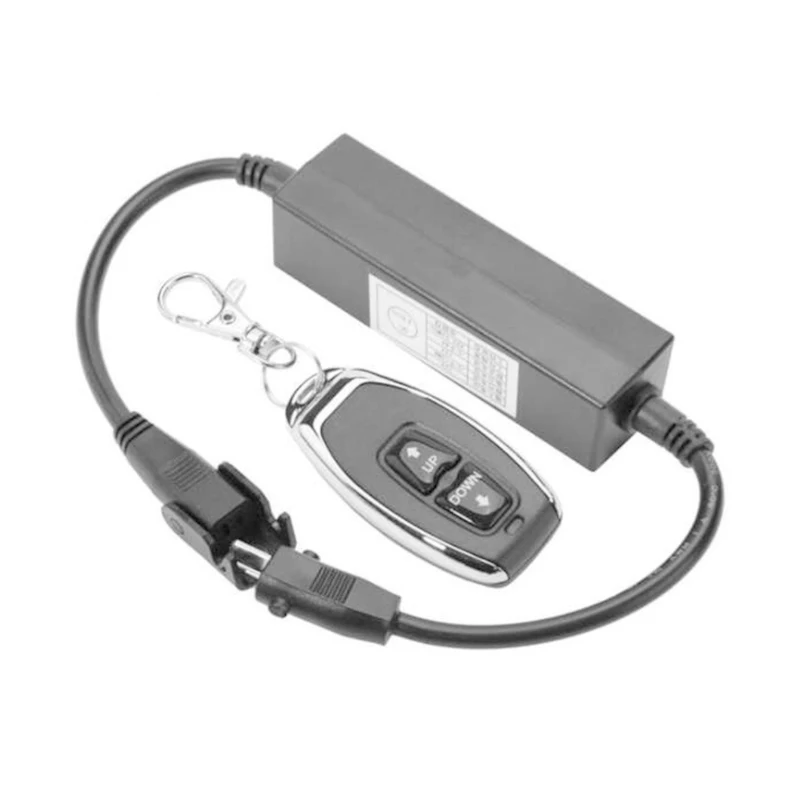

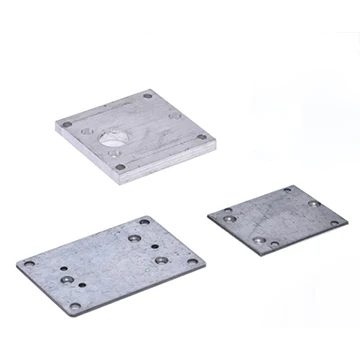

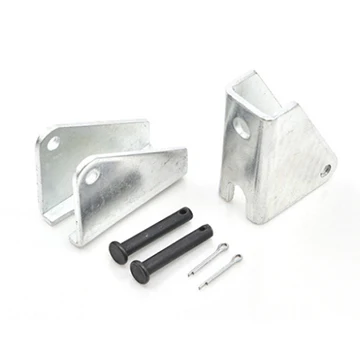

Related Fittings

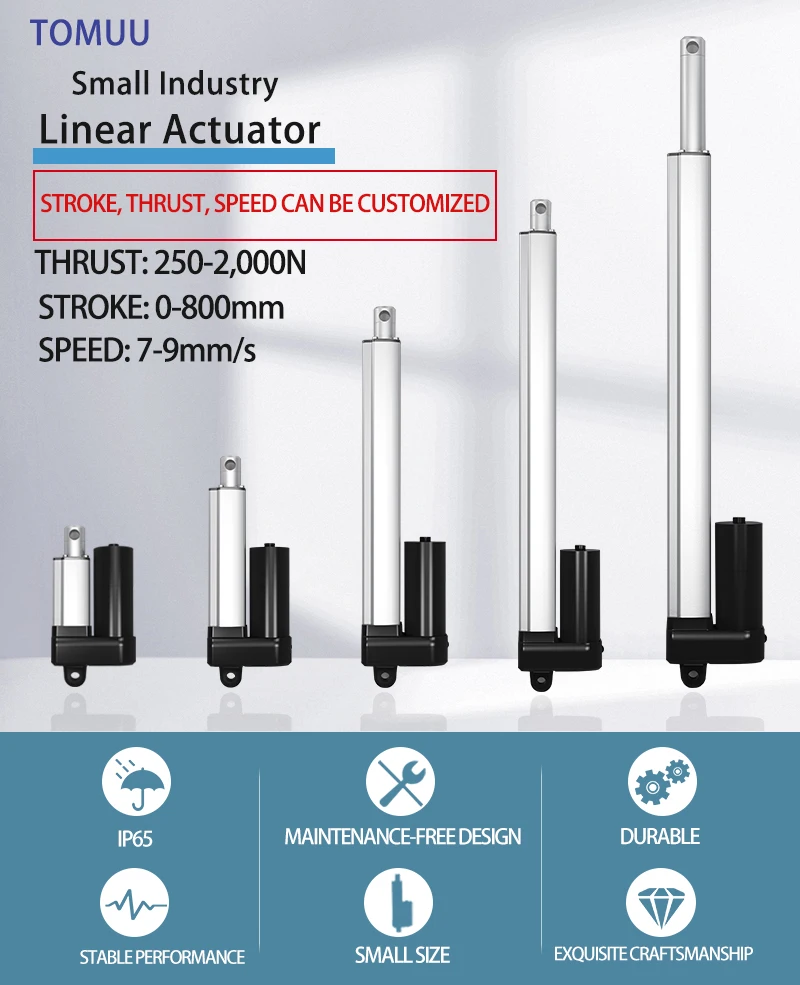

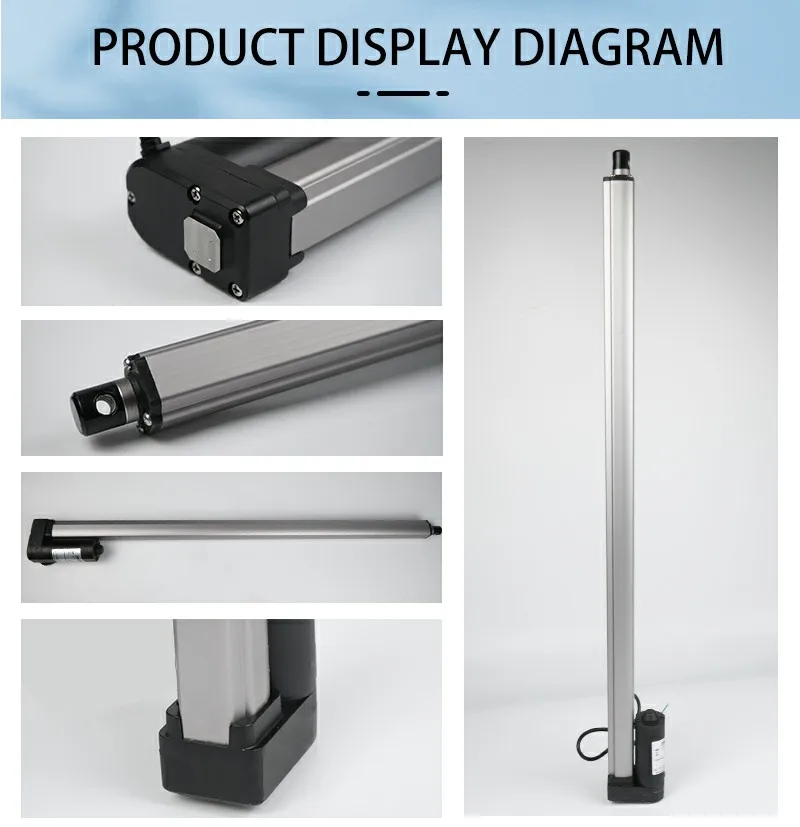

Products Description

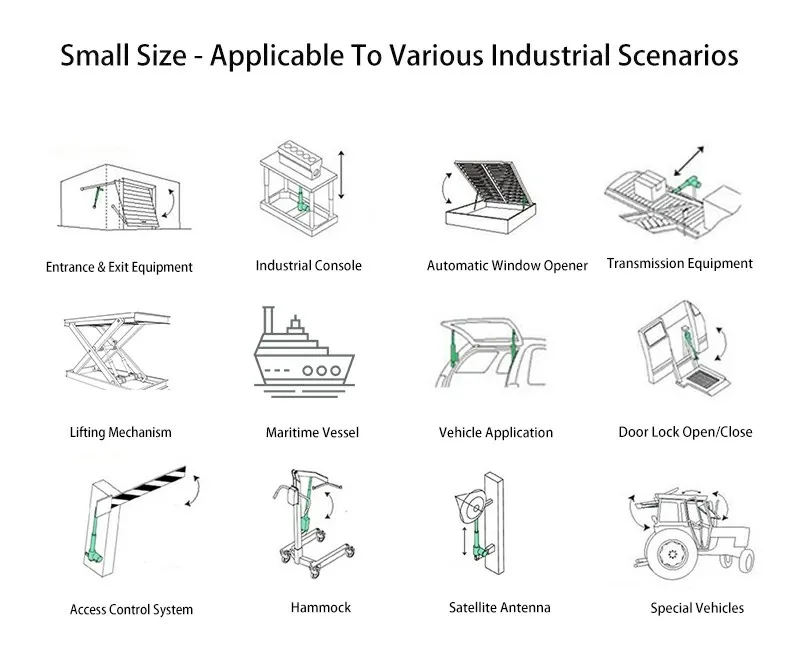

Application Scenarios
Why Chose Us
Why Choose TOMUU?
1. Support from experienced engineers.
2. Support deep customization service.
3. Wide range of force and stroke options.
4. Provide cost-effective products
5. Quick response & Timely delivery.
6. High-quality after-sales service.
2. Support deep customization service.
3. Wide range of force and stroke options.
4. Provide cost-effective products
5. Quick response & Timely delivery.
6. High-quality after-sales service.
Product Paramenters
Voltage | 12V 24V |
Stroke | 50-800mm |
Working Temps | -20℃ ~ +65℃ |
Operate Noise | ≤55db / ≤70db |
Limit Switch | Built-in |
Duty Cycle | 10% |
Protection Class | IP65 |
Option | Hall Sensor |

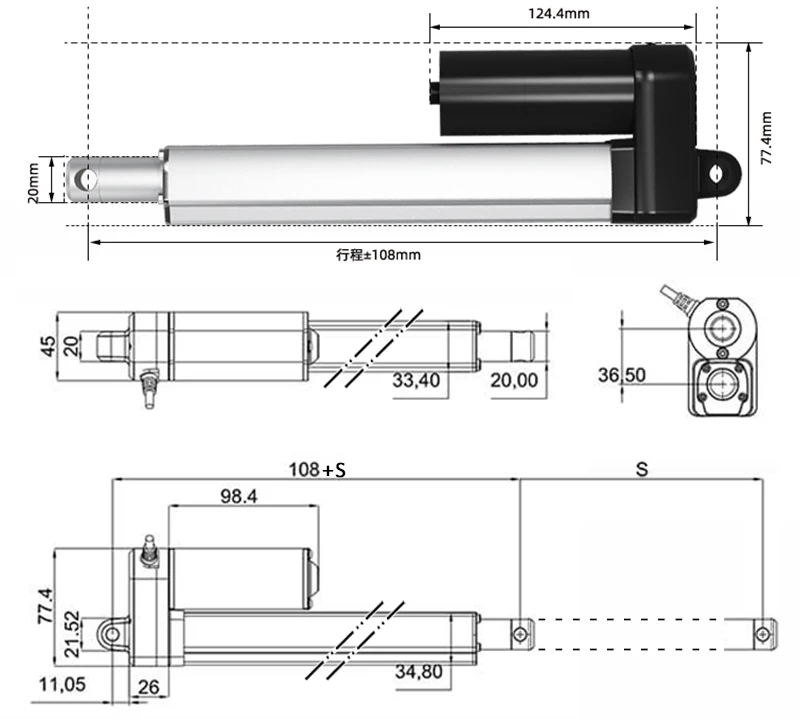

Installation Distance (mm) | 108+S |
Full Load Speed (mm/s) | 65 | 32.5 | 16.2 | 9.1 | 7.5 | 6.1 | 5.6 | 4.6 | ||||||||
Load (N) | 250 | 400 | 800 | 1000 | 1200 | 1500 | 1600 | 2000 | ||||||||
Click Here if you have more special needs | ||||||||||||||||

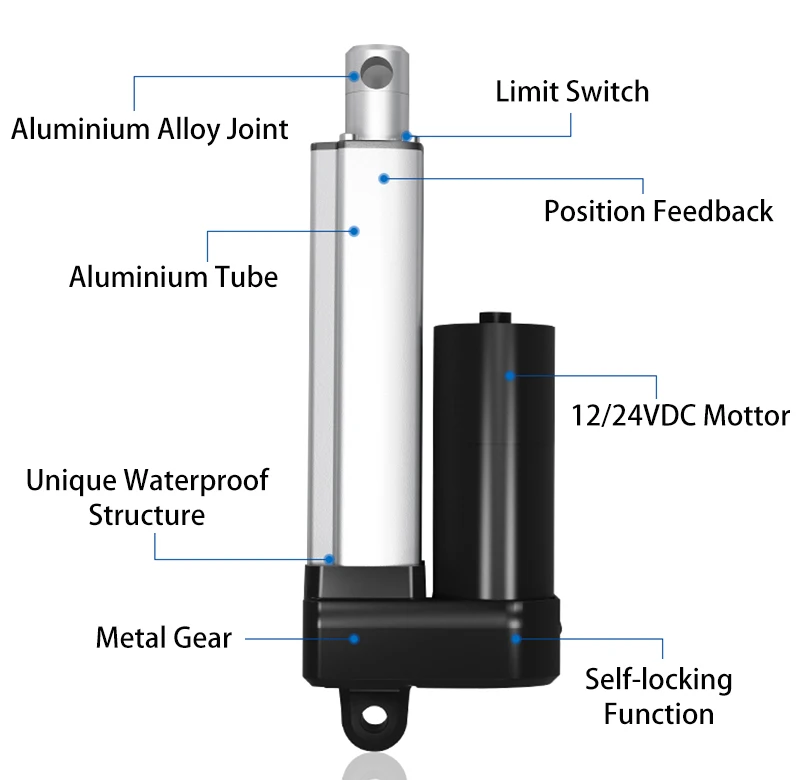

Product Feature

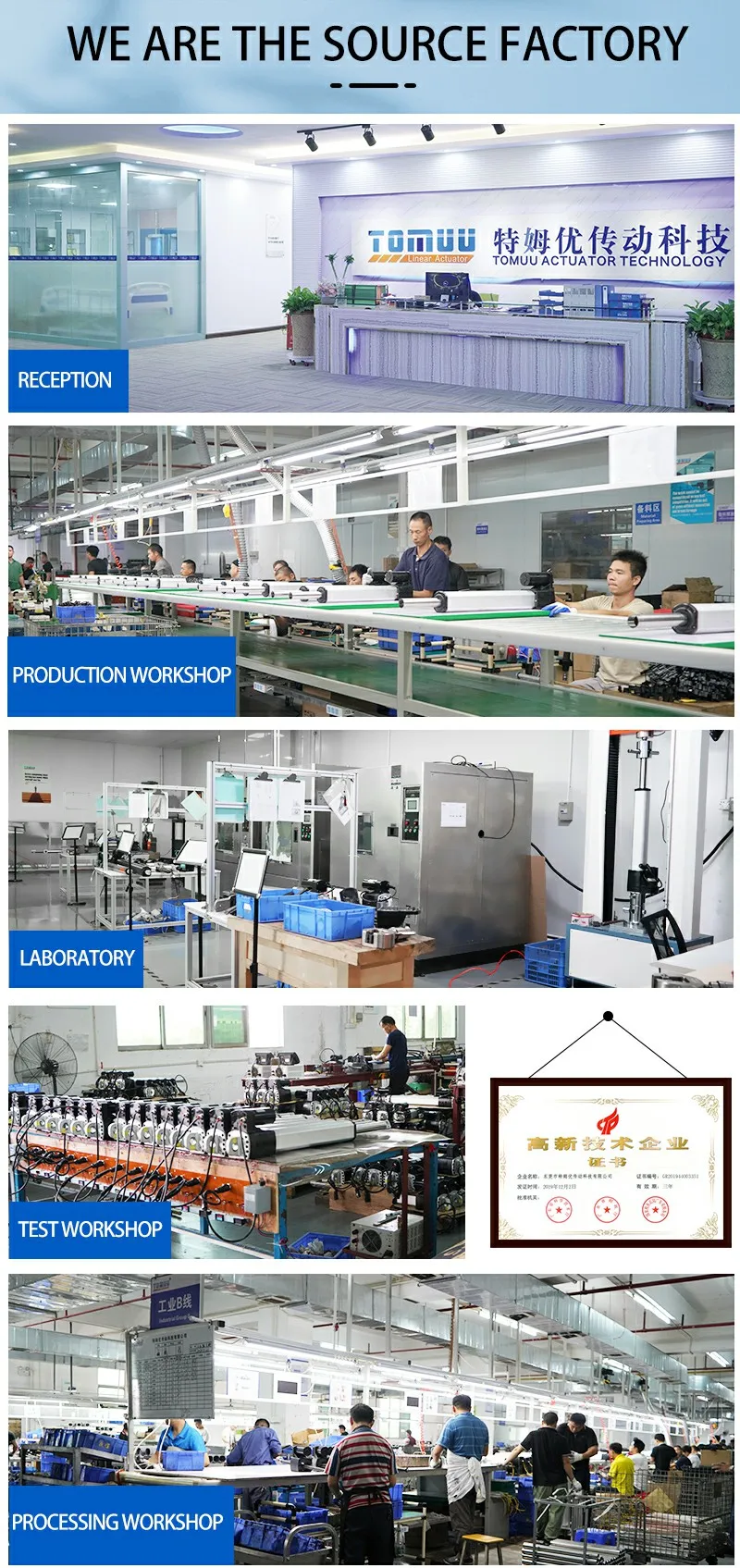

Company Profile
TOMUU is a solution provider of linear actuators, a high-tech manufacturing enterprise. Our electric linear actuators are widely used in Solar Tracking, Electric Sofa/ Bed, Massage Chair, Medical Care Bed, Industrial Automation, Livestock Farming Equipment, etc.
To get quick response and cost advantage, we built a complete manufacturing chain-- 70% parts built-in-house. Our management systems and product solutions are certified in accordance with ISO 9001:2015, ISO14001, OHSAS18000 and the safety test report. (CE, UL, KCC, etc.)
Product packaging
