Products Description

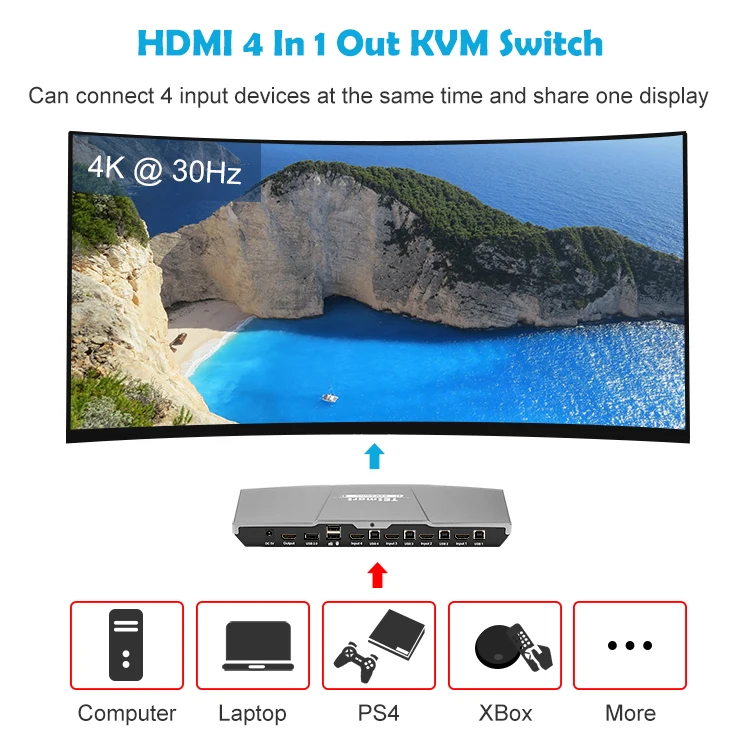

This 4x1 HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
Features
●\tUsing only 1 set of keyboard, mouse and monitor to control 4 PCs
●\tSupport Unix/ Windows/ Debian/ Ubuntu/ Fedora/ Mac OS X/ Raspbian/ Ubuntu for Raspberry Pi and other Linux based system
●\tSupport hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices
●\tSupport auto switching among all devices so as to monitor the devices in a specified time interval
●\tSupport keyboard hot keys to control KVM switch
●\tAvailable to use keyboard without any delay after switch host devices
●\tSupport resolution up to 3840*2160@30Hz\t
●\tWith extra standard USB port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer
●\tSupport IR control, easy to control KVM by remote control
●\tWith EDID emulators in each input port, keep PCs always having correct display information
●\tSupports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
●\tSupport Unix/ Windows/ Debian/ Ubuntu/ Fedora/ Mac OS X/ Raspbian/ Ubuntu for Raspberry Pi and other Linux based system
●\tSupport hot plug, connect or disconnect devices to the KVM switch at any time without turning off devices
●\tSupport auto switching among all devices so as to monitor the devices in a specified time interval
●\tSupport keyboard hot keys to control KVM switch
●\tAvailable to use keyboard without any delay after switch host devices
●\tSupport resolution up to 3840*2160@30Hz\t
●\tWith extra standard USB port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer
●\tSupport IR control, easy to control KVM by remote control
●\tWith EDID emulators in each input port, keep PCs always having correct display information
●\tSupports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters
Specification
HKS0401A30 | 4x1 HDMI KVM Switch | |||
Functionality: | ||||
Auto Scan | Yes | |||
Port selection | Front panel buttons | Yes | ||
Keyboard hotkeys | Yes | |||
IR remote control | Yes | |||
Console commands | No | |||
Technical: | ||||
Resolution | Up to 3840x2160@30Hz | |||
Auto to get EDID | Yes | |||
Data rate | 10.2 Gbps | |||
Auto scan interval | 1~250 Seconds | |||
Beep Sound | On/Off | |||
OSD | No | |||
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system | |||
Console ports | Keyboard emulation | 1 * USB Type A | ||
Mouse emulation | 1 * USB Type A | |||
USB 2.0 Hub ports | 1 * USB Type A | |||
Video /Audio | 1 * HDMI Type A | |||
RS232 | NA | |||
LAN | NA | |||
System ports | USB Data | 4 * USB Type B | ||
Video / Audio | 4 * HDMI Type A | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Mechanical: | ||||
Chasing material | Aluminum Alloy | |||
Product dimensions | 302 (L) x 120 (W) x 30 (H) mm | |||
Item weight | 800g | |||
