Gps-антенна 1575,42 МГц для автомобиля
US $2.30-$2.70
Новейшая разработка Gnss спиральный БПЛА высокоточная антенна RTK для
- Категории: GNSS & GPS Antenna >>>
- Поставщик: Shenzhen,Kingrf,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Details
No.1 ABS Waterproof Material Reinforce Solder Joints Against Vibration
No.2 Oxygen-free Pure Copper Wire Core
High Conductivity
No.3 Pure Copper Gold-Plated Interlace
Resistant To Oxidation And Stable Transmission
Resistant To Oxidation And Stable Transmission
Electrical Specifications | ||
Product name | GPS helical antenna | |
Frequency Range(MHz) | GPS L1,BDS B1,GLONASS L1:1559~1602 | |
Polarization | Right-hand circular | |
Gain(dBi) | 90°≥2 | |
Axial Ratio(dB) | 90°≤3 | |
LNA Gain(dB) | 36±2 | |
V.S.W.R | <2.0:1 | |
Noise Figure (dB) | <2.0 | |
DC Voltage (V) | 3.3~18 | |
Current (mA) | <30 | |
Impedance(Ω) | 50 | |
Mechanical Specifications | ||

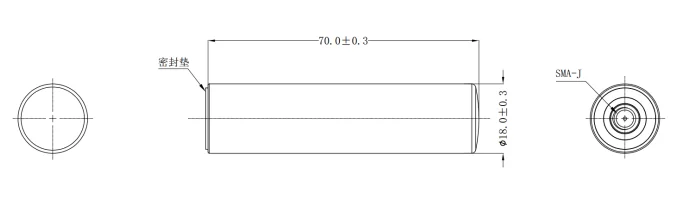

Dimensions(mm) | Φ18×70 | |
Connector | SMA-J | |
Weight（g） | <20 | |
Waterproof status | IP67 | |
Environment Specifications | ||
Relative Humidity | 95% | |
Operating Temperature (℃) | -40～+75 | |
Storage Temperature (℃) | -55～+85 | |
Product introduction
The antenna adopts a four-arm spiral structure with a relatively stable phase center, which reduces the influence of the antenna on the measurement error;

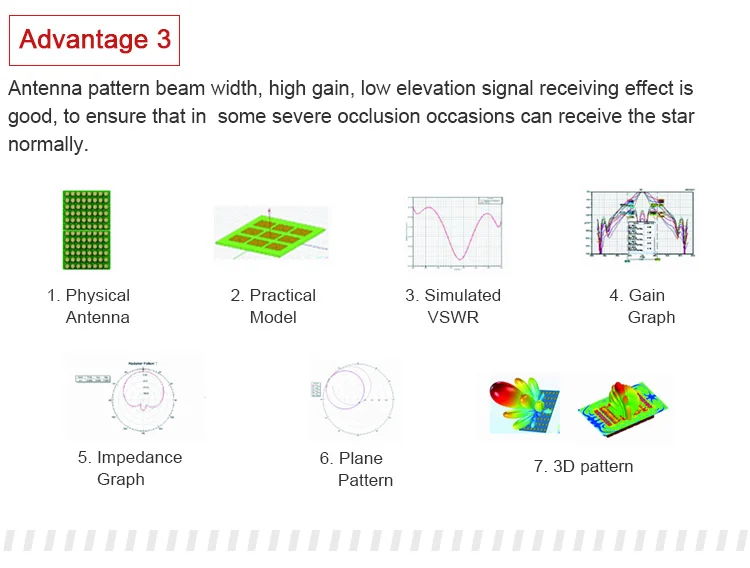

The antenna gain is high, the beam pattern is wide, and the effect of receiving low elevation signals is good, ensuring that the antenna can receive the satellite in different attitudes;
The antenna is equipped with a high-band out-of-band suppression low-noise amplifier circuit, which can effectively resist external electromagnetic interference, and has low power consumption to ensure the endurance of the device;
The antenna is small in size and light in weight, and is suitable for use on various devices that require antenna weight, such as drones and various handheld terminals.
The antenna gain is high, the beam pattern is wide, and the effect of receiving low elevation signals is good, ensuring that the antenna can receive the satellite in different attitudes;
The antenna is equipped with a high-band out-of-band suppression low-noise amplifier circuit, which can effectively resist external electromagnetic interference, and has low power consumption to ensure the endurance of the device;
The antenna is small in size and light in weight, and is suitable for use on various devices that require antenna weight, such as drones and various handheld terminals.
Application
This antenna is a three-system three-band four-arm helical antenna covering GPS L1, BDS B1, and GLONASS L1. It has the characteristics of small size and light weight, and is widely used in navigation and scheduling, tracking and monitoring, measurement and control. Based on the four-arm helical antenna's low antenna attitude requirements, it is especially suitable for various handheld terminals and high-precision positioning modules.
